Addressable Digital RGB LED Strips 5M
LumaCircuit offers Addressable Digital RGB LED Strips 5M as a configurable LED strip for project builds. Typical applications include Serviceable strip wiring, Power injection, Cabinet and display installation. Model: Programmable Digital LED Strips Working Temperature: -20-60℃ Waterproof Level: IP20, IP65, IP67, IP68 The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The individually addressable Digital RGB LED Strips, 5 meters per reel, use the high-quality 5050 SMD LEDs as the light source, 30LEDs and 60LEDs per meter available, the addressable IC built-in the SMD LEDs, each pixel have its color and brightness, only can work with the dream color LED Controller and the input voltage is DC5V, please do not try the DC12V or DC24V, after connected to the Controllers, the Digital LED Strips will appear the advanced lighting effects like dream full color, curtain-up, flow water
- Model: Programmable Digital LED Strips
- Working Temperature: -20-60℃
- Waterproof Level: IP20, IP65, IP67, IP68
- IC Type: 2812 Addressable IC Built-In 5050 SMD LEDs
- LED Quantity: 30LEDs/Meter; 60LEDs/Meter

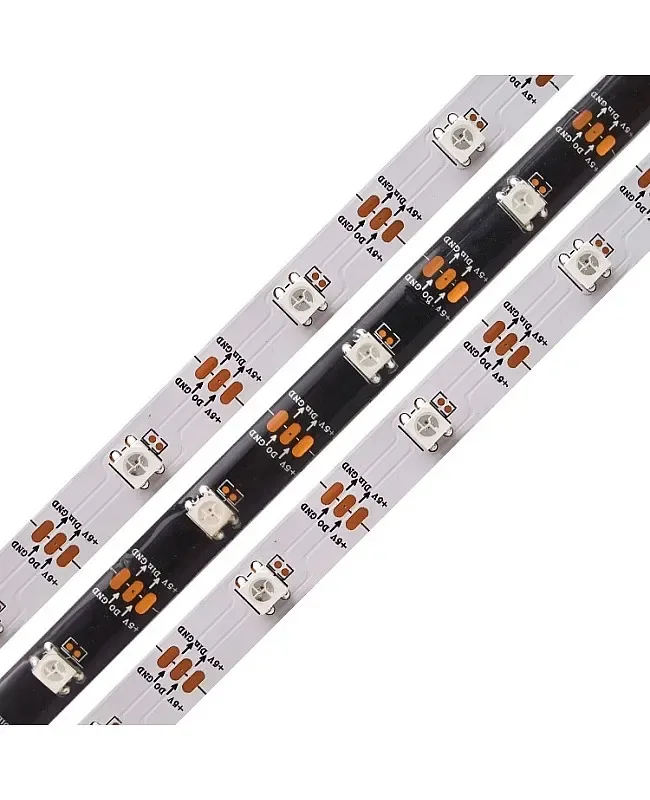

- PCB Board Colors: Black/White
- Power: 6W/Meter(30LEDs/Meter)/12W/Meter(60LEDs/Meter)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V
- Light engine: Addressable
- LumaCircuit model: LC-STR-P09JW4
- Working Temperature: -20-60℃
- Input Voltage: DC5V
- LED: 5050 SMD LEDs
- LED Quantity: 30LEDs/Meter; 60LEDs/Meter
- PCB Board Colors: Black/White
- PCB Width: 10mm
- Power: 6W/Meter(30LEDs/Meter)/12W/Meter(60LEDs/Meter)
- Color: Full-Color 24-Bit
- Color Order: G R B
Control and installation
Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.
Plan the installation around Serviceable strip wiring, Power injection, Cabinet and display installation. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

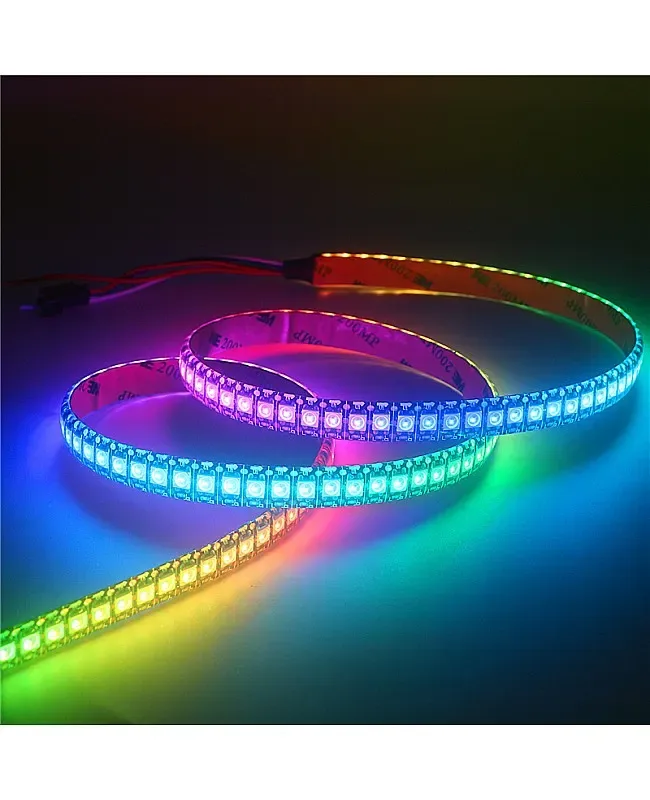

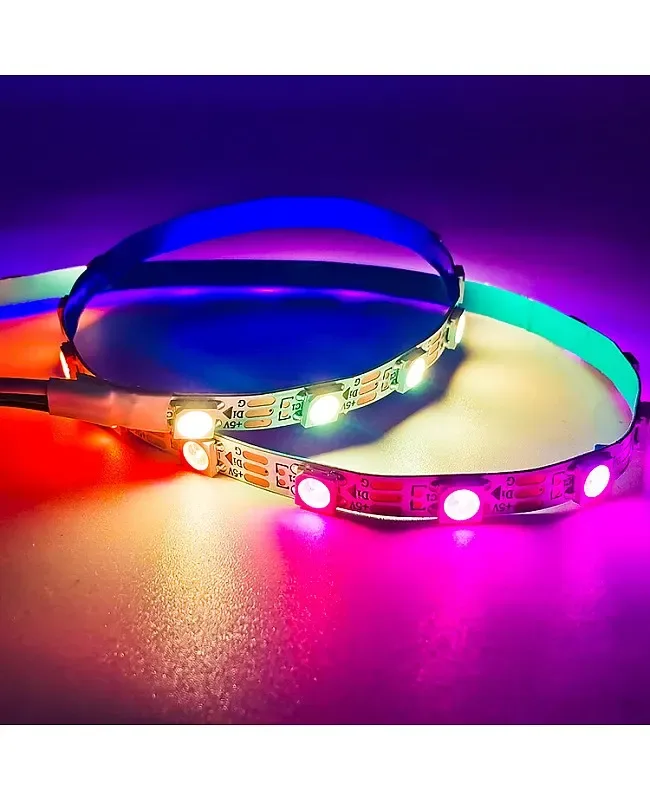

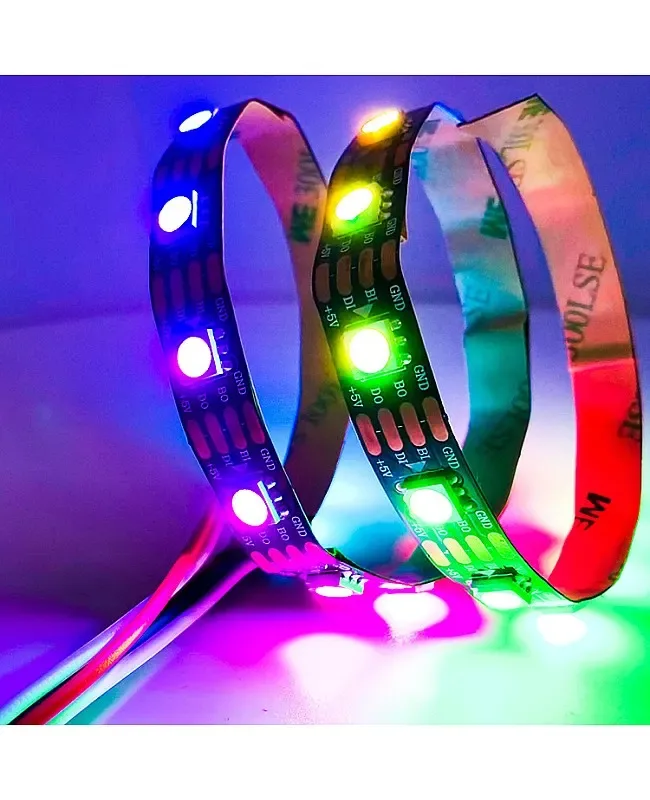

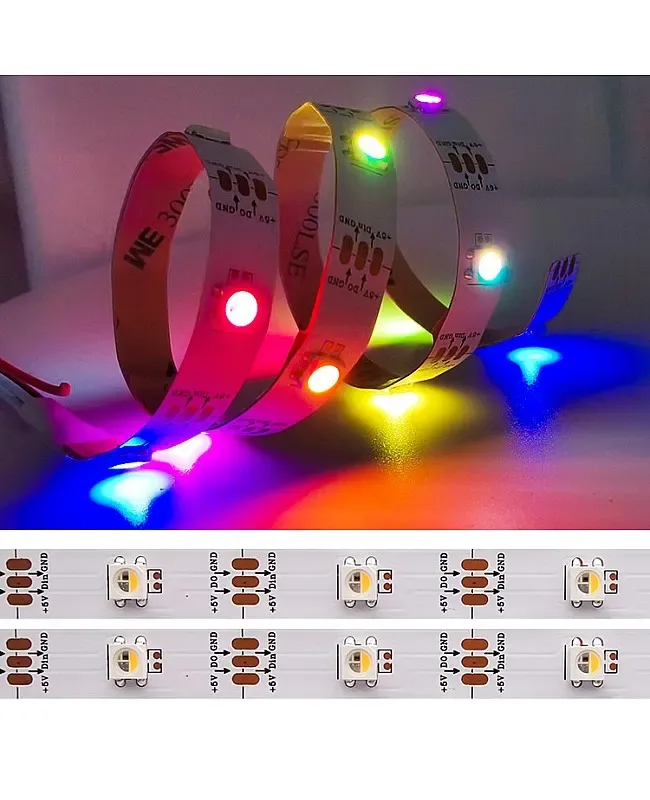

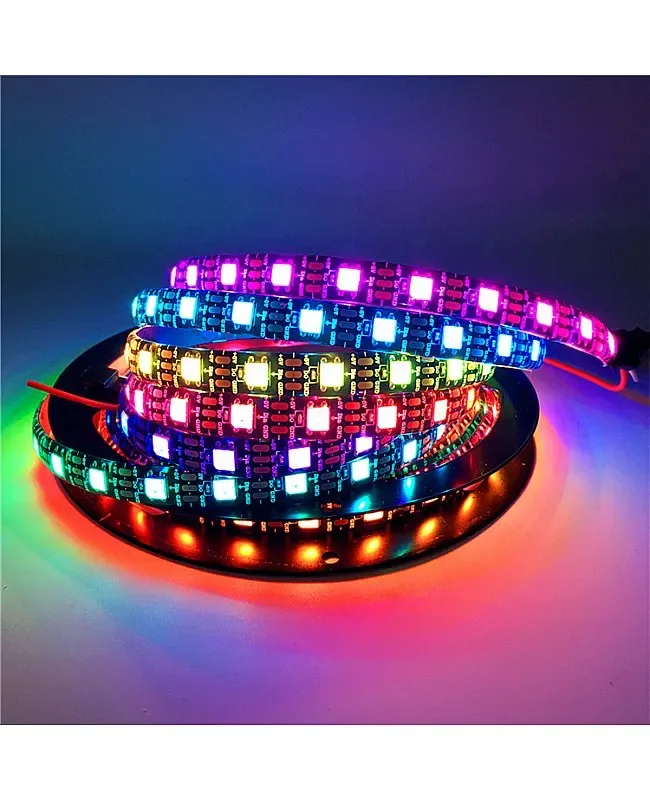

The individually addressable Digital RGB LED Strips, 5 meters per reel, use the high-quality 5050 SMD LEDs as the light source, 30LEDs and 60LEDs per meter available, the addressable IC built-in the SMD LEDs, each pixel have its color and brightness, only can work with the dream color LED Controller and the input voltage is DC5V, please do not try the DC12V or DC24V, after connected to the Controllers, the Digital LED Strips will appear the advanced lighting effects like dream full color, curtain-up, flow water, raindrop, jump, flash and other hundreds of lighting effects. The Programmable LED Strip Lights feature 3-pin JST-SM connectors for easy installation, as well as separate power and ground wires on both ends. Each LED can be cut off without damaging the entire LED Strip; the installer can cut to any desired size the installer should add a DC5V voltage every 5 meters, as the LEDs at the far end of the strips may be dimmer due to the added resistance and voltage drop that occurs as the current flows to that end of the Strips there are four different waterproof level products available, IP20, IP65, IP67 and IP68, recommend the IP20 and IP65 work indoor, IP67 and IP68 work outdoor.
Specifications
Model: Programmable Digital LED Strips
Working Temperature: -20-60℃
Input Voltage: DC5V

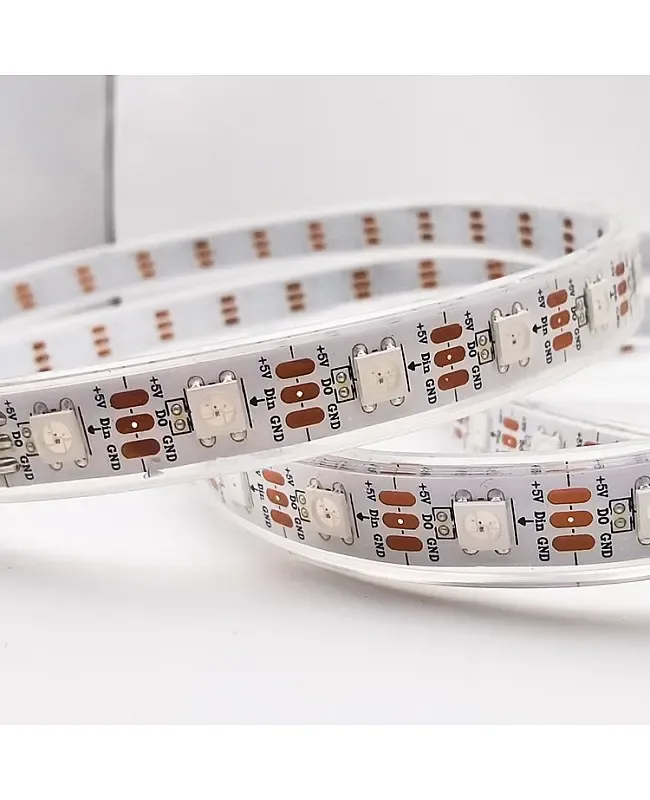

Waterproof Level: IP20, IP65, IP67, IP68
IC Type: 2812 Addressable IC Built-In 5050 SMD LEDs
LED: 5050 SMD LEDs
LED Quantity: 30LEDs/Meter; 60LEDs/Meter
PCB Board Colors: Black/White
PCB Width: 10mm
Power: 6W/Meter(30LEDs/Meter)/12W/Meter(60LEDs/Meter)
View Angle: 120°
Color: Full-Color 24-Bit
Color Order: G R B
Dimmable: YES
Every LED Can Be Cut Off And Re-Connected
Gray Level: 256
Advanced Lighting Effects: Dream Full Color, Curtain-Up, Flow Water, Raindrop, Jump, Flash, etc
Comes With 3-pin JST-SM Connectors On Both Ends
Separated Power/Ground Wires On Both Ends

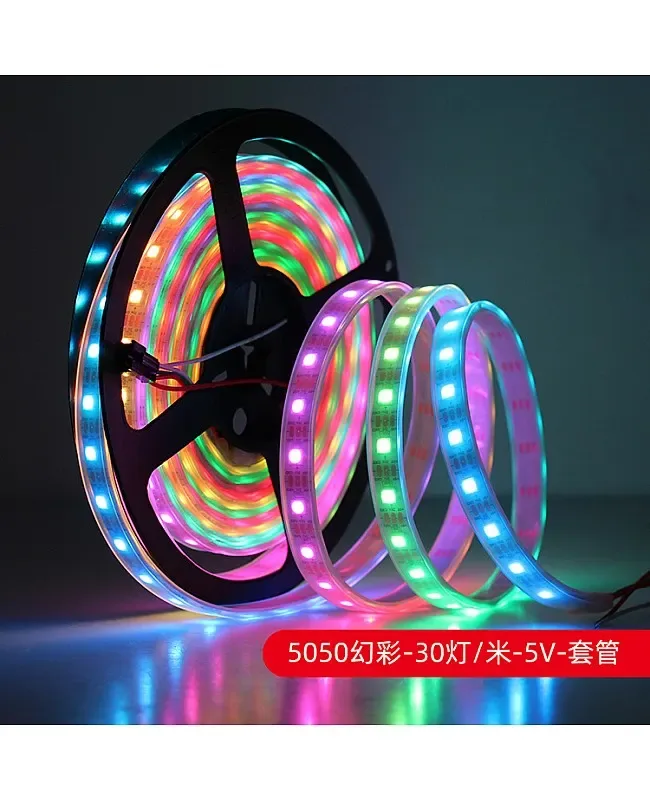

Length: 5M/Reel
Includes
1 * Programmable LED Lights Strips(5M/Reel）
Typical applications
- Serviceable strip wiring
- Power injection
- Cabinet and display installation
