3527 CCT Tunable White LED Light Strips For Room Reel

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

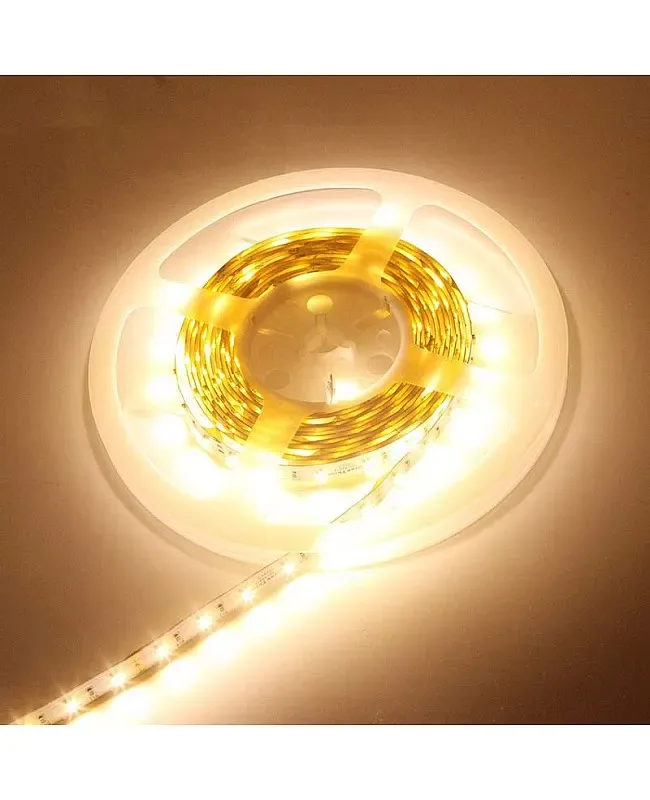

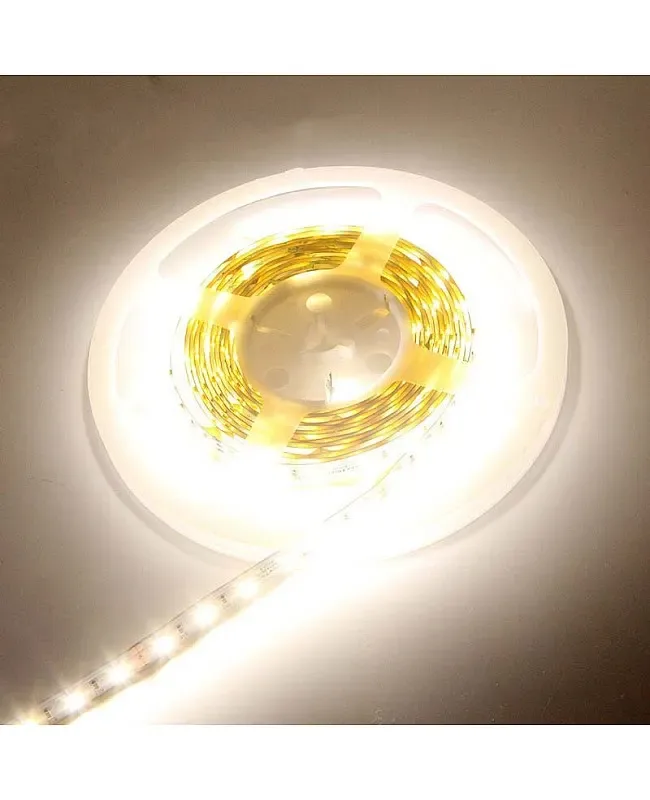

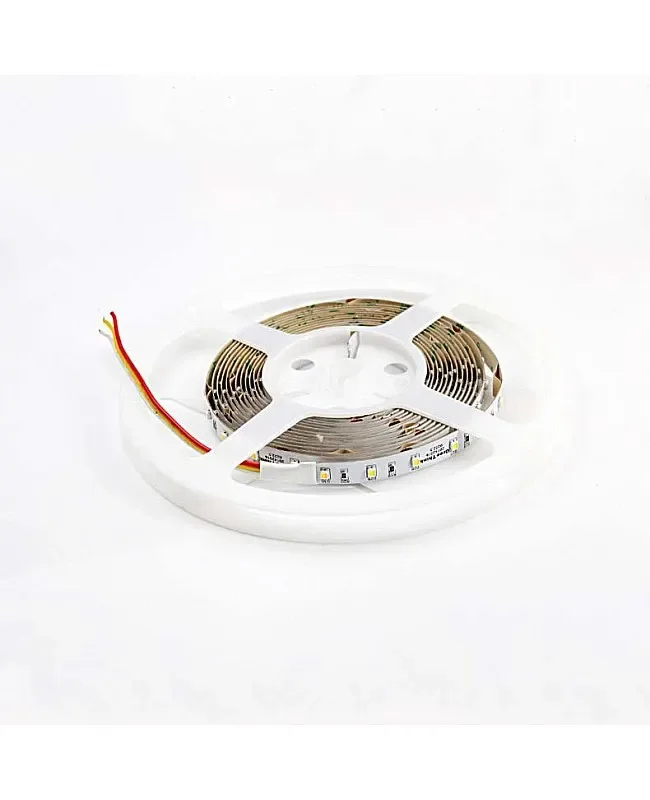

• The 3527 CCT tunable white LED light strips use the 2-in-1 dual-chip 3527 SMD LEDs as the light source, 60 LEDs per meter and 5 meters per reel. The installer can choose the warm white + cool white and warm white + cool white emitting colors. Connect to the tunable white LED controller to adjust the color temperature from 3000K to 4000K or 3000K to 6500 K.
• Size: 5000*10*2mm(L*W*H)
• White Dual Layer Flexible FPC Board
• LED Quantity: 60 LEDs/Meter
• Colors: Warm White(3000K) + Cool White(6000-6500K) Warm White(3000K) + Natural White(4000K)
• Luminous Flux: 12- 14lm/LED
• Light Efficiency: 87.5lm/W
• Waterproof Level: IP20 Non-Waterproof

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 12 V
• Light engine: CCT
• LumaCircuit model: LC-STR-FTSRBB
• Size: 5000*10*2mm(L*W*H)
• Working Voltage: DC12V
• LED Type: 3527
• LED Quantity: 60 LEDs/Meter
• Power: 9.6W/M
• Colors: Warm White(3000K) + Cool White(6000-6500K) Warm White(3000K) + Natural White(4000K)
• Length: Reel
• Light Output: 840lm/M
• CRI: >

Control and installation

Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.

Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

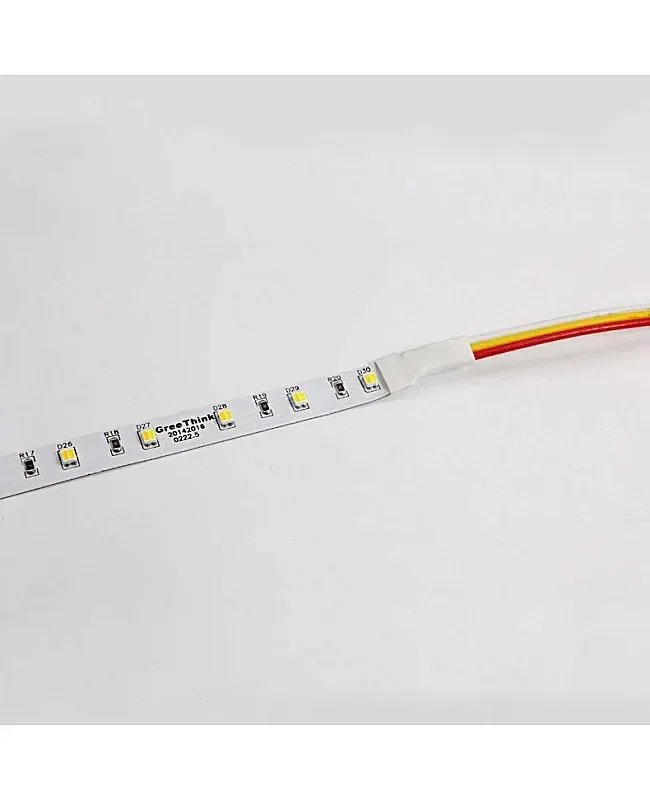

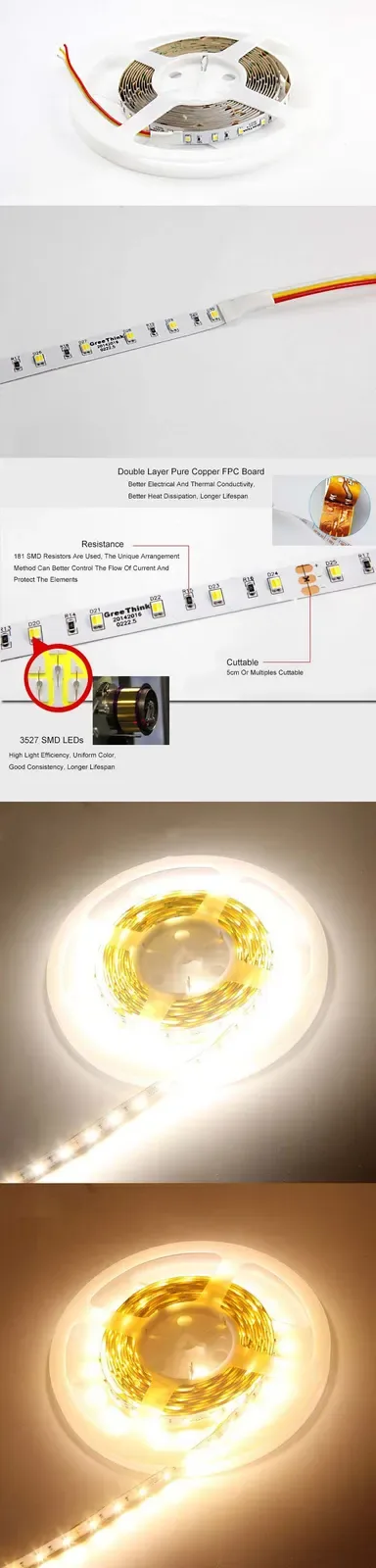

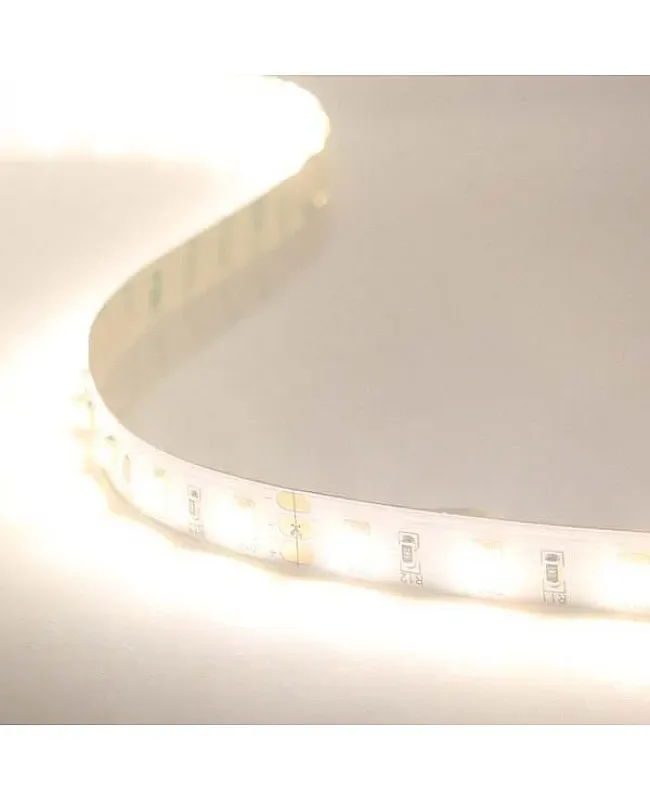

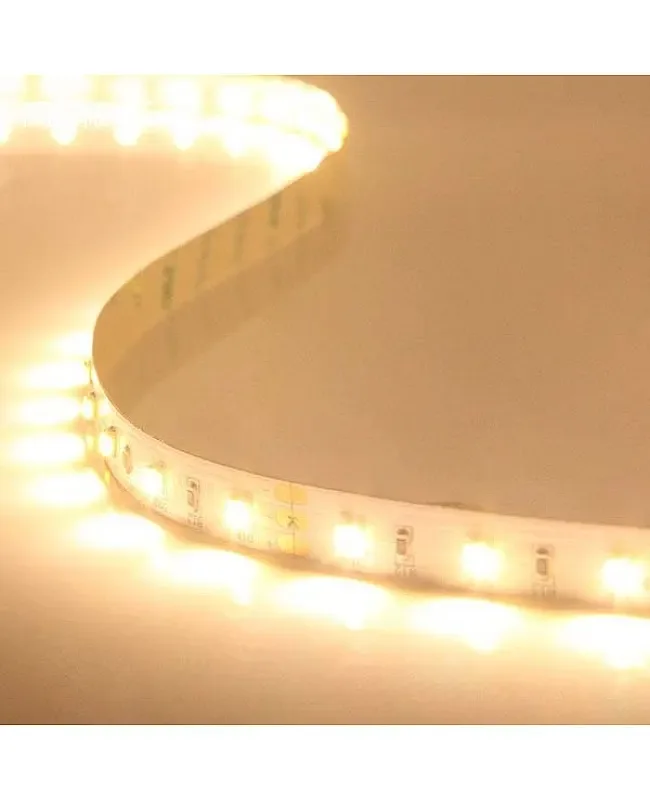

The 3527 CCT tunable white LED light strips use the 2-in-1 dual-chip 3527 SMD LEDs as the light source, 60 LEDs per meter and 5 meters per reel. The installer can choose the warm white + cool white and warm white + cool white emitting colors. Connect to the tunable white LED controller to adjust the color temperature from 3000K to 4000K or 3000K to 6500 K. The 3527 LED Strips work in DC12V, easy to connect to the LED Light Driver to light up The IP rating is IP20, non-waterproof, only recommended for indoor use the SMD LEDs mounted on the dual-layer FPC board, are flexible and bendable, the back with double-sided adhesive tape, take off the protector and stick on the place you want to install. The CCT white light LED strips are cuttable; the minimum cuttable length is 5cm. The installer can follow the cuttable mark and cut to any size for your project. Dimmable and can connect to the LED strip dimmer to adjust the brightness easily.

Specifications

Model

Size: 5000*10*2mm(L*W*H)

Working Voltage: DC12V

White Dual Layer Flexible FPC Board

LED Type: 3527

LED Quantity: 60 LEDs/Meter

Power: 9.6W/M

Colors: Warm White(3000K) + Cool White(6000-6500K) Warm White(3000K) + Natural White(4000K)

Length: Reel

Luminous Flux: 12- 14lm/LED

Angle View: 120°

Light Output: 840lm/M

Light Efficiency: 87.5lm/W

Waterproof Level: IP20 Non-Waterproof

Dimmable: YES

CRI: >

Minimum Cutting Length: 5CM

Includes

1 * LED Light Strips For Room(Reel)
