320LEDs COB LED Light Strip

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• The COB LED light strip, real dot free, no dark dot, uniform illumination, provides an incredibly bright and comfortable visual experience. The COB LED strip light uses 1022 LEDs as the light source, 320 LEDs per meter, and 5 meters per reel. The installer can choose the various emitting colors, warm white, white, and cool white, and connect to the PWM light dimmers to adjust the brightness. The back has double-sided tape, which is easy to install and maintain.
• Working Voltage: DC12V/DC24V
• Power: 5W/Meter, 10W/Meter, 15W/Meter
• Colors: Warm White(2700K)/Warm White(3000K)/White(4000K)/Cool White(6500K), Red, Green, Pink, Yellow, Purple, Blue
• LED Quantity: 320 LEDs/Meter
• Width Of PCB Board: 4mm, 8mm, 10mm
• Cuttable: 25MM(12V)/50MM(24V)
• Waterproof Level: IP20, IP67

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 12 V / 24 V
• Light engine: CCT
• LumaCircuit model: LC-STR-3D6WT0
• Working Voltage: DC12V/DC24V
• Power: 5W/Meter, 10W/Meter, 15W/Meter
• Colors: Warm White(2700K)/Warm White(3000K)/White(4000K)/Cool White(6500K), Red, Green, Pink, Yellow, Purple, Blue
• LED Quantity: 320 LEDs/Meter
• LED: 1022
• LED Chip: San An
• Width Of PCB Board: 4mm, 8mm, 10mm
• Length: Reel
• Beam Angle: 180°

Control and installation

Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.

Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

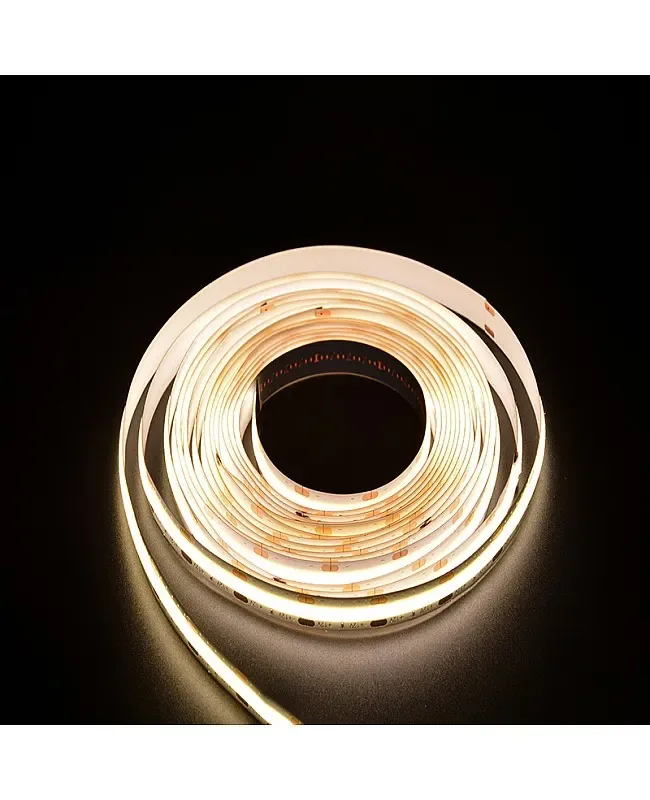

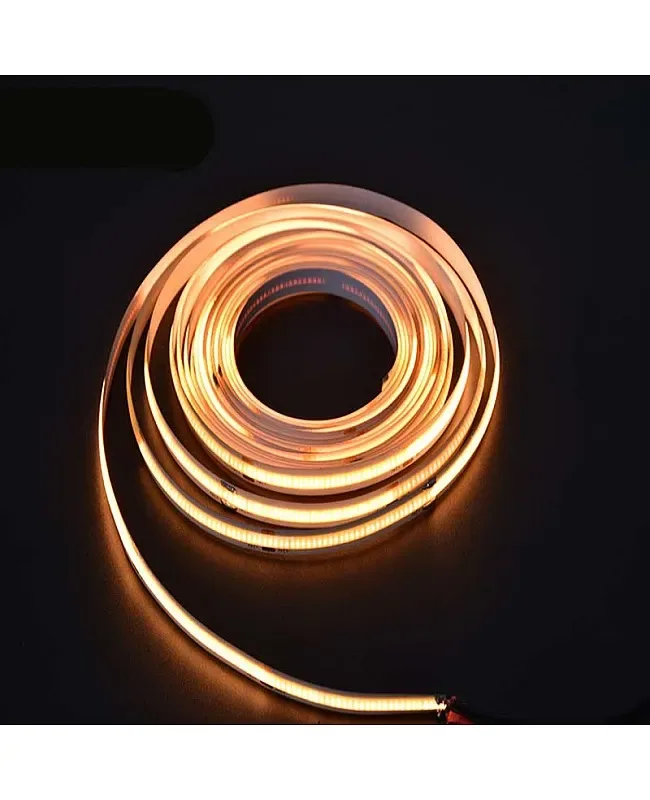

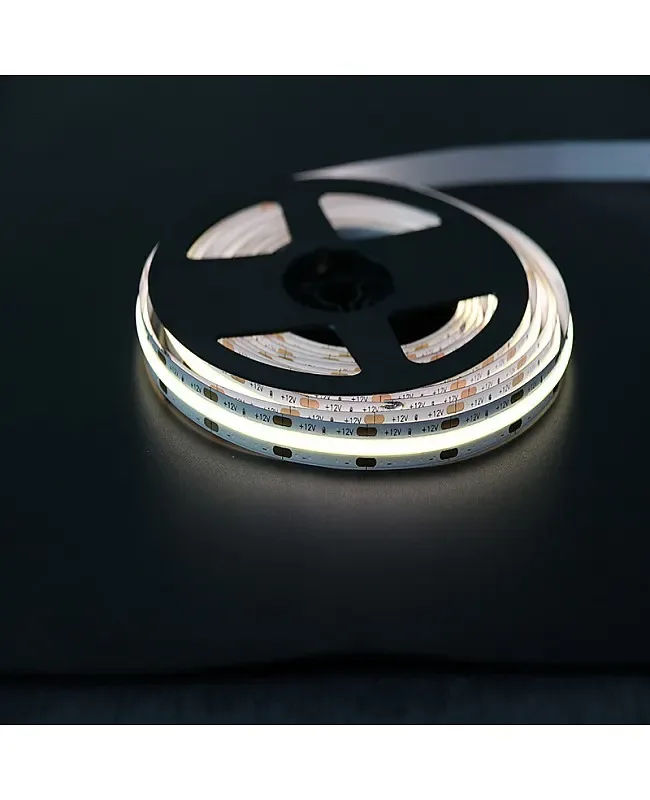

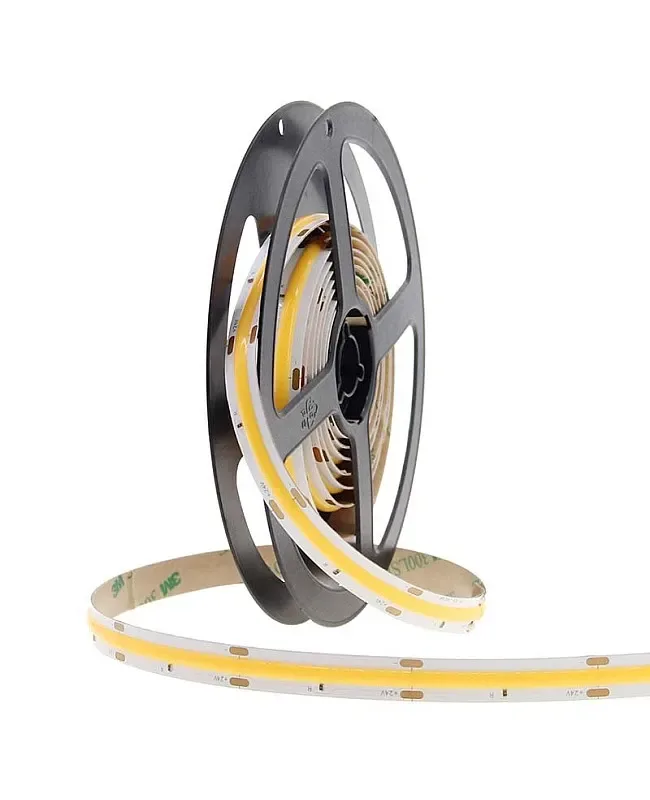

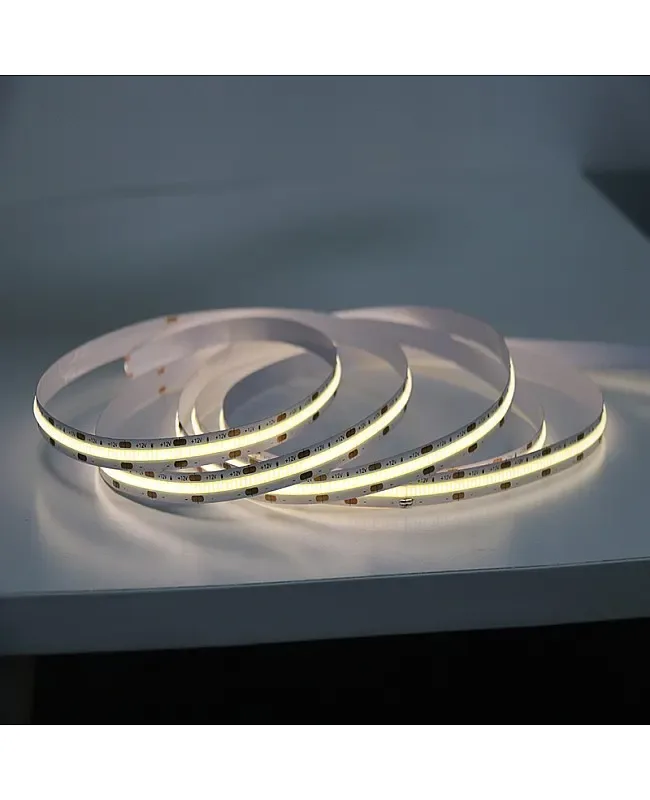

The COB LED light strip, real dot free, no dark dot, uniform illumination, provides an incredibly bright and comfortable visual experience. The COB LED strip light uses 1022 LEDs as the light source, 320 LEDs per meter, and 5 meters per reel. The installer can choose the various emitting colors, warm white, white, and cool white, and connect to the PWM light dimmers to adjust the brightness. The back has double-sided tape, which is easy to install and maintain. There are two waterproof COB LED strips available, the IP20 and IP67. IP20 non-waterproof LED strips are recommended for indoor work, and IP67 silicone tube LED strips can be used outdoors. The COB LED strips are cuttable and re-connectable suited to various indoor and outdoor linear lighting projects.

Specifications

Model

Working Voltage: DC12V/DC24V

Power: 5W/Meter, 10W/Meter, 15W/Meter

Colors: Warm White(2700K)/Warm White(3000K)/White(4000K)/Cool White(6500K), Red, Green, Pink, Yellow, Purple, Blue

LED Quantity: 320 LEDs/Meter

LED: 1022

LED Chip: San An

Width Of PCB Board: 4mm, 8mm, 10mm

Length: Reel

Beam Angle: 180°

Cuttable: 25MM(12V)/50MM(24V)

Dimmable: YES

Waterproof Level: IP20, IP67

Real Dot Free, No Dark Dot, Color Consistency, Uniform illumination

Low Power Consumption And Low Heat

Connection: 2*/Red+Black

Back With Double-Sided Tape

Includes

1 * COB LED Light Strip(Reel)
