12V PWM RGBW LED Strip Controller
LumaCircuit offers 12V PWM RGBW LED Strip Controller as a configurable LED strip for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Working Temperature: -20-60℃ Max Output Current:1.5A* Max Output Power: 72W(12V)/144W(24V) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The PWM RGBW LED strip controller with a mini size, working on -24V, with four output channels design, and the max output current of each channel is 1.5A, the max loading power up to 144W when working in 24V, They adopt the PWM digital technology, designed for the RGBW constant voltage LED lights, comes with 24 keys IR remote, the "W" channel can be turned/off and adjust the brightness independently, and three more brightness level keys. 13 modes for the RGB part, nine static colors, and four dynamic changes.
- Working Temperature: -20-60℃
- Max Output Current:1.5A*
- Max Output Power: 72W(12V)/144W(24V)
- Output Gray: 63 Levels(With Continuous Reception)
- Adopts PWM Digital Technology
- Connecting Mode: Common Anode
- 13 Modes for RGB Part, 9 Static Colors, And 4 Dynamic Modes
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 12-24 V / 24 V
- Light engine: RGBW
- LumaCircuit model: LC-STR-V3B9W2
- Size: 48*26*13mm(L*W*H)
- Working Temperature: -20-60℃
- Working Voltage: -24V
- Output Channels: 4
- Max Output Current: 1.5A*
- Max Output Power: 72W(12V)/144W(24V)
- Output Gray: 63 Levels(With Continuous Reception)
- Signal Frequency: 150Hz
- Connecting Mode: Common Anode
Control and installation
Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

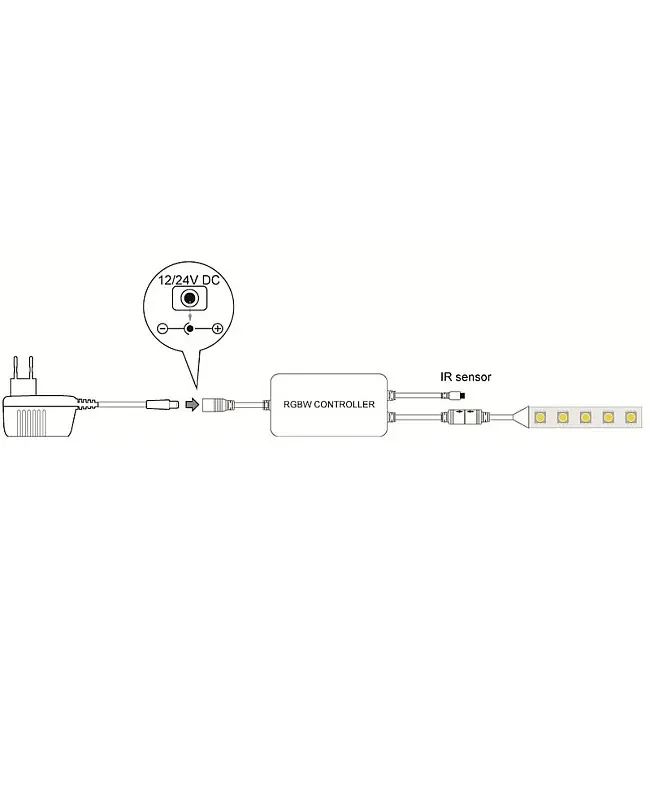

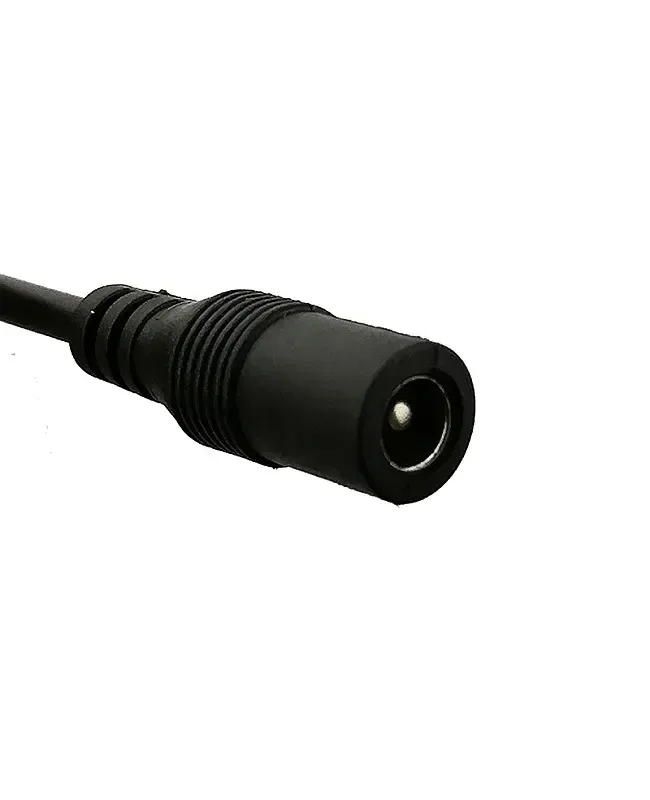

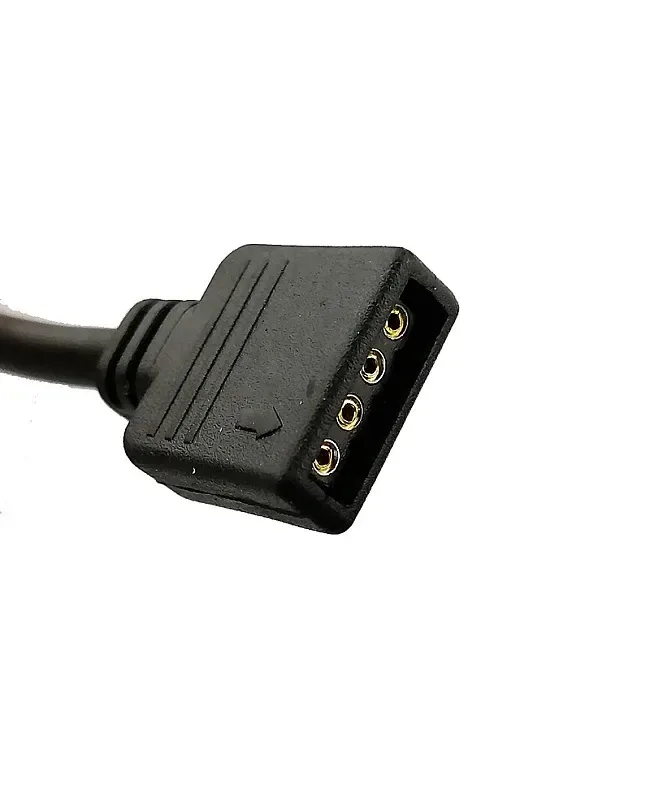

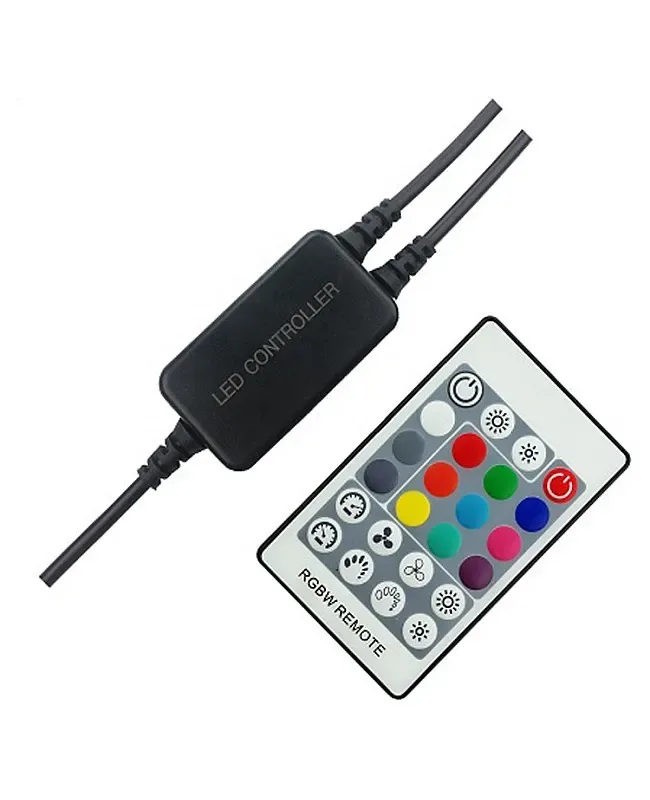

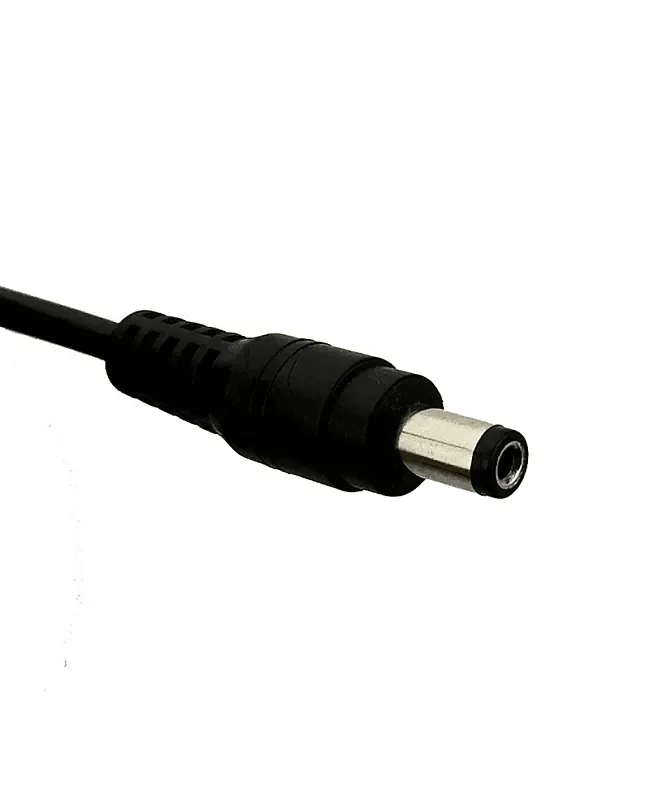

The PWM RGBW LED strip controller with a mini size, working on -24V, with four output channels design, and the max output current of each channel is 1.5A, the max loading power up to 144W when working in 24V, They adopt the PWM digital technology, designed for the RGBW constant voltage LED lights, comes with 24 keys IR remote, the "W" channel can be turned/off and adjust the brightness independently, and three more brightness level keys. 13 modes for the RGB part, nine static colors, and four dynamic changes. The brightness of static colors and the speed of dynamic changes are adjustable. With the memory function, each time the power is turned on, it retains the mode which stops last turned off. With the RGBW controller with a female DC connector and a 5-pin RGBW connector, the installer can conveniently connect to the LED power supply and RGBW LED strips.
Specifications
Model: HX-MINI-001-RGBW
Size:48*26*13mm(L*W*H)
Working Temperature: -20-60℃
Working Voltage: -24V
Output Channels: 4
Max Output Current:1.5A*
Max Output Power: 72W(12V)/144W(24V)
Output Gray: 63 Levels(With Continuous Reception)
Adopts PWM Digital Technology
Signal Frequency: 150Hz
Connecting Mode: Common Anode
Remote Control Battery
13 Modes for RGB Part, 9 Static Colors, And 4 Dynamic Modes
The brightness Of Static Colors And Speed Of Dynamic Modes Are Adjustable
Memory Function: YES
Includes
1 * RGBW LED Strip Controller

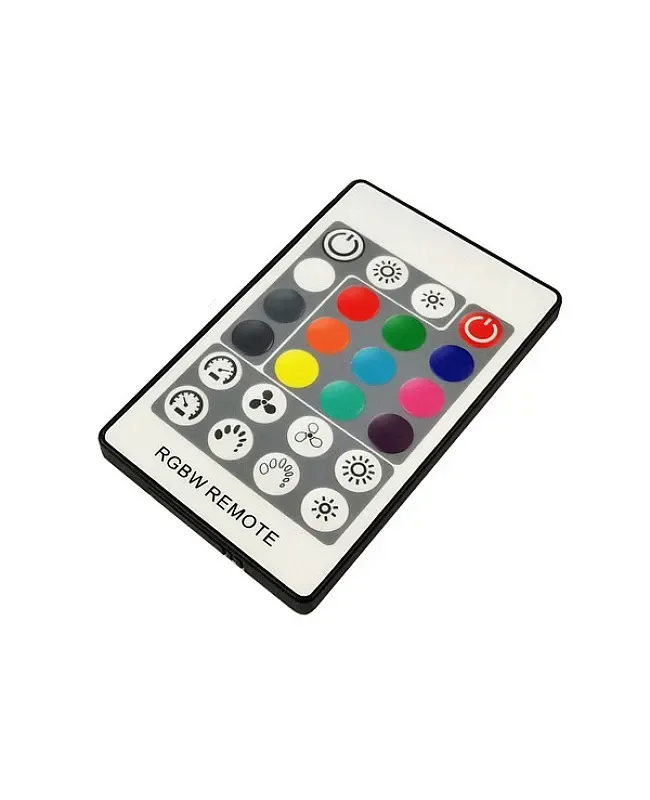

1 * 24 Keys IR Remote
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
