IR LED Strip Controller
LumaCircuit offers IR LED Strip Controller as a configurable LED strip for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Working temperature: -20-60℃ Static power consumption: <1W Working Voltage: DC12V(DC24V, DC5V Optional) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 24 Keys IR LED strip controller works on the constant voltage of DC12V, DC5V, and DC24V, which are optional, and can work with a variety of constant voltage RGB LED Lights. With 3 3-output channel design, the max output current of each channel is 2A. The 24-key IR remote included has 20 modes in total, including 16 static and 4 dynamic changes. The brightness of static color and the speed of dynamic changes are adjustable.
- Working temperature: -20-60℃
- Static power consumption: <1W
- Working Voltage: DC12V(DC24V, DC5V Optional)
- Power: DC5V:≤30W; DC12V:≤72W: 24V:≤144W
- Adopts A Conventional Power Transposon As A DC Power Input Interface
- 24 Keys IR Remote Included
- 1 * IR LED Strip Controller
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V / 5 V
- Light engine: RGB
- LumaCircuit model: LC-STR-MOTBGV
- Size: 61 mm*35 mm*22 mm
- Working temperature: -20-60℃
- Static power consumption: <1W
- Working Voltage: DC12V(DC24V, DC5V Optional)
- Output Channel: 3
- Power: DC5V:≤30W; DC12V:≤72W: 24V:≤144W
- Current: ≤3*2A
- Dimensions found: 61 mm / 35 mm / 22 mm
Control and installation
Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

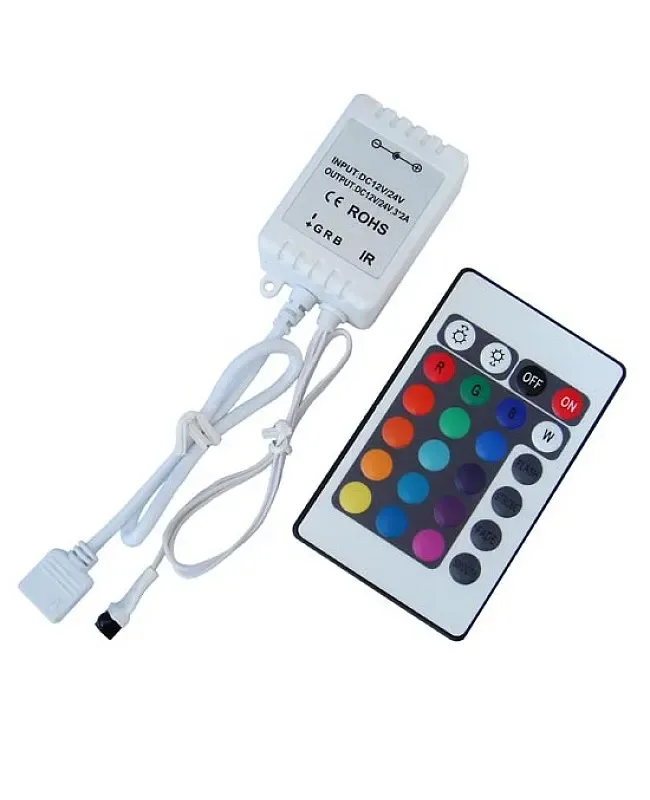

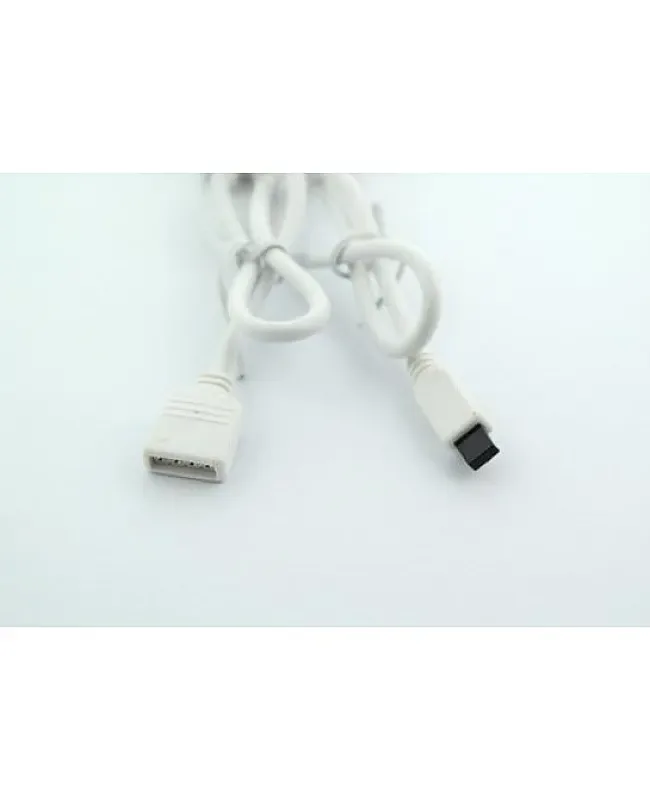

The 24 Keys IR LED strip controller works on the constant voltage of DC12V, DC5V, and DC24V, which are optional, and can work with a variety of constant voltage RGB LED Lights. With 3 3-output channel design, the max output current of each channel is 2A. The 24-key IR remote included has 20 modes in total, including 16 static and 4 dynamic changes. The brightness of static color and the speed of dynamic changes are adjustable. The LED strip controller with a female DC connector and 4-pin RGB LED connector allows you to easily connect the RGB LED strips and the LED power supply.
Specifications
TY-L-C-002
Manufacturer
Size: 61 mm*35 mm*22 mm
Working temperature: -20-60℃
Static power consumption: <1W
Working Voltage: DC12V(DC24V, DC5V Optional)
Output Channel: 3
Power: DC5V:≤30W; DC12V:≤72W: 24V:≤144W
Current: ≤3*2A
Weight: 60g

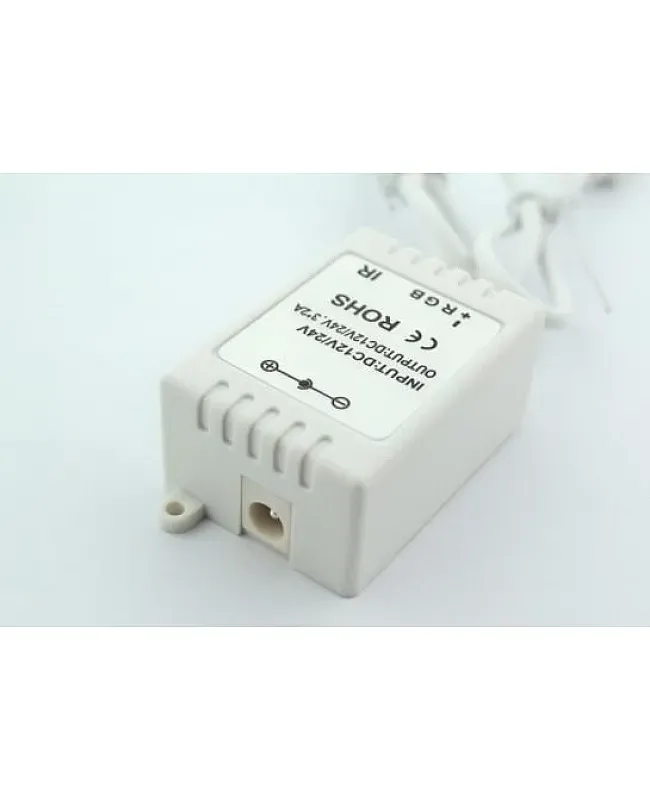

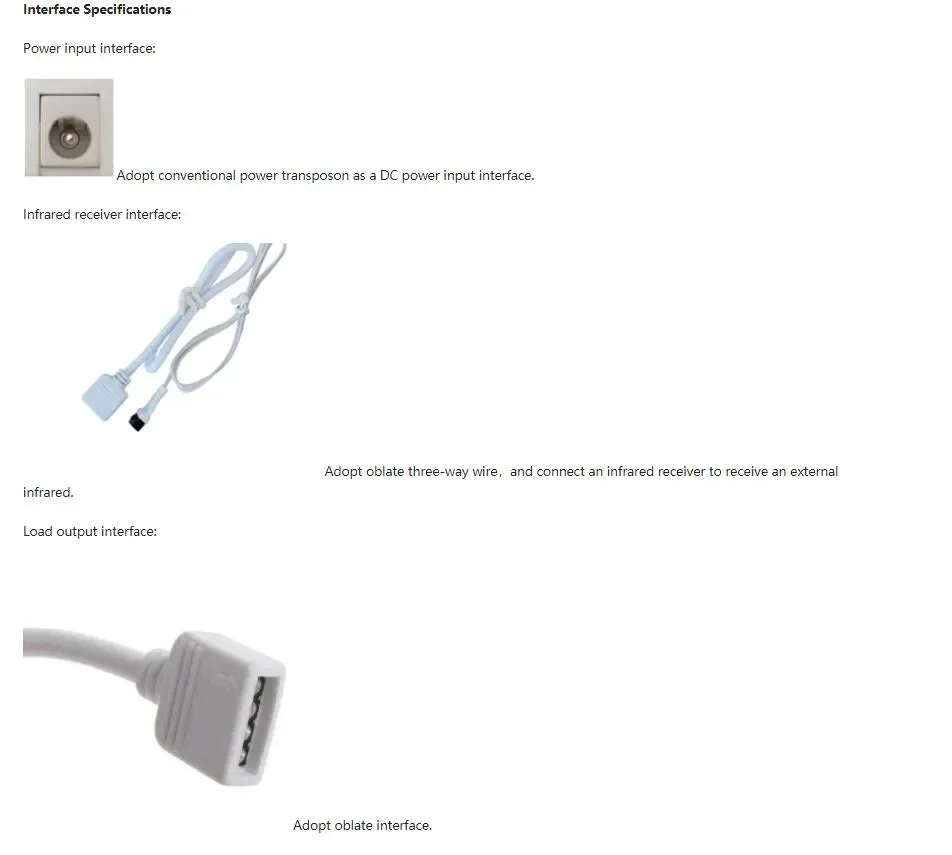

Adopts A Conventional Power Transposon As A DC Power Input Interface

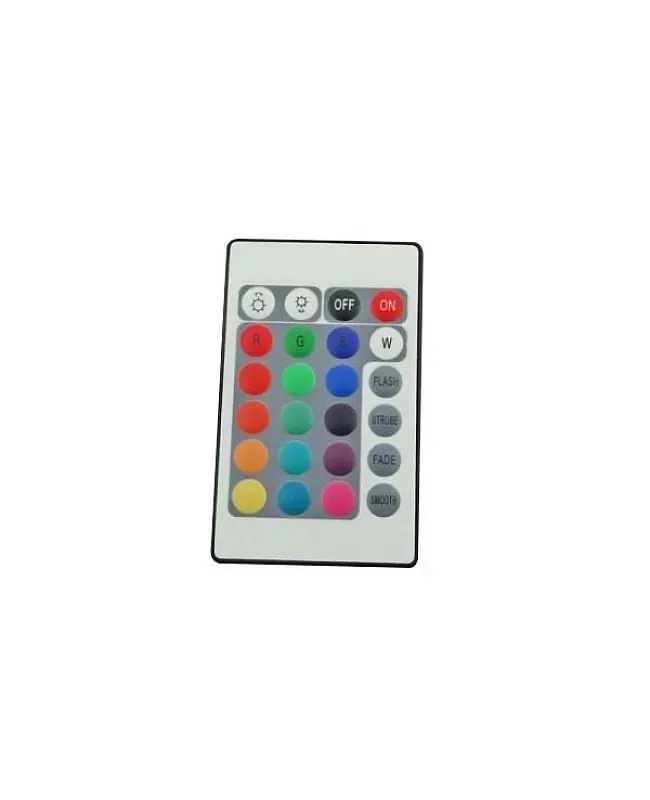

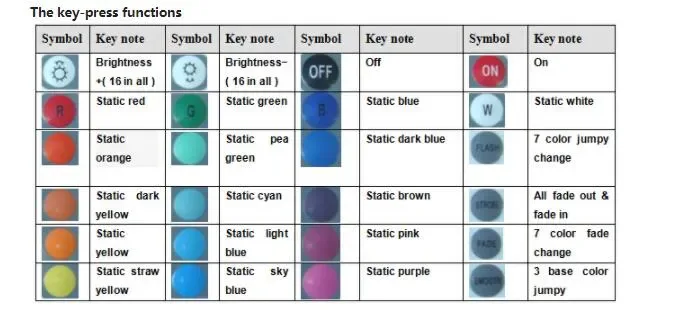

24 Keys IR Remote Included
1 * IR LED Strip Controller
1 * Remote

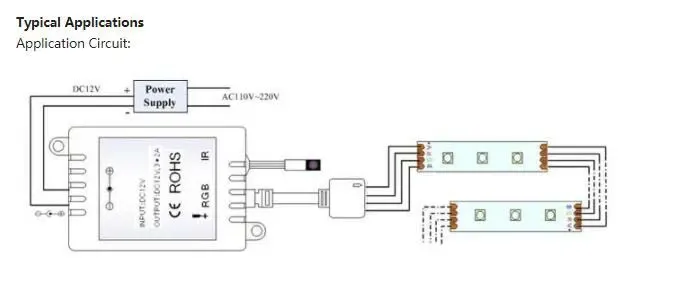

Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
