Product details
DC5V USB RGB TV Light Strip
LumaCircuit offers DC5V USB RGB TV Light Strip as a configurable LED strip for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. LED Chip: Sanan Optoelectronics LED Quantity: 30 LEDs/Meter IP Rating: IP20 Non-waterproof, IP65 The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The RGB TV light strip uses high-quality 5050 SMD LEDs as the light source, with 30 LEDs per meter available. The installer can choose from various lengths: 1 meter, 2 meters, 3 meters, 5 meters, or four pieces of 0.5 meters per set. The TV LED strips integrated the mini LED controller with a USB connector.
- LED Chip: Sanan Optoelectronics
- LED Quantity: 30 LEDs/Meter
- IP Rating: IP20 Non-waterproof, IP65
- Brightness Adjustable: YES
- Integrated Mini LED Controller
- 20 Modes In Total, 16 Static Colors And 4 Dynamic Modes
- Applications: Backlights Around/Behind TV
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V
- Light engine: RGB
- Working Voltage: DC5V
- LED: 5050 SMD LEDs
- LED Chip: Sanan Optoelectronics
- LED Quantity: 30 LEDs/Meter
- Power: <7.2W/Meter
- Emitting Color: RGB
- IP Rating: IP20 Non-waterproof, IP65
- Power Factor: 0.9
- CRI: >70
- Applications: Backlights Around/Behind TV
Control and installation
Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

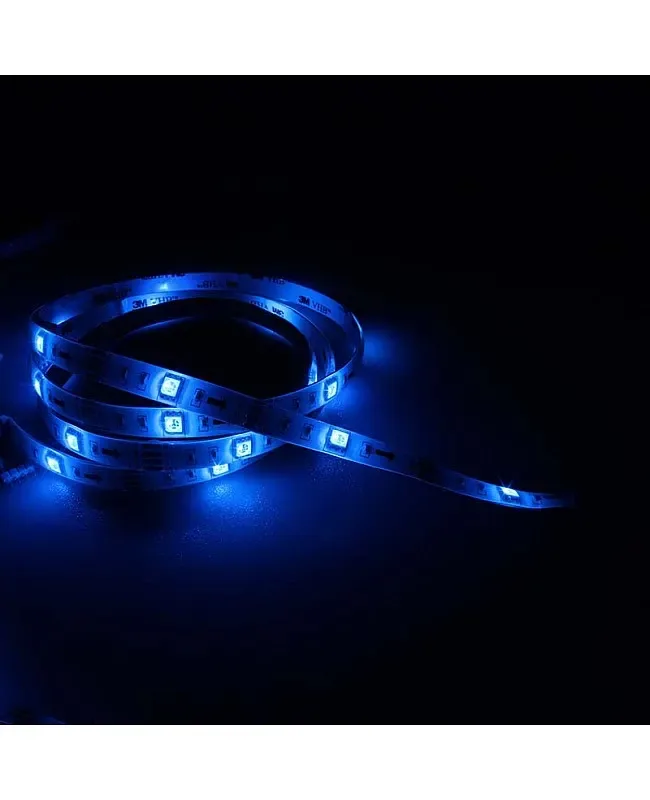

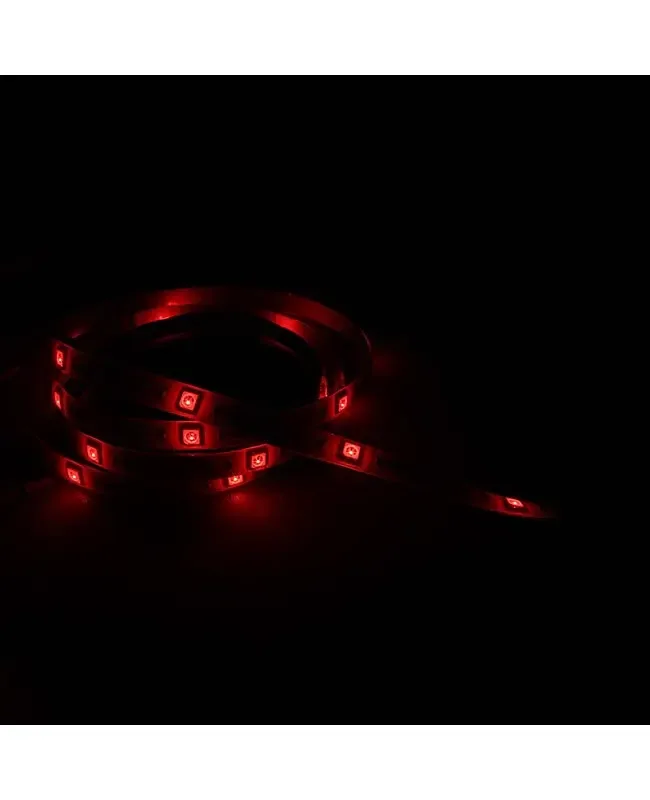

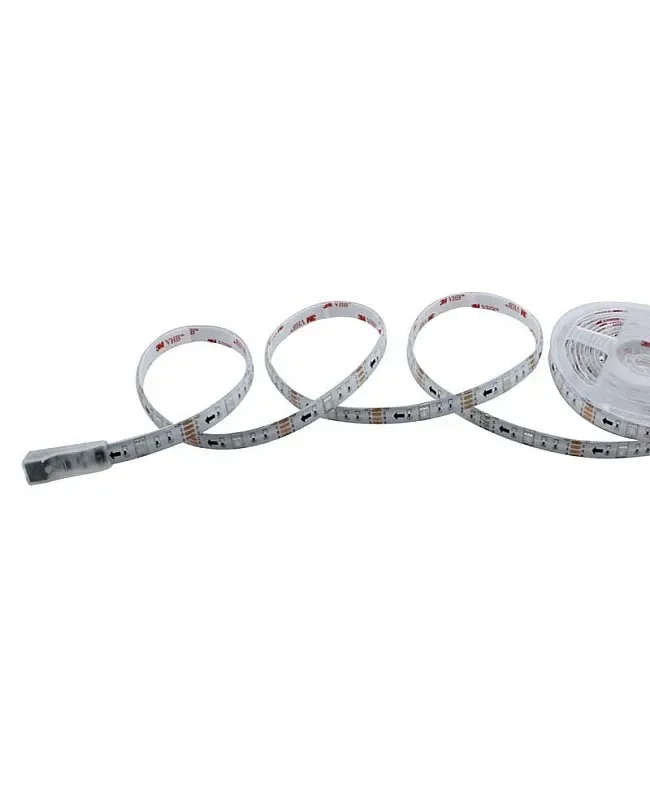

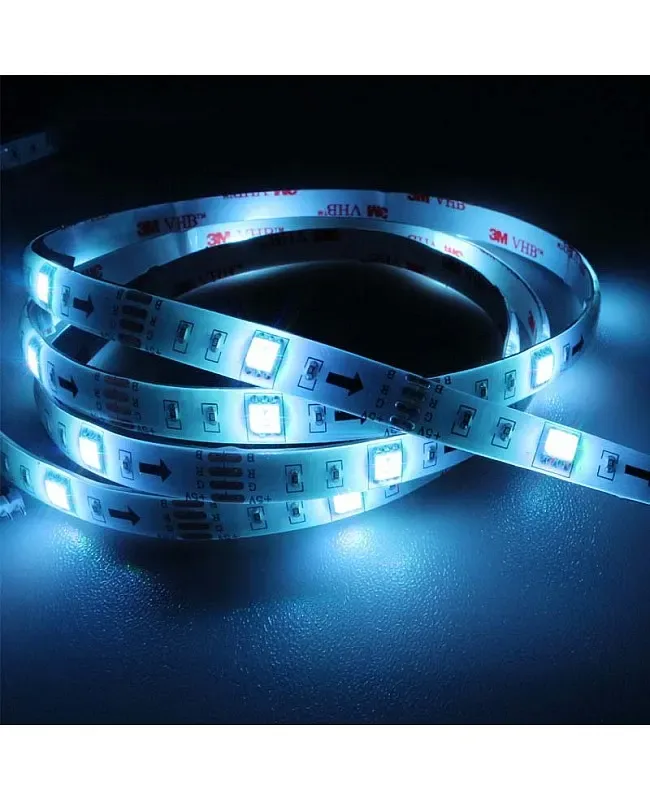

The RGB TV light strip uses high-quality 5050 SMD LEDs as the light source, with 30 LEDs per meter available. The installer can choose from various lengths: 1 meter, 2 meters, 3 meters, 5 meters, or four pieces of 0.5 meters per set. The TV LED strips integrated the mini LED controller with a USB connector. It working in DC5V, the installer can connect it to the USB port on your Television, the SMD LEDs mounted on the dual-layer flexible PCB board, flexible and durable, the back with double side tape, the installer can take off the protector and stick the LED backlight strip around or behind the TV, the 24 Keys IR remote included, the installer can adjust the brightness of static color or changing the color-changing style, 16 static colors and four dynamic modes available.
Specifications
Working Voltage: DC5V
LED: 5050 SMD LEDs
LED Chip: Sanan Optoelectronics
LED Quantity: 30 LEDs/Meter
Power: <7.2W/Meter
Length
Emitting Color: RGB
IP Rating: IP20 Non-waterproof, IP65
Angel View: 120°
Brightness Adjustable: YES
Power Factor: 0.9
Integrated Mini LED Controller
IR Remote Included
20 Modes In Total, 16 Static Colors And 4 Dynamic Modes
Applications: Backlights Around/Behind TV

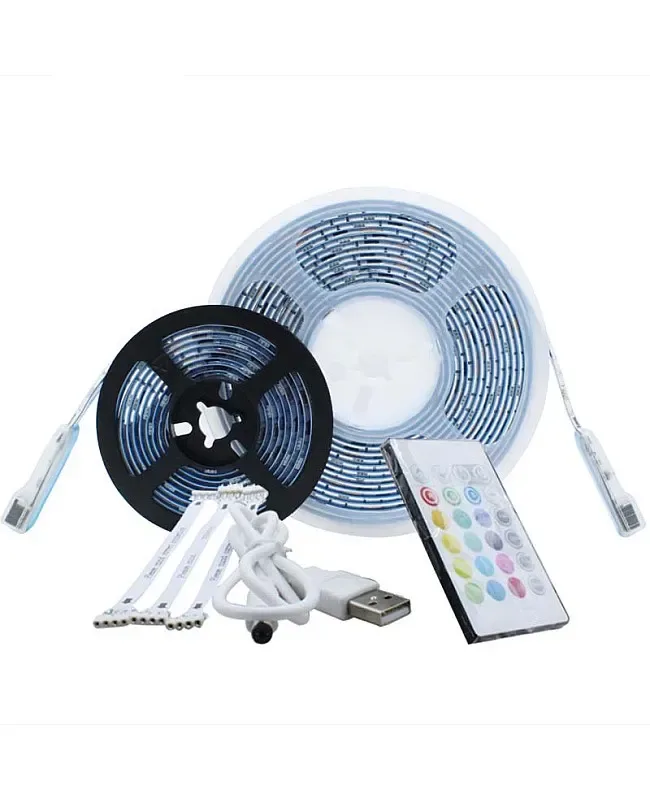

Includes
1 * LED TV Light Strip
1 * 24 Keys Remote
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
