Product details

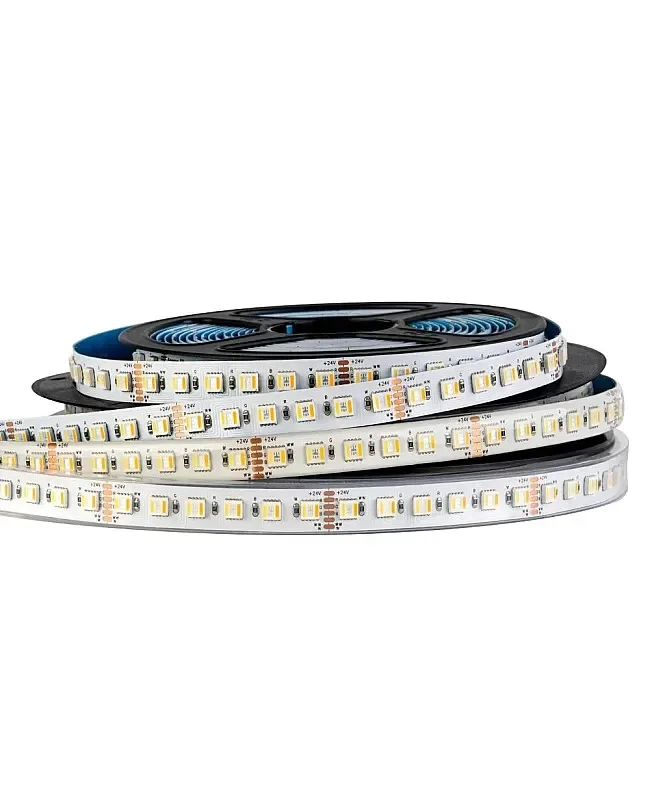

5 In 1 Waterproof 24V RGBCCT LED Strips 96LEDs/M 16.4FT
LumaCircuit offers 5 In 1 Waterproof 24V RGBCCT LED Strips 96LEDs/M 16.4FT as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Type: 5 In 1 RGBCCT SMD LED strips Length: 16.4FT/roll(5 meters) Width: 12mm(IP30 non-waterproof/IP65 epoxy coated waterproof) / 14.3mm(IP67 silicone tube waterproof) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

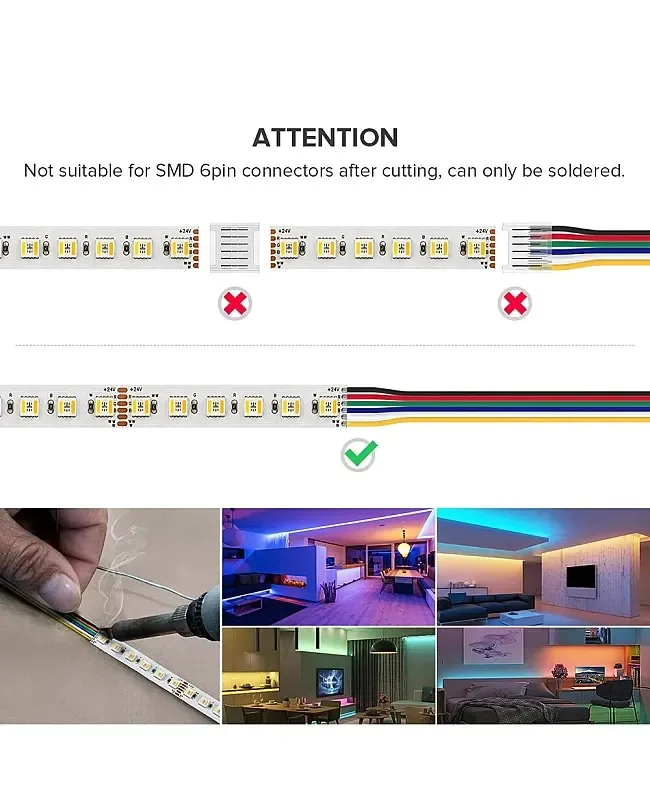

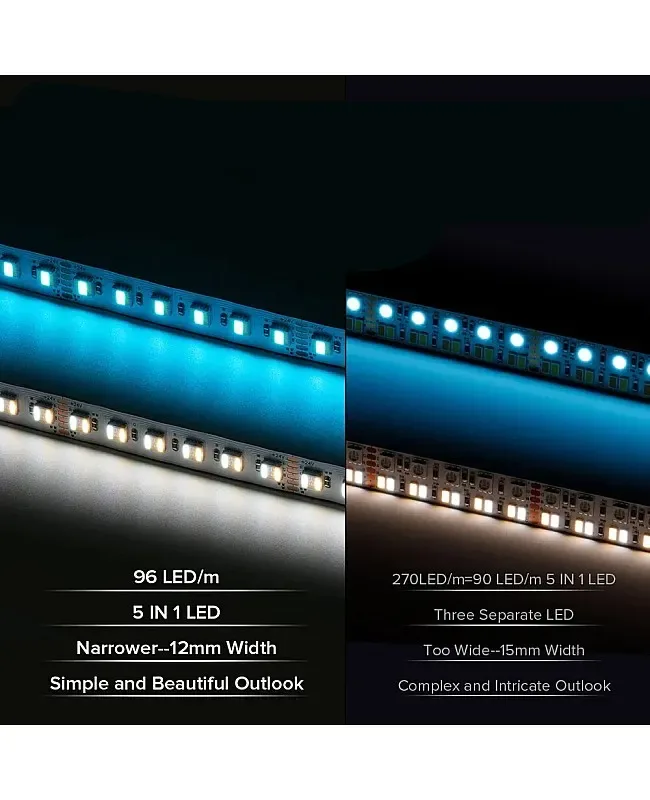

- The RGBCCT LED strips offer a combination of red, green, blue, cool white, and warm white chips in one LED, producing a wide range of high-quality color tones and allowing you to adjust color temperature and brightness for various scenes. With 96 LEDs per meter and 16.4 ft per roll, the minimum cutting length is 62mm, allowing you to cut to any size. The strips must be soldered; solderless connectors cannot be used.
- Type: 5 In 1 RGBCCT SMD LED strips
- Length: 16.4FT/roll(5 meters)

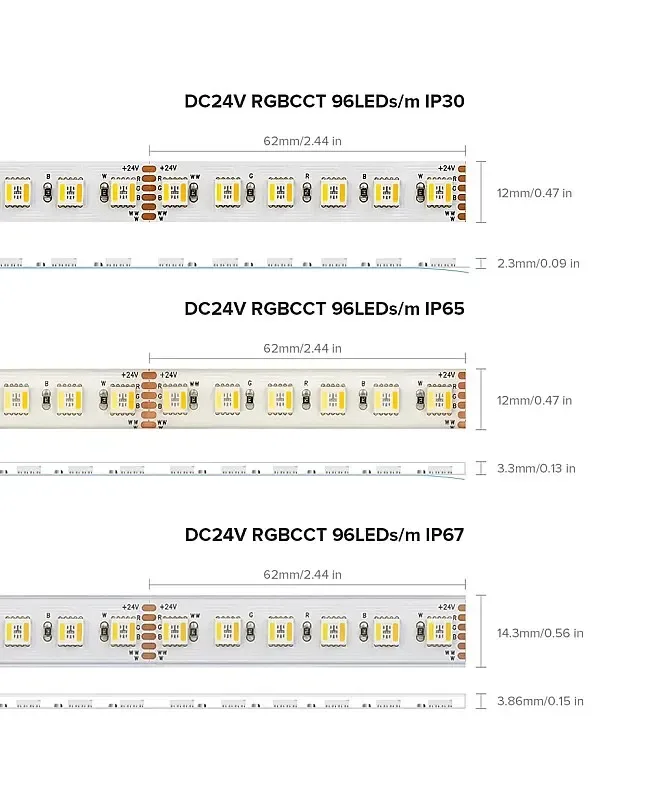

- Width: 12mm(IP30 non-waterproof/IP65 epoxy coated waterproof) / 14.3mm(IP67 silicone tube waterproof)
- Height: 2.3mm(IP30 non-waterproof) / 3.3mm(IP65 epoxy coated waterproof) / 3.86mm(IP67 silicone tube waterproof)

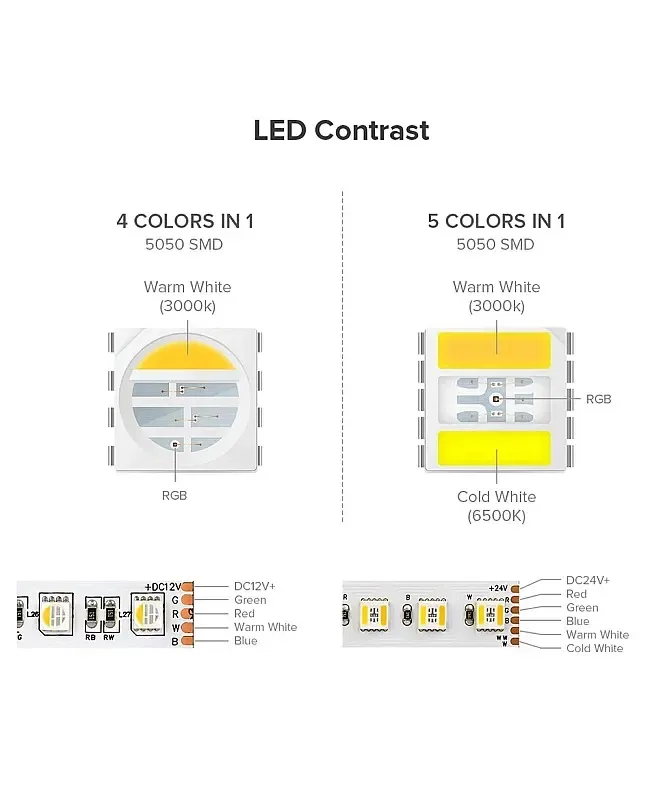

- LED Type: 5 In 1 5050 SMD LEDs, 5 Colors(red, green, blue, cool white, warm white) mixed in one LED
- Color Of PCB Board: White
- Minimum Cutting Length: 62mm(6 LEDs)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-STR-UGZAG6
- Length: 16.4FT/roll(5 meters)
- Width: 12mm(IP30 non-waterproof/IP65 epoxy coated waterproof) / 14.3mm(IP67 silicone tube waterproof)
- Height: 2.3mm(IP30 non-waterproof) / 3.3mm(IP65 epoxy coated waterproof) / 3.86mm(IP67 silicone tube waterproof)
- LED Type: 5 In 1 5050 SMD LEDs, 5 Colors(red, green, blue, cool white, warm white) mixed in one LED
- LED Quantity: 96LEDs/M
- Color Of PCB Board: White
- Minimum Cutting Length: 62mm(6 LEDs)
- Input Voltage: DC24V
- Power: 24W/M
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

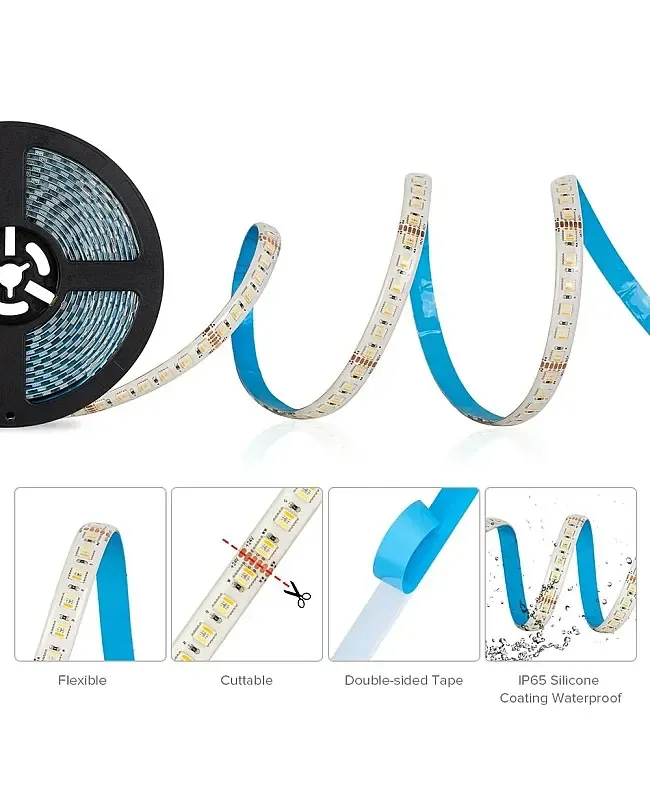

The RGBCCT LED strips offer a combination of red, green, blue, cool white, and warm white chips in one LED, producing a wide range of high-quality color tones and allowing you to adjust color temperature and brightness for various scenes. With 96 LEDs per meter and 16.4 ft per roll, the minimum cutting length is 62mm, allowing you to cut to any size. The strips must be soldered; solderless connectors cannot be used. The RGB CCT LED strips operate on a DC 24V voltage and require connection to RGBWW controllers to achieve colorful lighting. 3 waterproof level products are available: IP30 non-waterproof, IP65 epoxy-coated waterproof, and IP67 silicone tube waterproof. The back of IP30 and IP65 models features double-sided adhesive tape, making them easy to stick to where you want to install them, and is only recommended for indoor use. The IP67 model comes with clips and is suitable for outdoor use.
Specifications
Type: 5 In 1 RGBCCT SMD LED strips
Model
Length: 16.4FT/roll(5 meters)
Width: 12mm(IP30 non-waterproof/IP65 epoxy coated waterproof) / 14.3mm(IP67 silicone tube waterproof)
Height: 2.3mm(IP30 non-waterproof) / 3.3mm(IP65 epoxy coated waterproof) / 3.86mm(IP67 silicone tube waterproof)
LED Type: 5 In 1 5050 SMD LEDs, 5 Colors(red, green, blue, cool white, warm white) mixed in one LED
LED Quantity: 96LEDs/M
Color Of PCB Board: White
Minimum Cutting Length: 62mm(6 LEDs)
Input Voltage: DC24V
Power: 24W/M
Emitting Color: RGB+CCT(3000-6000K)
IP Rate: IP30 non-waterproof, IP65 epoxy coated waterproof, IP67 silicone tube waterproof
View Angle: 120°
Gray Levels: 256
Both ends have 15CM wires
Storage Temperature: -40-50℃
Working Temperature: -25-50℃
Includes
1 * RGBCCT SMD LED strips(16.4FT/roll)
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
