Product details
Single Color LED Strip Controller With Wifi Function
LumaCircuit offers Single Color LED Strip Controller With Wifi Function as a configurable LED strip for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Working Voltage: DC12V-DC24V Connecting Mode: Common Anode IP Rating: IP20 Non-Waterproof The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The single color LED strip controller with WiFi function comes with the LED control unit and DC connectors. The female DC connector connects to the LED power supply, and the male DC connector connects the single-color LED strips. Connect the LED controller with the LED power supply, then use your phone to connect to the WiFi " LEDnet", and use the Magic Home Pro app to control the LED strips.
- Working Voltage: DC12V-DC24V
- Connecting Mode: Common Anode
- IP Rating: IP20 Non-Waterproof
- Connection: Female DC Connector Male DC Connector
- Control Method: APP Amazon Alexa Voice Google Home Voice
- App Name: Magic Home Pro
- Operation Platform: Android 4.0 Or IOS 9.0(Higher)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V
- Size: 53*24*11mm(L*W*H)
- Working Voltage: DC12V-DC24V
- Output Channel: 1
- Max Output Power: 96W
- Connecting Mode: Common Anode
- IP Rating: IP20 Non-Waterproof
- Control Method: APP Amazon Alexa Voice Google Home Voice
- Control Distance: <30M
- Working Temperature: -20℃-55℃
- LumaCircuit model: LC-STR-PQDLCI
- Dimensions found: 53x24x11mm / 11mm / 30M
Control and installation
Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

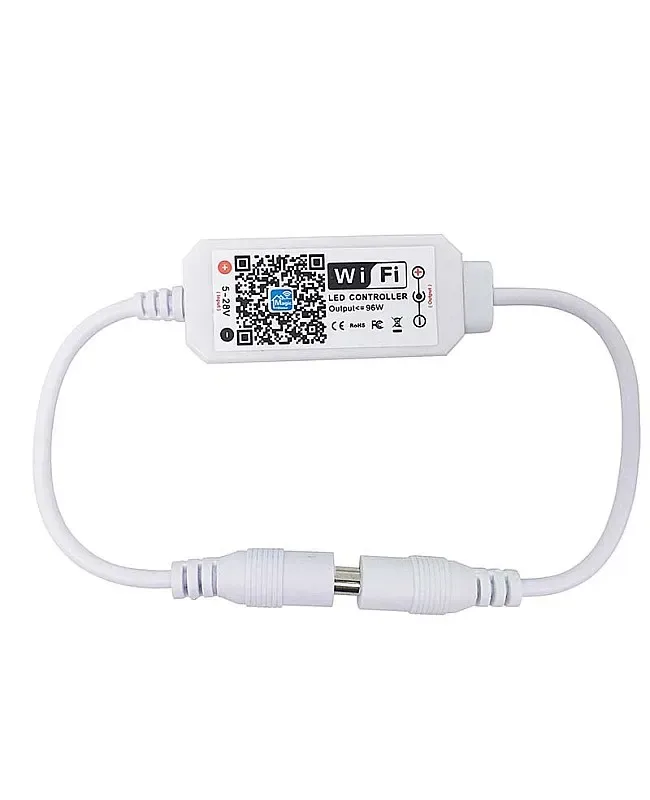

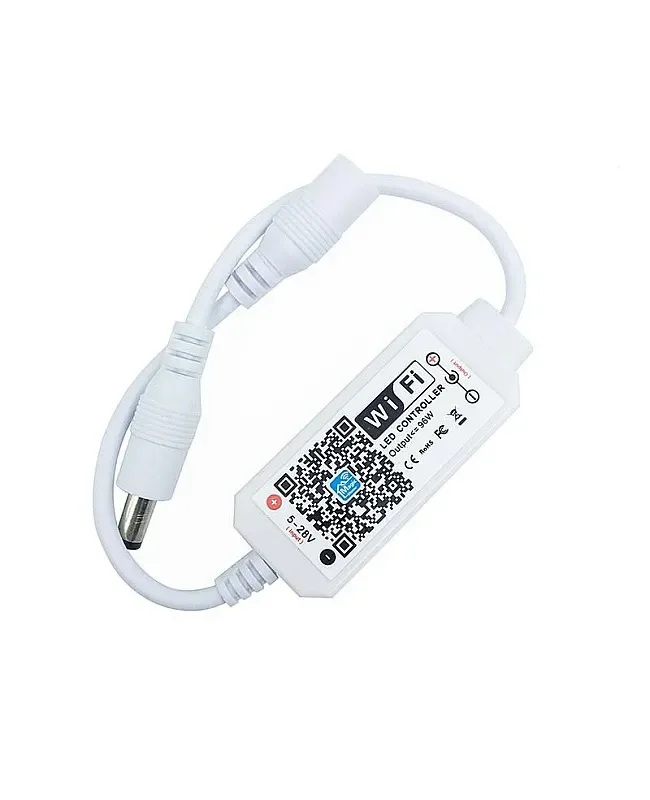

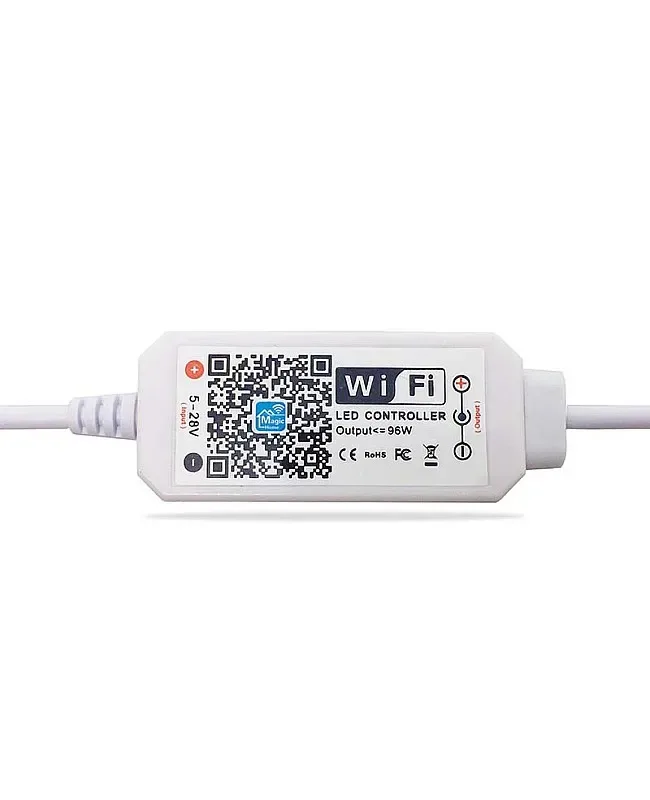

The single color LED strip controller with WiFi function comes with the LED control unit and DC connectors. The female DC connector connects to the LED power supply, and the male DC connector connects the single-color LED strips. Connect the LED controller with the LED power supply, then use your phone to connect to the WiFi " LEDnet", and use the Magic Home Pro app to control the LED strips. The installer can adjust the brightness of the LED strips or activate the music function, and the brightness will change following the music. The app also has a timer function, and the installer can set the time to turn the light on or off. The WiFi LED controller also supports Amazon Alexa and Google Home Voice commands.
Specifications
Size: 53*24*11mm(L*W*H)
Working Voltage: DC12V-DC24V
Output Channel: 1
Max Output Power: 96W
Connecting Mode: Common Anode
IP Rating: IP20 Non-Waterproof

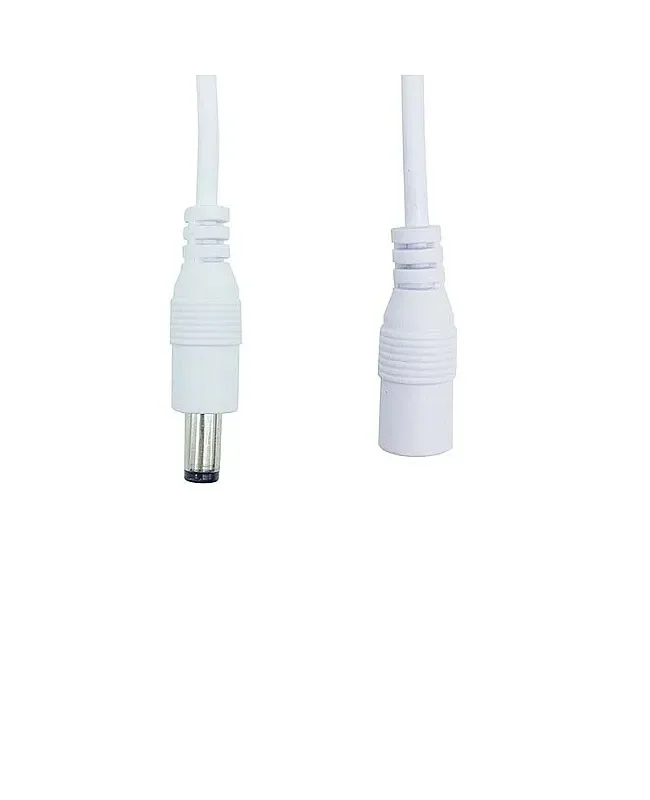

Connection: Female DC Connector Male DC Connector
Control Method: APP Amazon Alexa Voice Google Home Voice
App Name: Magic Home Pro
Operation Platform: Android 4.0 Or IOS 9.0(Higher)
Control Distance: <30M
Working Temperature: -20℃-55℃
Weight: 30G

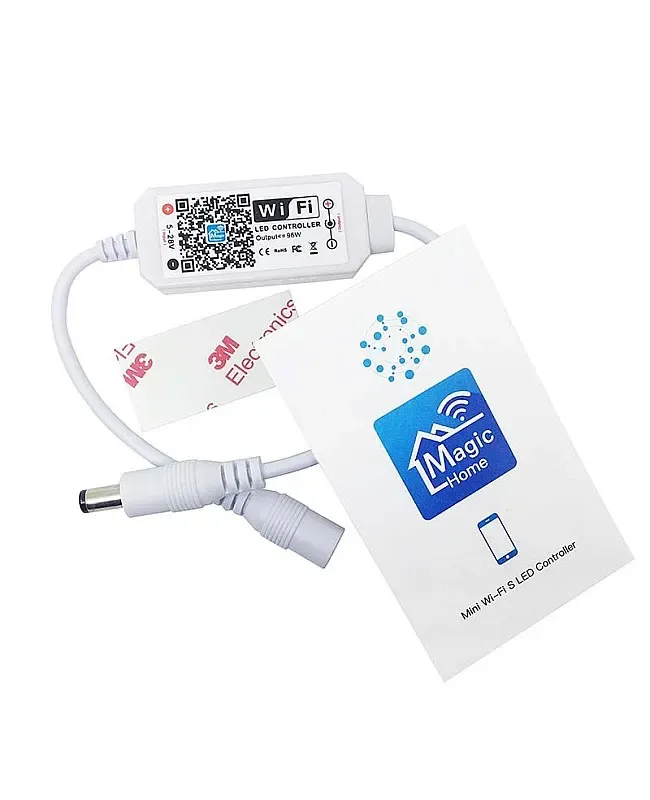

Includes
1 * Single Color LED Strip Controller With Wifi Function
1 * 3M Tape
1 * User Manual
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
