DC12V 5050 White Digital LED Light Strip

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

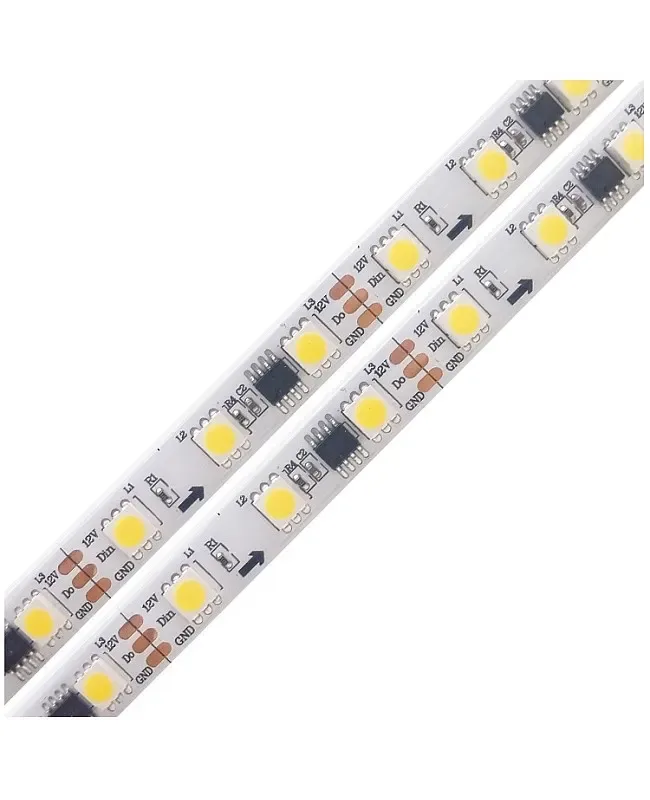

• The White Digital LED Light Strips, which utilize high-quality 5050 SMD LEDs as their light source. Each set of 3 LEDs is controlled by a piece of WS2811 IC, which allows for programmability. The installer can connect to a Digital LED Controller to achieve the white static color and other dynamic modes, and the installer can DIY the advanced lighting effects by yourself. The LED light strips operate on 12V DC, with 60 LEDs per meter, and the minimum cuttable length is 5cm.
• Size: 5000*10*2.5mm(L*W*H)
• LED Quantity: 60 LEDs Per Meter
• Luminous Flux: 18- 20lm/LED
• Color Temperature: 3500K(Warm White), 4000K(Natural White), 6000K(Cool White)
• Modes: Chasing, Jumping, Flashing, etc
• Static Color And Brightness Adjustable
• IP Rating: IP20 Non-waterproof, IP65 Waterproof, IP67 Waterproof

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 12 V
• Light engine: CCT
• LumaCircuit model: LC-STR-AQG261
• Size: 5000*10*2.5mm(L*W*H)
• LED Type: 5050
• LED Quantity: 60 LEDs Per Meter
• Working Voltage: DC12V
• Power: 14.4W/Meter
• Color Temperature: 3500K(Warm White), 4000K(Natural White), 6000K(Cool White)
• Modes: Chasing, Jumping, Flashing, etc
• Beam Angle: 120°
• Power Factor: 0.9

Control and installation

Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.

Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

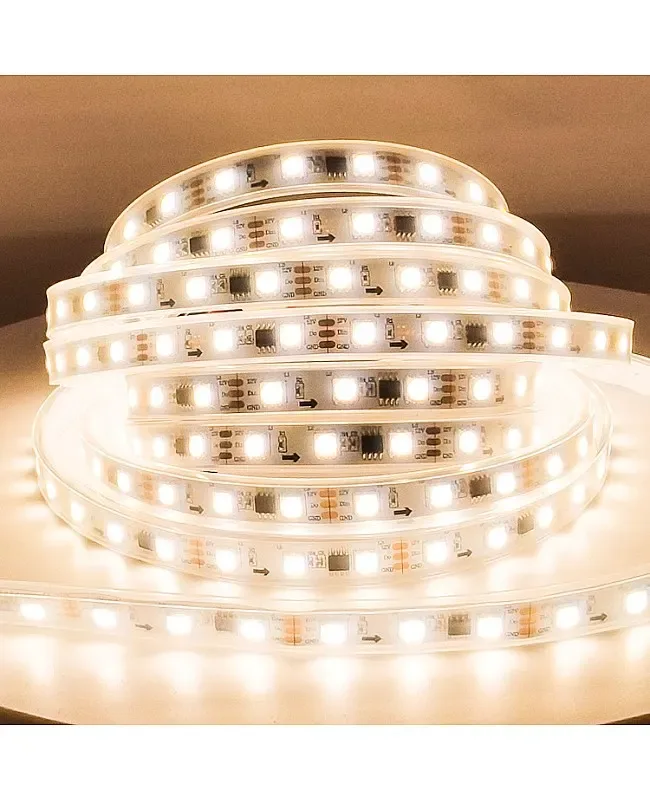

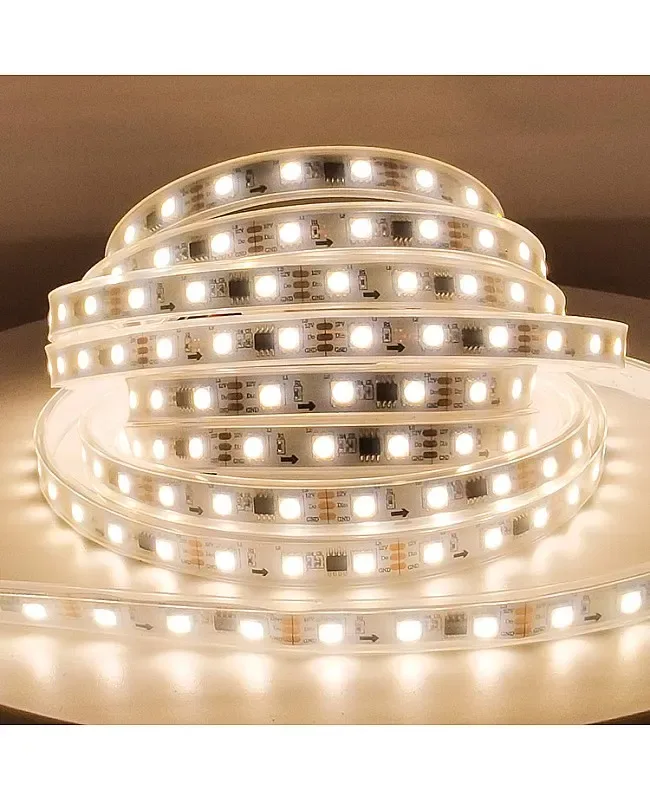

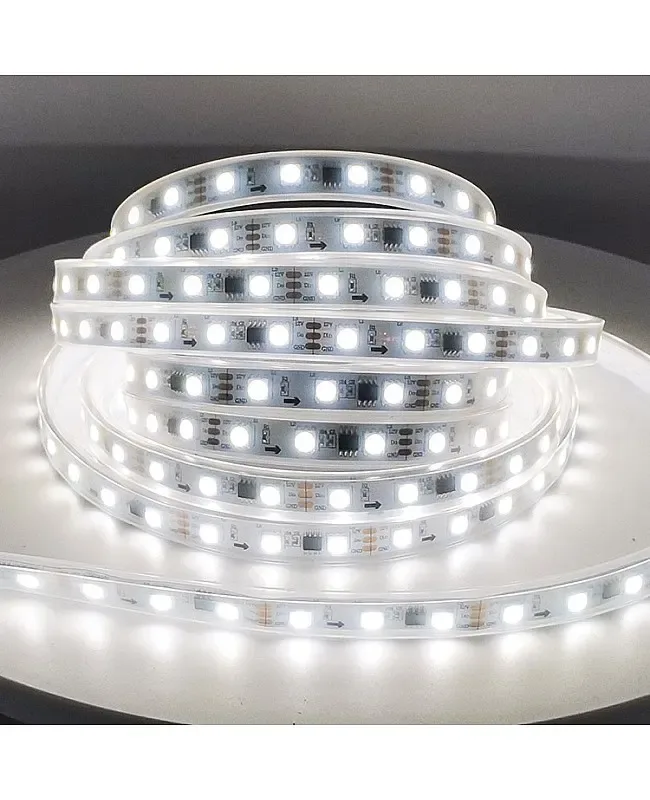

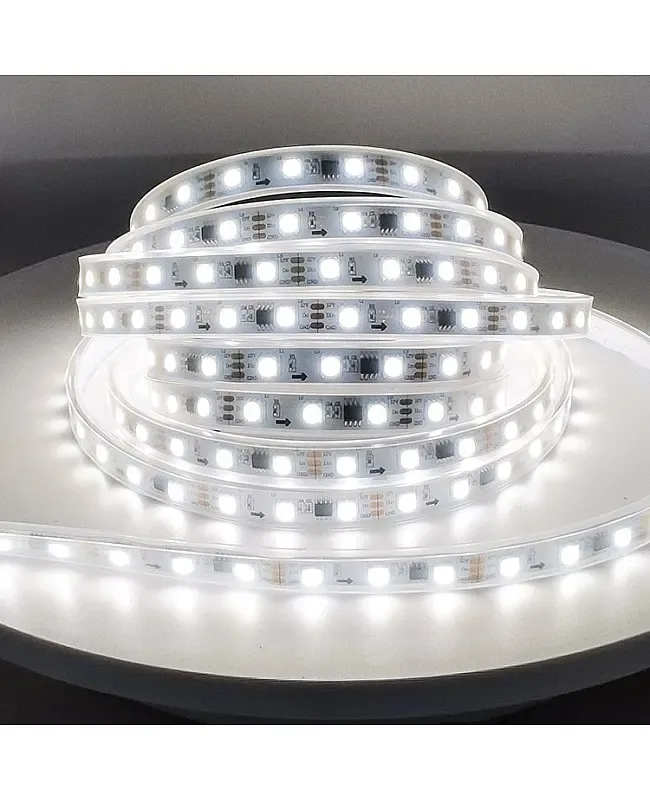

The White Digital LED Light Strips, which utilize high-quality 5050 SMD LEDs as their light source. Each set of 3 LEDs is controlled by a piece of WS2811 IC, which allows for programmability. The installer can connect to a Digital LED Controller to achieve the white static color and other dynamic modes, and the installer can DIY the advanced lighting effects by yourself. The LED light strips operate on 12V DC, with 60 LEDs per meter, and the minimum cuttable length is 5cm. There are three strip light colors available, and the installer can choose from 3000K warm white, 4000K natural white, and 6500K cool white. The back has double-sided adhesive tape, so removing the protector from the tape and sticking it to the place you want to install is easy. There are 3 waterproof level products available: the IP20 non-waterproof, IP65, and IP67. The installer can use the IP20 and IP65 White Programmable LED Strips for indoor applications, and the IP65 and IP67 White Digital LED Strips for outdoor, waterproof projects.

Specifications

Model

Size: 5000*10*2.5mm(L*W*H)

LED Type: 5050

IC Type: WS2811

LED Quantity: 60 LEDs Per Meter

Working Voltage: DC12V

Power: 14.4W/Meter

Luminous Flux: 18- 20lm/LED

Color Temperature: 3500K(Warm White), 4000K(Natural White), 6000K(Cool White)

Modes: Chasing, Jumping, Flashing, etc

Static Color And Brightness Adjustable

Beam Angle: 120°

Power Factor: 0.9

IP Rating: IP20 Non-waterproof, IP65 Waterproof, IP67 Waterproof

CRI: >

Minimum Cut Length: 5cm

Back With Double-Sided Adhesive Tape

Includes

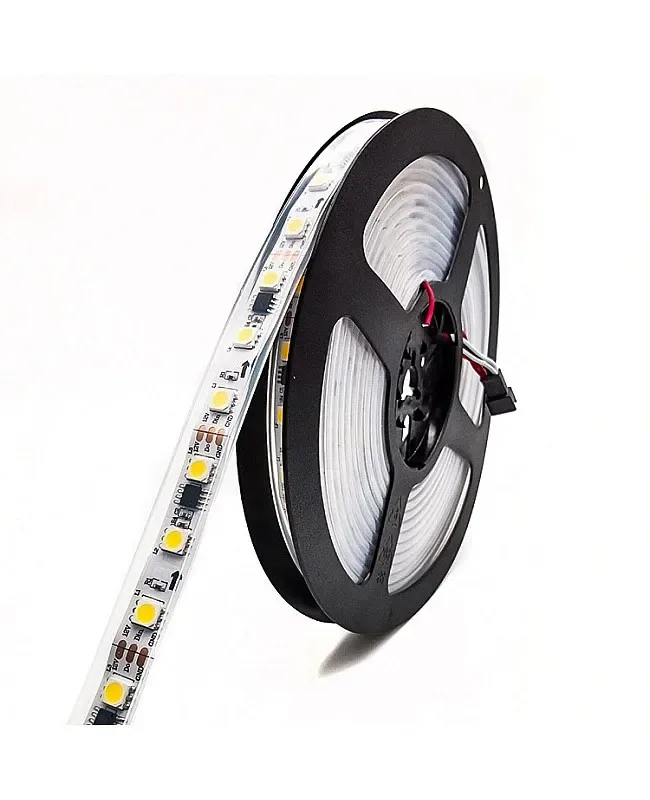

1 * Digital LED Light Strip(Reel)
