Product details

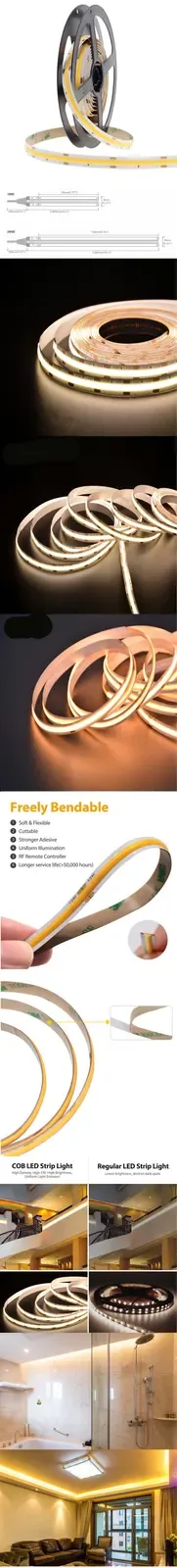

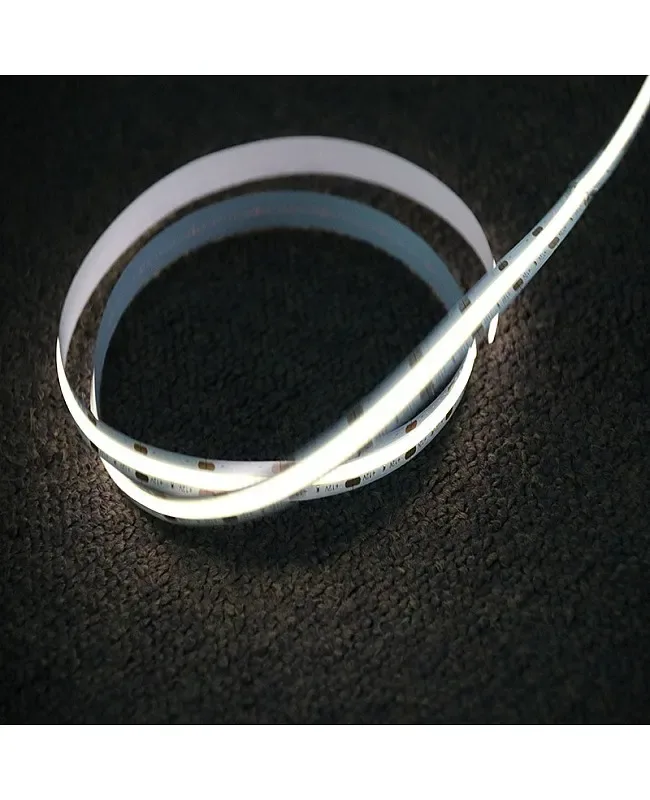

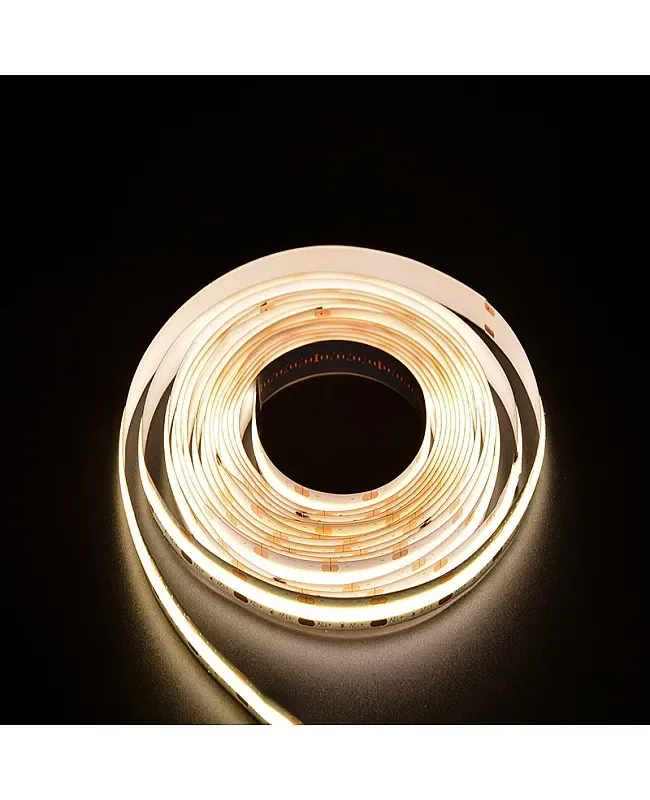

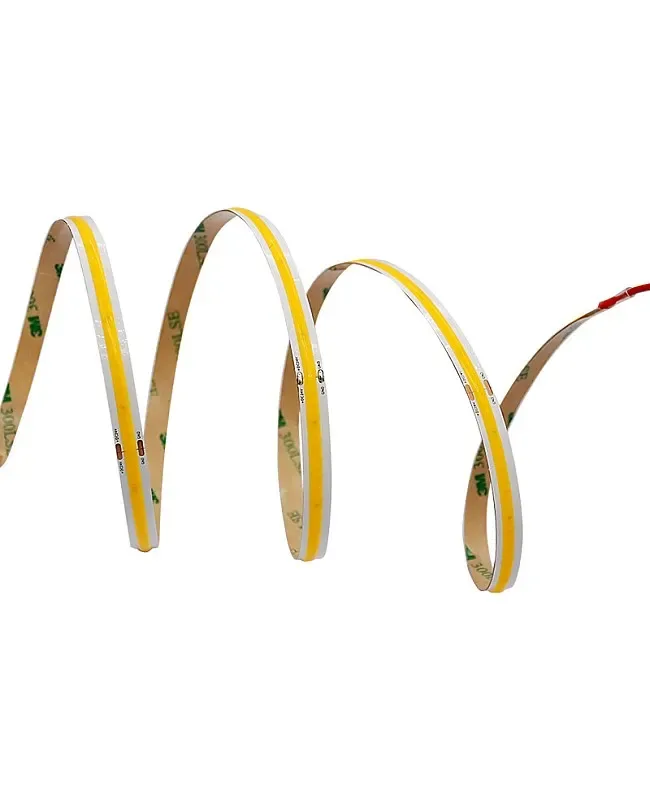

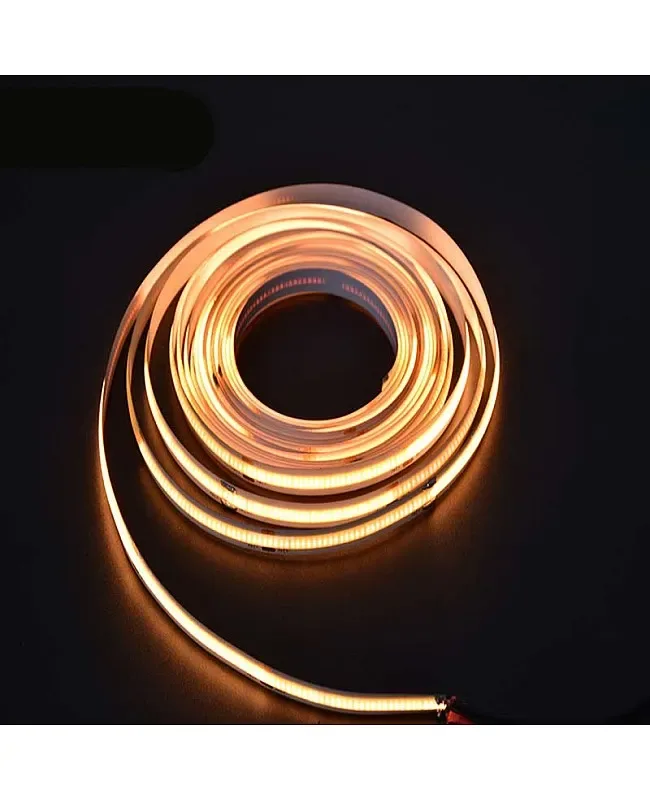

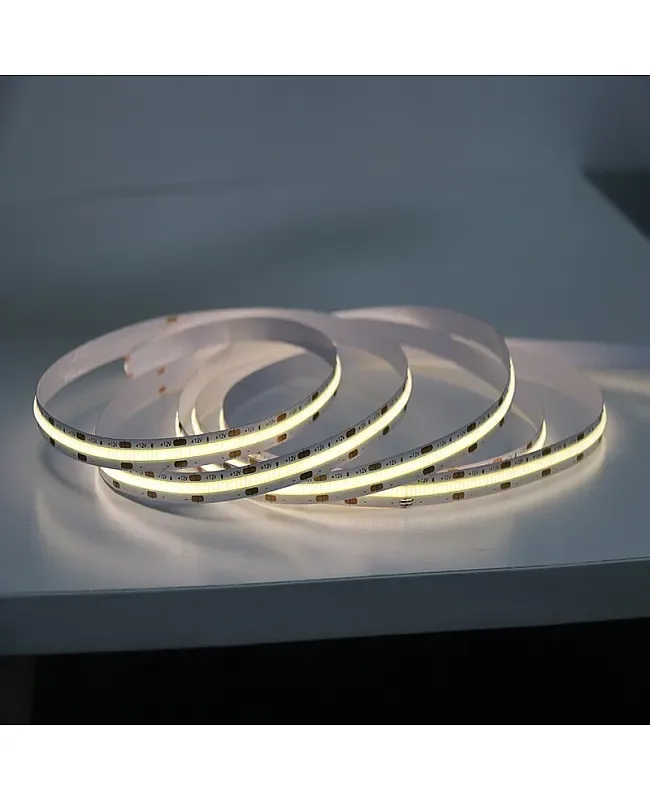

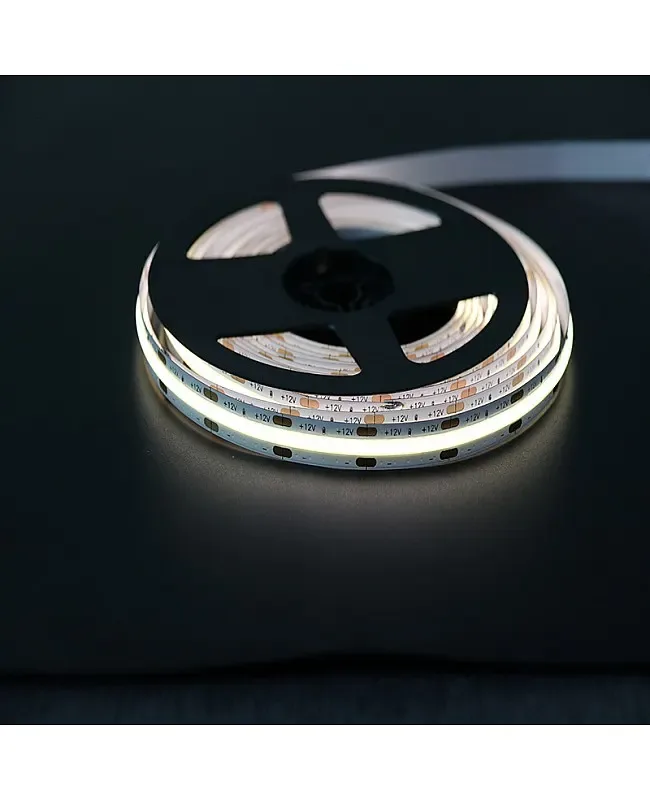

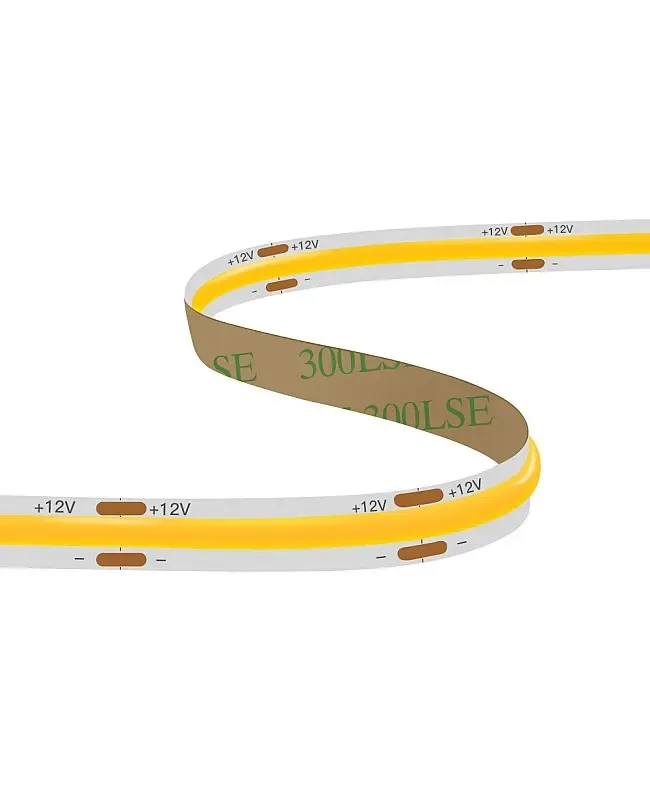

8MM White COB LED Strip 24V Dimmable
LumaCircuit offers 8MM White COB LED Strip 24V Dimmable as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Working Voltage: DC12V/DC24V Size: 5000*8*1.6mm(L*W*T) LED Quantity: 320PCS/Meter The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- PCB Board: Double Layer FPC Gold-Plated Electrolytic Copper Wire Circuit Board
- Working Voltage: DC12V/DC24V
- Size: 5000*8*1.6mm(L*W*T)
- LED Quantity: 320PCS/Meter
- Emitting Colors: Warm White(2700K), Warm White(3000K), Natural White(4000K), Cool White(6500K)
- Luminous Flux: 760-880LM/M
- Luminous Efficiency: 95-110LM/W
- Flexible, Bendable And Cuttable
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V / 12 V
- Light engine: CCT
- PCB Board: Double Layer FPC Gold-Plated Electrolytic Copper Wire Circuit Board
- Working Voltage: DC12V/DC24V
- Power: 8W/M
- Size: 5000*8*1.6mm(L*W*T)
- LED Quantity: 320PCS/Meter
- Emitting Colors: Warm White(2700K), Warm White(3000K), Natural White(4000K), Cool White(6500K)
- Beam Angle: 180°
- Minimum Cuttable Length: 50mm(12V), 100mm(24V)
- CRI: +
- IP Rate: IP20 Non-waterproof
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Specifications
PCB Board: Double Layer FPC Gold-Plated Electrolytic Copper Wire Circuit Board
Working Voltage: DC12V/DC24V
Power: 8W/M
Size: 5000*8*1.6mm(L*W*T)
LED Quantity: 320PCS/Meter
Emitting Colors: Warm White(2700K), Warm White(3000K), Natural White(4000K), Cool White(6500K)
Beam Angle: 180°
Luminous Flux: 760-880LM/M
Luminous Efficiency: 95-110LM/W
Flexible, Bendable And Cuttable
Minimum Cuttable Length: 50mm(12V), 100mm(24V)
Dimmable: 0-100%
CRI: +
Back With Double-Sided Adhesive Tape
IP Rate: IP20 Non-waterproof
NO Visible Light Dots And Hotspots
Connection: Black/Red Wires
Includes
1 * White COB LED Strip ( Roll)
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
