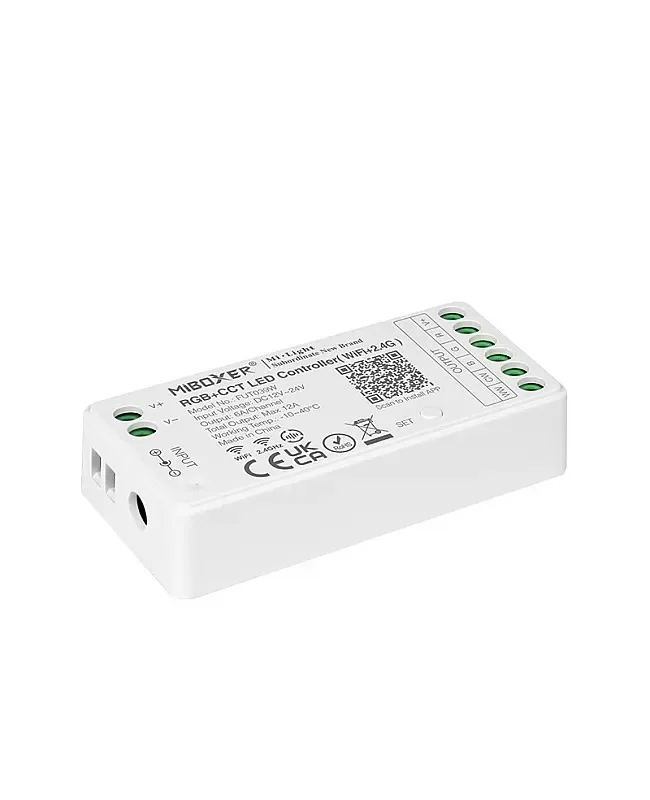

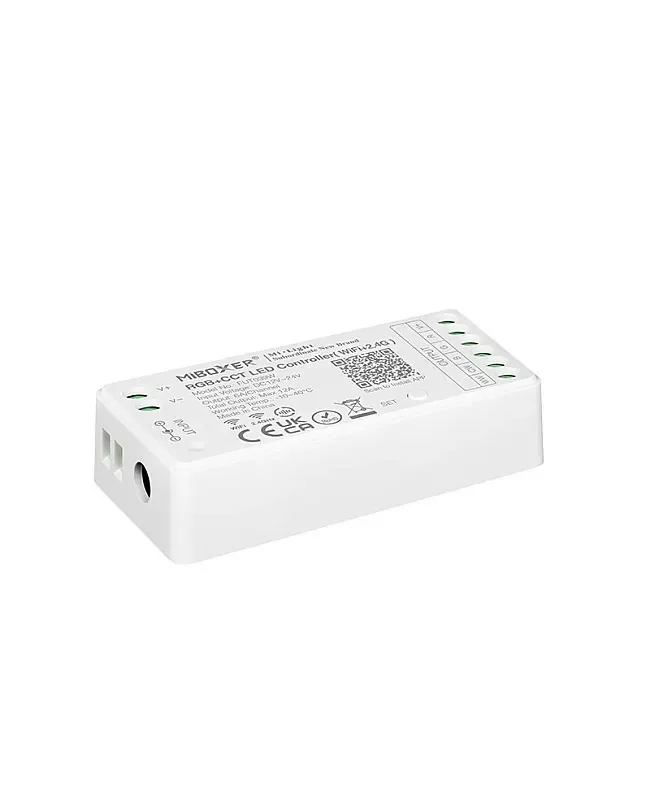

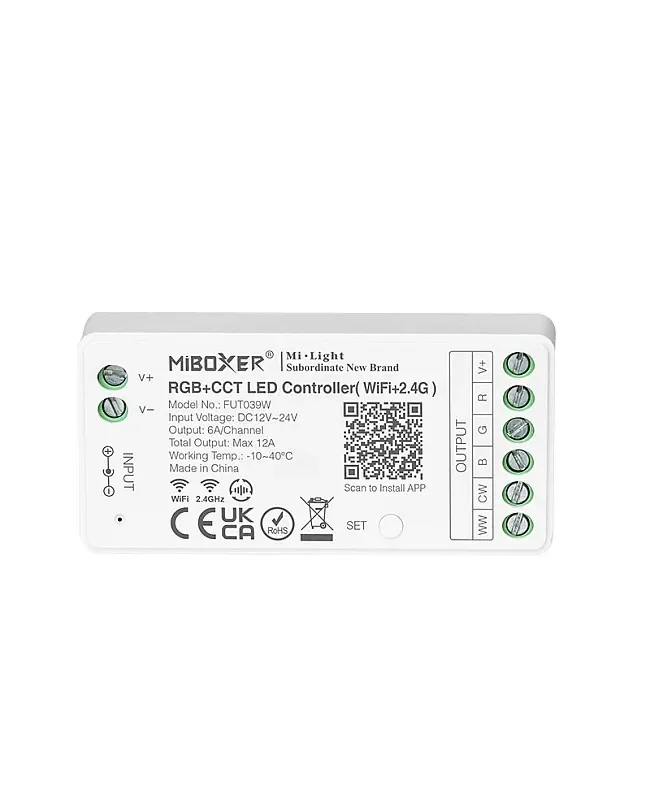

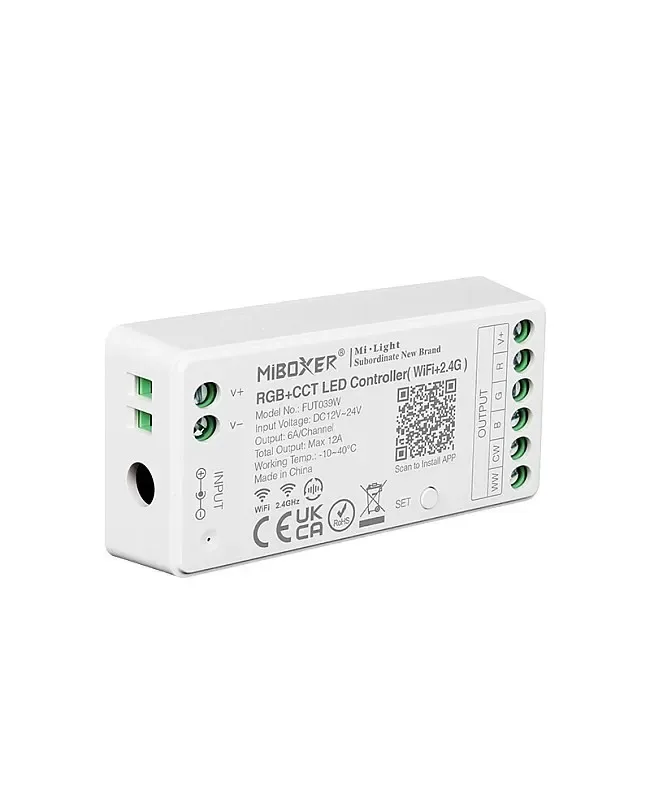

4G WiFi 24V RGBWW LED Strip Controller
LumaCircuit offers 4G WiFi 24V RGBWW LED Strip Controller as a configurable LED strip for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. wireless controller + 3 In 1 WiFi LED Controller For RGB/RGBW/RGB+CCT Size: 74.5*36*17mm(L*W*H) Output Current: 6A/Channel The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller RGBWW LED strip controller is designed for the RGB+CCT LED strips. It has a WiFi and Bluetooth dual-module design, can be controlled by 2.4G RF remotes, a smartphone APP, and third-party voice commands. The installer can set the static color and adjust the color temperature and brightness. There are 16 million colors available.
- wireless controller + 3 In 1 WiFi LED Controller For RGB/RGBW/RGB+CCT
- Size: 74.5*36*17mm(L*W*H)
- Output Current: 6A/Channel
- Total Output Current: Max 12A
- Brightness And Color Temperature Adjustable
- WiFi Standard: IEEE 802.11 b/g/n 2.
- Bluetooth Protocol: Bluetooth 4.2
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V / 12-24 V
- Light engine: RGBW
- Size: 74.5*36*17mm(L*W*H)
- Working Voltage: -24V
- Output Current: 6A/Channel
- Total Output Current: Max 12A
- Bluetooth Protocol: Bluetooth 4.2
- Remote Control Distance: ≤30m
- Support Third-Party Voice Control: Amazon Alexa And Google Assistant
- 2.4G RF Remote Controllable: T4,
- Working Temperature: -10-40℃
- LumaCircuit model: LC-STR-SWGCE6
Control and installation
Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller RGBWW LED strip controller is designed for the RGB+CCT LED strips. It has a WiFi and Bluetooth dual-module design, can be controlled by 2.4G RF remotes, a smartphone APP, and third-party voice commands. The installer can set the static color and adjust the color temperature and brightness. There are 16 million colors available. The controller will receive the signals from the remote control and transmit them to other controllers within 30 meters, and different controllers will work synchronously. The 24V RGBWW controller supports music rhythm and timing functions, and the LED lights will dance with the rhythm of the music. The installer can set the opening and closing time according to your lifestyle, and the installer can set the fade out/fade in of lighting before falling asleep or waking up. The RGBWW controllers are non-waterproof and only recommended for indoor applications.
Quick Links
wireless controller + 3 In 1 WiFi LED Controller For RGB/RGBW/RGB+CCT
Specifications
Size: 74.5*36*17mm(L*W*H)
Working Voltage: -24V
Output Current: 6A/Channel
Total Output Current: Max 12A
16 Million Colors Available
Brightness And Color Temperature Adjustable
WiFi Standard: IEEE 802.11 b/g/n 2.
Bluetooth Protocol: Bluetooth 4.2
RF: 2.
Remote Control Distance: ≤30m
Smartphone APP Control
APP Name: mobile app
Support Third-Party Voice Control: Amazon Alexa And Google Assistant
4G RF Remote Controllable T4,
Group Control
Support Music Rhythm
Support Timing Function
Signal Transmitting & Modes Synchronization
Working Temperature: -10-40℃
Includes
1 * 24V RGBWW LED Strip Controller
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
