DC5V White LED Strip COB High CRI For Seamless Line Light
LumaCircuit offers DC5V White LED Strip COB High CRI For Seamless Line Light as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Emitting Colors: 2700K(Warm White), 3000K(Warm White), 4000K(Natural White), 6500K(Cool White) Luminous Efficiency: 95LM-110LM/W Luminous FLux: 475-550LM/M The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- PCB Board: Double Layer FPC Gold-Plated Electrolytic Copper Wire Circuit Board
- Emitting Colors: 2700K(Warm White), 3000K(Warm White), 4000K(Natural White), 6500K(Cool White)
- Luminous Efficiency: 95LM-110LM/W
- Luminous FLux: 475-550LM/M
- Flexible, Bendable, And Cuttable
- Waterproof Level: IP20 Non-Waterproof
- Minimum Cuttable Length: 12.5mm
- NO Visible Hotspots, With Hotspots
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V
- Light engine: CCT
- PCB Board: Double Layer FPC Gold-Plated Electrolytic Copper Wire Circuit Board
- LED Quantity: 480 PCS/M
- Width: 8mm
- Length: Per Reel
- Working Voltage: DC5V
- Power: 5W/M
- Emitting Colors: 2700K(Warm White), 3000K(Warm White), 4000K(Natural White), 6500K(Cool White)
- Beam Angle: 180°
- CRI: >
- Minimum Cuttable Length: 12.5mm
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Specifications
PCB Board: Double Layer FPC Gold-Plated Electrolytic Copper Wire Circuit Board
LED Quantity: 480 PCS/M
Width: 8mm
Thickness: 1.6mm
Length: Per Reel
Working Voltage: DC5V
Power: 5W/M
Emitting Colors: 2700K(Warm White), 3000K(Warm White), 4000K(Natural White), 6500K(Cool White)
Luminous Efficiency: 95LM-110LM/W
Luminous FLux: 475-550LM/M
Beam Angle: 180°
Flexible, Bendable, And Cuttable
Dimmable: YES
CRI: >
Waterproof Level: IP20 Non-Waterproof
Minimum Cuttable Length: 12.5mm
NO Visible Hotspots, With Hotspots
Back With Double-Sided Adhesive Tape

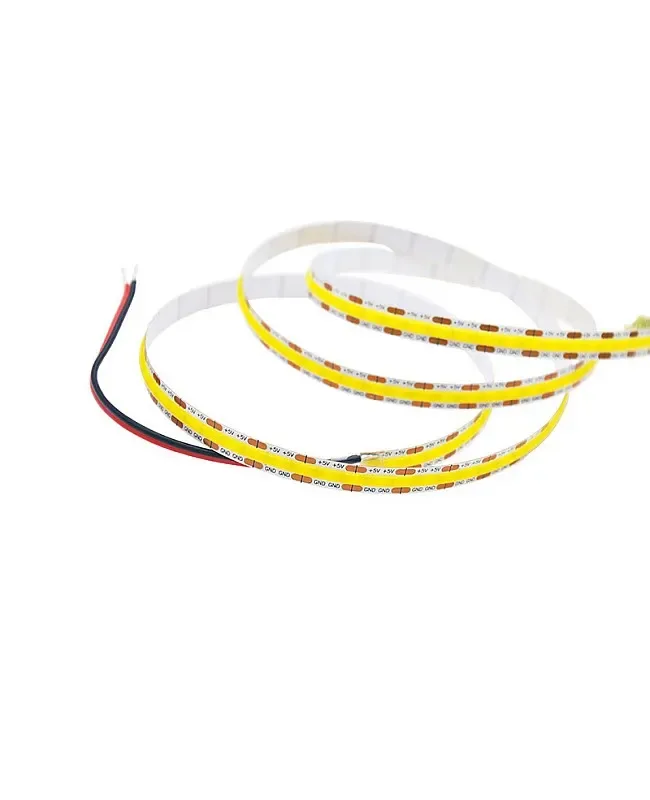

Connection: Black/Red Wires
Includes
1 * LED Strips COB
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
