Seamless WS2812B Addressable Smart Light Strips 16.4FT
LumaCircuit offers Seamless WS2812B Addressable Smart Light Strips 16.4FT as a configurable LED strip for project builds. Typical applications include Serviceable strip wiring, Power injection, Cabinet and display installation. LED Quantity: 720PCS/Meter IC Quantity: 20PCS/Meter Emitting Color: Magic Color 24-Bit The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the WLED ambient route. Match the controller to the listed WS2812B LED type, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

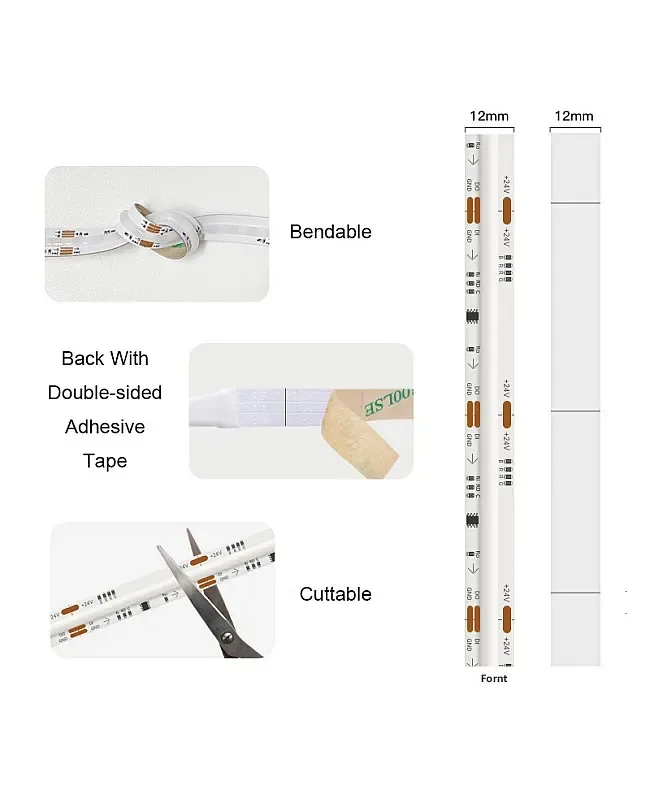

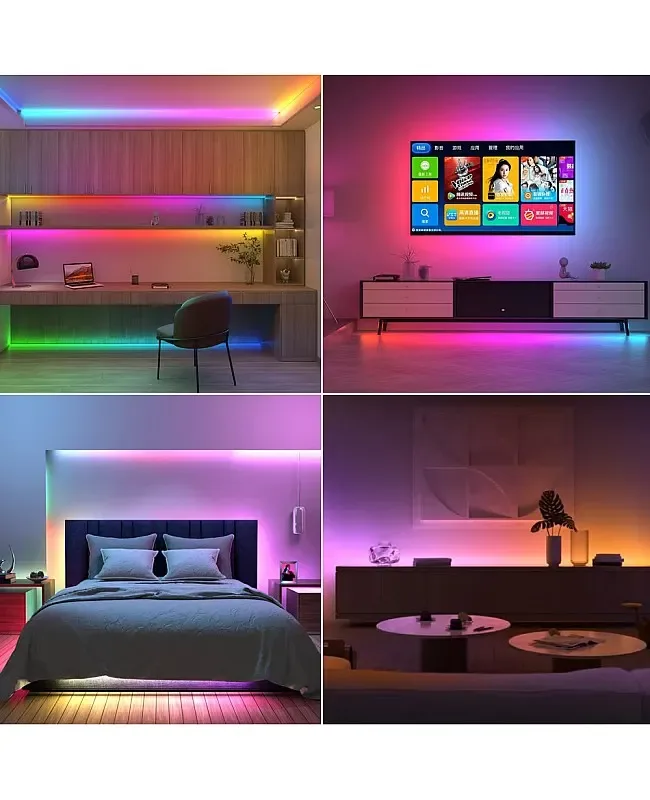

- The Addressable Smart Light Strips enable various lighting effects and are an excellent way to add color and mood lighting to your home or business. The Addressable means that the installer can program it to create various patterns, effects, and animations, allowing you to customize your lighting to match your mood or create a special atmosphere. The width of the PCB board is 12mm, and the reel length is 16.4 ft.
- LED Quantity: 720PCS/Meter
- IC Quantity: 20PCS/Meter
- Emitting Color: Magic Color 24-Bit

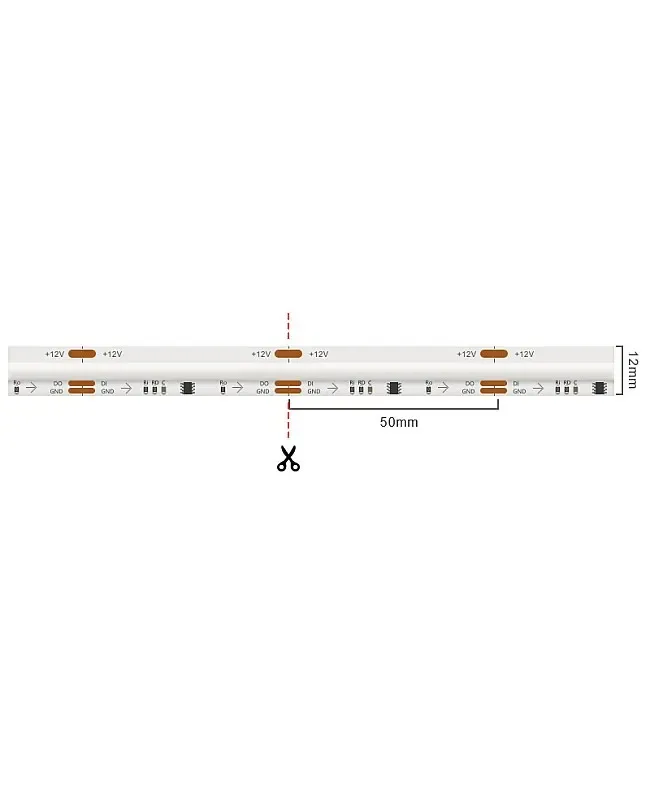

- Minimum Cutting Length: 50mm
- IP Rating: IP20 Non-waterproof, IP67 Silicone Tube Waterproof
- 3 Pin JST-SM Connectors Included
- Can Work WIth Arduino, Raspberry PI Controllers
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V
- Light engine: Addressable
- WLED chip: WS2812B
- LumaCircuit model: LC-STR-7NCKE9
- LED Brand: San An
- LED Type: 1022
- LED Quantity: 720PCS/Meter
- Width: 12mm
- Length: (16.4FT)/Reel
- Working Voltage: DC24V
- Power: 24W/Meter
- Emitting Color: Magic Color 24-Bit
Control and installation
Use this product on the WLED ambient route. Match the controller to the listed WS2812B LED type, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.
Plan the installation around Serviceable strip wiring, Power injection, Cabinet and display installation. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

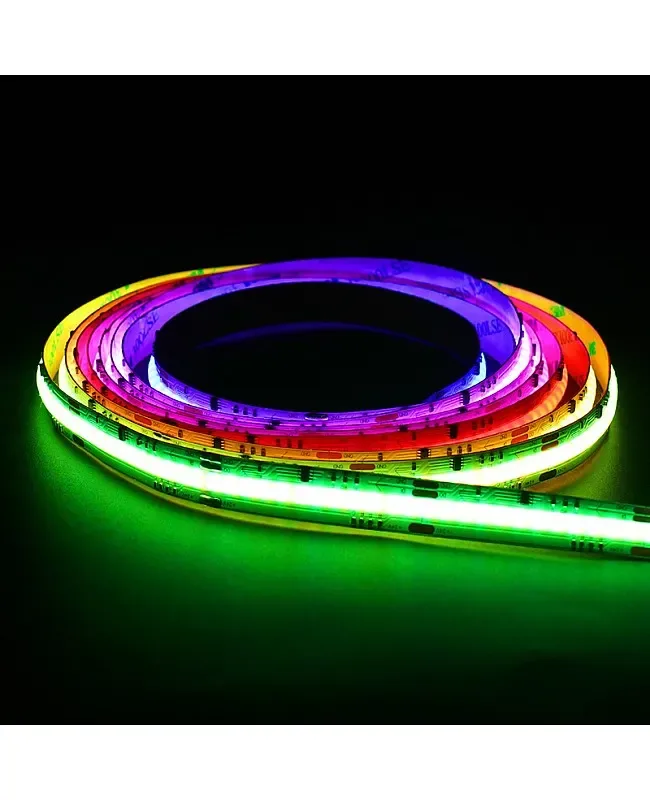

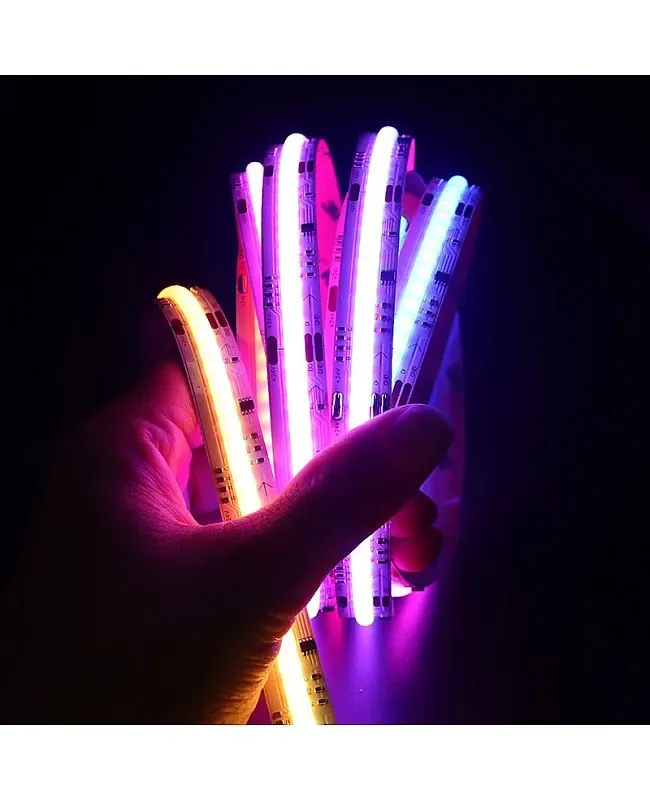

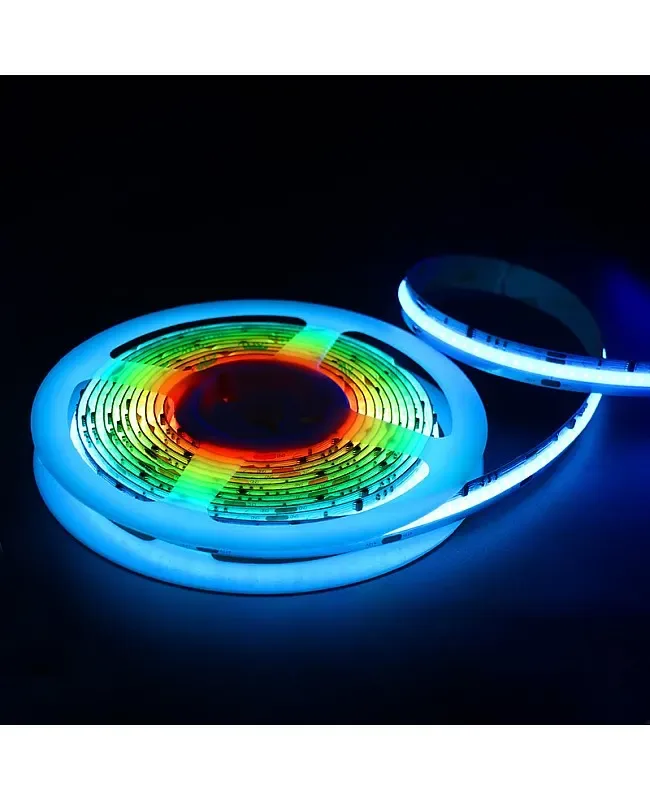

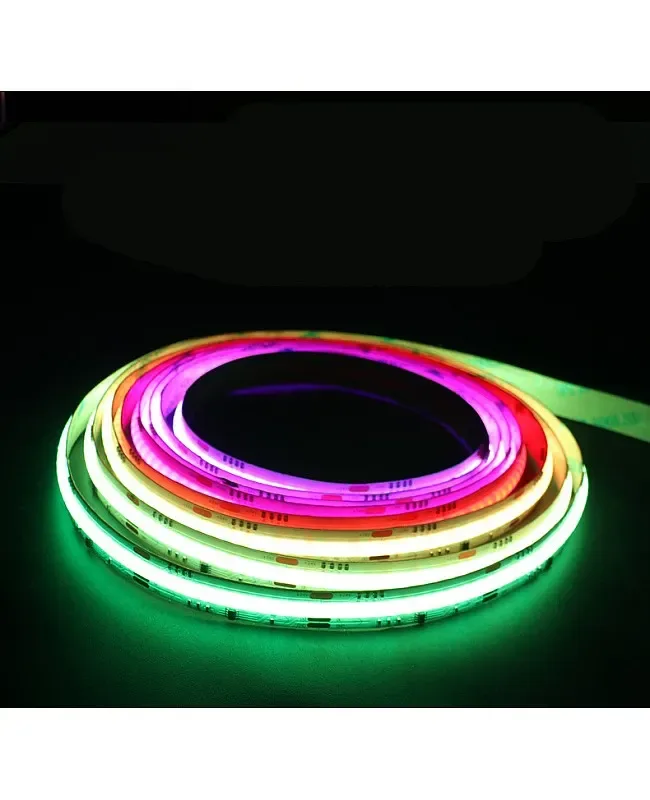

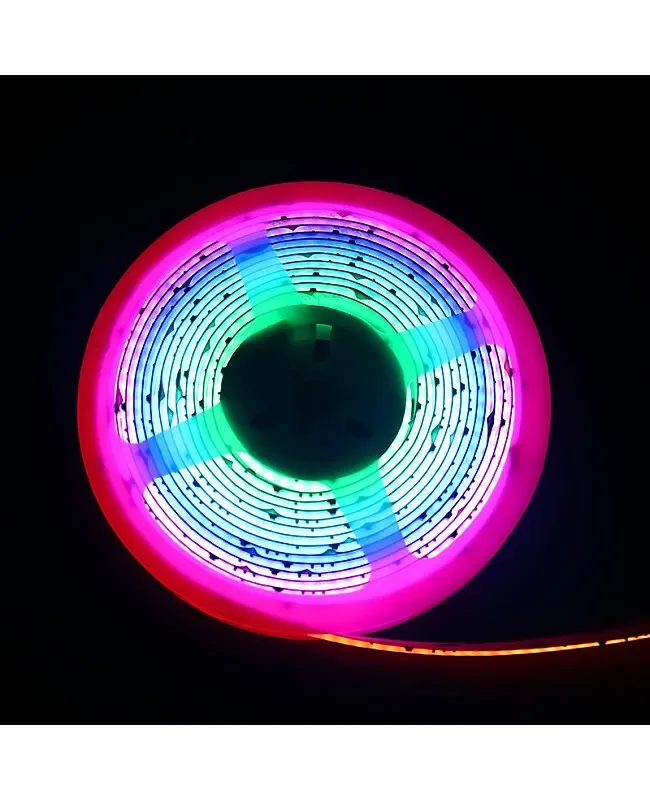

The Addressable Smart Light Strips enable various lighting effects and are an excellent way to add color and mood lighting to your home or business. The Addressable means that the installer can program it to create various patterns, effects, and animations, allowing you to customize your lighting to match your mood or create a special atmosphere. The width of the PCB board is 12mm, and the reel length is 16.4 ft. The minimum cutting length is 5cm; it can be cut to any length and linked together for even more flexibility. Adopts COB(chip-on-board) technology, 720PCS LED chips mounted on the dual-layer PCB board, flexible and bendable, the high-density LED Chips allow brighter than the traditional SMD LED Strips, no visible light dots, and no dark areas for high-quality color rendering and uniform light emission. Use WS2812B ICs to achieve an addressable function, and one IC controls 36 pieces of LED Chips to create hundreds of amazing lighting effects, such as curtain-up, flowing water, flash, jump, raindrop, etc. This allows for color-changing, dimming, and more intricate lighting designs. It can work with most Pixel Light Controllers, including as well as Arduino and Raspberry Pi Controllers. The Magic Color LED Strips come with JST-SM Connectors, which are easy to connect to the Controller to light up. Two waterproof levels of products are available: IP20, which is non-waterproof, and IP67, which features a silicone tube for waterproof protection. The installer can use the IP20 for indoor projects and IP67 for outdoor applications. The back of the IP20 LED Strips has double-sided adhesive tape. Removing the protector paper from the tape is easy, and sticking it where you want to install it. The Silicone Tube Waterproof products can be installed in a wet or rainy location. With its low power consumption and easy installation, the Smart LED Strips are the perfect way to bring extra color to your life.
Specifications
Model
LED Brand: San An
LED Type: 1022
LED Quantity: 720PCS/Meter
IC Type: WS2812B
IC Quantity: 20PCS/Meter
Width: 12mm
Length: (16.4FT)/Reel
Working Voltage: DC24V
Power: 24W/Meter
Emitting Color: Magic Color 24-Bit
Grayscale Levels: 256
View Angle: 180°
CRI
Dimmable: YES
Minimum Cutting Length: 50mm
IP Rating: IP20 Non-waterproof, IP67 Silicone Tube Waterproof
3 Pin JST-SM Connectors Included
Can Work WIth Arduino, Raspberry PI Controllers
Working Temperature: -20℃-+45℃
Storage Temperature: -20℃-+60℃
Includes
1 * Programmable LED Strip Lighting(16.4 FT/Reel)
Typical applications
- Serviceable strip wiring
- Power injection
- Cabinet and display installation
