GL C Mix RGB CCT Zigbee LED Strip Remote Controller
LumaCircuit offers GL C Mix RGB CCT Zigbee LED Strip Remote Controller as a configurable LED strip for project builds. Typical applications include Serviceable strip wiring, Power injection, Cabinet and display installation. Material: Fireproof Material, High-Temperature Resistance Size: 89*23.5*48mm(L*W*H) Input Voltage: -24-36-48-54V The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

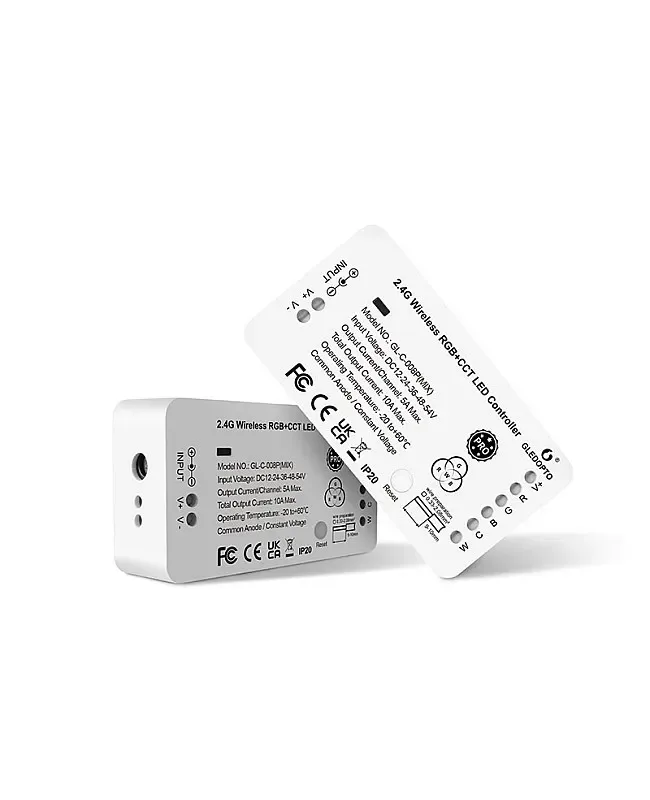

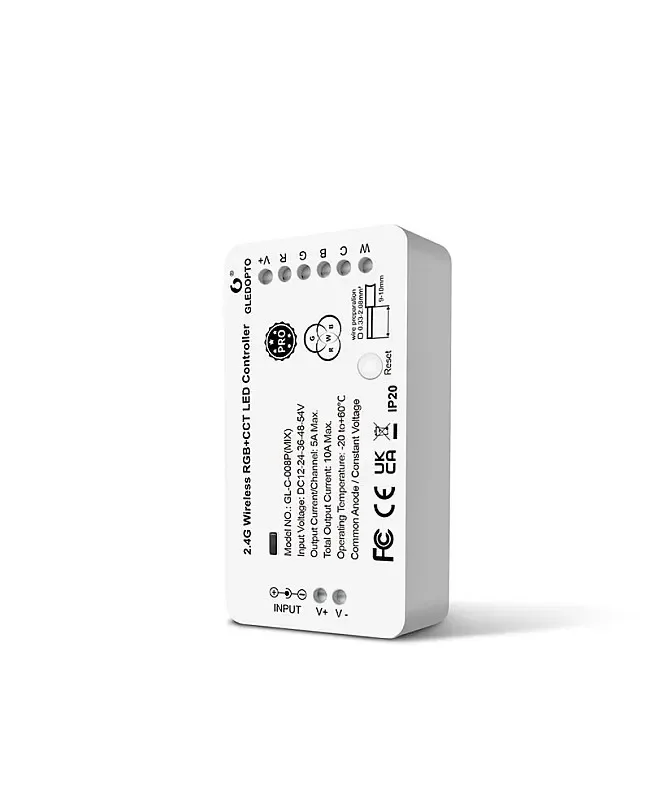

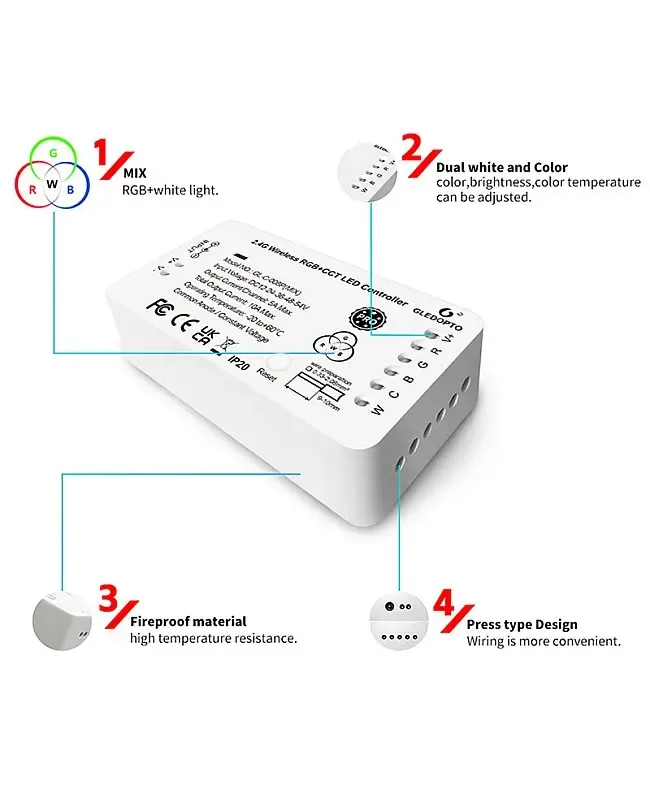

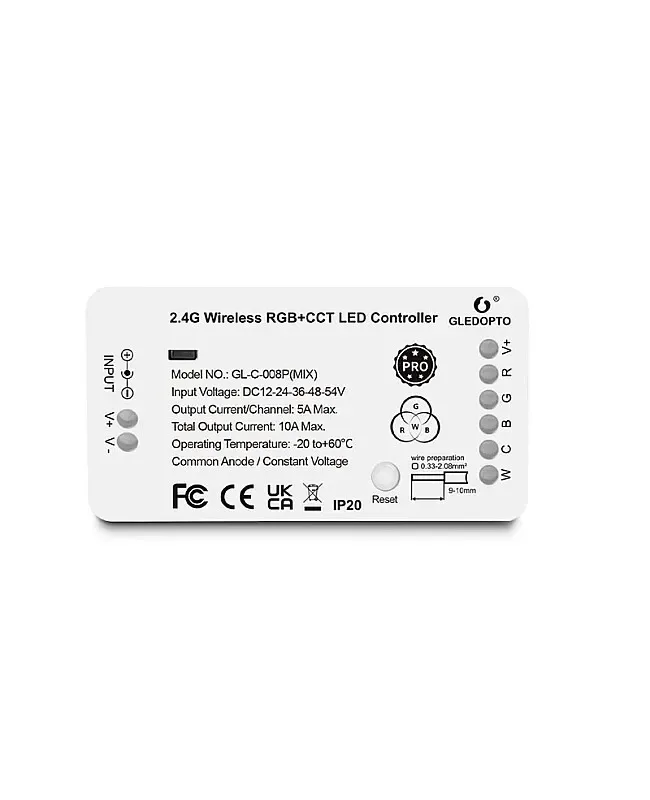

- The newest GL-C- Mix LED strip remote controller for RGB CCT LED lights, both the RGB light and the white light will turn on simultaneously. The shell is made of fireproof material, is high-temperature resistant, has an IP rating of IP20, is non-waterproof, and is only for indoor use. It has a press-type wire connector design, making inserting and installing the wires easy the light controllers work on DC12V, DC24V, DC36V, DC48V and DC54V, the installer can use them for various voltage LED lights.
- Material: Fireproof Material, High-Temperature Resistance

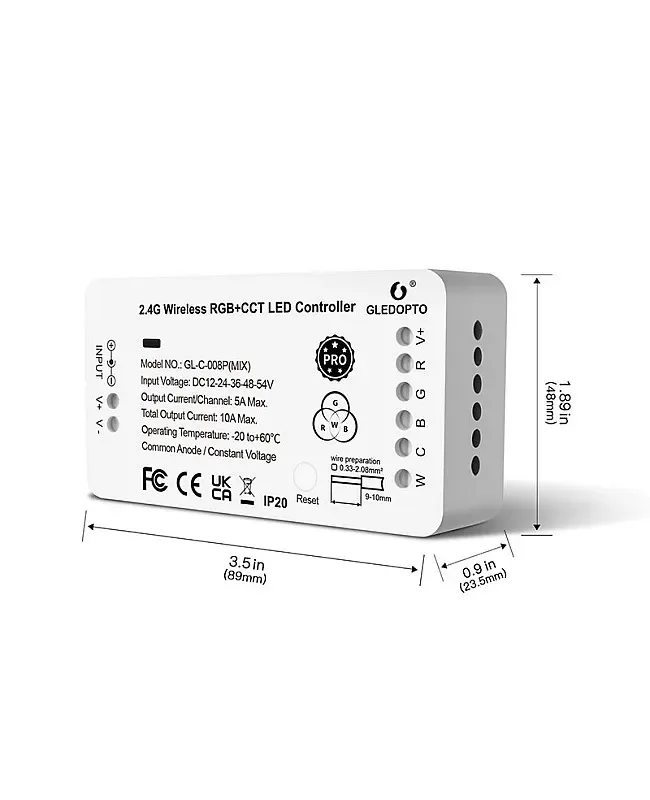

- Size: 89*23.5*48mm(L*W*H)
- Input Voltage: -24-36-48-54V
- Output current: 5A Max Per Channel

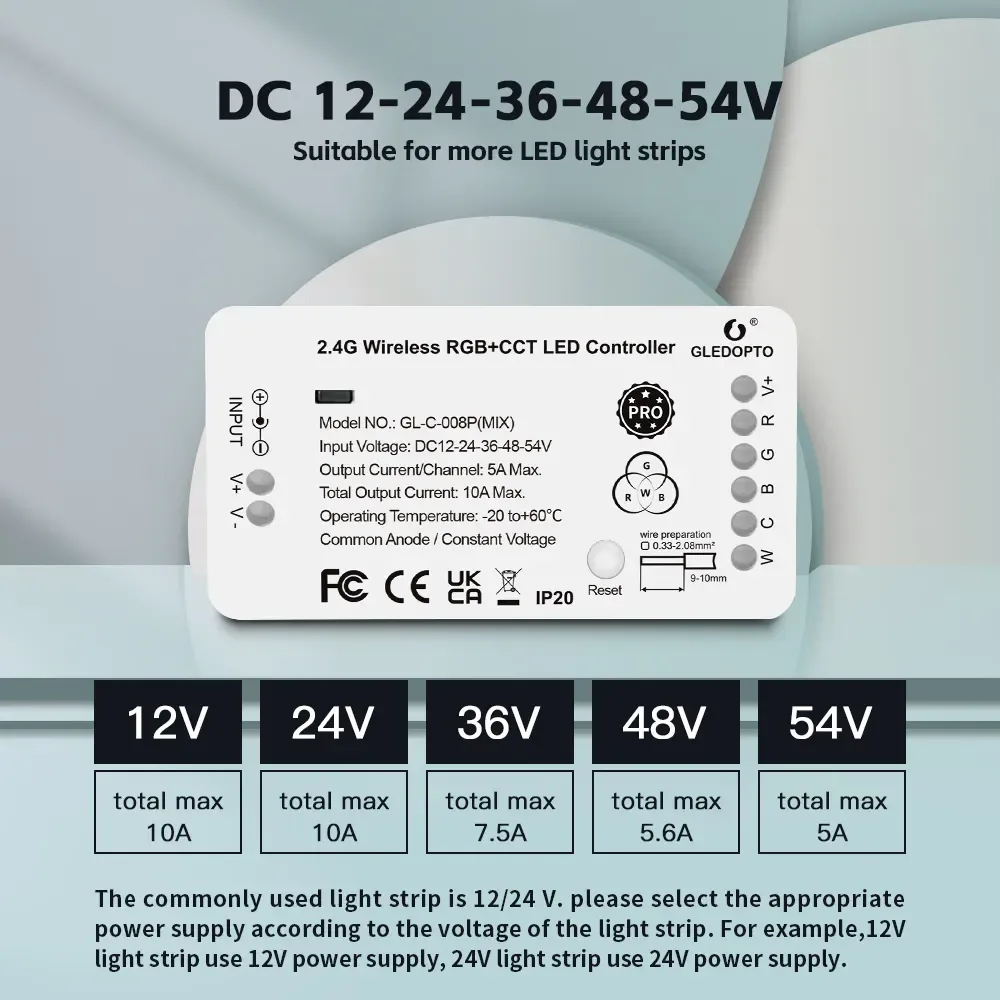

- Total Output Current: 10A Max(12V), 10A Max(24V), 7.5A Max(36V), 5.6A Max(48V), 5A Max(54V)
- Color Temperature Adjustable From 2700K To 6500K
- 16 Million Colors Changeable
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V / 36 V / 48 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-STR-OKIWUF
- Material: Fireproof Material, High-Temperature Resistance
- Size: 89*23.5*48mm(L*W*H)
- Input Voltage: -24-36-48-54V
- Output current: 5A Max Per Channel
- Total Output Current: 10A Max(12V), 10A Max(24V), 7.5A Max(36V), 5.6A Max(48V), 5A Max(54V)
- IP Rating: IP20 Non-waterproof
- Working Temperature: -20℃-60℃
- Dimensions found: 89x23.5x48mm / 48mm
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Serviceable strip wiring, Power injection, Cabinet and display installation. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

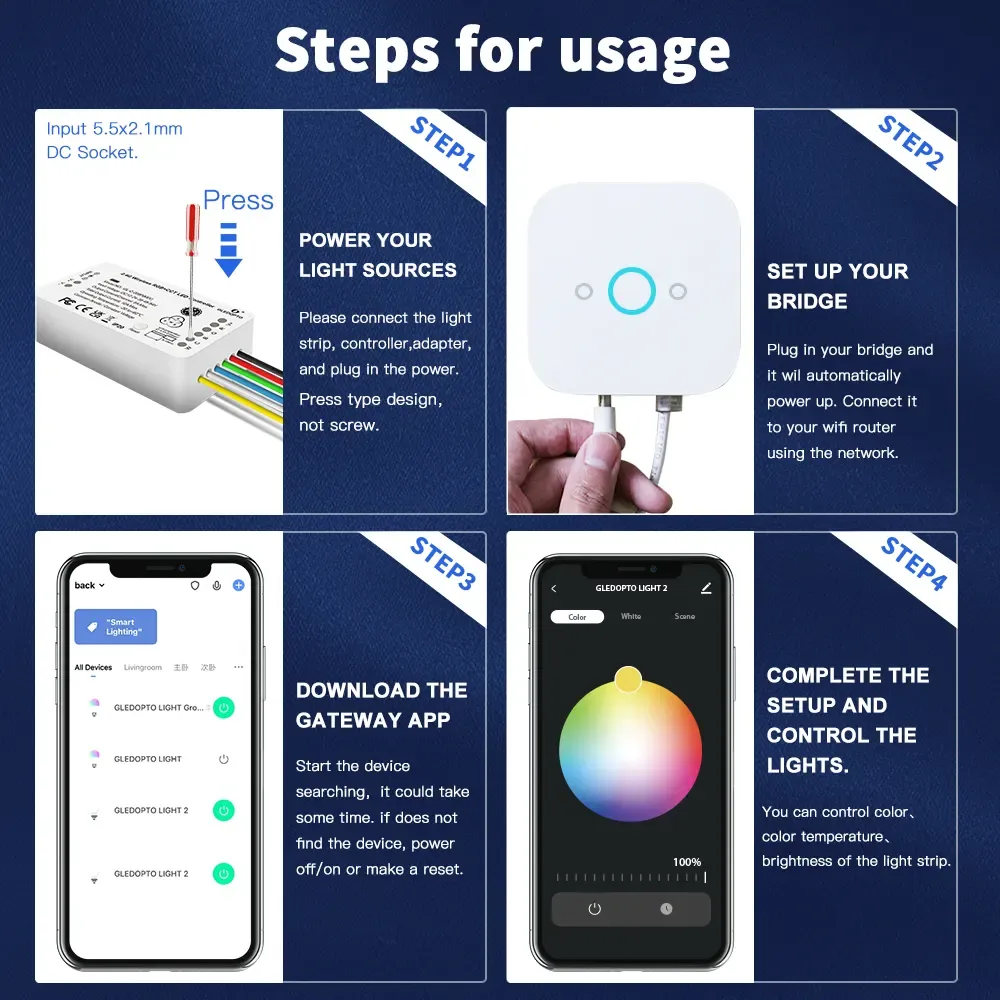

The newest GL-C- Mix LED strip remote controller for RGB CCT LED lights, both the RGB light and the white light will turn on simultaneously. The shell is made of fireproof material, is high-temperature resistant, has an IP rating of IP20, is non-waterproof, and is only for indoor use. It has a press-type wire connector design, making inserting and installing the wires easy the light controllers work on DC12V, DC24V, DC36V, DC48V and DC54V, the installer can use them for various voltage LED lights. It can be controlled by an RF remote, a smartphone APP, and voice commands through smart devices. The installer can control the color, brightness, and temperature for various scenes. There are 16 million colors available, the brightness is adjustable from 1% to 100%, and the color temperature is from 2700K to 6500 K the RGB white controller base on Zigbee 3.0 protocol, supports control by Zigbee hub after adding the LED light to its APP, after connecting the Controller to your Zigbee network, the installer can download the APP and control the lights of all the rooms by mobile phone APP, can work with Amazon Alexa and Smart Life, the installer can turn on/off, adjust brightness and change light colors through voice commands, which can free your hands.
Specifications
Model
Material: Fireproof Material, High-Temperature Resistance
Size: 89*23.5*48mm(L*W*H)
Input Voltage: -24-36-48-54V
Output current: 5A Max Per Channel
Total Output Current: 10A Max(12V), 10A Max(24V), 7.5A Max(36V), 5.6A Max(48V), 5A Max(54V)
Color Temperature Adjustable From 2700K To 6500K
16 Million Colors Changeable
Brightness Adjustable From 1% To 100%
Various Scenes Customizable
4G RF Remote Controllable
Smartphone APP Controllable
Voice Controllable
Works With Zigbee 3.0 Gateways: Amazon Echo Plus, Smartthings, Tuya, Conbee, Homey
IP Rating: IP20 Non-waterproof

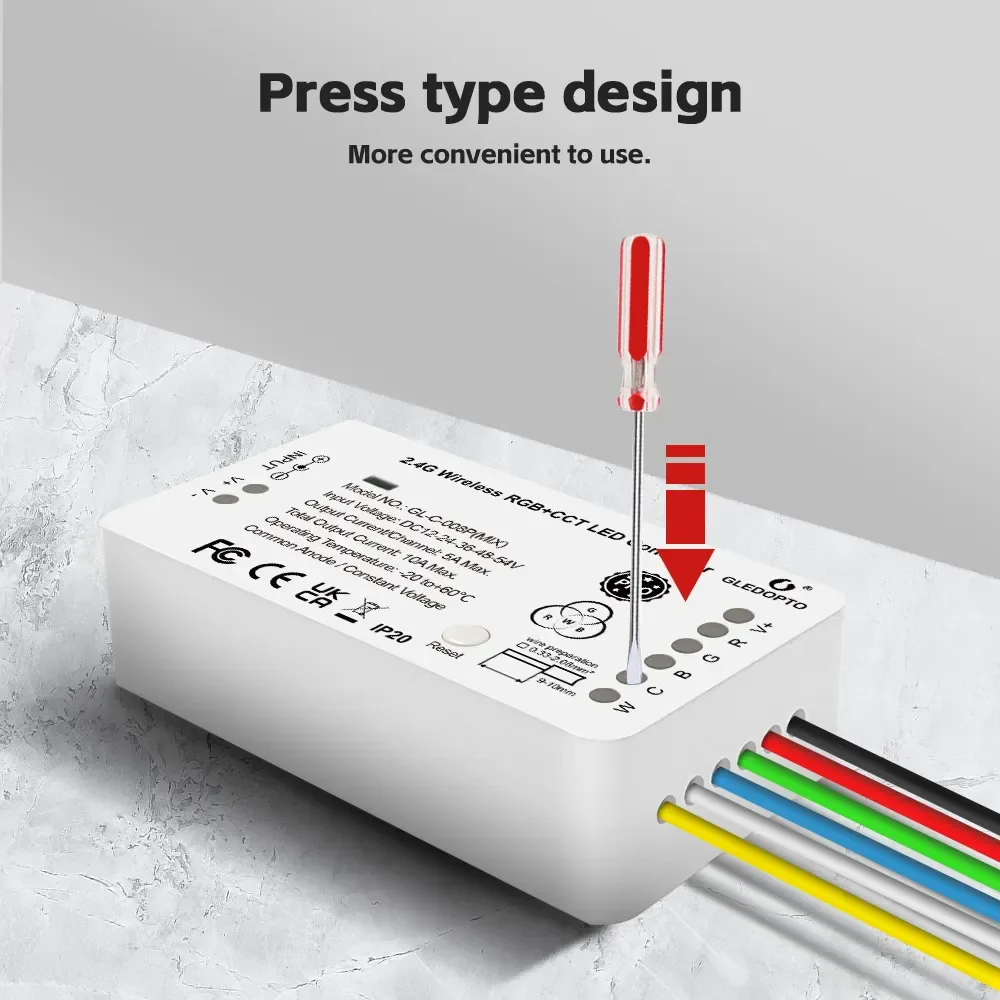

Press Type Wiring Connector Design
Working Temperature: -20℃-60℃
Includes
1 * RGB+CCT Zigbee Controller
1 * User Manual
1 * 3CM Sticker
Typical applications
- Serviceable strip wiring
- Power injection
- Cabinet and display installation
