Single Color DC12V 8A 96W LED Strip Dimmer
LumaCircuit offers Single Color DC12V 8A 96W LED Strip Dimmer as a configurable LED strip for project builds. Typical applications include Serviceable strip wiring, Power injection, Cabinet and display installation. Working Temperature: -20-60℃ Size: 89mm*59mm*35mm(L*W*H) Static Power Consumption: <1W The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

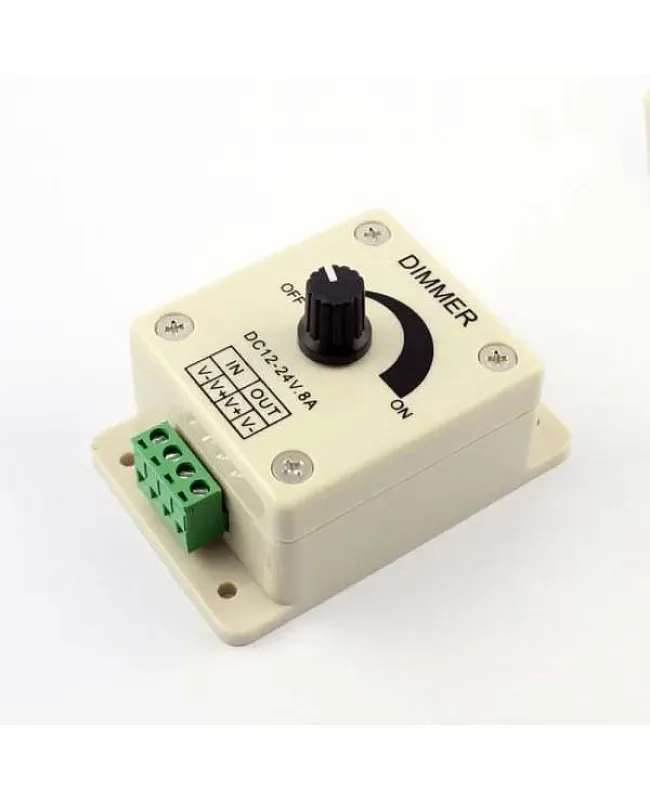

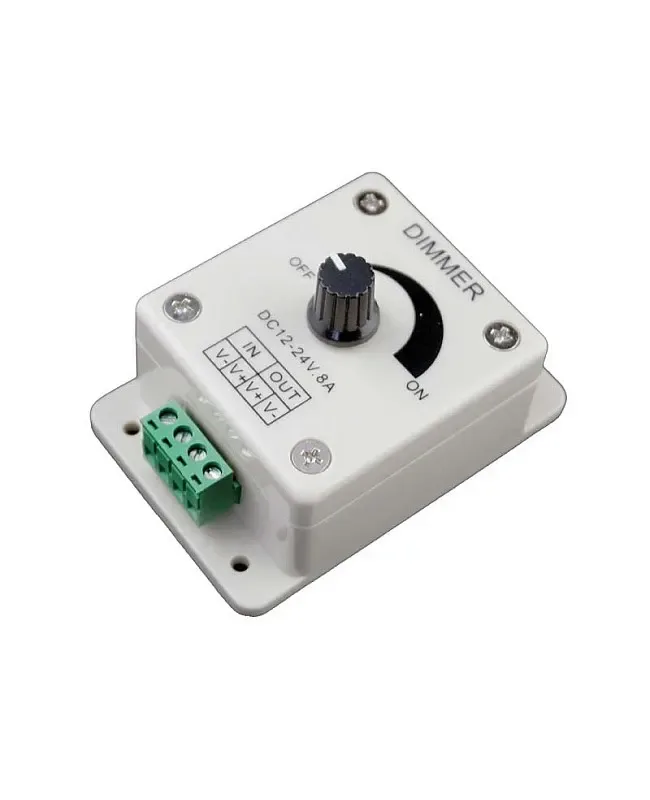

- The single color LED strip dimmer can achieve stepless dimming, and adopts the knob control switch to adjust the brightness easily. With one output channel design, the max loading power is up to 192W when working on DC24V. LED strip light dimmer with male and female connectors with screws, easy to connect to the single color LED strips. With a knob switch to adjust the brightness. Rotate the button to the right; the brightness will be brighter when you rotate it to the far right.
- Working Temperature: -20-60℃
- Size: 89mm*59mm*35mm(L*W*H)
- Static Power Consumption: <1W
- Working Voltage: DC12V or DC24V
- Power: DC12V:≤96W; DC24V:≤192W
- Adopts Male And Female Connector With Screws
- Adopts Knob Switch To Adjust The Brightness
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V
- Working Temperature: -20-60℃
- Size: 89mm*59mm*35mm(L*W*H)
- Static Power Consumption: <1W
- Working Voltage: DC12V or DC24V
- Output Channel: 1
- Power: DC12V:≤96W; DC24V:≤192W
- Current: ≤8A
- LumaCircuit model: LC-STR-XXNPS9
- Dimensions found: 89mm / 59mm / 35mm
Control and installation
Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.
Plan the installation around Serviceable strip wiring, Power injection, Cabinet and display installation. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

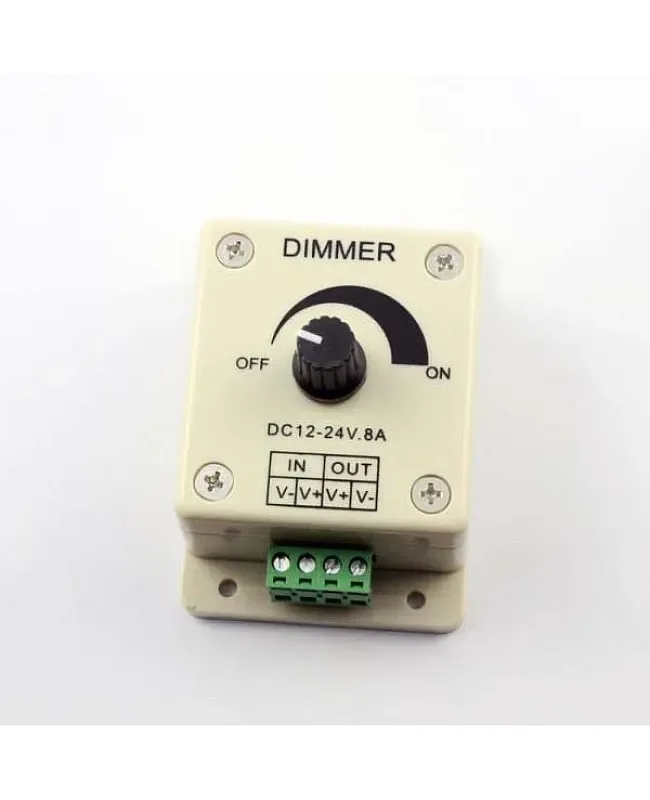

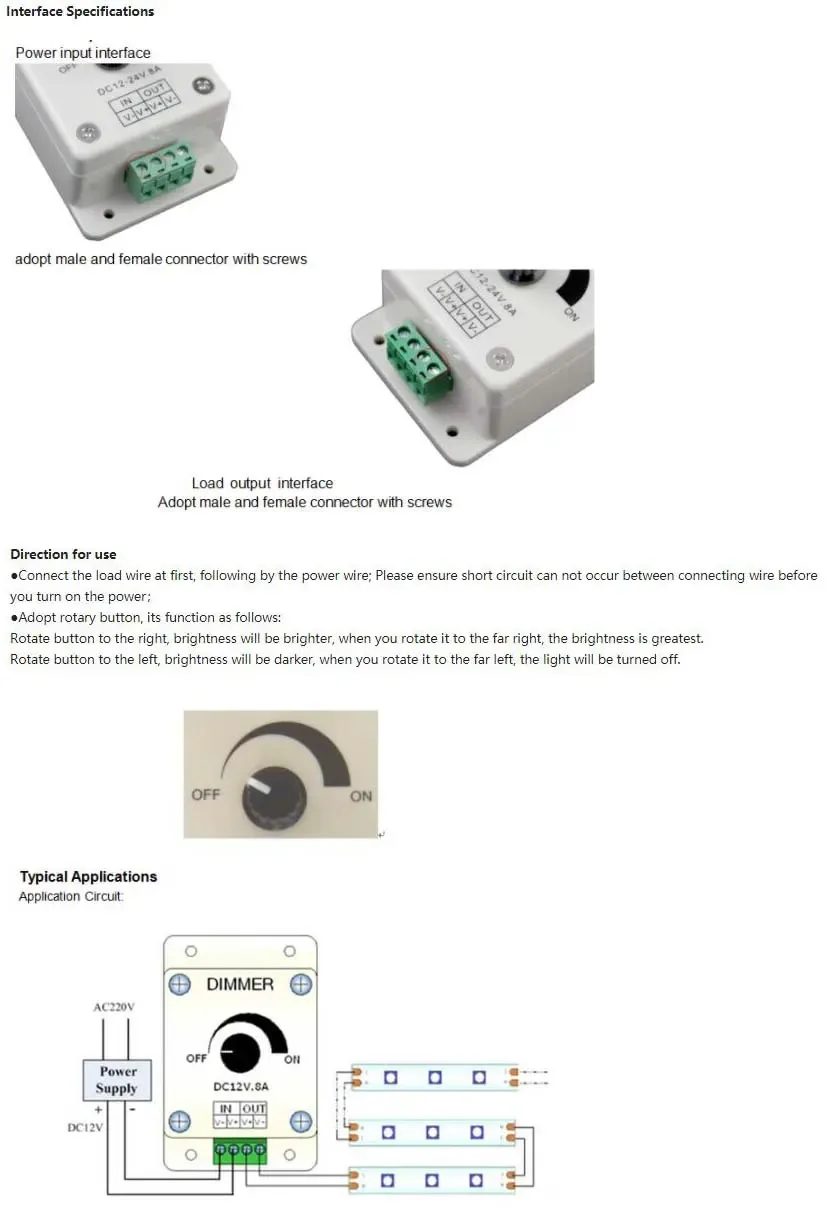

The single color LED strip dimmer can achieve stepless dimming, and adopts the knob control switch to adjust the brightness easily. With one output channel design, the max loading power is up to 192W when working on DC24V. LED strip light dimmer with male and female connectors with screws, easy to connect to the single color LED strips. With a knob switch to adjust the brightness. Rotate the button to the right; the brightness will be brighter when you rotate it to the far right. Rotate the button to the left, and the brightness will be darker. The light will be turned off when you rotate it to the far left.
Specifications
Working Temperature: -20-60℃
Size: 89mm*59mm*35mm(L*W*H)
Static Power Consumption: <1W
Working Voltage: DC12V or DC24V
Output Channel: 1
Power: DC12V:≤96W; DC24V:≤192W
Current: ≤8A

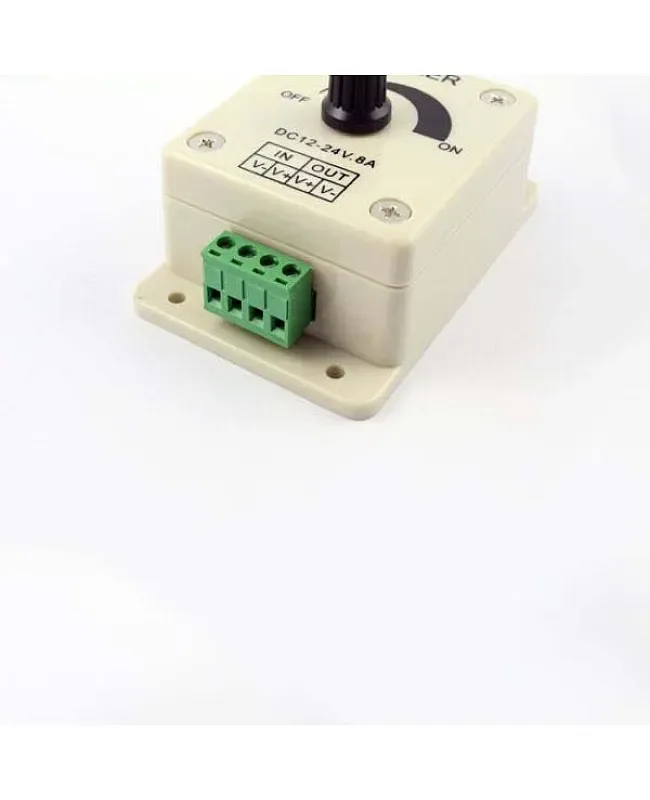

Adopts Male And Female Connector With Screws
Adopts Knob Switch To Adjust The Brightness
Weight: 90G
Package
1*LED Strip Dimmer
Typical applications
- Serviceable strip wiring
- Power injection
- Cabinet and display installation
