Music Addressable LED Strip Controller

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• The addressable LED strip controller is lightweight and has a small, compact design. The nine-key RF remote control is included and can work with most smart ICs like WS2811, WS2812B, 16703, 1903, etc. The addressable LED controller comes with a female JST SM 3Pin connector, which makes it easy to connect to the pixel LED strips, and the maximum number of pixels that can be loaded is 600 pieces.
• Controller Size: 2"*1.4"*0.9" (L*W*H)
• Remote Control Size: 3.4"*1.6"*0.04" (L*W*H)
• Max Loading Pixels: 600PCS
• Built-In Lighting Patterns: 5 Kinds Of Music Patterns + 20 Kinds Of Regular Patterns
• Connecting Method: Common Anode
• Support Types Of ICs: WS2811, WS2812B, WS2813, WS2815, WS2818, SK6812, SM16703, UCS1903, TM1804, APA102, SK9822, APA105
• 9 Keys RF Remote Control Included

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 5-12 V
• Light engine: Addressable
• WLED chip: WS2811 / WS2812B / WS2813 / WS2815 / SK6812 / UCS1903 / APA102 / SM16703
• Material: Plastic
• Controller Size: 2"*1.4"*0.9" (L*W*H)
• Remote Control Size: 3.4"*1.6"*0.04" (L*W*H)
• Color: Black
• Working Voltage: -12V
• Max Loading Pixels: 600PCS
• Output Signal: SPI
• Output Connector: 3Pin
• Remote Control Distance: ≤20M

Control and installation

Use this product on the WLED ambient route. Match the controller to the listed WS2811 / WS2812B / WS2813 / WS2815 / SK6812 / UCS1903 / APA102 / SM16703 LED type, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.

Plan the installation around Serviceable strip wiring, Power injection, Cabinet and display installation. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

The addressable LED strip controller is lightweight and has a small, compact design. The nine-key RF remote control is included and can work with most smart ICs like WS2811, WS2812B, 16703, 1903, etc. The addressable LED controller comes with a female JST SM 3Pin connector, which makes it easy to connect to the pixel LED strips, and the maximum number of pixels that can be loaded is 600 pieces. The addressable LED controller built-in 25 kinds of lighting patterns, including five music patterns and 20 regular patterns. Under the music modes, the lighting will change automatically following the rhythm of the music. Under the regular modes, the brightness of the color is adjustable.

Specifications

Material: Plastic

Controller Size: 2"*1.4"*0.9" (L*W*H)

Remote Control Size: 3.4"*1.6"*0.04" (L*W*H)

Color: Black

Working Voltage: -12V

Working Current

Max Loading Pixels: 600PCS

Output Signal: SPI

Built-In Lighting Patterns: 5 Kinds Of Music Patterns + 20 Kinds Of Regular Patterns

Output Connector: 3Pin

Connecting Method: Common Anode

Support Types Of ICs: WS2811, WS2812B, WS2813, WS2815, WS2818, SK6812, SM16703, UCS1903, TM1804, APA102, SK9822, APA105

RGB Sequence: RGB

9 Keys RF Remote Control Included

Remote Control Distance: ≤20M

IP Rating: IP20 Non-Waterproof

Working Temperature: -20℃-+60℃

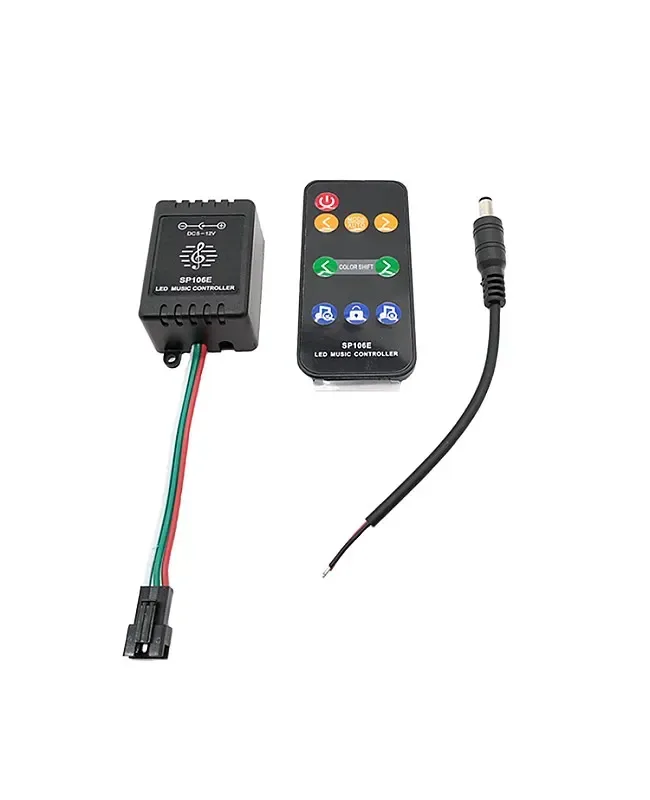

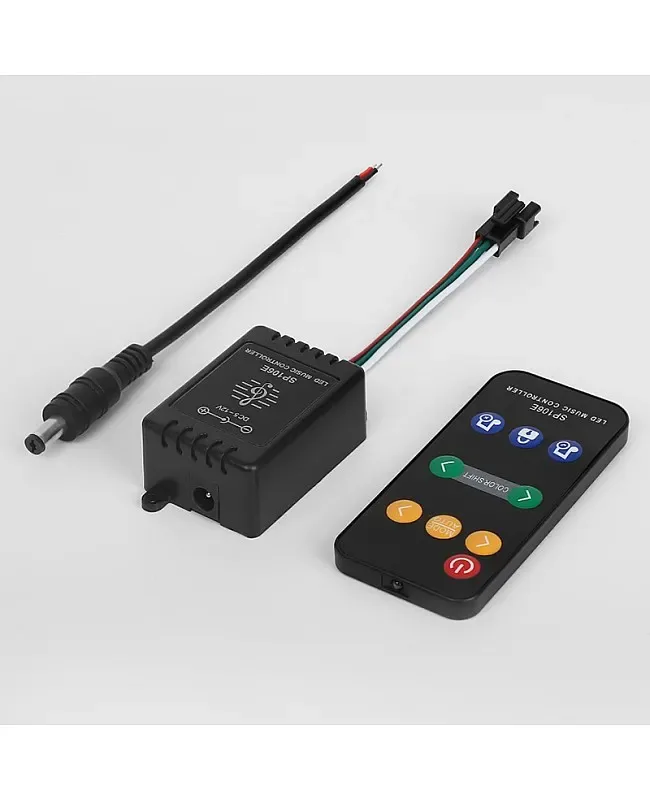

Includes

1 * Light Music Controller

1 * 9 Keys Remote

1 * DC Male Connector
