Full Color WS2813 Digital Programmable LED Strips
LumaCircuit offers Full Color WS2813 Digital Programmable LED Strips as a configurable LED strip for project builds. Typical applications include Serviceable strip wiring, Power injection, Cabinet and display installation. Colors Of PCB Board: White/Black Individually Addressable LED Type: 5050 RGB SMD LEDs The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the WLED ambient route. Match the controller to the listed WS2812B / WS2813 LED type, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The LEDs at the far end may be dimmer due to the added resistance and voltage drop the installer should add the same working voltage every 5 meters (16.4 ft) according to the actual situation to maintain the same brightness.

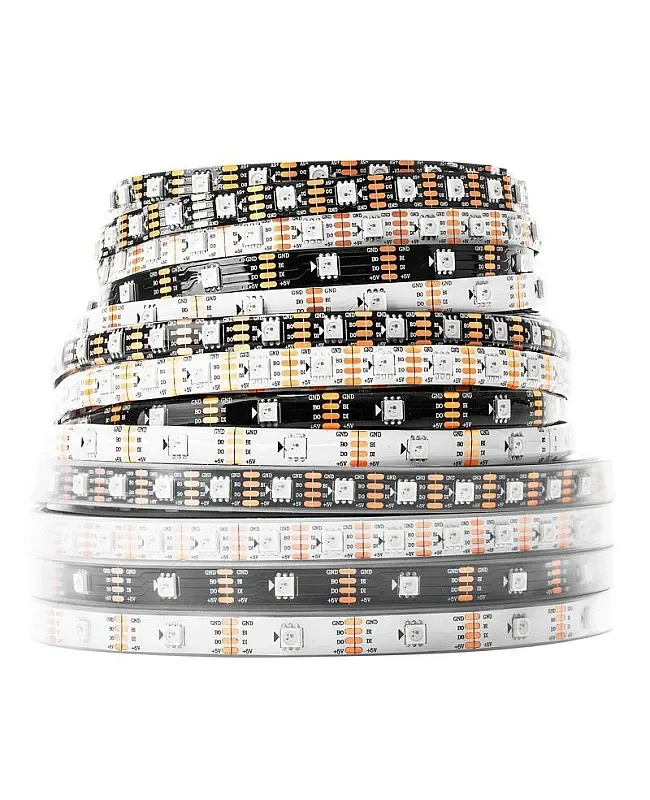

- Colors Of PCB Board: White/Black
- Individually Addressable
- LED Type: 5050 RGB SMD LEDs
- LED Quantity: 30LEDs/Meter, 60LEDs/Meter, 144LEDs/Meter
- Emitting Colors: RGBIC Full Color 24-Bit
- Wave Length: Red: 650nm; Green: 520nm; Blue: 460nm
- Width: 10mm(30LEDs/Meter, 60LEDs/Meter), 12mm(144LEDs/Meter)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V
- Light engine: Addressable
- WLED chip: WS2812B / WS2813
- Working Voltage: DC5V
- Colors Of PCB Board: White/Black
- LED Type: 5050 RGB SMD LEDs
- LED Chip: Epistar
- LED Quantity: 30LEDs/Meter, 60LEDs/Meter, 144LEDs/Meter
- Emitting Colors: RGBIC Full Color 24-Bit
- Power: 0.3W/LED
- Wave Length: Red: 650nm; Green: 520nm; Blue: 460nm
- Width: 10mm(30LEDs/Meter, 60LEDs/Meter), 12mm(144LEDs/Meter)
Control and installation
Use this product on the WLED ambient route. Match the controller to the listed WS2812B / WS2813 LED type, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.
Plan the installation around Serviceable strip wiring, Power injection, Cabinet and display installation. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

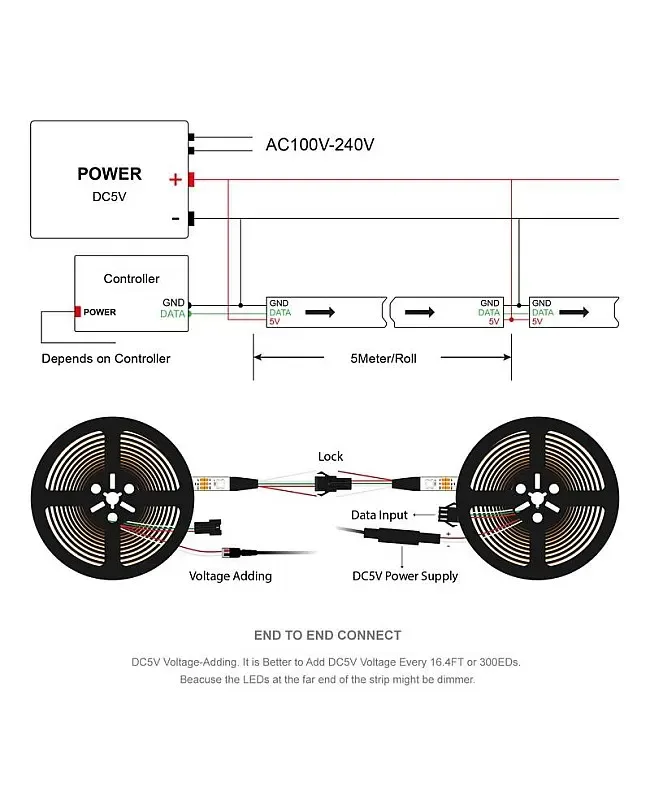

The LEDs at the far end may be dimmer due to the added resistance and voltage drop the installer should add the same working voltage every 5 meters (16.4 ft) according to the actual situation to maintain the same brightness.
Specifications
Working Voltage: DC5V
Colors Of PCB Board: White/Black
Individually Addressable
LED Type: 5050 RGB SMD LEDs
LED Chip: Epistar
LED Quantity: 30LEDs/Meter, 60LEDs/Meter, 144LEDs/Meter
Luminous Flux: 8lm/LED
Grayscale Levels: 256
View Angle: 120°
Emitting Colors: RGBIC Full Color 24-Bit
Power: 0.3W/LED
Wave Length: Red: 650nm; Green: 520nm; Blue: 460nm
Width: 10mm(30LEDs/Meter, 60LEDs/Meter), 12mm(144LEDs/Meter)
Lengths Available: 1M, 5M

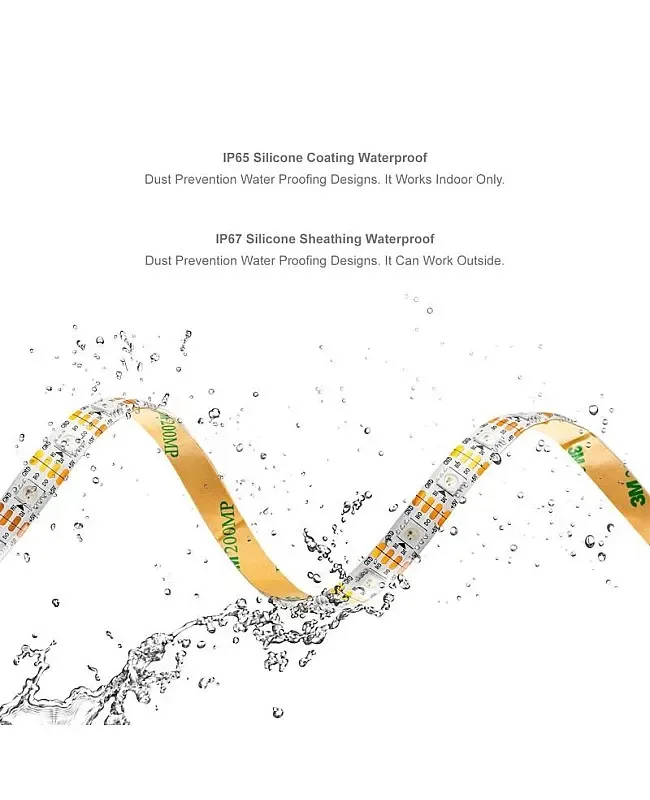

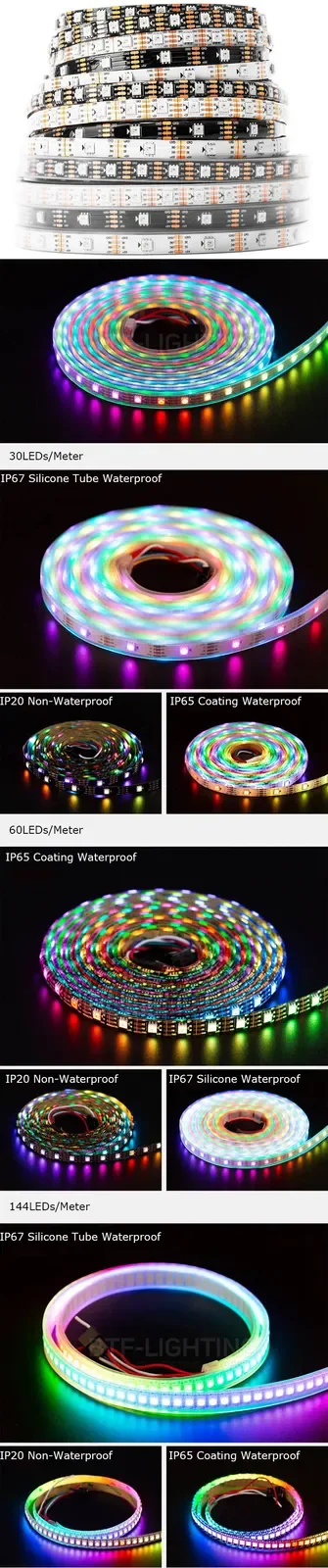

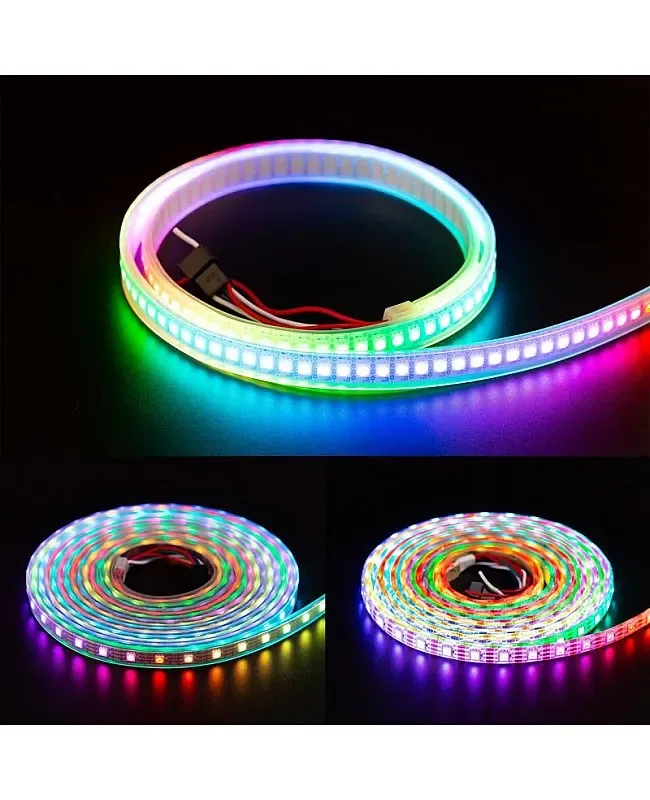

Waterproof Level: IP30 Non-waterproof, IP65 Coating Waterproof, IP67 Silicone Tube Waterproof

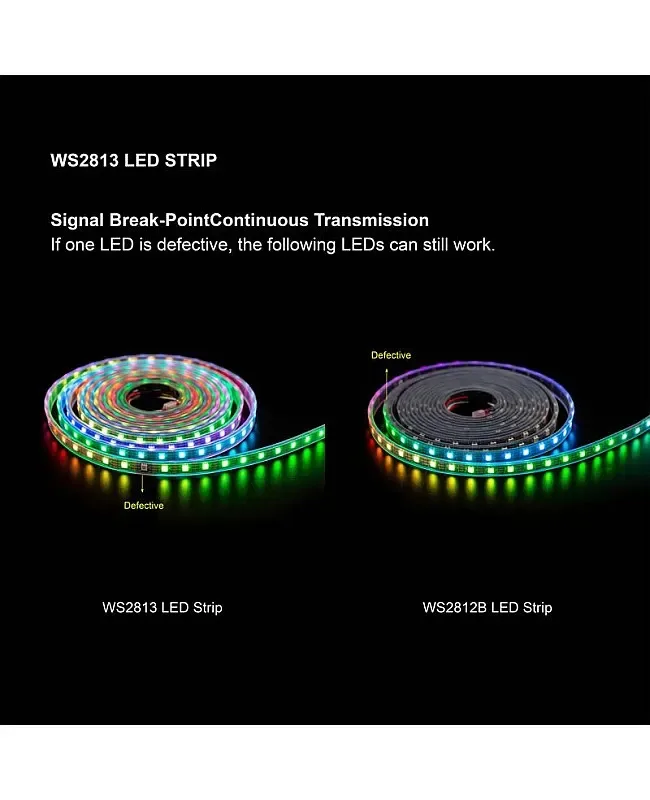

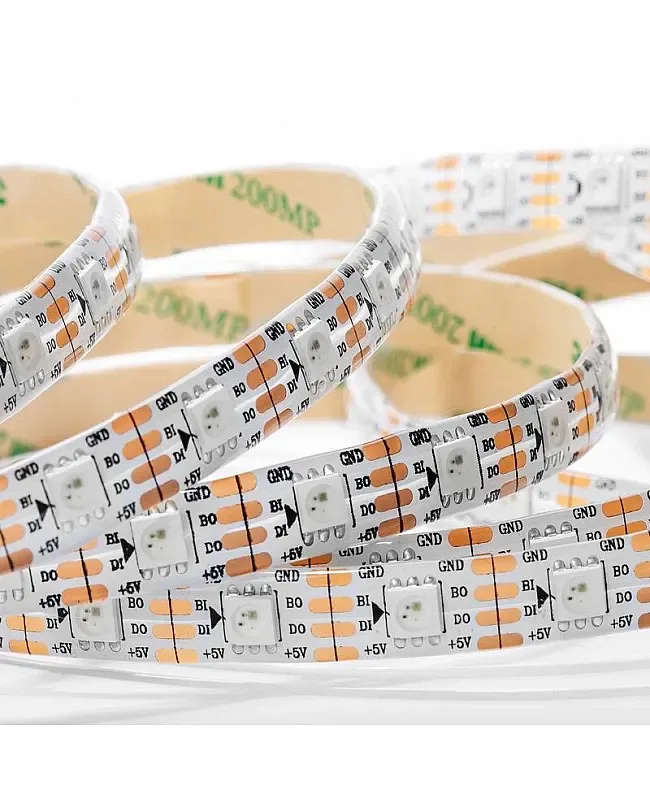

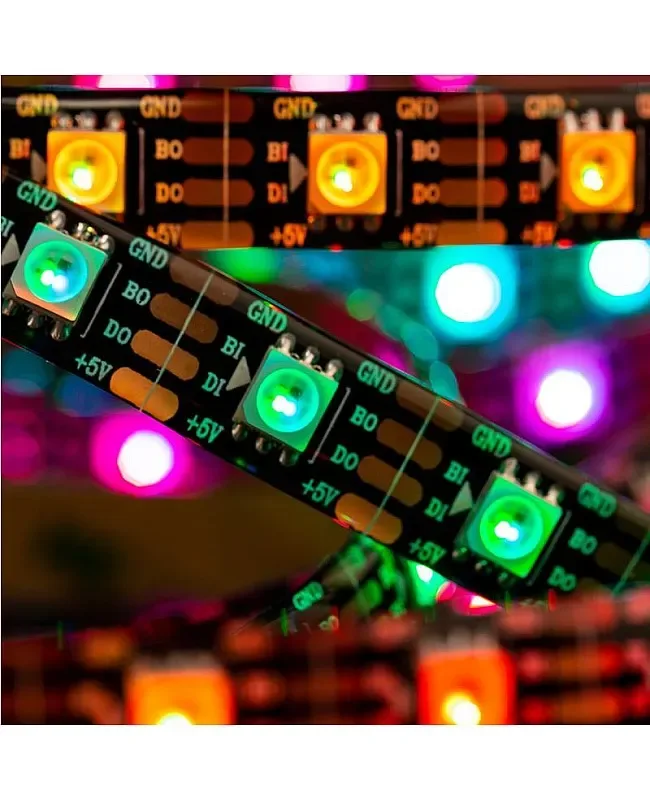

Dual-Signal Wires Design Signal Break-Point Continuous Transmission
4-Pin JST-SM Connector Included
5V: Power Voltage +5V;(Red Wire)
DO: Control Data Signal Output(Green Wire)
DI: Control Data Signal Input(Green Wire)
BO: Backup Control Data Signal Output(Blue Wire)
BI: Backup Control Data Signal Input(Blue Wire)
GND: Data&Power Grounding(White Wire)
Working Temperature: -20℃-+40℃
Includes
1 * RGBIC LED Strip WS2813 With 4Pin Male Connector
Typical applications
- Serviceable strip wiring
- Power injection
- Cabinet and display installation
