S Shape Foldable Pixel Smart LED Strip Lights
LumaCircuit offers S Shape Foldable Pixel Smart LED Strip Lights as a configurable LED strip for project builds. Typical applications include Serviceable strip wiring, Power injection, Cabinet and display installation. Models: -60, -84, WS2812-S-60 Size: 6mm*1.9mm(Width*Thickness) Color Of PCB Board: White The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the WLED ambient route. Match the controller to the listed SK6812 LED type, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

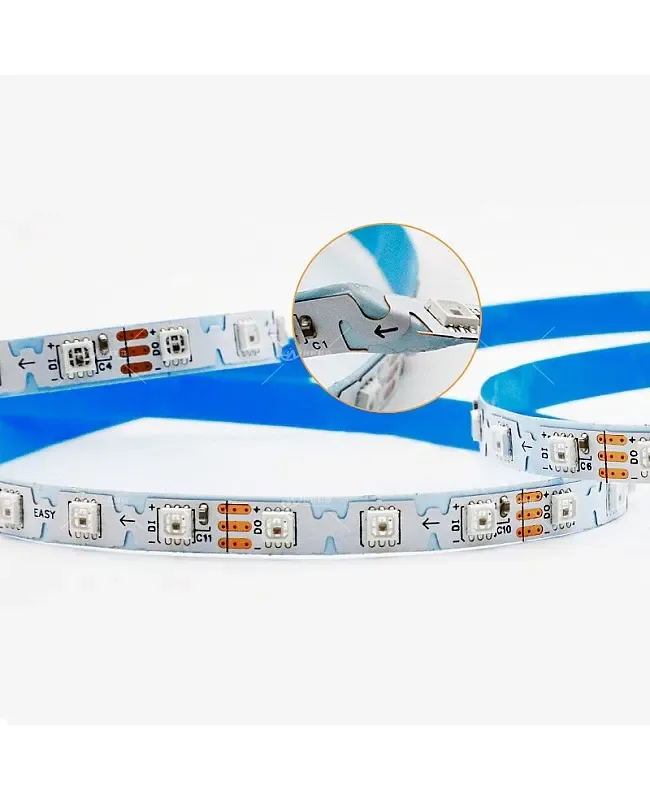

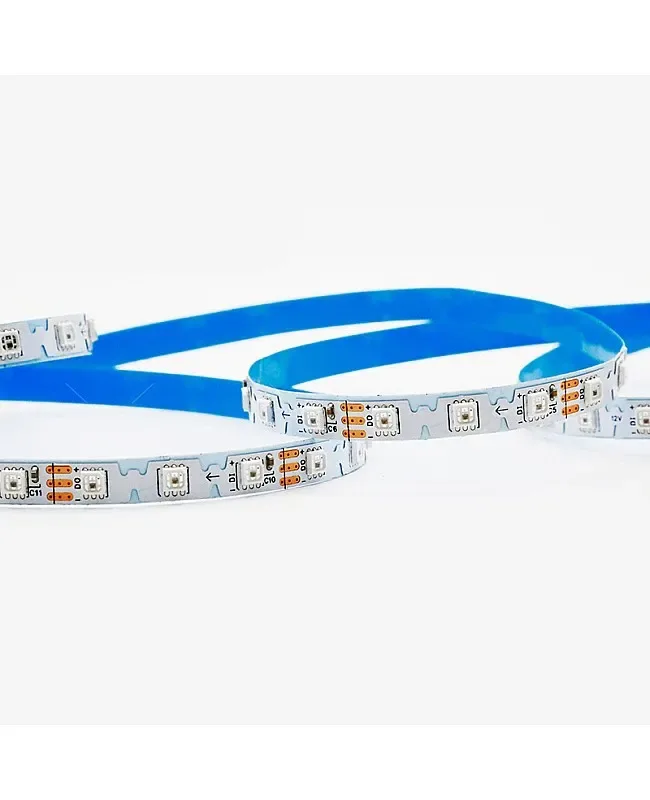

- The S Shape Foldable Pixel LED Strips; the width is only 6mm. The white PCB board features an S-shaped design, allowing for sharper horizontal turns and bendability in both horizontal and vertical directions. An excellent solution for architectural and accent lighting projects for cove lighting, pathway lighting, decorative lights, under-cabinet lighting, etc.
- Models: -60, -84, WS2812-S-60
- Size: 6mm*1.9mm(Width*Thickness)
- Color Of PCB Board: White
- LED Quantity: 60LEDs/M(-60), 84LEDs/M(-84), 60LEDs/M(WS2812-S-60)
- IC Quantity: 60PCS/M(-60), 84PCS/M(-84), 60PCS/M(WS2812-S-60)
- Working Voltage: DC5V/DC12V
- Emitting Colors: 24-Bit Full Color
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V / 12 V
- Light engine: Addressable
- WLED chip: SK6812
- Models: -60, -84, WS2812-S-60
- Size: 6mm*1.9mm(Width*Thickness)
- Length: /16.4FT
- Color Of PCB Board: White
- LED Chip: Epistar
- LED Type: 3535/5050
- LED Quantity: 60LEDs/M(-60), 84LEDs/M(-84), 60LEDs/M(WS2812-S-60)
- Working Voltage: DC5V/DC12V
- Power: 0.24W/LED
Control and installation
Use this product on the WLED ambient route. Match the controller to the listed SK6812 LED type, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.
Plan the installation around Serviceable strip wiring, Power injection, Cabinet and display installation. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

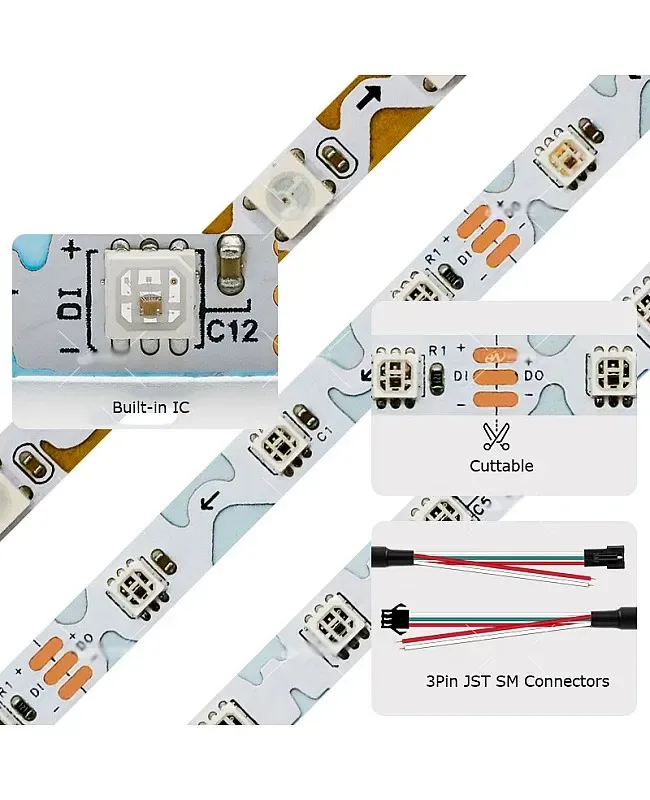

The S Shape Foldable Pixel LED Strips; the width is only 6mm. The white PCB board features an S-shaped design, allowing for sharper horizontal turns and bendability in both horizontal and vertical directions. An excellent solution for architectural and accent lighting projects for cove lighting, pathway lighting, decorative lights, under-cabinet lighting, etc. The Zig-Zag LED Strips utilize 3535 or 5050 SMD LED Strips as the light source, and the LEDs are equipped with SK6812 ICs to achieve intelligent lighting control. Each LED features a single PC IC for individually addressable control, making it easy to connect to the RGBIC Controller. This allows for hundreds of lighting effects, 24-bit full-color display, and 256 brightness levels. The Smart LED Strips are cuttable, allowing you to cut to any length required for your project from the designated cutting point. The back features double-sided adhesive tape, making it easy to remove the protector and stick it in place where you want to install it. Both ends come with 3PIN JST SM Connectors, making it easy to connect the Controller. Only IP30 non-waterproof products are available, and they can only be used in dry locations.
Specifications
Models: -60, -84, WS2812-S-60
Size: 6mm*1.9mm(Width*Thickness)
Length: /16.4FT
Color Of PCB Board: White
LED Chip: Epistar
LED Type: 3535/5050
LED Quantity: 60LEDs/M(-60), 84LEDs/M(-84), 60LEDs/M(WS2812-S-60)

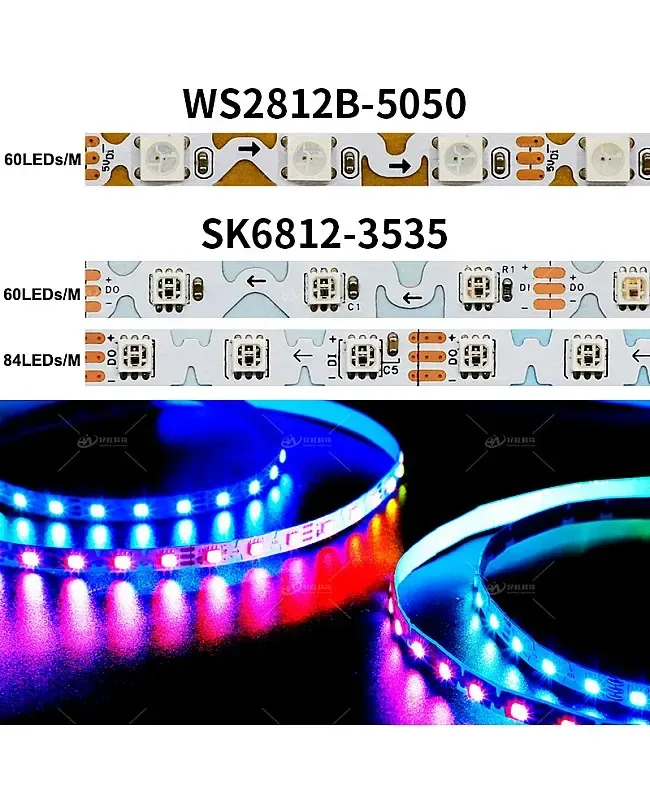

IC Type: SK6812/WS2812
IC Quantity: 60PCS/M(-60), 84PCS/M(-84), 60PCS/M(WS2812-S-60)
Working Voltage: DC5V/DC12V
Power: 0.24W/LED
Luminosity: 18-22lm/LED
Emitting Colors: 24-Bit Full Color
Grayscale Levels: 256
Angle View: 120°
Brightness Adjustable: YES
Unit Cutting Length: 50.01mm(-60/5050-S-60), 36.5mm(-60)
Color Order: GRB
Waterproof Level: IP30 Non-waterproof
Wave Length(nm): Red: 620-650nm; Green: 520-525nm; Blue: 465-470nm
Back With Double-Sided Adhesive Tape
3Pin JST SM Connectors Included
Includes

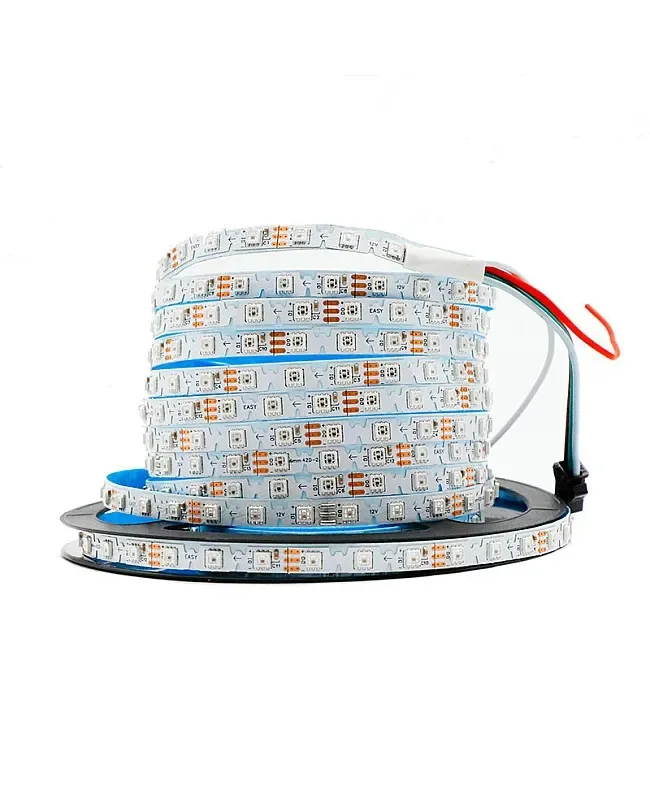

1 * S Shape Pixel LED Strips(Reel)
Typical applications
- Serviceable strip wiring
- Power injection
- Cabinet and display installation
