Product details
WiFi LED Tape Dimmer
LumaCircuit offers WiFi LED Tape Dimmer as a configurable LED strip for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Model: 2 In 1 LED Tape Dimmer Model: (WiFi+2.4G) / (2.4G) Size: 74.5*36*17mm(L*W*H) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

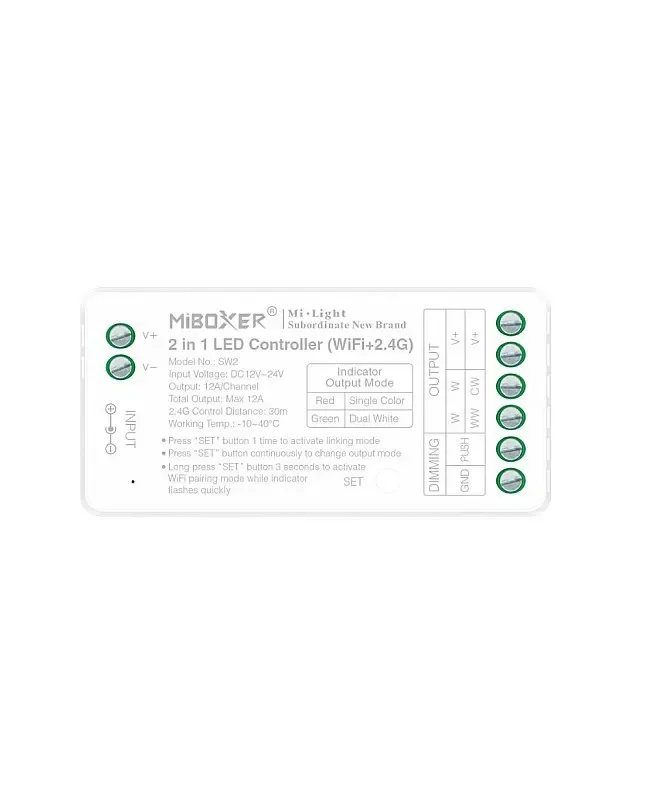

- The wireless controller LED tape dimmers feature a 2-in-1 design for single-color and dual-white LED lights. There is a button on the controller; it's easy to press to switch the output mode from single color to dual white. With a two-output-channel design, the maximum output current of each channel is 12A. The wireless controller light tape dimmer integrates Wi-Fi and 2.4G wireless transmission and remote control technology, featuring fast transmission, a stable signal, and anti-interference capabilities.
- Model: 2 In 1 LED Tape Dimmer
- Model: (WiFi+2.4G) / (2.4G)
- Size: 74.5*36*17mm(L*W*H)
- Output Current: 12A/Single Channel
- Brightness And Color Temperature Adjustable
- Compatible With 2.4G Remote Controls T1, T2, WL
- Switching 2 Output Modes Via One Button(Single Color/Dual White)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V
- Light engine: CCT
- LumaCircuit model: LC-STR-L9GJGW
- Size: 74.5*36*17mm(L*W*H)
- Input Voltage: -24V
- Output Current: 12A/Single Channel
- Total Output: 12A Max
- Control Signal: 2. RF
- Control Distance: ≤30M
- Compatible With 2.4G Remote Controls: T1, T2, WL
- Support Third-party Voice Control: Amazon Alexa, Google Assistant, Yandex Alice, voice assistant, Baidu And voice assistant( Needs A 2.4G Gateway, Does Not Need)
- IP Rate: IP20 Non-waterproof
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

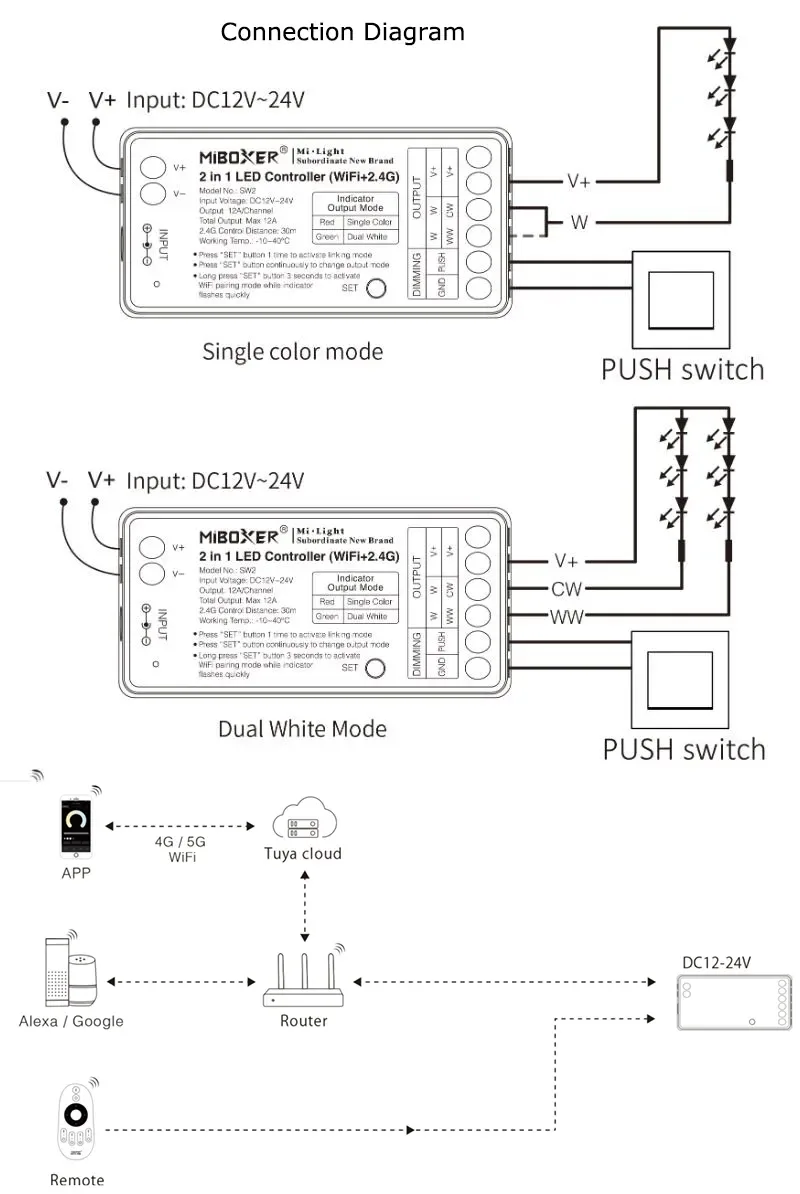

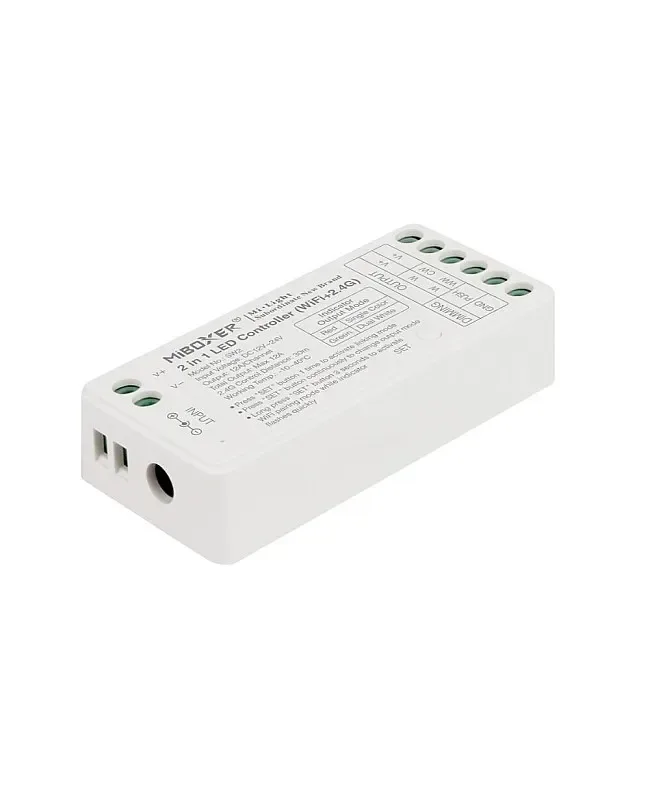

The wireless controller LED tape dimmers feature a 2-in-1 design for single-color and dual-white LED lights. There is a button on the controller; it's easy to press to switch the output mode from single color to dual white. With a two-output-channel design, the maximum output current of each channel is 12A. The wireless controller light tape dimmer integrates Wi-Fi and 2.4G wireless transmission and remote control technology, featuring fast transmission, a stable signal, and anti-interference capabilities. It can be controlled by remote controls, smartphone apps, and third-party voice commands to adjust brightness, color temperature, and saturation for various scenes. The wireless controller WiFi Dimmer will forward the signal from the remote control to other compatible dimmers within a 30-meter range, and all of them will automatically synchronize.
Specifications
Model: 2 In 1 LED Tape Dimmer
Model: (WiFi+2.4G) / (2.4G)

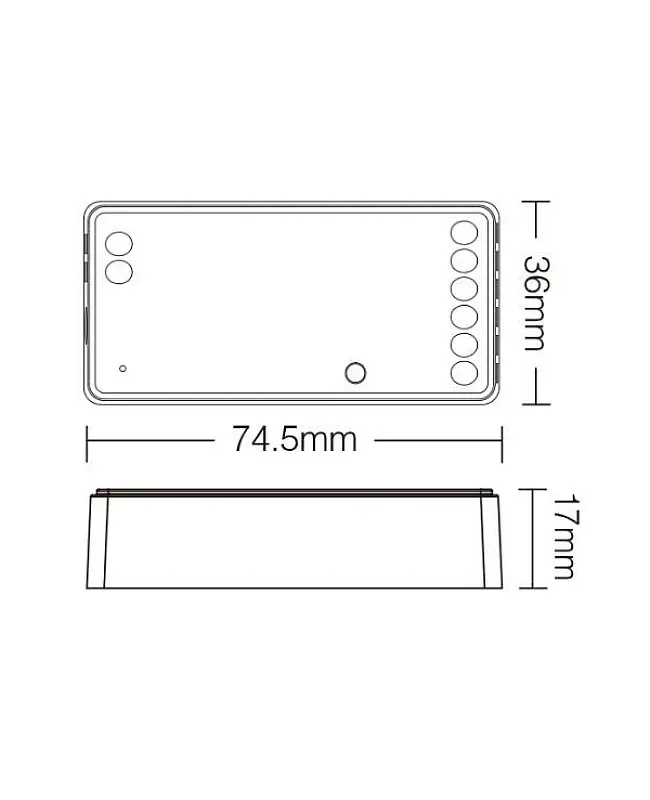

Size: 74.5*36*17mm(L*W*H)
Input Voltage: -24V
Output Current: 12A/Single Channel
Total Output: 12A Max
Control Signal: 2. RF
Control Distance: ≤30M
Brightness And Color Temperature Adjustable
Compatible With 2.4G Remote Controls T1, T2, WL
Switching 2 Output Modes Via One Button(Single Color/Dual White)
Auto-forwarding And Automatic Synchronization
Support Tuya Smart APP Control( Needs A 2.4G Gateway, Does Not Need)
Support Third-party Voice Control: Amazon Alexa, Google Assistant, Yandex Alice, voice assistant, Baidu And voice assistant( Needs A 2.4G Gateway, Does Not Need)
Have DND Function
Support Push Dimming
IP Rate: IP20 Non-waterproof
Dimming Curve: Logarithmic
Includes

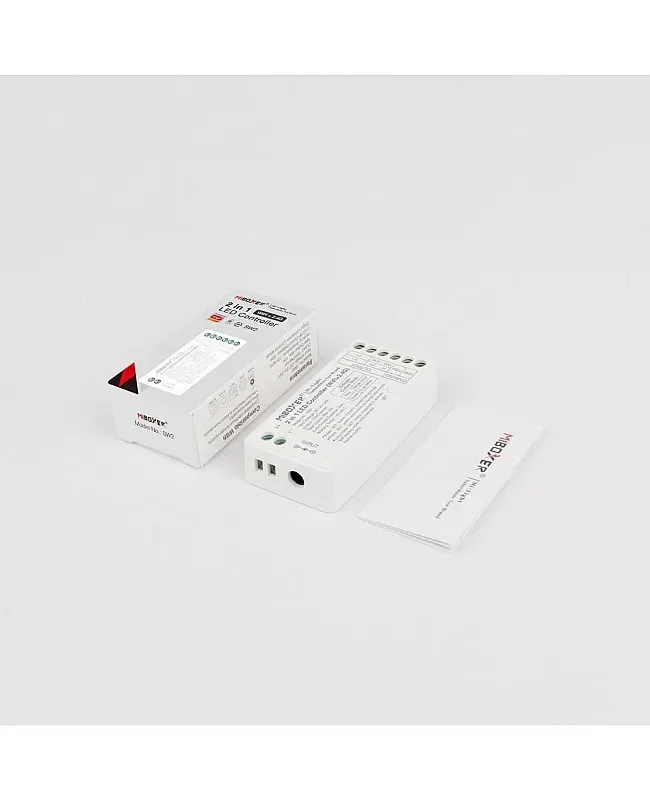

1 * WiFi LED Tape Dimmer
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
