Product details

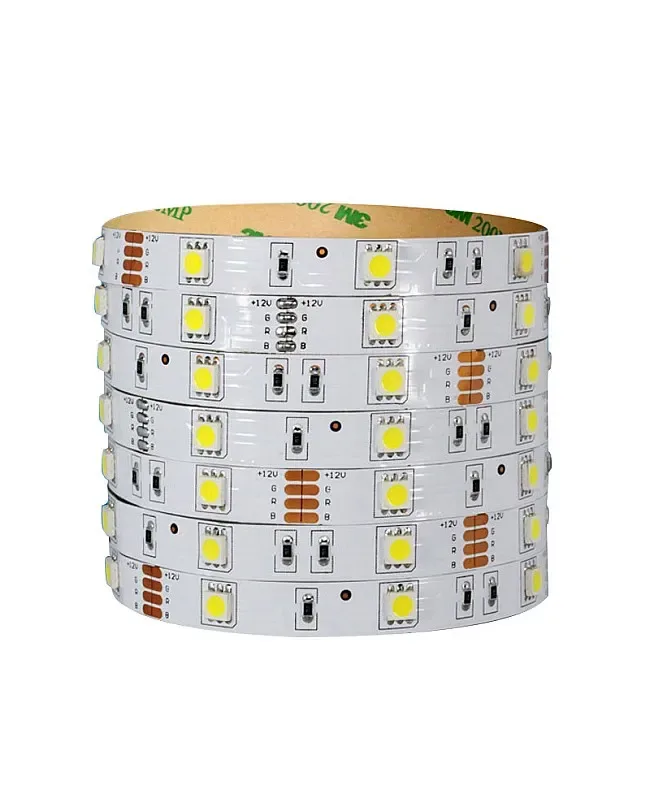

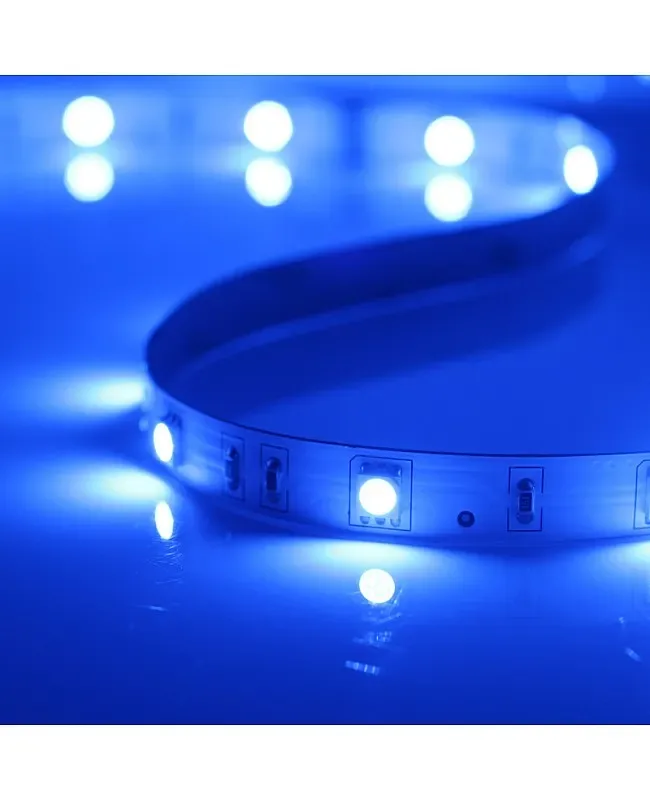

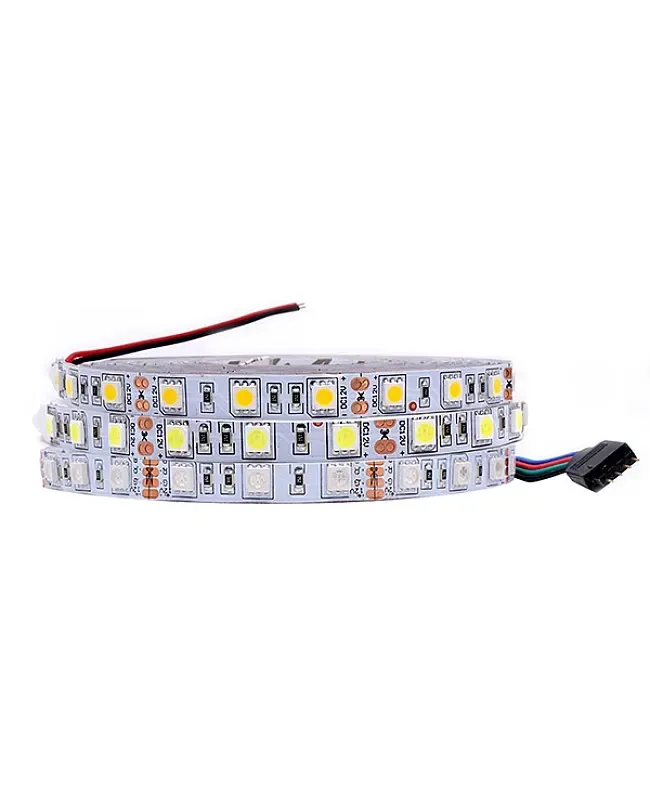

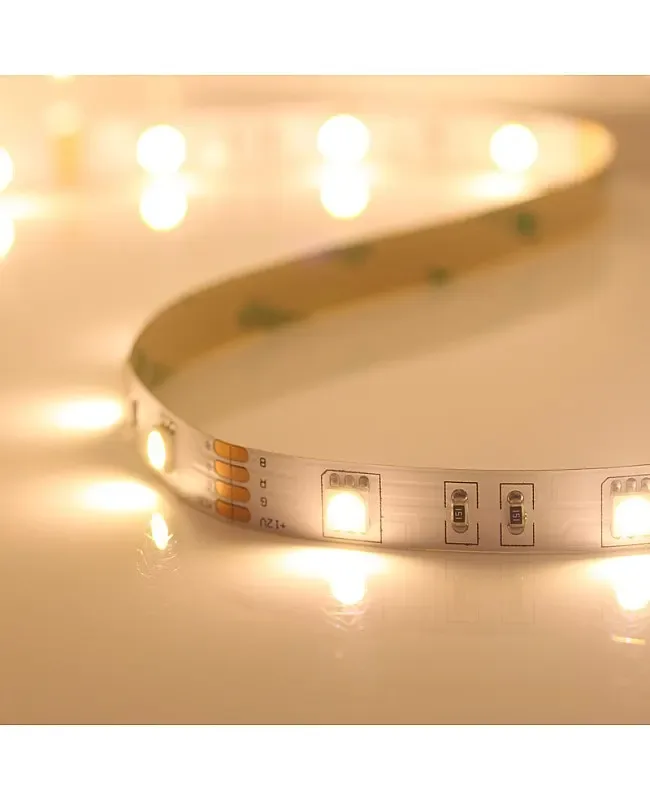

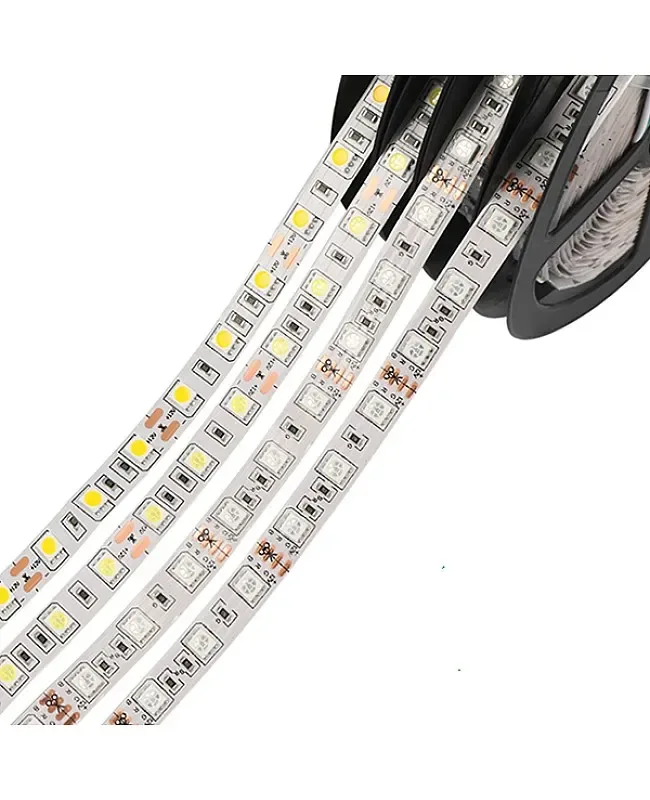

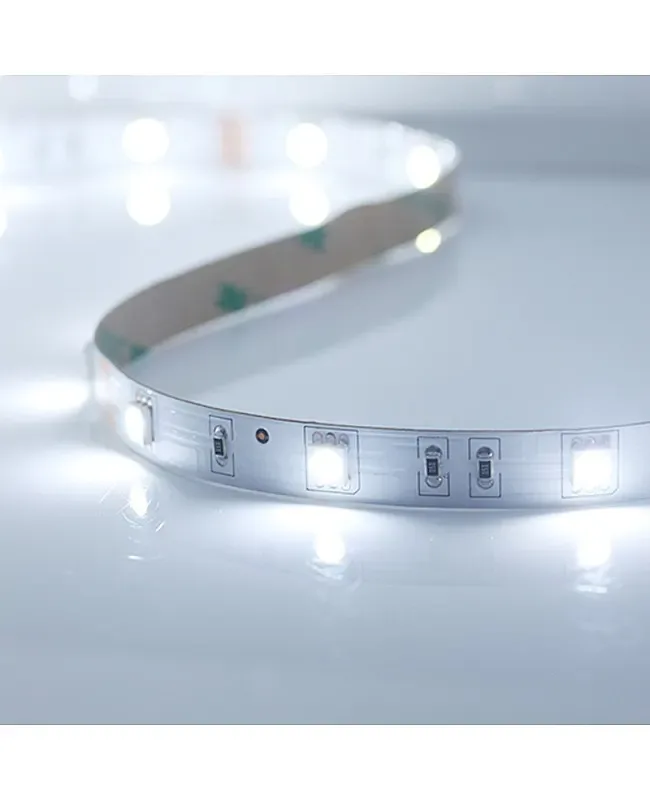

DC12V 5050 30LEDs Per Meter LED Strip 5050
LumaCircuit offers DC12V 5050 30LEDs Per Meter LED Strip 5050 as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Color Temperature: Red(620-630nm), Yellow(585-590nm), Blue(465-470nm), Green(520-525nm), White(5500-7500K), Cool White(8500-10000K), Warm White(2800-3200K) LED Quantity: 30 LEDs Per Meter Waterproof Level: IP20(non-waterproof), IP65(drop glue waterproof), IP67(silicone tube waterproof), IP68(glue-injection waterproof) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

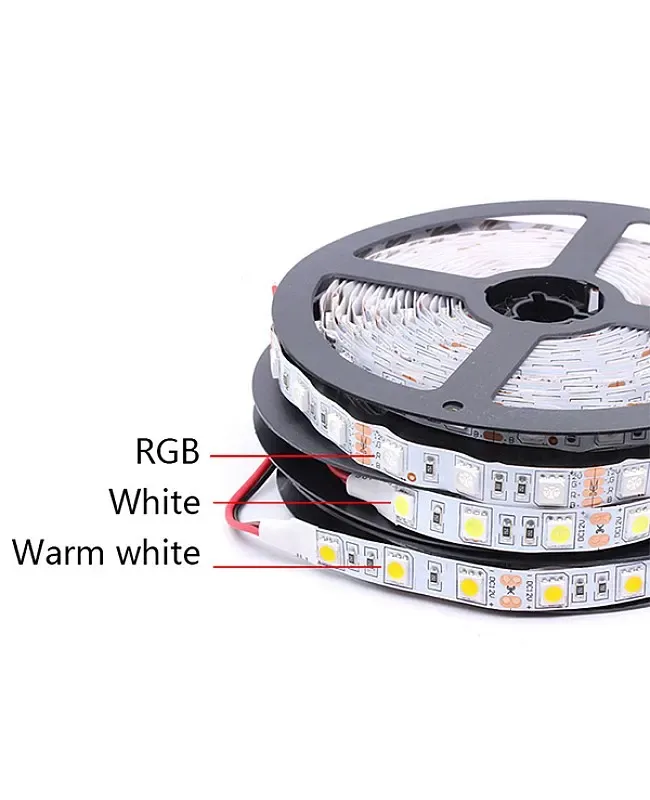

- Colors: Neutral White(4000K), Warm White(3000K), Cool White(6000-7000K), Red, Blue, Green, RGB
- Color Temperature: Red(620-630nm), Yellow(585-590nm), Blue(465-470nm), Green(520-525nm), White(5500-7500K), Cool White(8500-10000K), Warm White(2800-3200K)
- LED Quantity: 30 LEDs Per Meter
- Waterproof Level: IP20(non-waterproof), IP65(drop glue waterproof), IP67(silicone tube waterproof), IP68(glue-injection waterproof)
- Back With Double-Sided Adhesive Tape

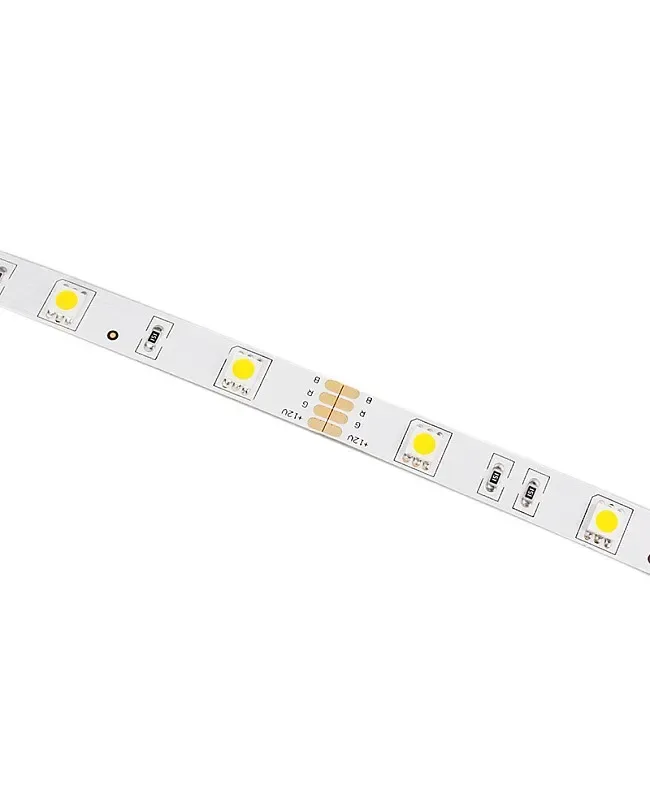

- 5CM(3LEDs) Cuttable And Reconnectable

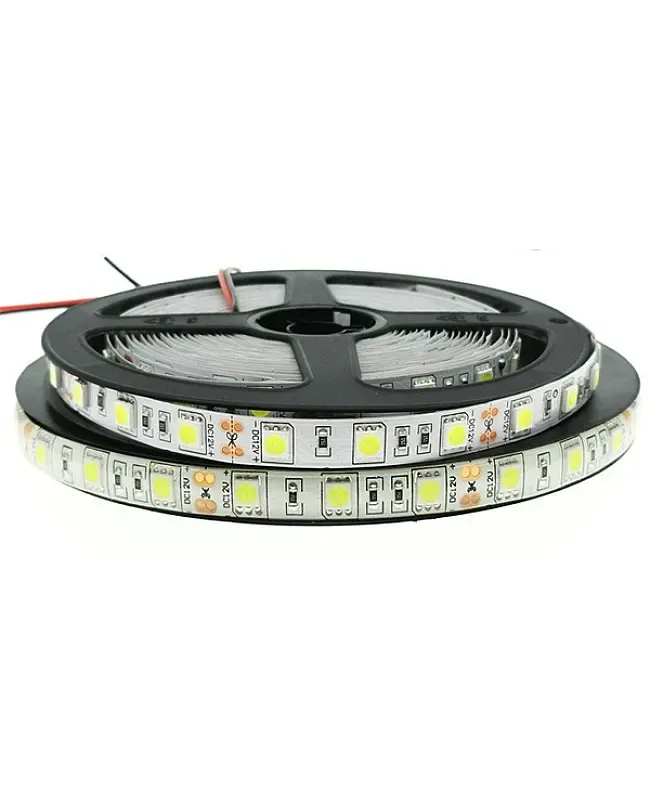

- 1 * LED Strip 5050(Reel)
- A production-ready strip family with a replaceable Zigbee control path.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: CCT
- LumaCircuit model: LC-STR-AJTD67
- Colors: Neutral White(4000K), Warm White(3000K), Cool White(6000-7000K), Red, Blue, Green, RGB
- Color Temperature: Red(620-630nm), Yellow(585-590nm), Blue(465-470nm), Green(520-525nm), White(5500-7500K), Cool White(8500-10000K), Warm White(2800-3200K)
- LED: 5050 SMD LEDs
- LED Quantity: 30 LEDs Per Meter
- Working Voltage: DC12V
- Power: 36W/reel
- Lumens: 18-20lm/LED
- Beam Angle: 120°
- Size: 5000*10*2mm
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Specifications
Model
Colors: Neutral White(4000K), Warm White(3000K), Cool White(6000-7000K), Red, Blue, Green, RGB
Color Temperature: Red(620-630nm), Yellow(585-590nm), Blue(465-470nm), Green(520-525nm), White(5500-7500K), Cool White(8500-10000K), Warm White(2800-3200K)
LED: 5050 SMD LEDs
LED Quantity: 30 LEDs Per Meter
Length Of The Reel
Waterproof Level: IP20(non-waterproof), IP65(drop glue waterproof), IP67(silicone tube waterproof), IP68(glue-injection waterproof)
Working Voltage: DC12V
Power: 36W/reel
Lumens: 18-20lm/LED
Beam Angle: 120°
Size: 5000*10*2mm
Dimmable: YES
Back With Double-Sided Adhesive Tape
5CM(3LEDs) Cuttable And Reconnectable
1 * LED Strip 5050(Reel)
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
