4MM 5MM 7MM Full Color SK6812 Mini LED Strips
LumaCircuit offers 4MM 5MM 7MM Full Color SK6812 Mini LED Strips as a configurable LED strip for project builds. Typical applications include Serviceable strip wiring, Power injection, Cabinet and display installation. The LEDs at the far end may be dimmer due to the added resistance and voltage drop the installer should add the same working voltage every 5 meters (16.4 ft) according to the actual situation to maintain the same brightness. LED Type: 5050/3535 RGB SMD LEDs 30 LEDs/Meter, Width: 5mm, 3535 LEDs The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the WLED ambient route. Match the controller to the listed SK6812 LED type, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The WS2812B Mini LED Strips, which use the high-quality 3535 or 5050 RGB SMD LEDs as the light sources, the LEDs built-in smart IC for individual addressable, can work with the configured product Programmable Digital LED Controllers to achieve hundreds of fantastic lighting effects, like curtain-up, flow water, raindrop, jump, flash, etc, the installer can edit the animation file with the Coreldraw, Flash or lighting editor software for DIY effect.
- The LEDs at the far end may be dimmer due to the added resistance and voltage drop the installer should add the same working voltage every 5 meters (16.4 ft) according to the actual situation to maintain the same brightness.
- LED Type: 5050/3535 RGB SMD LEDs

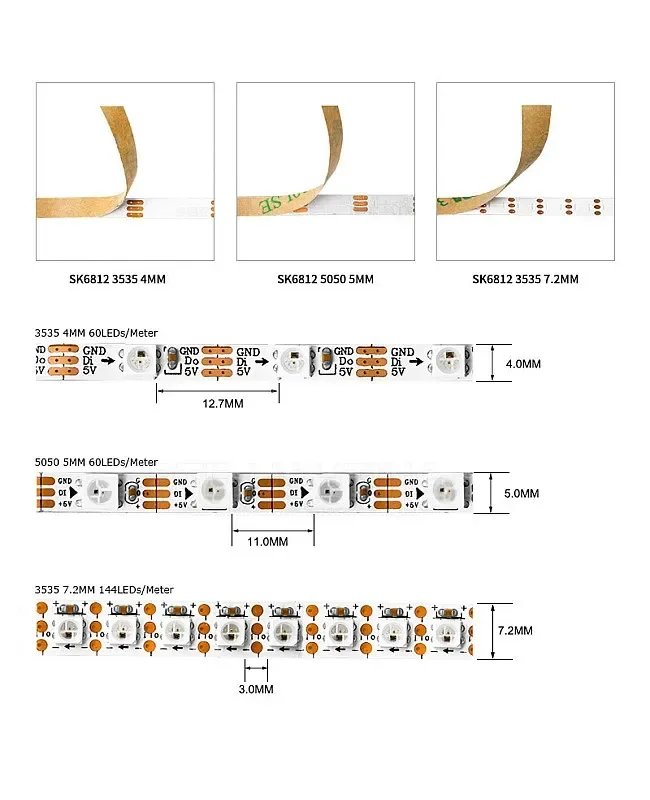

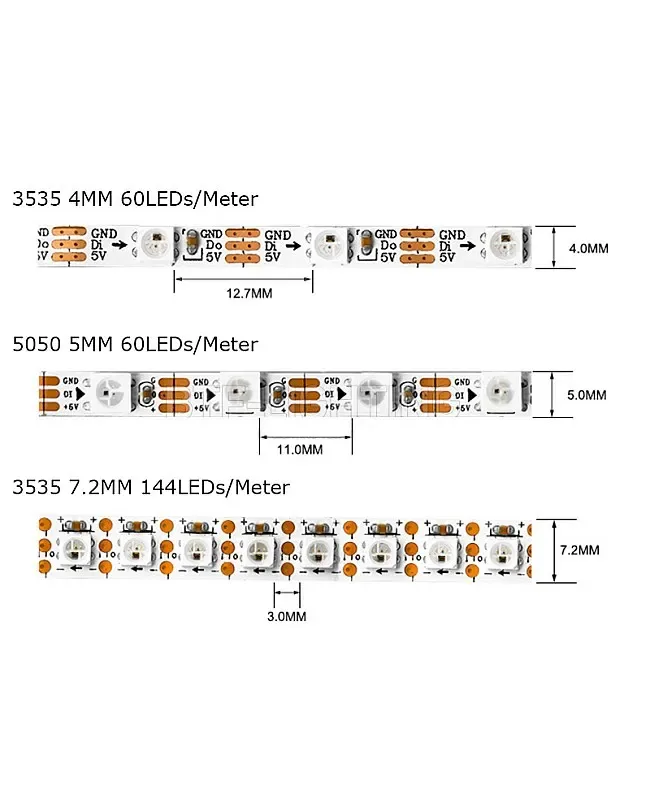

- 30 LEDs/Meter, Width: 5mm, 3535 LEDs
- 60 LEDs/Meter, Width: 4mm, 3535 LEDs
- 60 LEDs/Meter, Width: 5mm, 5050 LEDs
- 144 LEDs/Meter, Width: 7.2mm, 3535 LEDs
- LED QTY: 30LEDs/Meter, 60LEDs/Meter, 144LEDs/Meter
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V
- Light engine: Addressable
- WLED chip: SK6812
- Working Voltage: DC5V
- LED Type: 5050/3535 RGB SMD LEDs
- 30 LEDs/Meter, Width: 5mm, 3535 LEDs
- 60 LEDs/Meter, Width: 4mm, 3535 LEDs
- 60 LEDs/Meter, Width: 5mm, 5050 LEDs
- 144 LEDs/Meter, Width: 7.2mm, 3535 LEDs
- LED QTY: 30LEDs/Meter, 60LEDs/Meter, 144LEDs/Meter
- Power: 0.3W/LED
- Lengths Available: 1M, 2M
Control and installation
Use this product on the WLED ambient route. Match the controller to the listed SK6812 LED type, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.
Plan the installation around Serviceable strip wiring, Power injection, Cabinet and display installation. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

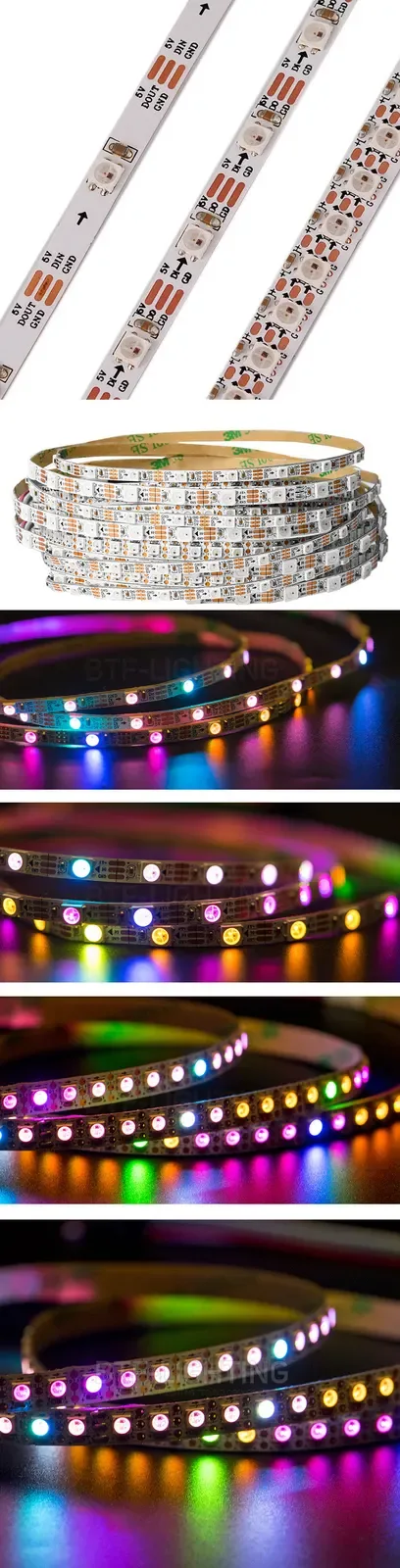

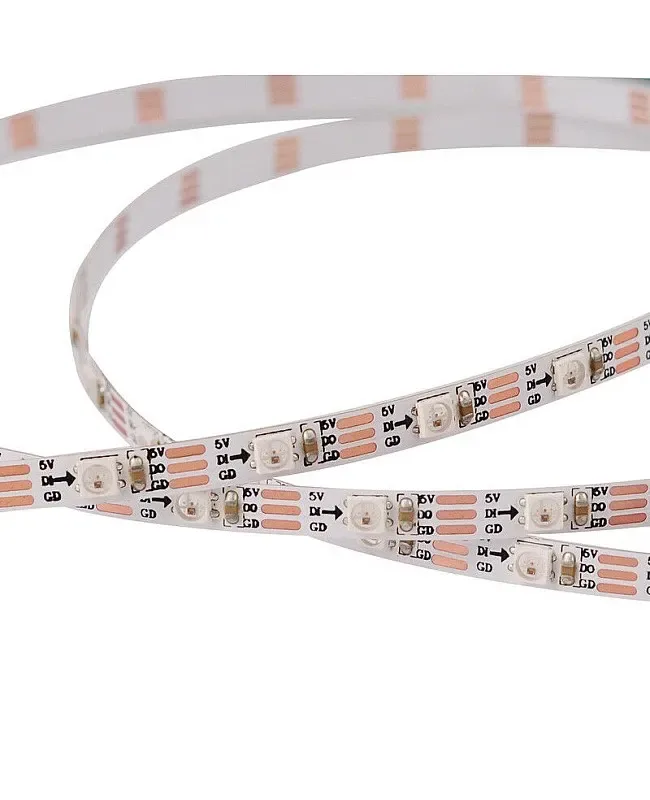

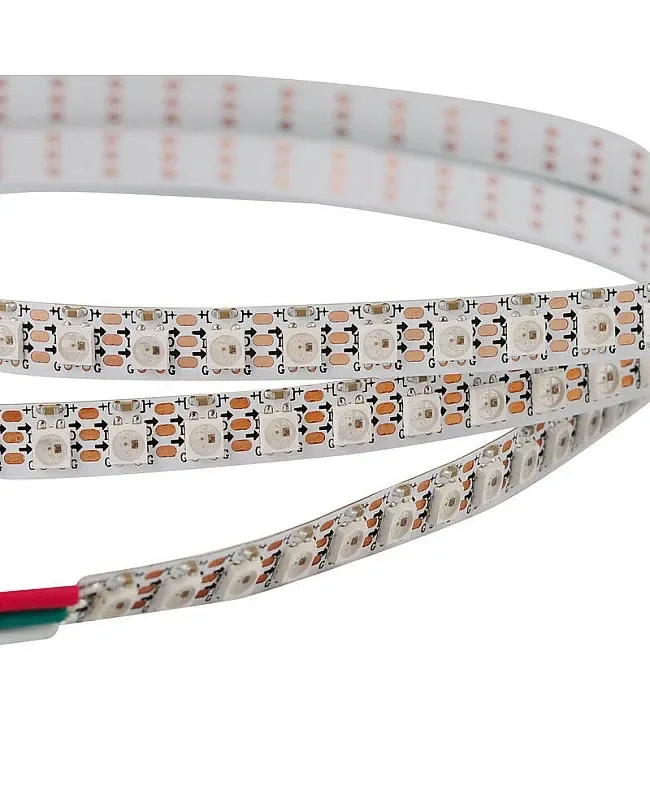

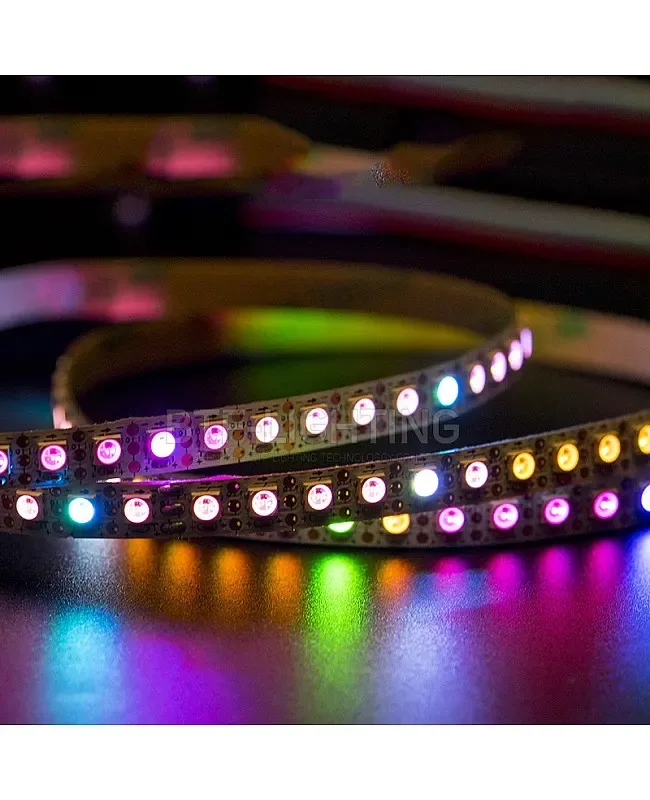

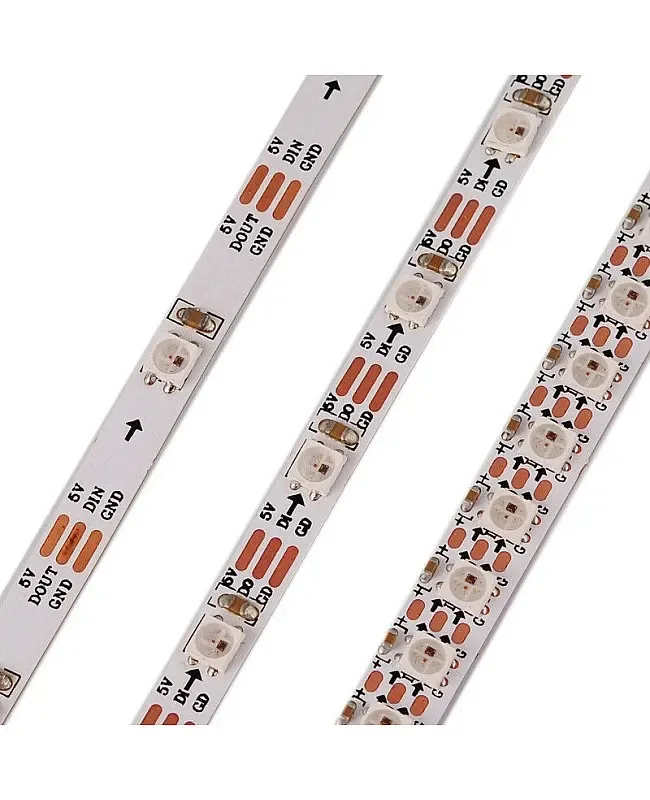

The WS2812B Mini LED Strips, which use the high-quality 3535 or 5050 RGB SMD LEDs as the light sources, the LEDs built-in smart IC for individual addressable, can work with the configured product Programmable Digital LED Controllers to achieve hundreds of fantastic lighting effects, like curtain-up, flow water, raindrop, jump, flash, etc, the installer can edit the animation file with the Coreldraw, Flash or lighting editor software for DIY effect. The LEDs are mounted on a super-slim white PCB board, and the installer can choose from 4mm, 5mm, or 7.2mm options. The installer can use them in a narrow place. There are only IP30 non-waterproof products available, only recommended for indoor applications. Each LED is cuttable, allowing you to cut it to any length for your project. Both ends of the SK6812 strip lights, featuring 3-pin connectors, are easy to install and use. The back has double-sided adhesive tape, which makes it easy to stick to where you want to install.
The LEDs at the far end may be dimmer due to the added resistance and voltage drop the installer should add the same working voltage every 5 meters (16.4 ft) according to the actual situation to maintain the same brightness.
Specifications
Working Voltage: DC5V
LED Type: 5050/3535 RGB SMD LEDs
30 LEDs/Meter, Width: 5mm, 3535 LEDs
60 LEDs/Meter, Width: 4mm, 3535 LEDs
60 LEDs/Meter, Width: 5mm, 5050 LEDs
144 LEDs/Meter, Width: 7.2mm, 3535 LEDs
LED QTY: 30LEDs/Meter, 60LEDs/Meter, 144LEDs/Meter
IC Type: SK6812
IC QTY: 30PCS/M, 60PCS/M, 144PCS/M(One IC Controls One LED)
Power: 0.3W/LED
Lengths Available: 1M, 2M
Emitting Colors: Full Color/8-Bits
Colors Of PCB Board: White
Greyscale Levels: 256

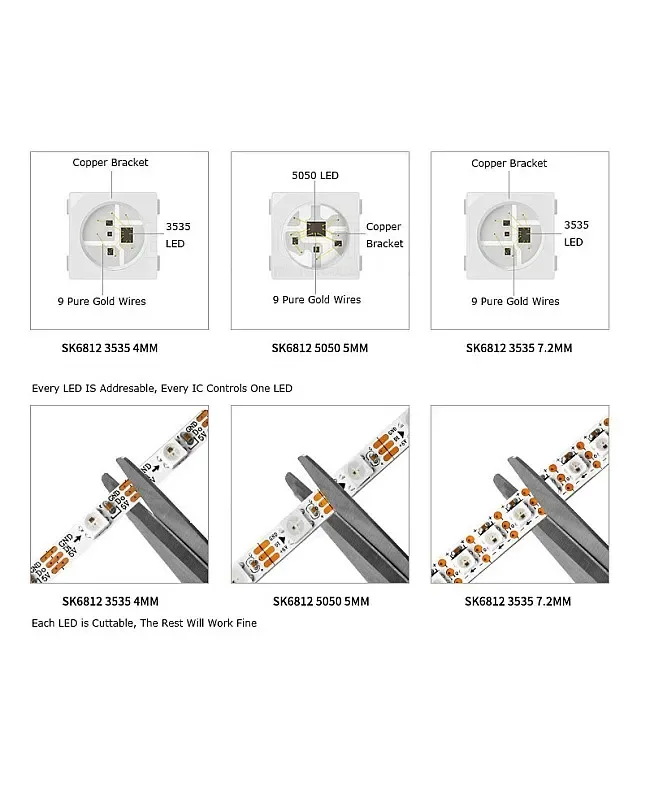

Every One LED Is Cuttable
Waterproof Level: IP30 Non-Waterproof

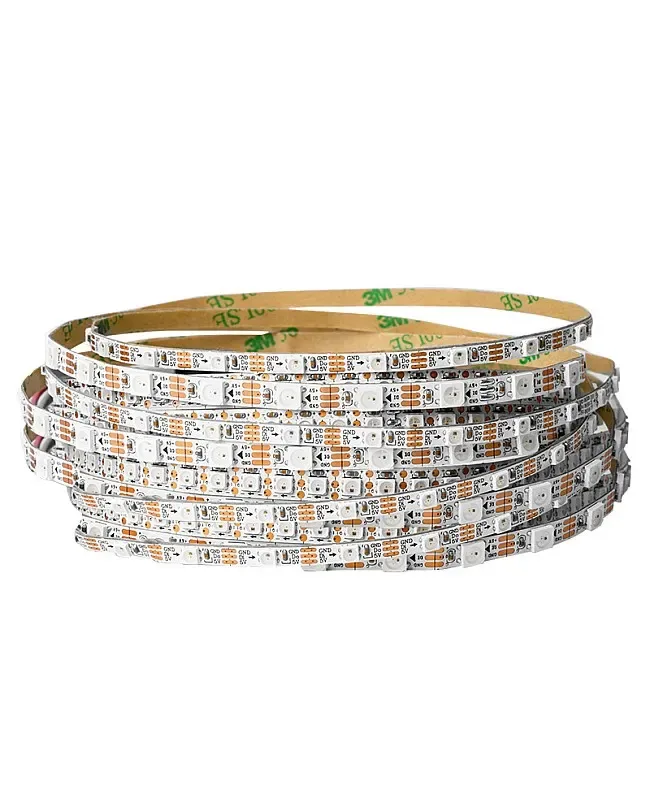

Back With Double-Sided Adhesive Tape
Dimmable: YES
Compatible With K

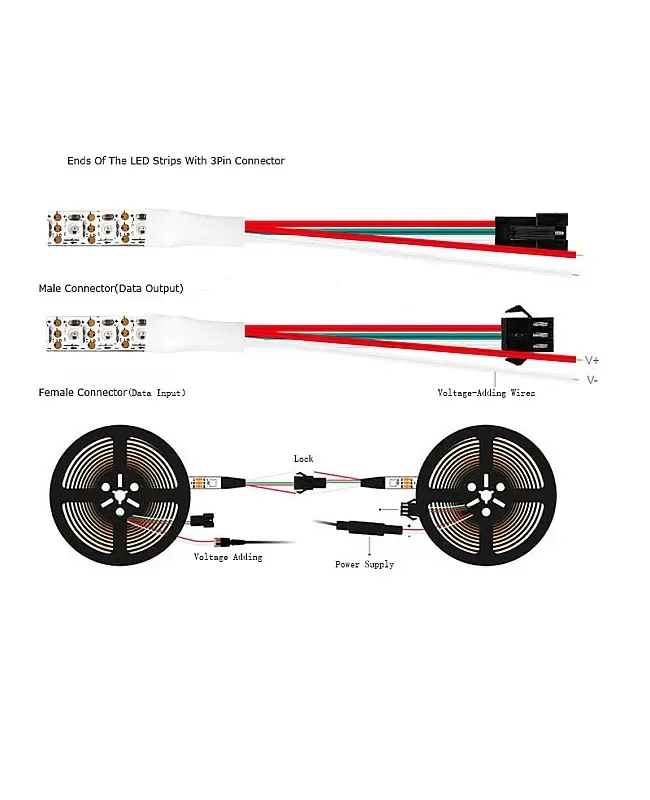

3 Pin Connectors Included
Working Temperature: -20℃-+50℃
Includes
1 * SK6812 Mini LED Strips With 3 Pin Connectors
Typical applications
- Serviceable strip wiring
- Power injection
- Cabinet and display installation
