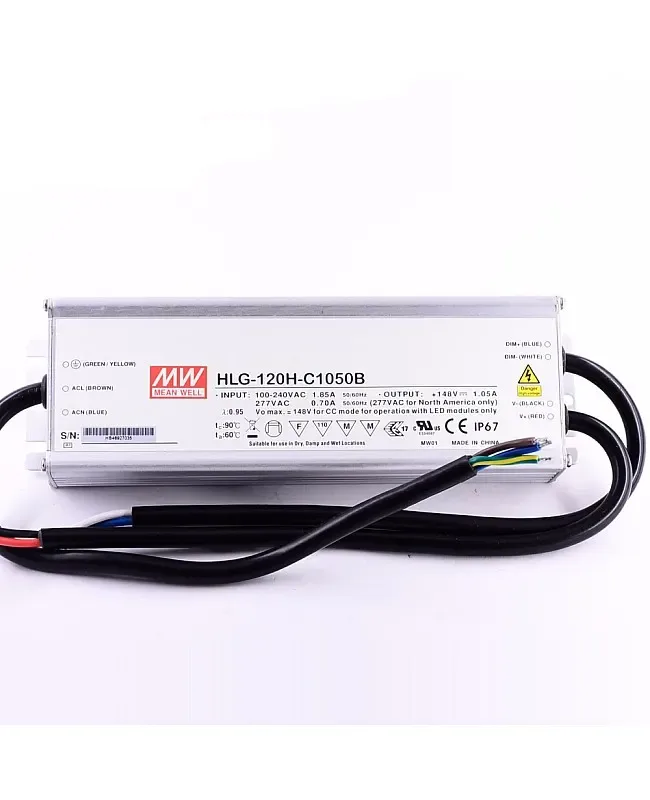

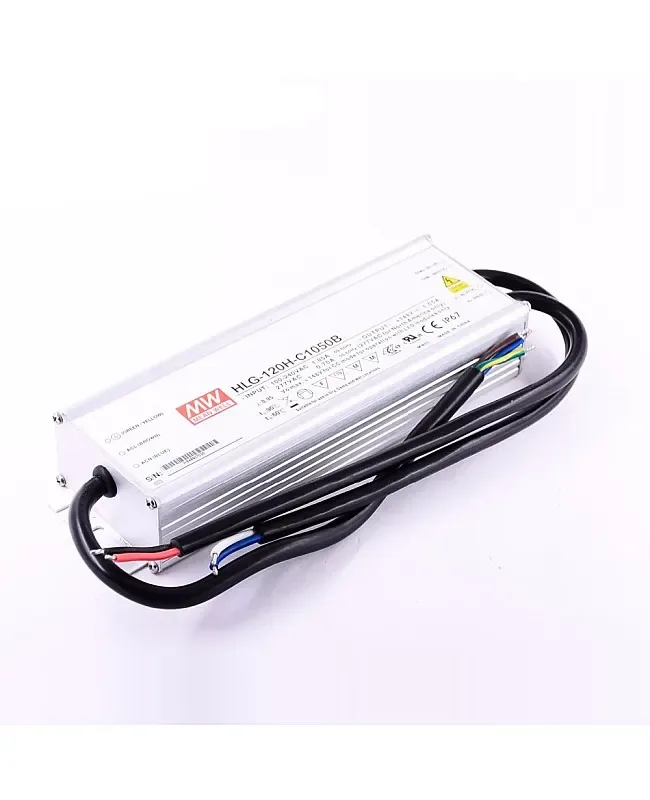

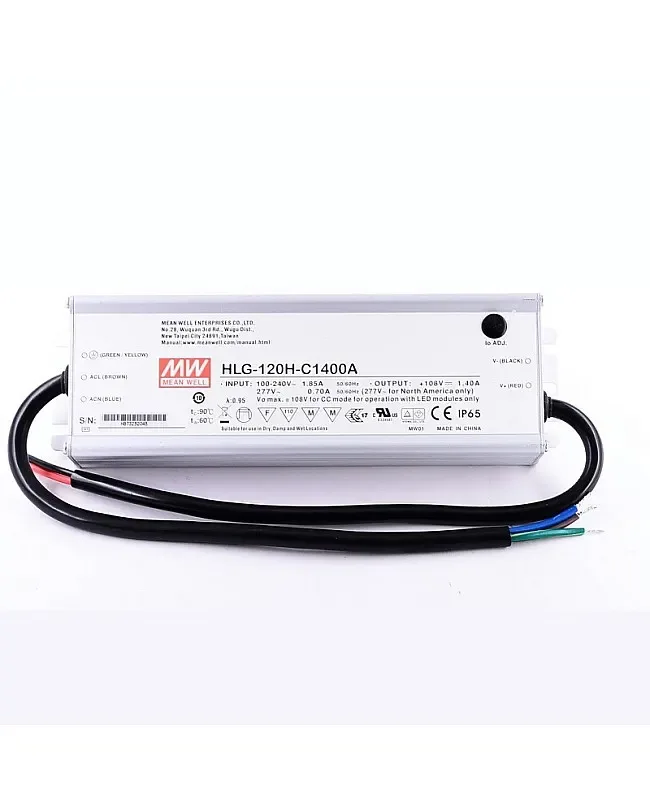

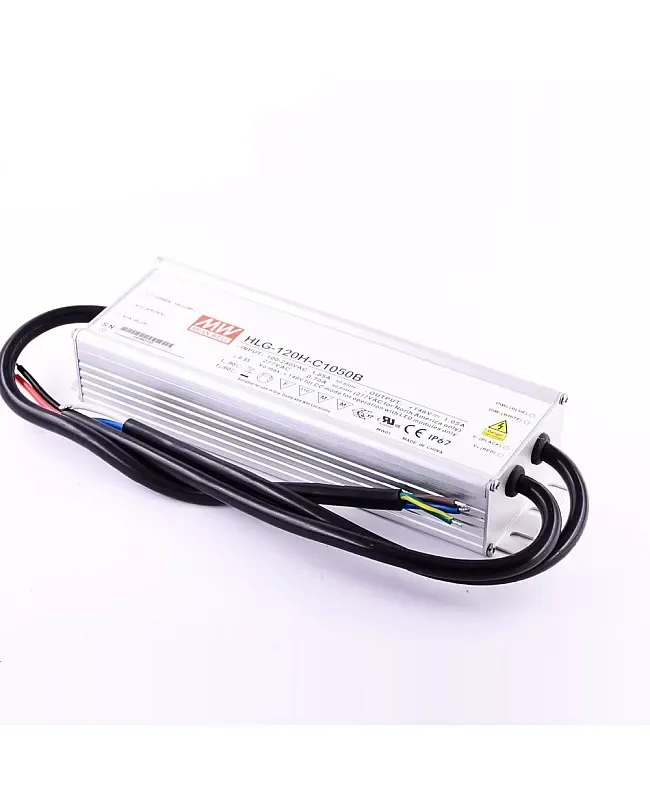

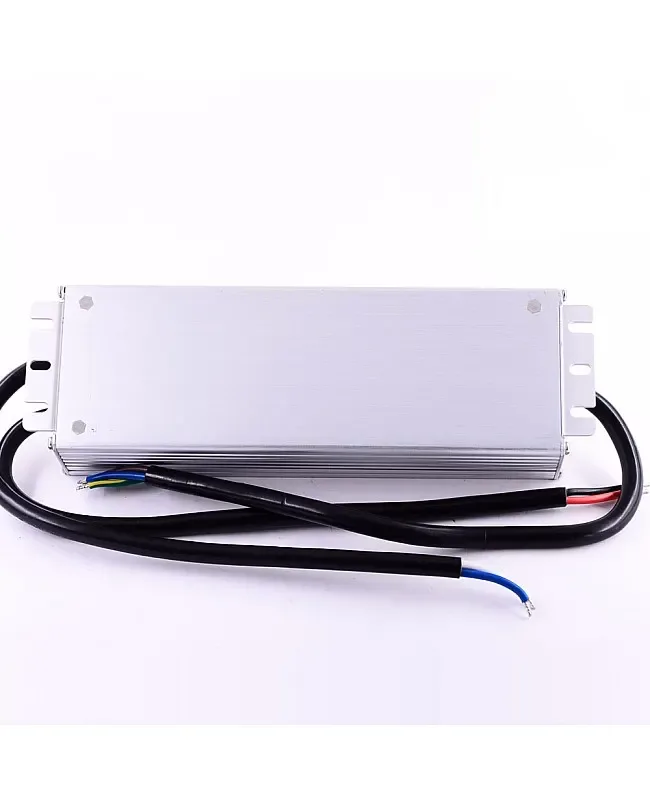

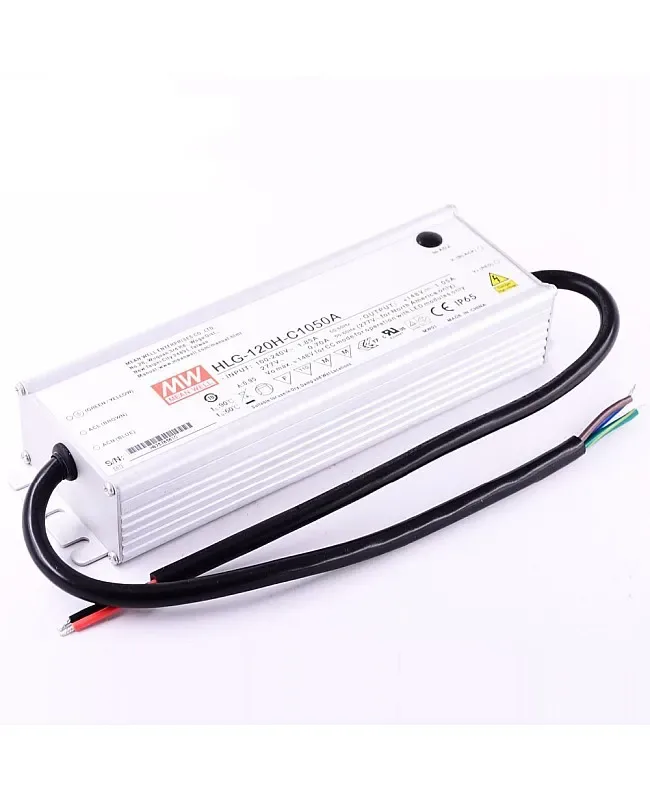

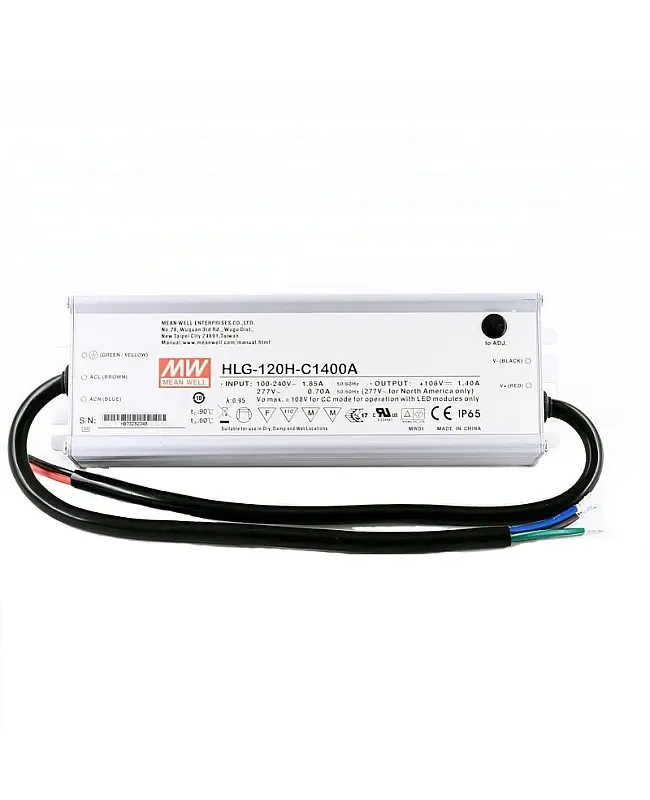

Well Mean HLG C Dimming LED Strip Driver

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• Well Mean Series Dimming LED Strip Driver. Specification Document
• Size: 220*68*38.8mm(L*W*H)
• Model: HLG--/HLG--/HLG--/HLG--/HLG
• A, IP Rating IP65, Output Current Adjustable Through Built-In Potentiometer
• B, IP Rating IP67, 3 In 1 Dimming Function(1 10V PWM Signal And Resistance)
• AB, IP Rating IP65, Output Current Adjustable Through Built-in Potentiometer And 3 In 1 Dimming Function(1 10V PWM Signal And Resistance)
• D, IP Rating IP67, Timer Dimming Function
• Rated Power: 150.5W/150W/150.5W/155.4W/151.2W

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 5 V / 48 V
• Size: 220*68*38.8mm(L*W*H)
• LumaCircuit model: LC-STR-78QKXJ
• Rated Power: 150.5W/150W/150.5W/155.4W/151.2W
• Constant Current Region: 215-430V/150-300V/107-215V/74-148V/54-108V
• Current Ripple: 8.0%
• Current Tolerance: ±5%
• Voltage Range: 90
• Frequency Range: 47- 63Hz
• Power Factor: PF≥0.98 PF≥0.96 PF≥0.93
• AC Current: 1.6A 0.8A 0.7A
• Working Temperature: -40°-+90°

Control and installation

Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.

Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

Quick Links

Well Mean Series Dimming LED Strip Driver. Specification Document

Specifications

Size: 220*68*38.8mm(L*W*H)

Model: HLG--/HLG--/HLG--/HLG--/HLG

A, IP Rating IP65, Output Current Adjustable Through Built-In Potentiometer

B, IP Rating IP67, 3 In 1 Dimming Function(1 10V PWM Signal And Resistance)

AB, IP Rating IP65, Output Current Adjustable Through Built-in Potentiometer And 3 In 1 Dimming Function(1 10V PWM Signal And Resistance)

D, IP Rating IP67, Timer Dimming Function

Rated Current:

Rated Power: 150.5W/150W/150.5W/155.4W/151.2W

Constant Current Region: 215-430V/150-300V/107-215V/74-148V/54-108V

Current Adjustable For A/AB Type Via Built-In Potentiometer

175-/250-/350-/525-/700

Current Ripple: 8.0%

Current Tolerance: ±5%

Set Up Time

Voltage Range: 90

Frequency Range: 47- 63Hz

Power Factor: PF≥0.98 PF≥0.96 PF≥0.93

Efficiency: 94%

AC Current: 1.6A 0.8A 0.7A

Working Temperature: -40°-+90°

Constant Current Mode Output

Metal Housing With Class I Design

Built-in Active PFC Design

IP67/IP65 Design For Indoor And Outdoor Applications

3 Function Options Available

Short Circuit Protection

Over Voltage Proteciton

Overtemperature Protection

Vibration: 100-500Hz, 5G period for each along X,Y,Z axes

Safety Standards CSA.2 No.250.13-12, EN/AS/NZS 61347-1, EN/AS/NZS 61347-2-13, independent,1,14, IP65 Or IP67, -1, -2-13(For A Type Only), EAC TP TC 004 Approved

Includes

1 * Well Mean LED Strip Driver
