RGB Strip Controller 12V 240W
LumaCircuit offers RGB Strip Controller 12V 240W as a configurable LED strip for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Working Temperature: -20-60℃ Connecting Mode: Common Anode Output Current: <6.6A Each Channel The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The RGB strip controller is a mini-sized controller enclosed in a small black metal shell, which makes it suited to installation in a narrow space. The RGB controller has a three-channel output design and adopts an advanced micro control unit, working in DC12V to DC24V. The max output current of each channel can reach 6.6A, and the max loading power is up to 480W when working in. The installer can use it to control many RGB LED lights, color-changing LED strips, and LED lamps.
- Working Temperature: -20-60℃
- Connecting Mode: Common Anode
- Output Current: <6.6A Each Channel
- Max Output Power: 240W ( 12V ) / 480W ( 24V )

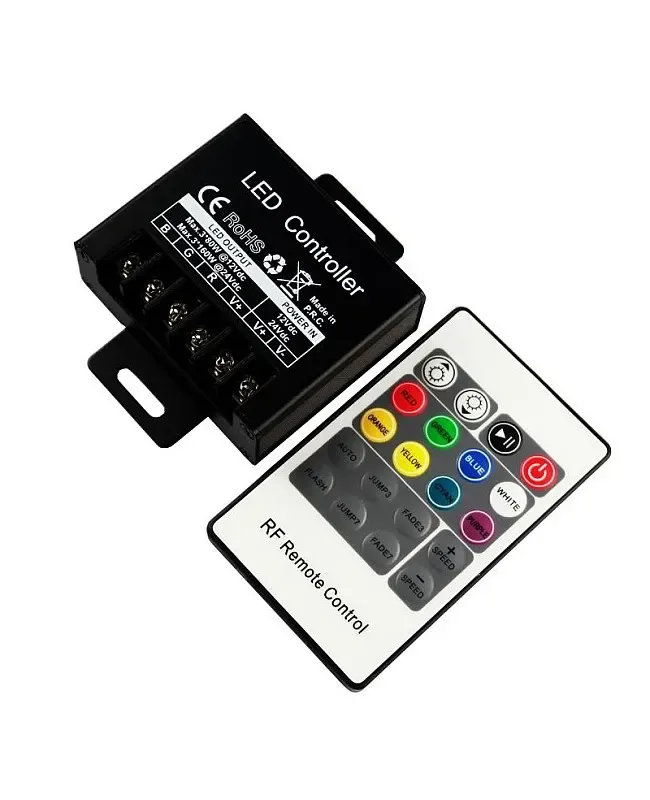

- 1 * RGB Strip Controller

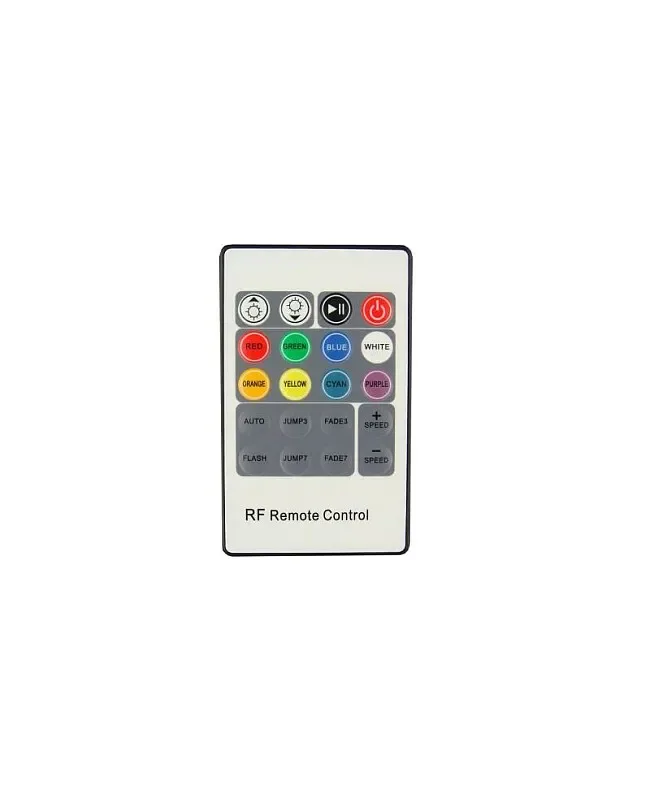

- 1 * 20 Keys Wireless Remote Control
- The RGB LED Controller with mini size and comes with 20 keys RF remote, with 3 channels output design the max output current of each channel can reach to 6.66A, the remote has 8 static colors and 6 dynamic modes design.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 12-24 V / 24 V
- Light engine: RGB
- Size: 80*64*24mm(L*W*H)
- Working Temperature: -20-60℃
- Working Voltage: -24V
- Connecting Mode: Common Anode
- Output Current: <6.6A Each Channel
- Max Output Power: 240W ( 12V ) / 480W ( 24V )
- Mode: 14
- PWM Frequency: 433.MHz
- Remote Distance: 20M
- LumaCircuit model: LC-STR-FDV8F5
Control and installation
Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The RGB strip controller is a mini-sized controller enclosed in a small black metal shell, which makes it suited to installation in a narrow space. The RGB controller has a three-channel output design and adopts an advanced micro control unit, working in DC12V to DC24V. The max output current of each channel can reach 6.6A, and the max loading power is up to 480W when working in. The installer can use it to control many RGB LED lights, color-changing LED strips, and LED lamps. The 20 Keys wireless remote control with 14 modes includes 8 static colors and 6 dynamic modes. The installer can use the remote to control static colors' brightness and adjust the dynamic mode's speed.
RGB Strip Controller Specifications
Size: 80*64*24mm(L*W*H)
Working Temperature: -20-60℃
Working Voltage: -24V
Connecting Mode: Common Anode
Output
Output Current: <6.6A Each Channel
Max Output Power: 240W ( 12V ) / 480W ( 24V )
Grayscale: 64 Levels
Speed Stage: 100 Grade
PWM Frequency: 433. MHz
Remote Distance: 20M
Memory Function: YES
Wireless Remote Control Specifications
Working Temperature: -20-60℃
Size: 85*51*6mm(L*W*H)
Working Voltage: DC3V
Standby Current: <3.
Working Current: <
Standby Power: 9.
Working Power
RF Frequency: 433.
RF Distance: ≤20m
Includes
1 * RGB Strip Controller
1 * 20 Keys Wireless Remote Control
