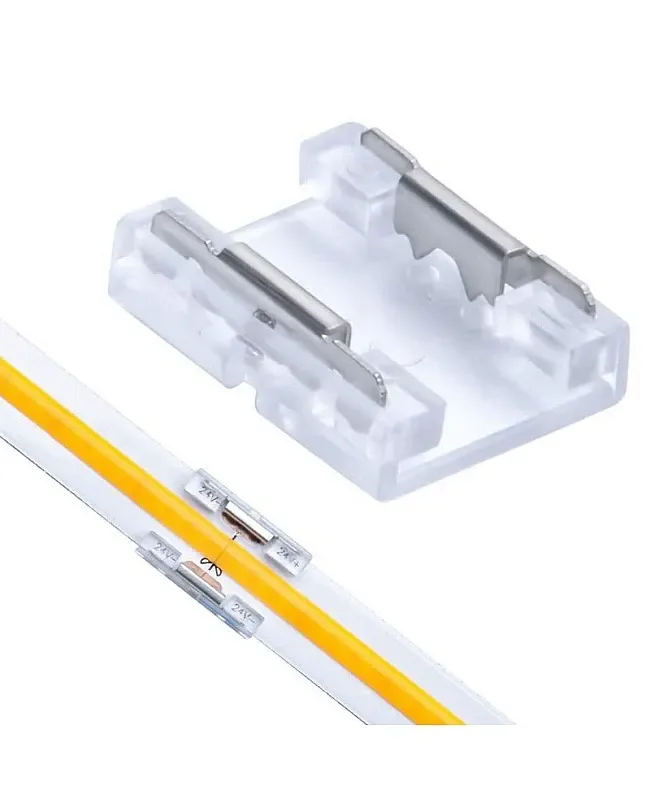

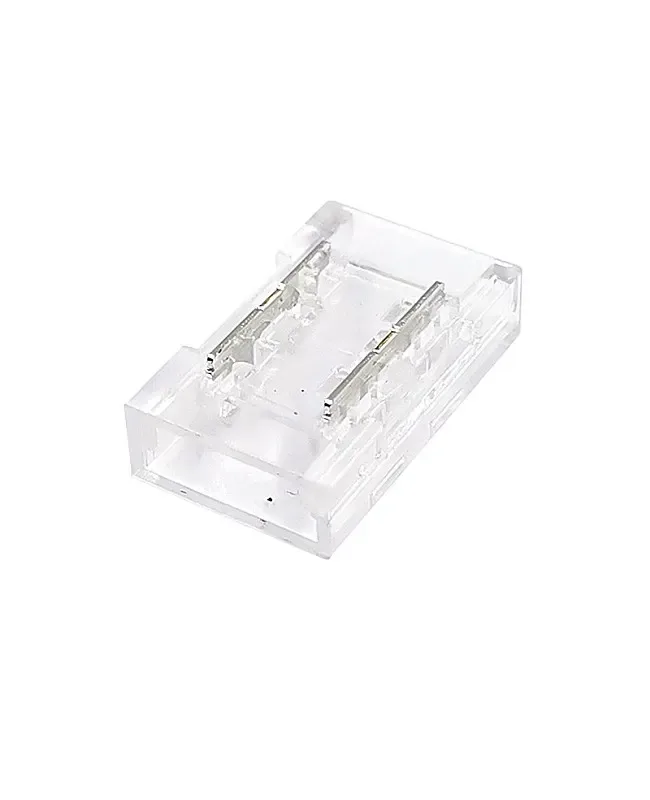

Solderless COB LED Connector For Single Color Strip Lights
LumaCircuit offers Solderless COB LED Connector For Single Color Strip Lights as a configurable LED strip for project builds. Typical applications include Serviceable strip wiring, Power injection, Cabinet and display installation. Material: Tin-plated Copper And Polycarbonate IP Rating: IP20 Non-Waterproof Fit For 5mm, 8mm, 10mm Single Color COB LED Strip Lights The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

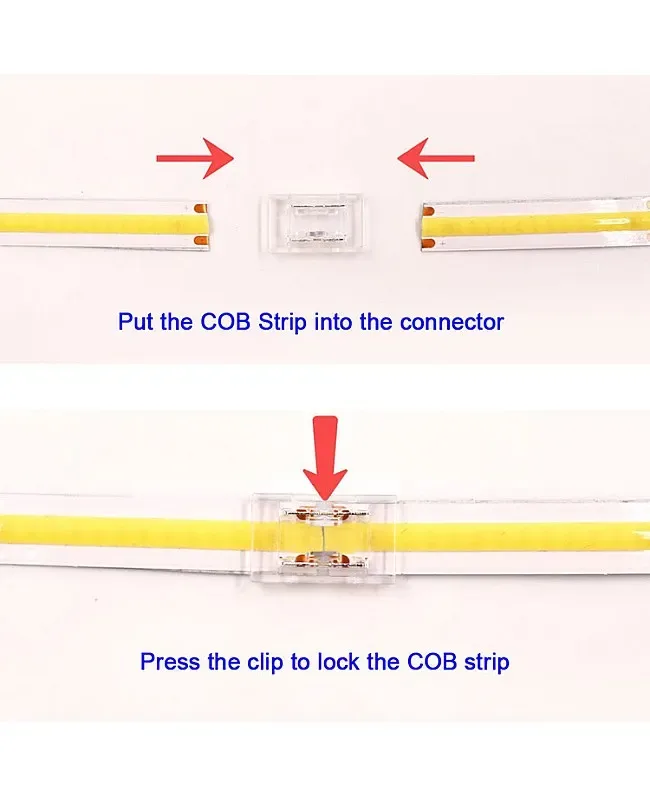

- The solderless COB LED connectors with connectors are designed for single-color COB strip lights. The installer can choose the 5mm, 8mm, or 10mm products for various-width LED strips. The LED connectors are solderless and easy to install and use. Push the strips into the connector and press the clips to lock the COB strip lights, then. The installer can try to light them up.
- Material: Tin-plated Copper And Polycarbonate
- IP Rating: IP20 Non-Waterproof
- Fit For 5mm, 8mm, 10mm Single Color COB LED Strip Lights
- 1 * Solderless COB LED Connectors(10PCS/Pack)
- The Solderless COB LED Connectors for single color Strip Lights, 5mm, 8mm and 10mm available, the installer can connect 2PCS COB LED Strips together without tools.
- A serviceable connector component for a complete lighting BOM.
- The configured light engine is COB.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V
- Light engine: COB
- Material: Tin-plated Copper And Polycarbonate
- Width: 5mm, 8mm, 10mm
- Colors: Transparent
- Working Voltage: -24V
- Max Current: 5.5A
- IP Rating: IP20 Non-Waterproof
- LumaCircuit model: LC-STR-O6VP1S
- Dimensions found: 5mm / 8mm / 10mm
Control and installation
Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.
Plan the installation around Serviceable strip wiring, Power injection, Cabinet and display installation. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The solderless COB LED connectors with connectors are designed for single-color COB strip lights. The installer can choose the 5mm, 8mm, or 10mm products for various-width LED strips. The LED connectors are solderless and easy to install and use. Push the strips into the connector and press the clips to lock the COB strip lights, then. The installer can try to light them up.
Specifications
Material: Tin-plated Copper And Polycarbonate

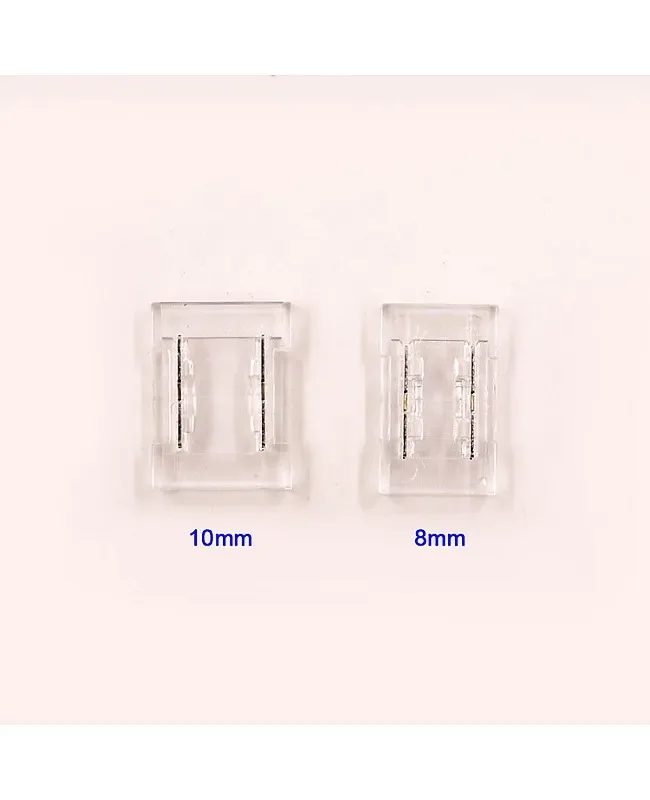

Width: 5mm, 8mm, 10mm
Colors: Transparent
Working Voltage: -24V
Max Current: 5.5A
IP Rating: IP20 Non-Waterproof
Fit For 5mm, 8mm, 10mm Single Color COB LED Strip Lights
10PCS Per Pack
Includes
1 * Solderless COB LED Connectors(10PCS/Pack)
Typical applications
- Serviceable strip wiring
- Power injection
- Cabinet and display installation
