3528 Warm White LED Tape

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• The 3528 warm white LED tape uses the warm white 3528 SMD LEDs as the light source, 60 LEDs per meter and 5 meters per reel, working in DC12V, needs to work with the LED driver that outputs DC12V, can connect to the LED light dimmer to adjust the brightness. Four types of waterproof warm white LED tapes are available, and the installer can choose IP20 non-waterproof, IP65, IP67, or IP68.
• Color: Warm White(3000K)
• LED Quantity: 60 LEDs/Meter
• Luminous Flux: 8-10 lm/LED
• IP Rating: IP20 Non-Waterproof, IP65, IP67, IP68
• Size Width: 8mm; thickness: 2mm
• Length Available: 5 meters per reel
• Cuttable And Reconnectable Follow The Scissor Marks

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 12 V
• Light engine: CCT
• LumaCircuit model: LC-STR-G5ALTB
• Color: Warm White(3000K)
• LED: 3528 SMD LED
• LED Quantity: 60 LEDs/Meter
• Beam Angle: 120°
• IP Rating: IP20 Non-Waterproof, IP65, IP67, IP68
• Working Voltage: DC12V
• Power: 4.8W/Meter
• Size Width: 8mm; thickness: 2mm
• Length Available: 5 meters per reel

Control and installation

Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.

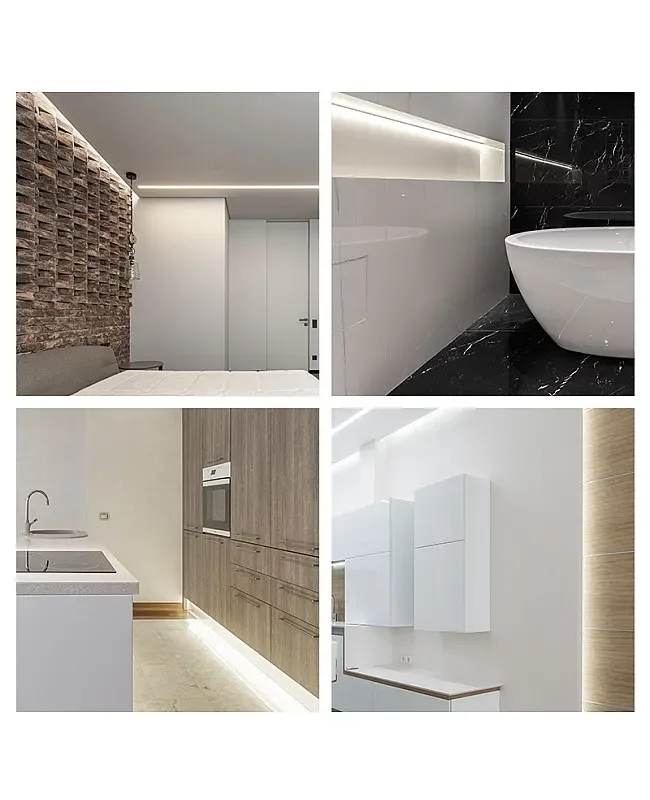

Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

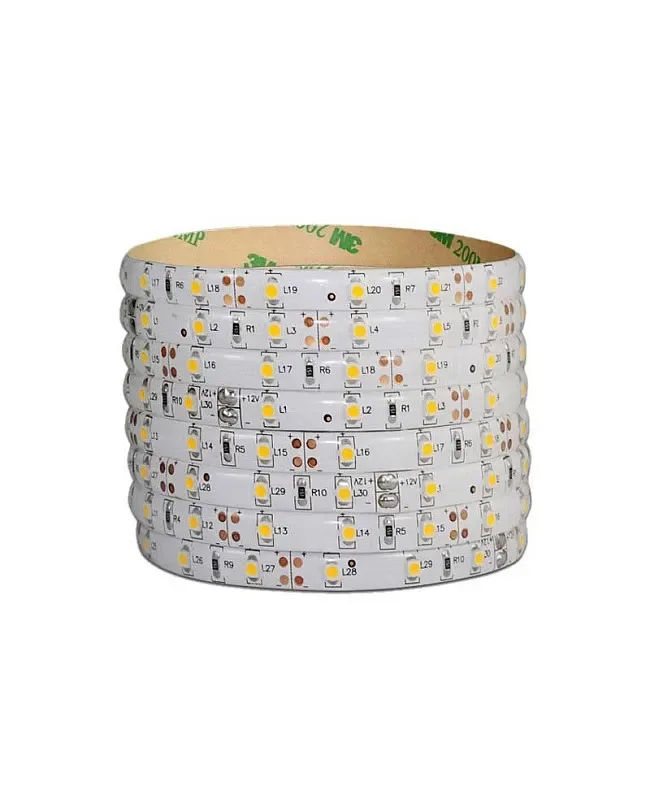

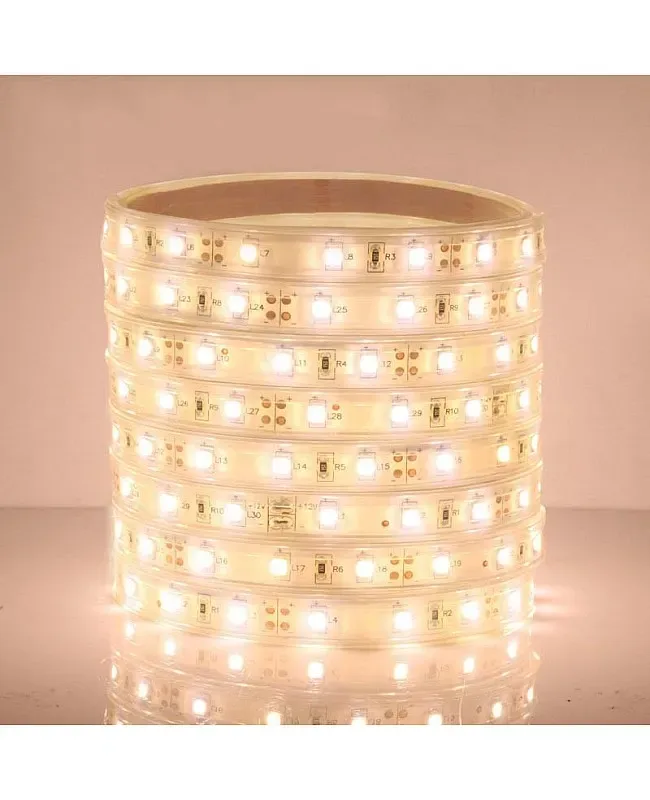

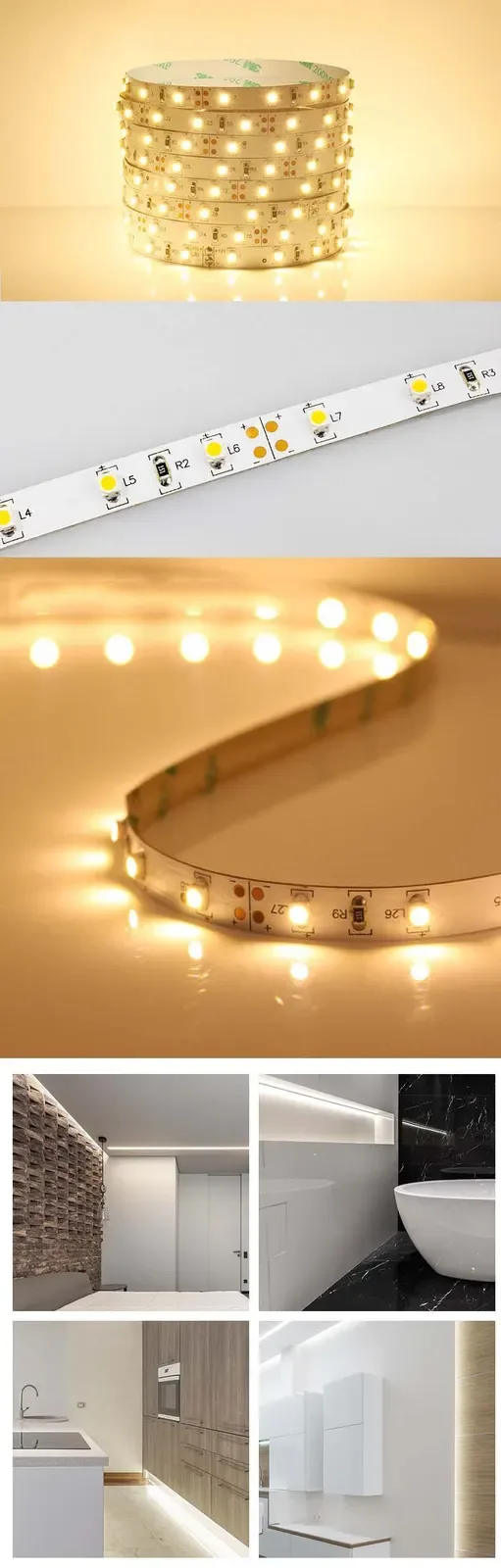

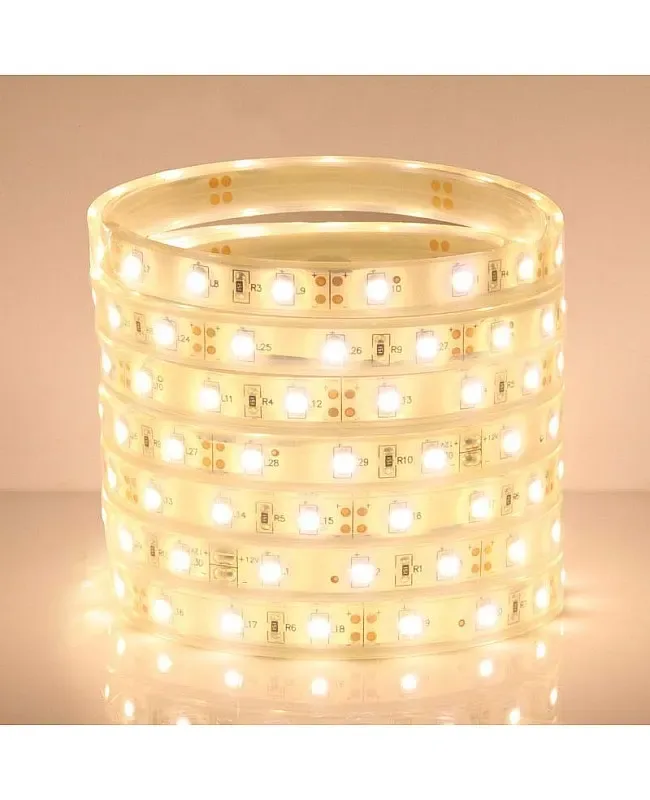

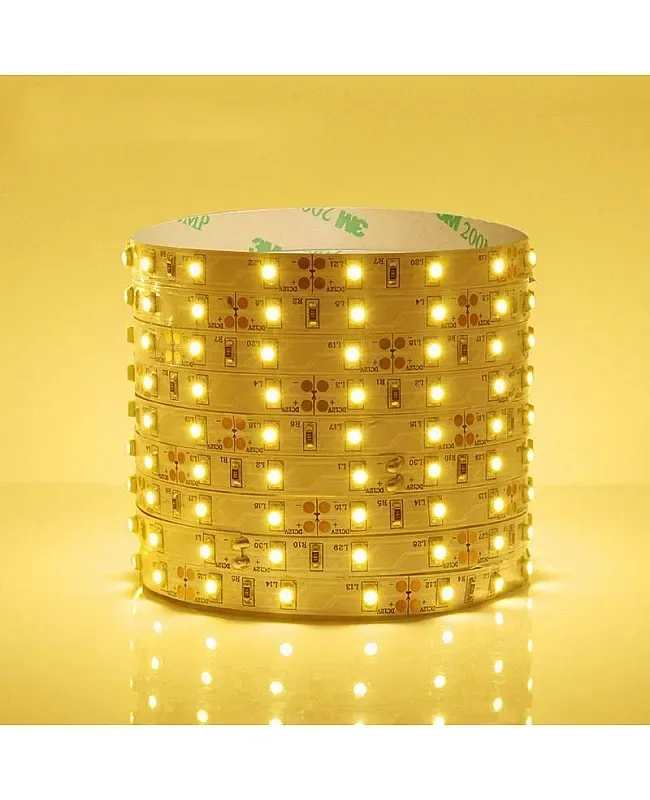

The 3528 warm white LED tape uses the warm white 3528 SMD LEDs as the light source, 60 LEDs per meter and 5 meters per reel, working in DC12V, needs to work with the LED driver that outputs DC12V, can connect to the LED light dimmer to adjust the brightness. Four types of waterproof warm white LED tapes are available, and the installer can choose IP20 non-waterproof, IP65, IP67, or IP68. The IP20 and IP65 LED Strips for indoor use, the back of the LED strip lights with double side adhesive tape, take off the protector and stick on the place you want to install, the IP67 and IP68 warm strip lights for outdoor installation, comes with LED light strips, the installer can use them in the wet place. The warm white LED strip light is cuttable and connectable; the installer can cut to any size, follow the scissor marks, and reconnect them via the LED strip connectors. The installer can use them in bedrooms, bars, cars, etc.

Specifications

Manufacturer: TYoung

Color: Warm White(3000K)

LED: 3528 SMD LED

LED Quantity: 60 LEDs/Meter

Luminous Flux: 8-10 lm/LED

Beam Angle: 120°

IP Rating: IP20 Non-Waterproof, IP65, IP67, IP68

Working Voltage: DC12V

Power: 4.8W/Meter

Size Width: 8mm; thickness: 2mm

Length Available: 5 meters per reel

Dual-Layer FPC Board

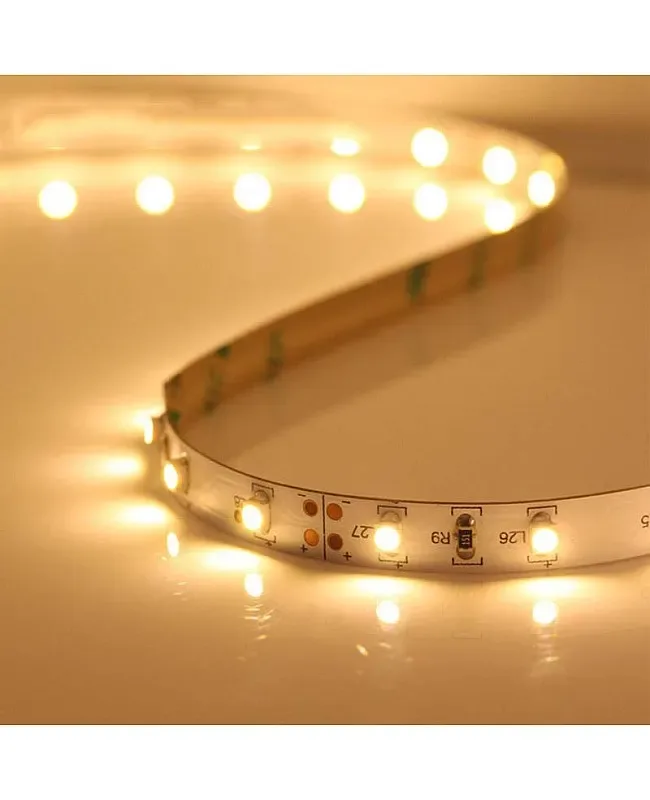

Cuttable And Reconnectable Follow The Scissor Marks

Dimmable: YES

Back Has Double-Side Adhesive Tape Or Comes With LED Clips

Reel length

1 * Warm White LED Tape( Per Reel)
