Product details
Bluetooth 5050 RGB LED Strip Light Kit With Music Controller
LumaCircuit offers Bluetooth 5050 RGB LED Strip Light Kit With Music Controller as a configurable LED strip for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. LED Quantity: 150LEDs 300LEDs 360LEDs 600LEDs Length Available: 5 Meter, 10 Meter Waterproof: IP20 Non-Waterproof The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

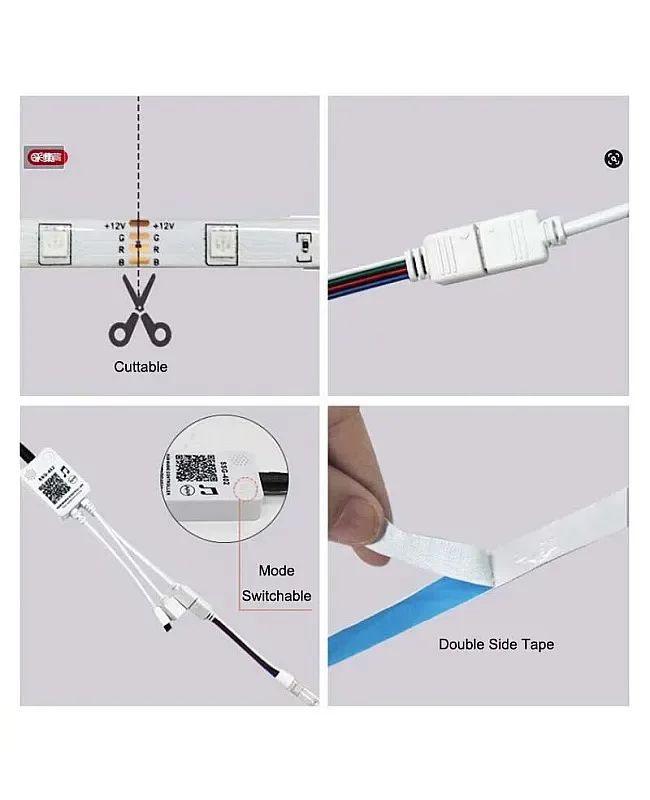

- The 5050 RGB LED strip light kit, available in 5-meter, 10-meter, or 20-meter lengths, comes with a 40 40-key IR LED controller and an easy LED power supply to install and use. The LED strip light uses high-quality 5050 SMD LEDs as the light source, 30 LEDs per meter, 5 meters per reel. The LEDs are fixed on the dual-layer PCB board, are flexible, and have a 10cm cuttable length. The back has double-sided adhesive tape, making it easy to install and use.
- LED Quantity: 150LEDs 300LEDs 360LEDs 600LEDs
- Length Available: 5 Meter, 10 Meter
- Waterproof: IP20 Non-Waterproof
- IR Music Controller Included
- 40 Keys IR Remote Included
- UK/US/EU Power Plug LED Driver Optional
- Controlled By APP Through Bluetooth
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: RGB
- Size: 5000*10*3mm
- Working Voltage: DC12V
- LED: 5050 SMD LEDs
- LED Quantity: 150LEDs 300LEDs 360LEDs 600LEDs
- Power: <7.2W/Meter
- Length Available: 5 Meter, 10 Meter
- Emitting Colors: RGB
- Beam Angle: 120°
- Power Factor: >90
- CRI: >
Control and installation
Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

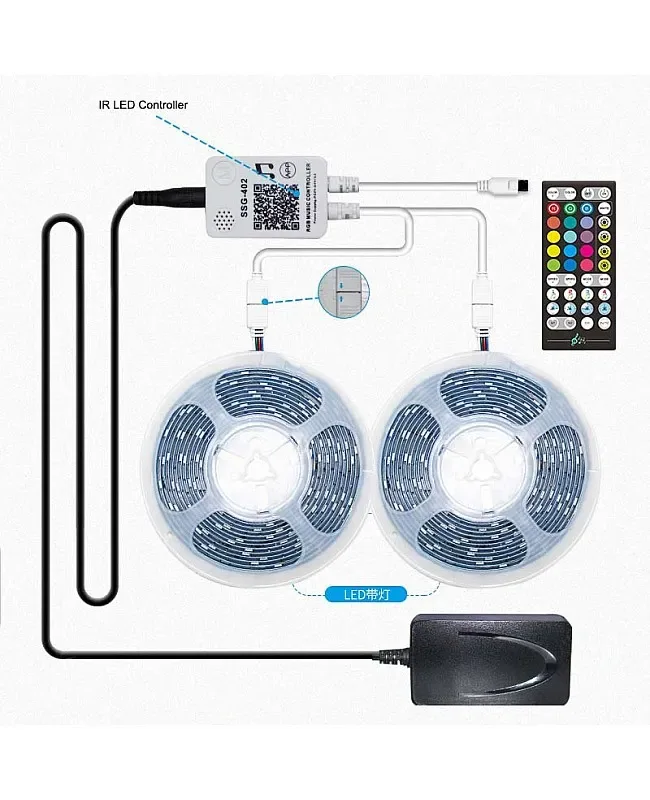

The 5050 RGB LED strip light kit, available in 5-meter, 10-meter, or 20-meter lengths, comes with a 40 40-key IR LED controller and an easy LED power supply to install and use. The LED strip light uses high-quality 5050 SMD LEDs as the light source, 30 LEDs per meter, 5 meters per reel. The LEDs are fixed on the dual-layer PCB board, are flexible, and have a 10cm cuttable length. The back has double-sided adhesive tape, making it easy to install and use. Remove the protector from the tape and stick it on the place you want to use. The striplight kit comes with LED controller and 40 keys IR remote, there are four music working modes available, under music mode the LED light will change the dynamic style follow the music, can use the remote control to turn on or turn off the RGB LED strips, adjust the brightness of static colors or the speed of dynamic modes. With the LED controller with Bluetooth module, the installer can scan the QR code on the LED controller to download the app and control the light changing style on your mobile phone via Bluetooth. The IP rating of the LED strip light kits is IP20, and the configured product only recommend working indoors.
Specifications
Size: 5000*10*3mm
Working Voltage: DC12V
LED: 5050 SMD LEDs
Luminous Flux: 6lm/LED
LED Quantity: 150LEDs 300LEDs 360LEDs 600LEDs
Power: <7.2W/Meter
Length Available: 5 Meter, 10 Meter
Emitting Colors: RGB
Waterproof: IP20 Non-Waterproof
Beam Angle: 120°
Power Factor: >90
CRI: >
IR Music Controller Included
40 Keys IR Remote Included
UK/US/EU Power Plug LED Driver Optional
Angle View: 120°
Controlled By APP Through Bluetooth
10CM Cuttable
Back With Double-Sided Tape
Brightness Of Static Colors And Dynamic Modes Adjustable
4 Music Modes Available

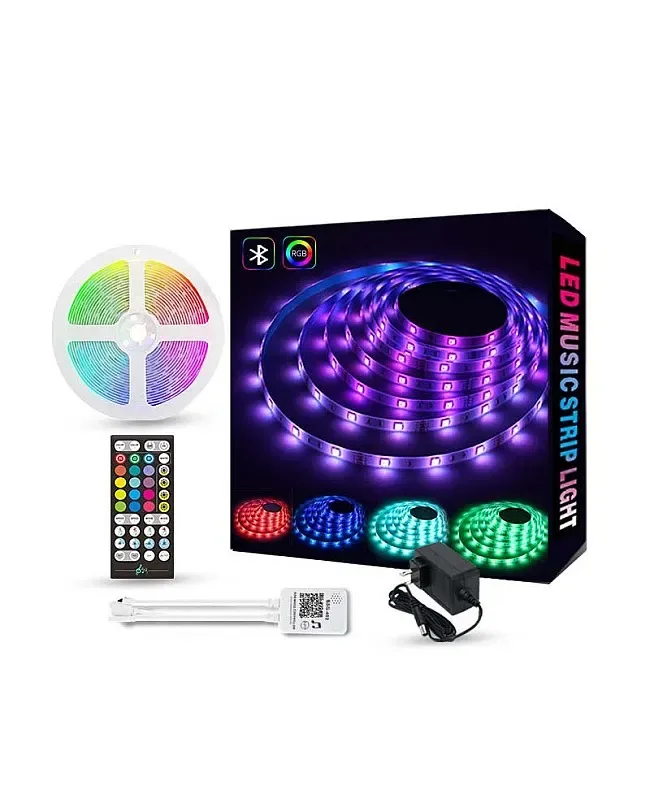

Includes
1 * RGB LED Striplight
1 * LED Controller
1 * LED Power Supply
Typical applications
- Low-voltage LED systems
- Controller and strip power
- Signage and display BOMs
