Product details
AC220V High Voltage COB LED Strip Lights
LumaCircuit offers AC220V High Voltage COB LED Strip Lights as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Model: High Voltage COB LED Strips Power: 12W/M(228LEDs)/13W/M(420LEDs) LED Quantity: 288PCS/M; 420PCS/M The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

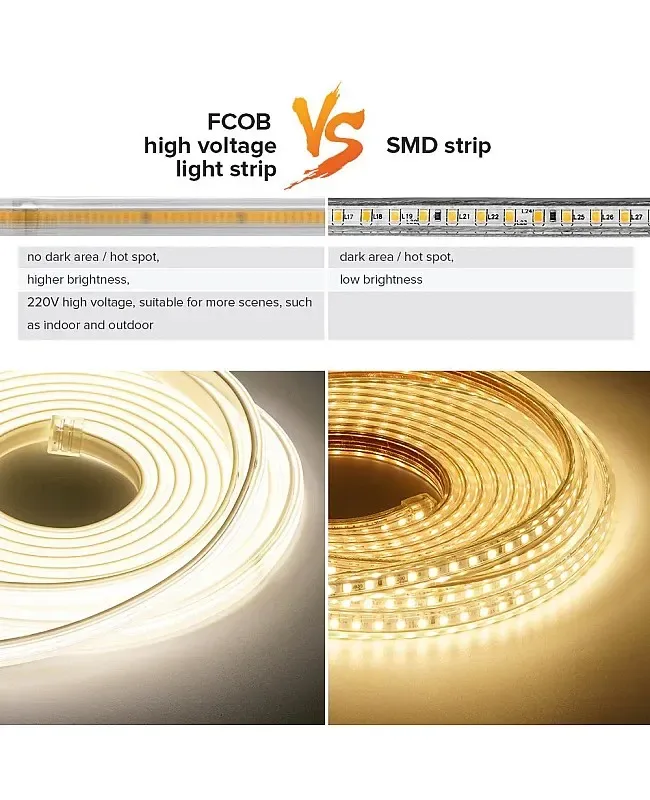

- The high voltage AC220V COB LED strip lights, which use the high-quality San An 1015 LED chips as the light source, 288PCS or 420PCS LED chips mounted on every meter double-layer PCB board, with the chip-on-board-technology, the high-density LED chips allow super brightness than SMD LED strips, no visible light dots, and dark area, to create seamless linear lighting for outdoor applications.
- Model: High Voltage COB LED Strips
- Power: 12W/M(228LEDs)/13W/M(420LEDs)
- LED Quantity: 288PCS/M; 420PCS/M
- Width: 12mm(288LEDs)/13mm(420LEDs)
- Mini Cutting Length: 50cm
- Colors: Warm White(3000K), Natural White(4000K), Cool White(6500K)
- Color Rendeing Index: 70
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 220 V
- Light engine: CCT
- LumaCircuit model: LC-STR-R2EHOK
- Working Voltage: AC220V
- Power: 12W/M(228LEDs)/13W/M(420LEDs)
- LED Type: 1015
- LED Quantity: 288PCS/M; 420PCS/M
- Lengths: 5M/Reel
- Width: 12mm(288LEDs)/13mm(420LEDs)
- Mini Cutting Length: 50cm
- Colors: Warm White(3000K), Natural White(4000K), Cool White(6500K)
- Color Rendeing Index: 70
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

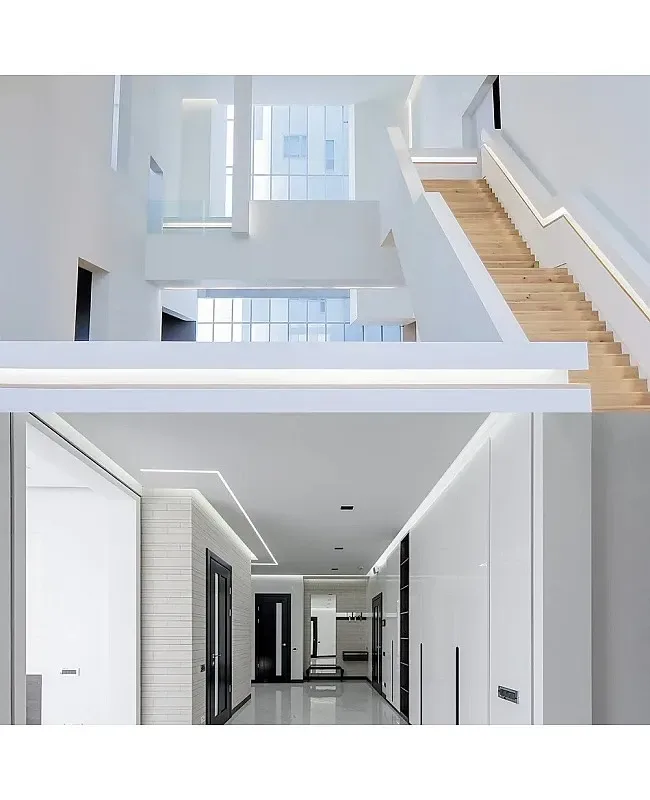

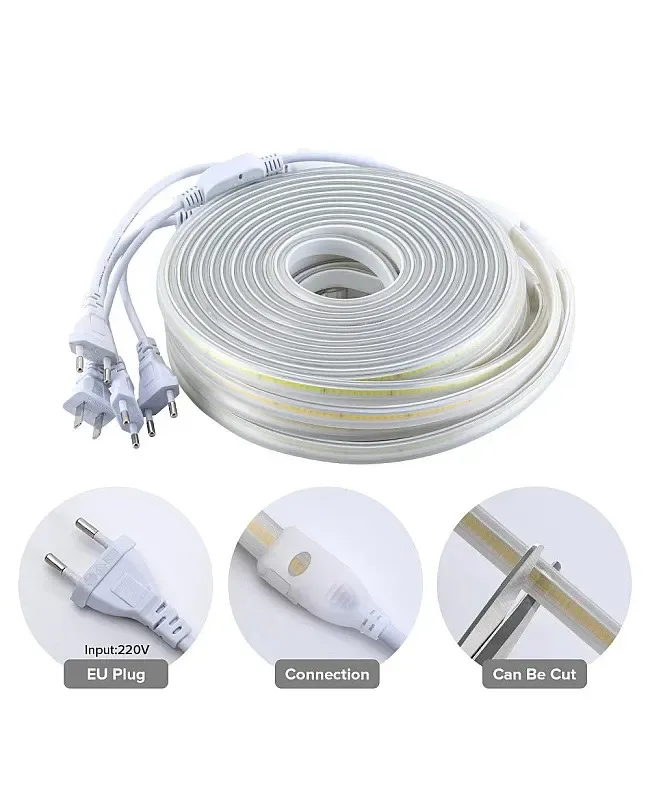

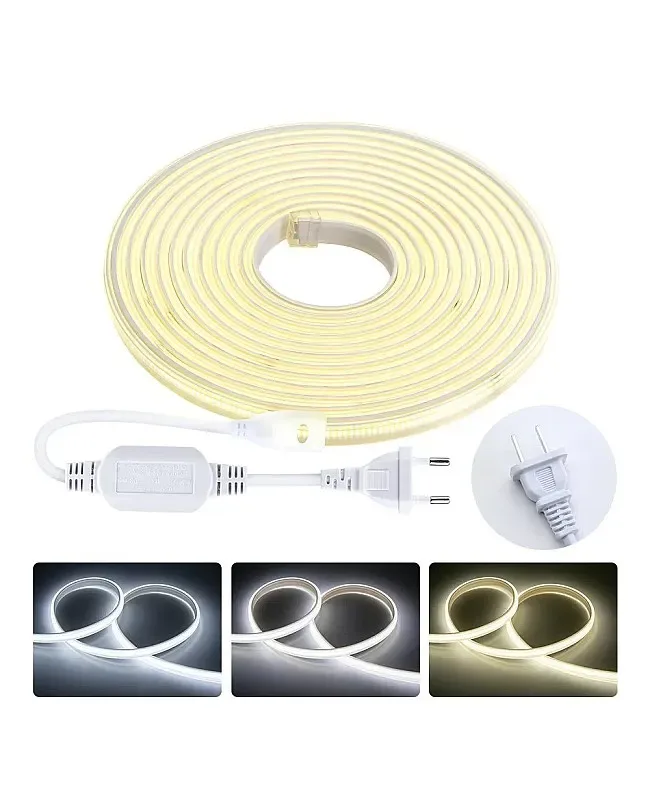

The high voltage AC220V COB LED strip lights, which use the high-quality San An 1015 LED chips as the light source, 288PCS or 420PCS LED chips mounted on every meter double-layer PCB board, with the chip-on-board-technology, the high-density LED chips allow super brightness than SMD LED strips, no visible light dots, and dark area, to create seamless linear lighting for outdoor applications. The outer layer with a PCB tube allows the waterproof level up to IP65, and the installer can install them in a damp location. The high-voltage COB LED strips working on AC220V can be connected directly to the public power system, and EU and US power plugs are available. They can be cut to any length for your project, and the mini-cutting length is 50cm. The installer can use the waterproof high-voltage LED strip connector to reconnect the cutting part easily. There are three emitting color products available, and the installer can choose the 3000K warm white, 4000K natural white, and 6500K cool white for various scenes. The silicone clips and screws are included, and it is easy to mount them on the wall or the ceiling for a lighting project; the installer can use them in hallways, stairs, trails, windows, kitchen and bathroom, garden lighting, etc.
Specifications
Model: High Voltage COB LED Strips
Working Voltage: AC220V
Power: 12W/M(228LEDs)/13W/M(420LEDs)
LED Type: 1015
LED Quantity: 288PCS/M; 420PCS/M
Lengths: 5M/Reel
Width: 12mm(288LEDs)/13mm(420LEDs)
Thickness: 6mm
Mini Cutting Length: 50cm

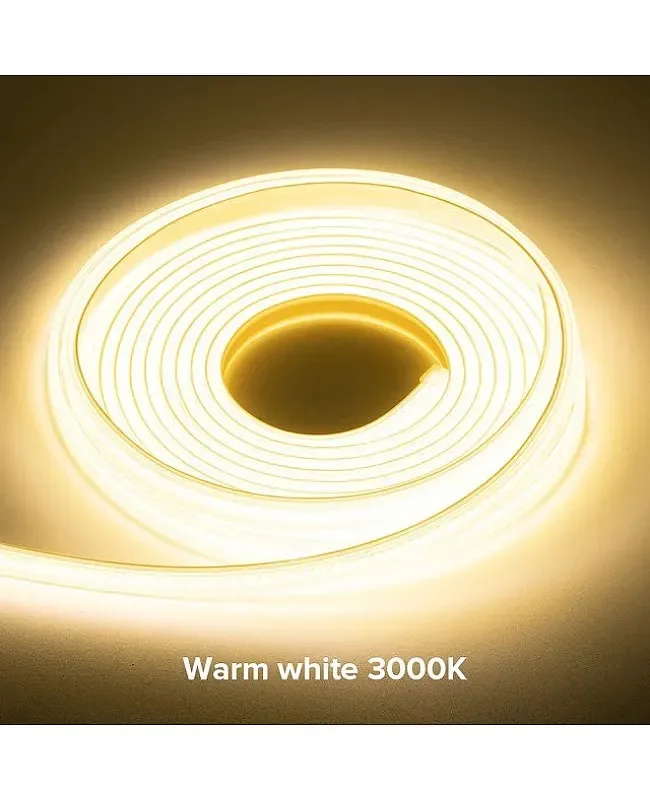

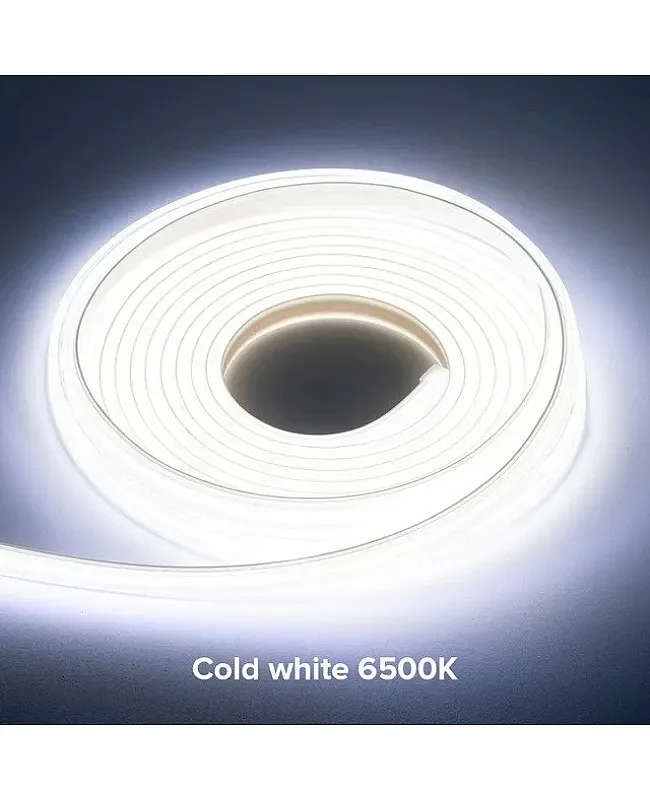

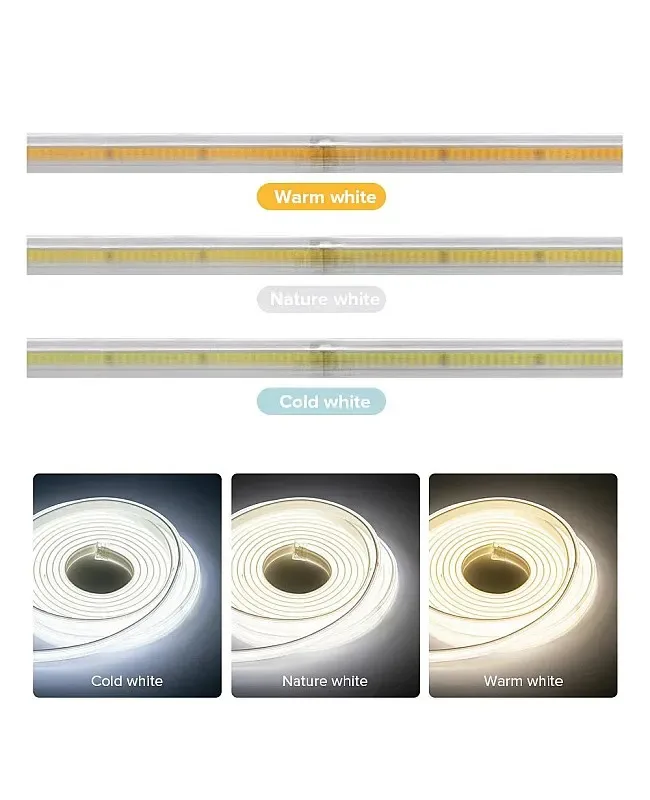

Colors: Warm White(3000K), Natural White(4000K), Cool White(6500K)
Color Rendeing Index: 70
Waterproof Level: IP65
Power Plugs: EU/US
Dimmable: NO
Includes
1 * High Voltage COB LED Strips(5M/Reel)
15 * Mounting Clips
30 * Screws
Typical applications
- Everyday room lighting

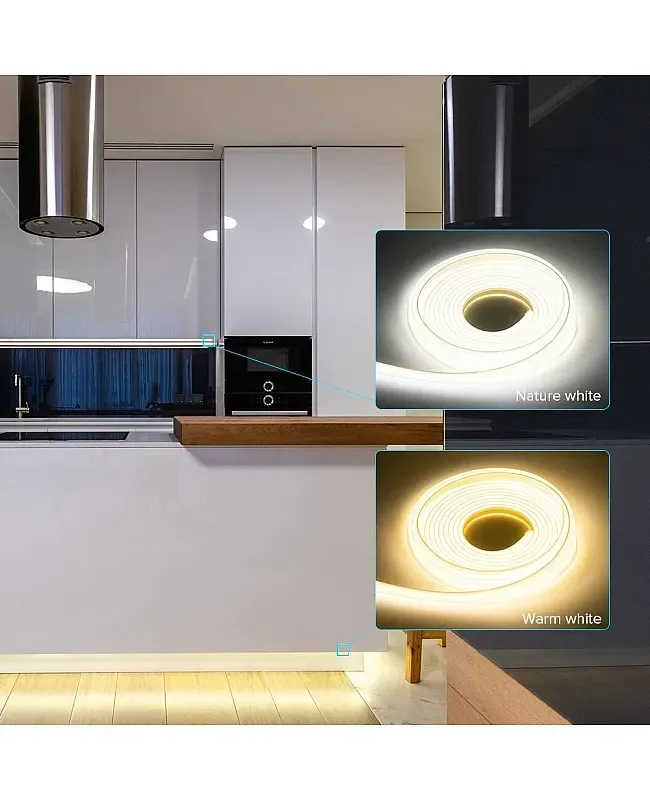

- Kitchen and cabinet task light
- Retail and commercial fit-outs
