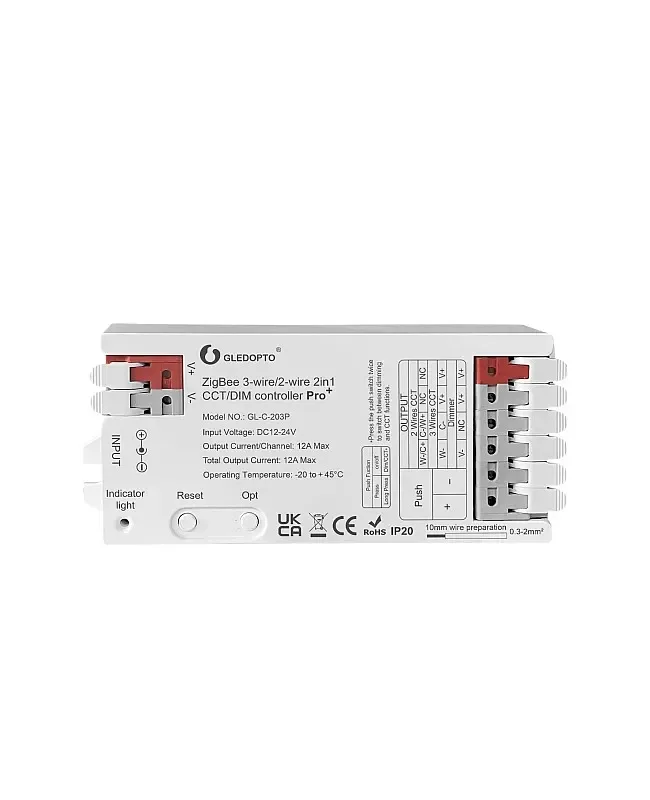

2 Wire Tunable White Zigbee LED Strip Controller
LumaCircuit offers 2 Wire Tunable White Zigbee LED Strip Controller as a configurable LED strip for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Compatible with most 2-wire CCT strip lights, the controller provides precise control over brightness and color temperature to create comfortable lighting in kitchens, bedrooms, offices, retail spaces, hotels, and other areas. Can work with Zigbee gateways, such as Philips Hue, Home Assistant, Tuya, Alexa, and others, which allow you to control the LED lights using a phone app. It can also be controlled via the remote to easily change the lighting effect. It features a quick-connect terminal design that simplifies wiring and installation for 2 or 3-wire CCT LED strips. Operates on -24 constant-voltage systems and supports up to 12A of output, making it suitable for longer LED strip runs and high-power tunable white lighting applications. Type: 2-wires/3-wires tunable white LED controller The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

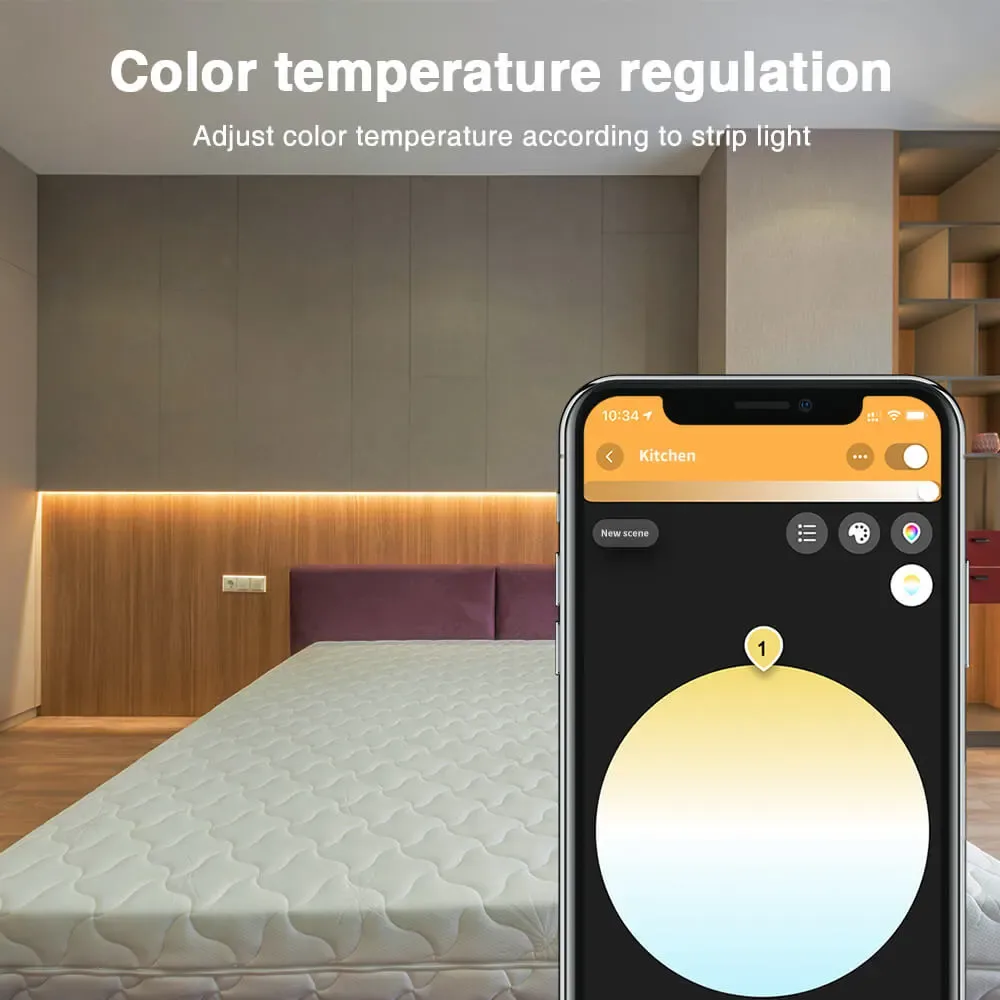

- The 2-wire LED strip controllers are designed for smart CCT lighting applications. They are built with advanced Zigbee 3.0 technology and support 2.4G RF, enabling smooth adjustment between warm white and cool white while delivering stable dimming performance.

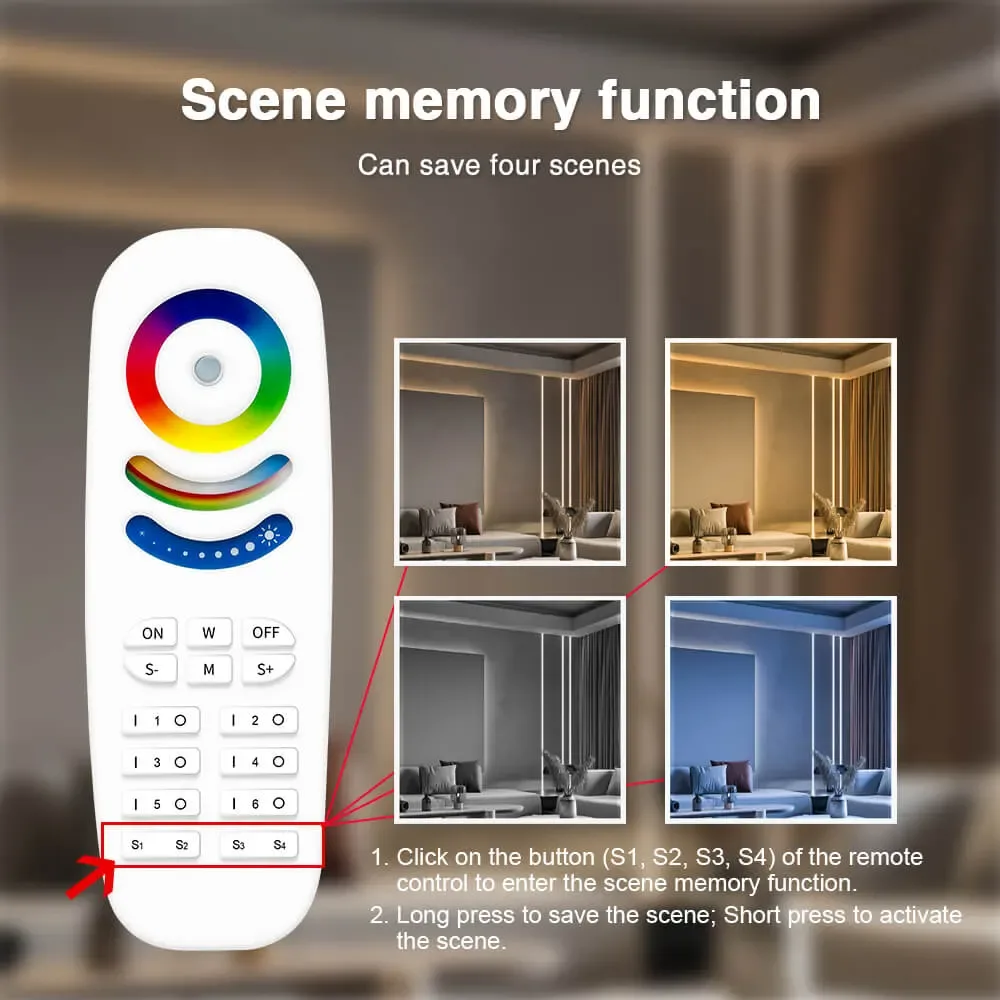

- Compatible with most 2-wire CCT strip lights, the controller provides precise control over brightness and color temperature to create comfortable lighting in kitchens, bedrooms, offices, retail spaces, hotels, and other areas. Can work with Zigbee gateways, such as Philips Hue, Home Assistant, Tuya, Alexa, and others, which allow you to control the LED lights using a phone app. It can also be controlled via the remote to easily change the lighting effect.

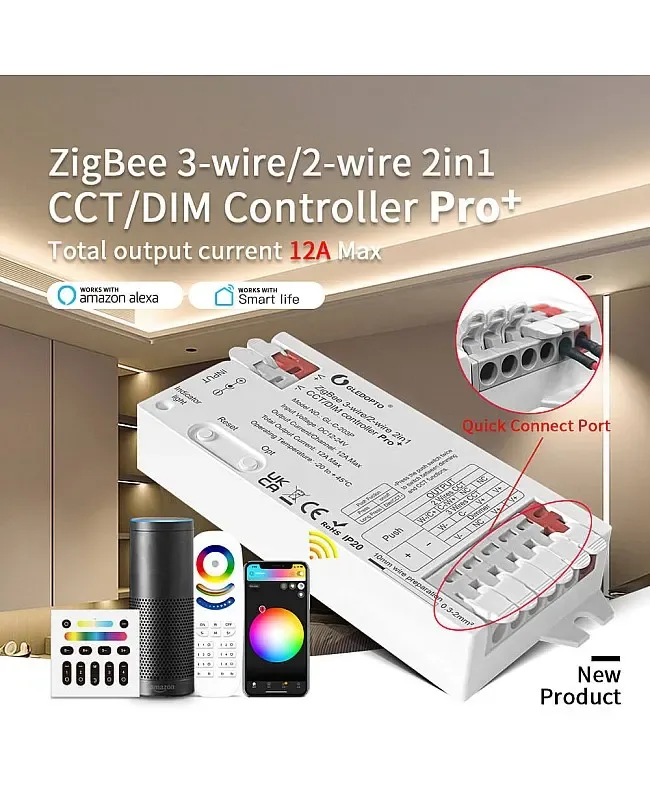

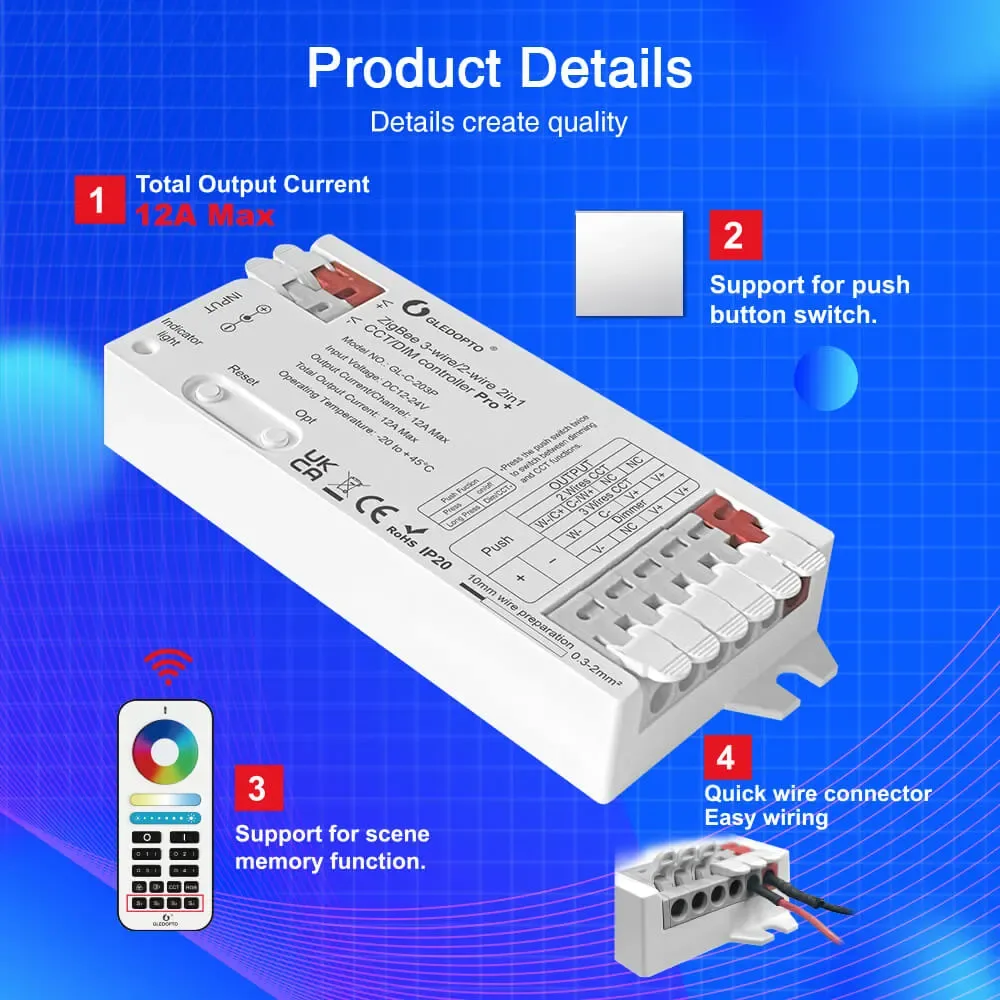

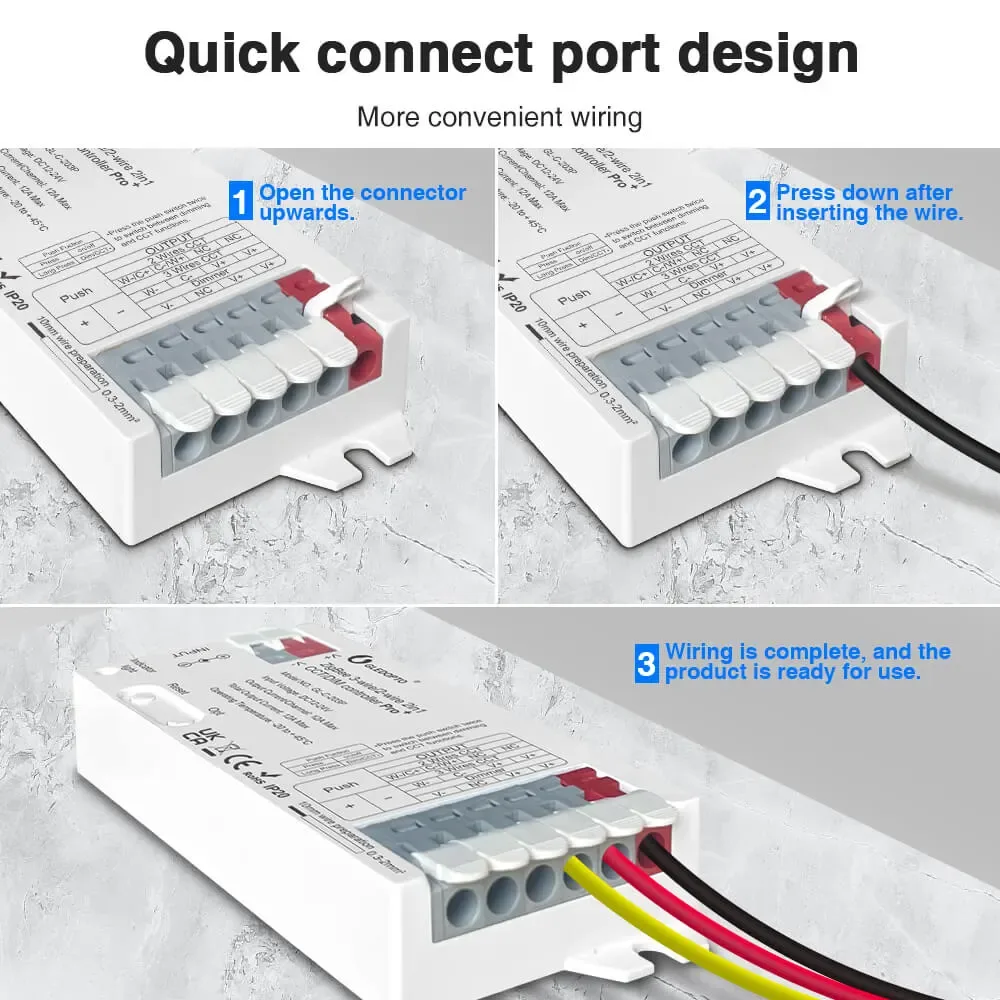

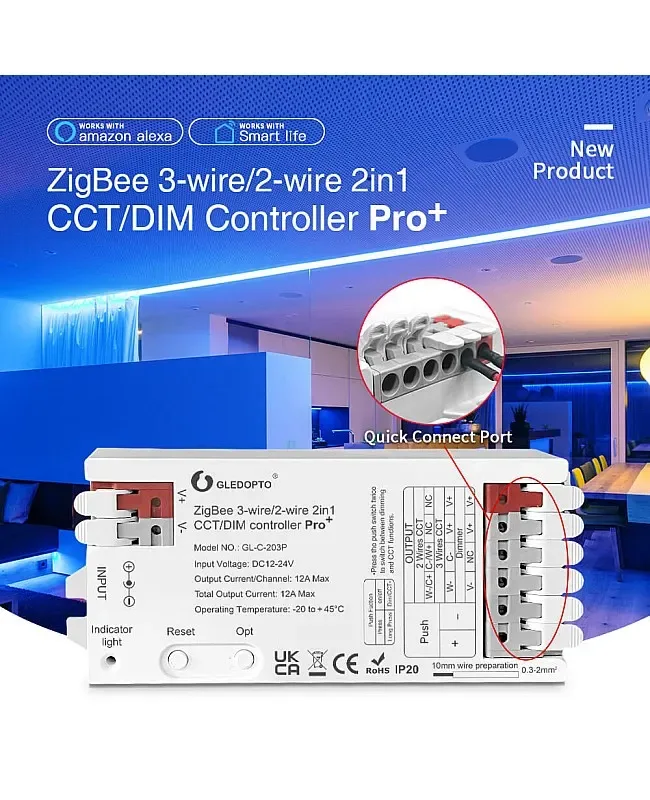

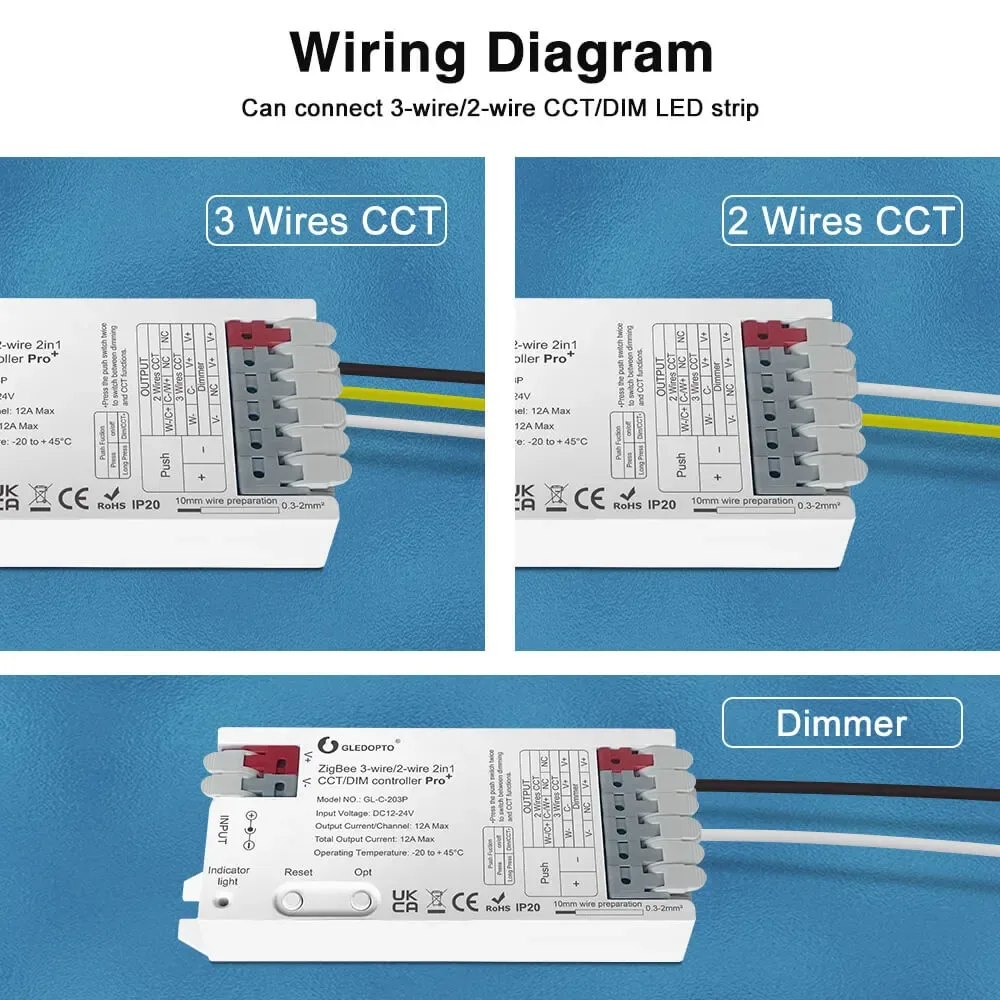

- It features a quick-connect terminal design that simplifies wiring and installation for 2 or 3-wire CCT LED strips. Operates on -24 constant-voltage systems and supports up to 12A of output, making it suitable for longer LED strip runs and high-power tunable white lighting applications.

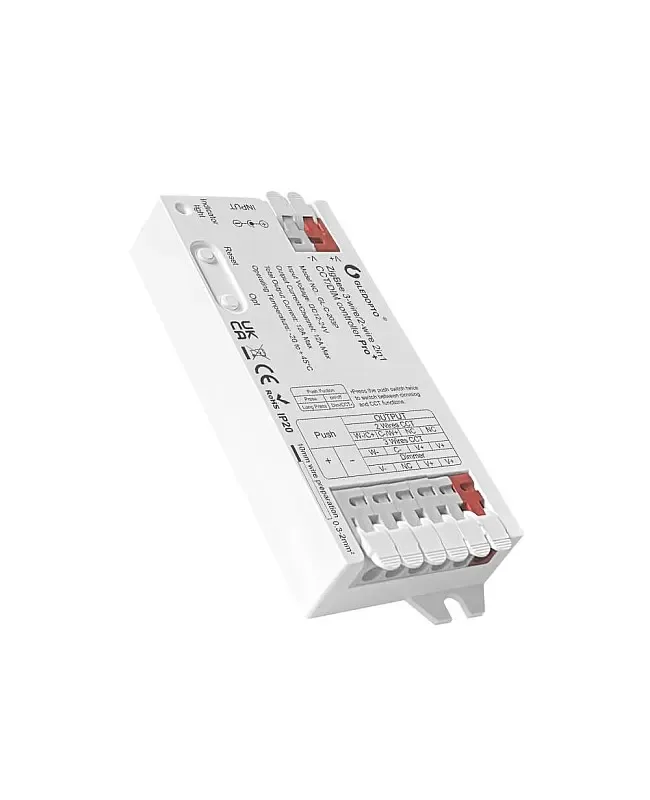

- Type: 2-wires/3-wires tunable white LED controller
- Material: Flame-resistant PC
- Size: ( L X W X H ):108 x 46 x 18mm/4.25" x 1.81" x 0.71"
- Output current per channel: 12A Max
- Wireless communication protocols: Zigbee, 2.4G RF
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V
- Light engine: CCT
- LumaCircuit model: LC-STR-UGF3RT
- Material: Flame-resistant PC
- Color: White
- Size: ( L X W X H ):108 x 46 x 18mm/4.25" x 1.81" x 0.71"
- Input voltage: -24V
- Output current: 12A Max
- Output current per channel: 12A Max
- Wireless communication protocols: Zigbee, 2.4G RF
- Working temperature: -20℃-+45℃
- Dimensions found: 108 x 46 x 18mm / 18mm
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The 2-wire LED strip controllers are designed for smart CCT lighting applications. They are built with advanced Zigbee 3.0 technology and support 2.4G RF, enabling smooth adjustment between warm white and cool white while delivering stable dimming performance.
Compatible with most 2-wire CCT strip lights, the controller provides precise control over brightness and color temperature to create comfortable lighting in kitchens, bedrooms, offices, retail spaces, hotels, and other areas. Can work with Zigbee gateways, such as Philips Hue, Home Assistant, Tuya, Alexa, and others, which allow you to control the LED lights using a phone app. It can also be controlled via the remote to easily change the lighting effect.

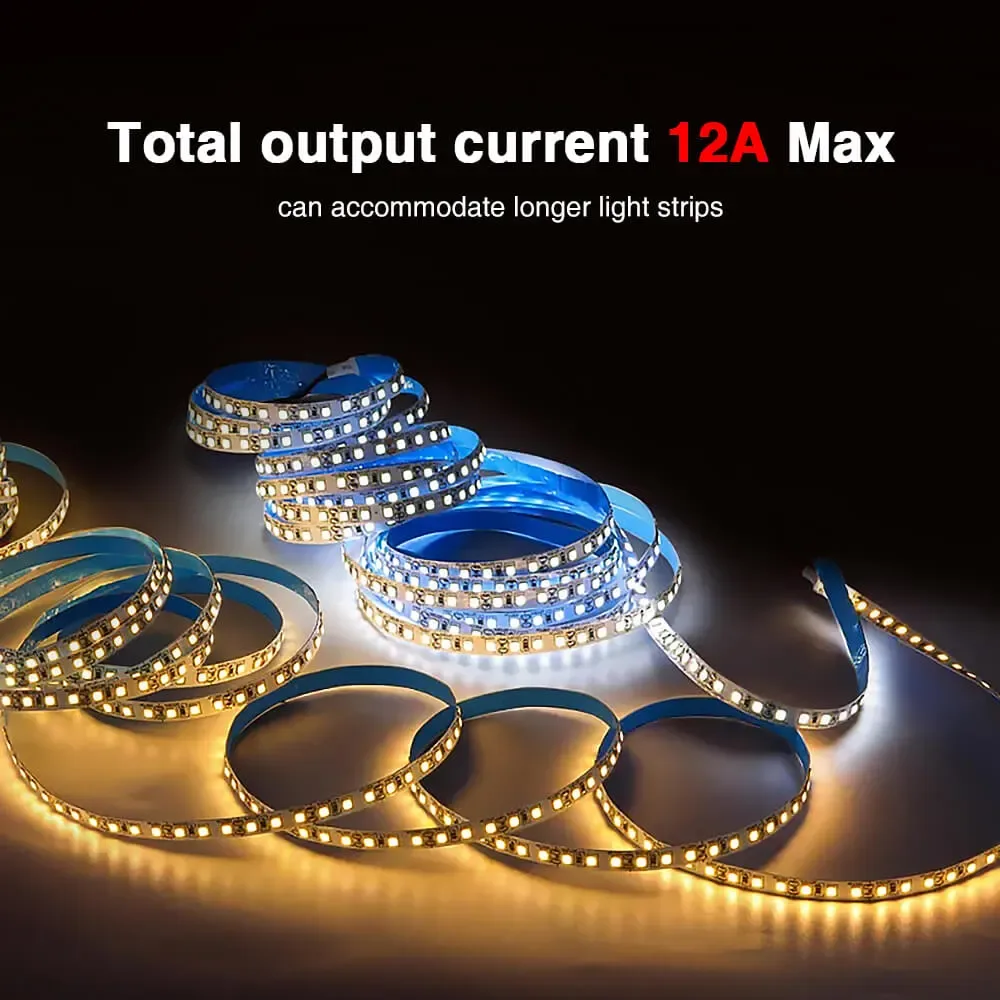

It features a quick-connect terminal design that simplifies wiring and installation for 2 or 3-wire CCT LED strips. Operates on -24 constant-voltage systems and supports up to 12A of output, making it suitable for longer LED strip runs and high-power tunable white lighting applications.
User manual
Specifications
Type: 2-wires/3-wires tunable white LED controller
Model
Material: Flame-resistant PC
Color: White
Size: ( L X W X H ):108 x 46 x 18mm/4.25" x 1.81" x 0.71"
Input voltage: -24V
Output current: 12A Max
Output current per channel: 12A Max
Wireless communication protocols: Zigbee, 2.4G RF

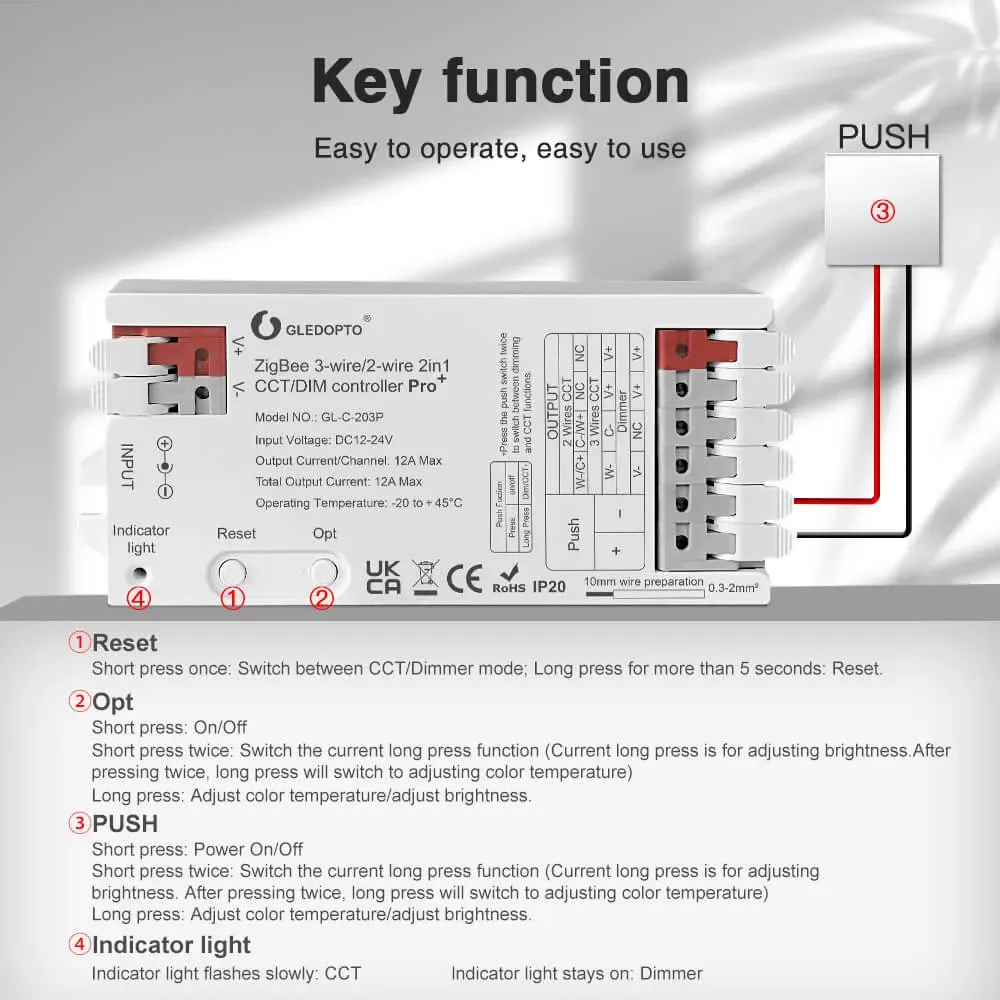

Support push dimming
Waterproof level: IP20 non-waterproof
Working temperature: -20℃-+45℃

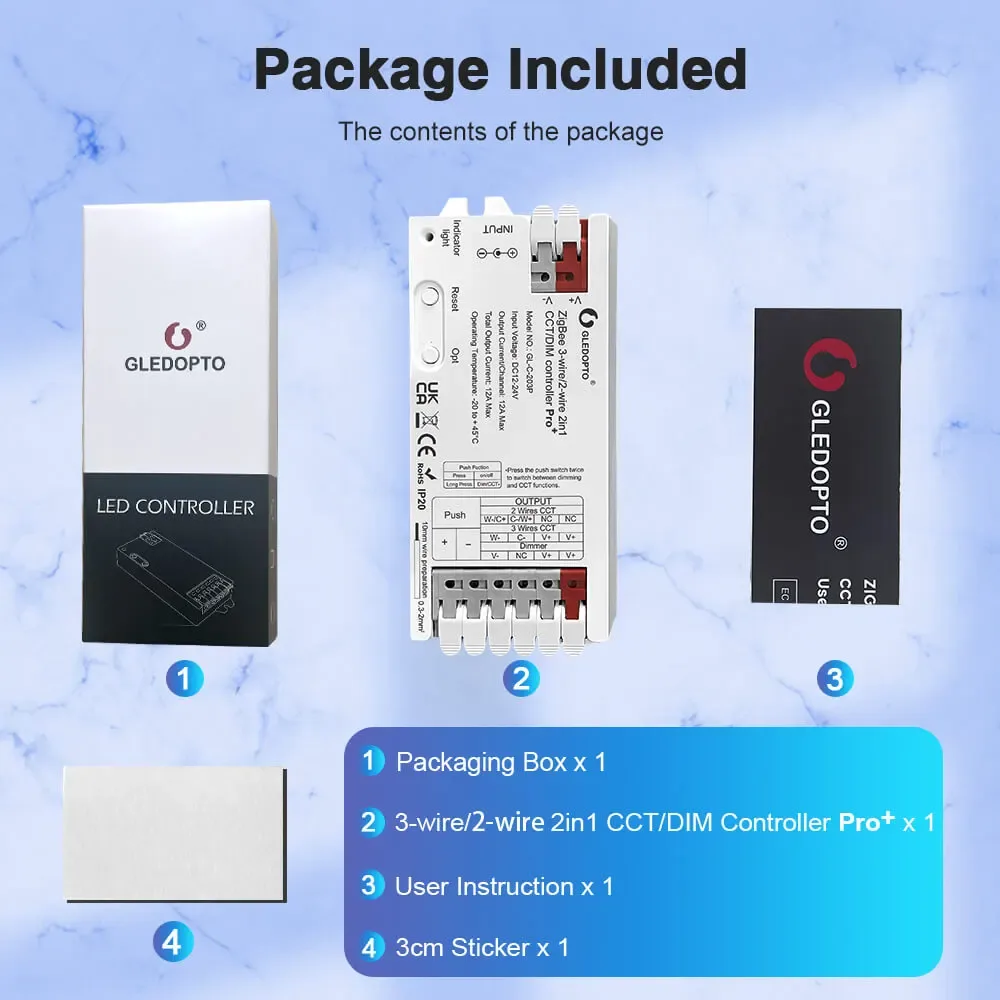

Includes
1 x Tunable white LED strip controller
1 x User manual
Product resources
Technical documents
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
