9W RGB+CCT Zigbee 3.0 Outdoor Garden Lights
LumaCircuit offers 9W RGB+CCT Zigbee 3.0 Outdoor Garden Lights as a configurable surface light for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. wireless controller User Manual Working Voltage: -240V, 50/60Hz Color Temperature: 2700 K- 6500 K The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller outdoor garden lights are an energy-efficient and cost-effective lighting solution for indoor and outdoor use. The lights have a wide range of color temperatures, allowing you to choose from a range of colors and adjust color temperature and brightness to suit the atmosphere of your garden. It integrates Zigbee 3.0 and 2 wireless standard protocol and can be controlled by RF remote controls, wireless controller APP, and third-party voice commands after adding the Zigbee 3.0 gateway.
- wireless controller User Manual
- Working Voltage: -240V, 50/60Hz
- Color Temperature: 2700 K- 6500 K
- Luminous Efficiency: 100LM/W
- Color Temperature, Brightness, And Saturation Adjustable
- 4G RF Remote Controllable RF, W, B, +, T3, T4
- wireless controller Zigbee Gateways
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-SUR-2XHK8N
- Size: Φ116mm
- Working Voltage: -240V, 50/60Hz
- Power: 9W
- Color: RGBWW
- Color Temperature: 2700 K- 6500 K
- CRI: >80
- 2.4G RF Remote Controllable: RF, W, B, +, T3, T4
- Beam Angle: 15°
- IP Rating: IP66
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

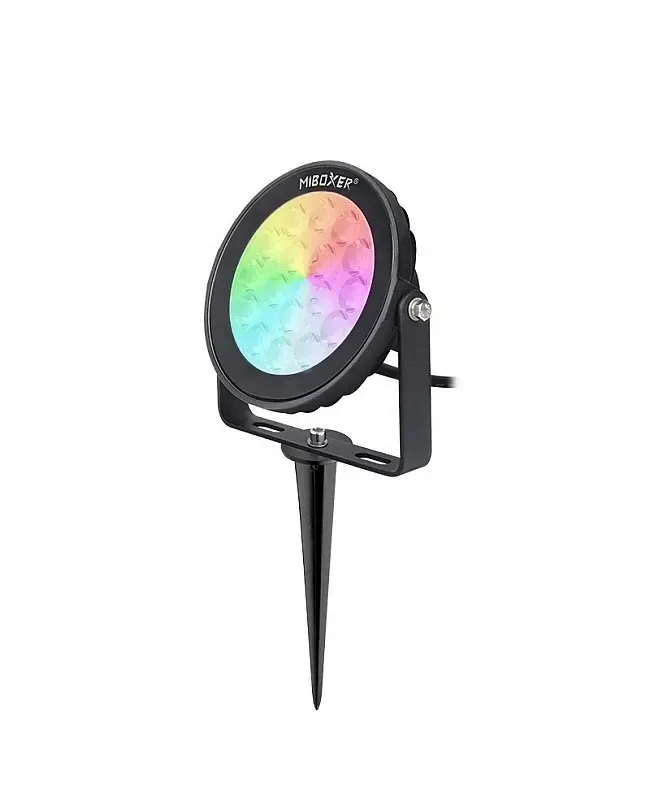

The wireless controller outdoor garden lights are an energy-efficient and cost-effective lighting solution for indoor and outdoor use. The lights have a wide range of color temperatures, allowing you to choose from a range of colors and adjust color temperature and brightness to suit the atmosphere of your garden. It integrates Zigbee 3.0 and 2 wireless standard protocol and can be controlled by RF remote controls, wireless controller APP, and third-party voice commands after adding the Zigbee 3.0 gateway. The installer can control the light ON or OFF, set the colors, and adjust the saturation, brightness, and color temperature from 2700K to 6500 K. It can also connect to Philips Hue, IKEA TRADFRI, Amazon Echo Plus, Echo Gen, and Echo Studio standard Zigbee 3.0 Gateways. With the group control function, multiple Zigbee garden lights can be controlled by the remote control or the Mobile APP to change the status of the lighting at the same time. The installer can conveniently use the 4G network of your phone to control the garden light from any place and at any time. The outdoor garden light is waterproof, and the IP rating is IP66. The installer can install them on the road, greenbelt, plaza, and park as landscape lighting, using high-quality SMD LEDs as the light source for low power consumption and luminance decrease, bright color, and high brightness. The surfaces with an anti-dazzling optical lens will deliver scientifically symmetrical and bright light rays.
Quick Links
wireless controller User Manual
wireless controller Zigbee Gateways
Specifications
Model
Size: Φ116mm
Working Voltage: -240V, 50/60Hz
Power: 9W
Color: RGBWW
Color Temperature: 2700 K- 6500 K
Luminous Flux: 900lm
Luminous Efficiency: 100LM/W
16 Million Colors Available
Color Temperature, Brightness, And Saturation Adjustable
4G RF Remote Controllable RF, W, B, +, T3, T4
Auto Signal Transmitting And Modes Synchronization
wireless controller APP And Third-Party Voice Controllable(Zigbee 3.0 Gateway Needed)
APP Name: Tuya Smart
Beam Angle: 15°
Illumination Distance: >10m
IP Rating: IP66
Communication Protocol: Zigbee 3.0 + 2.
Wireless Technology: Zigbee 802.15.4
Wireless Frequency: 2.400- 2.
Control Distance: Zigbee≤100m(Open Area)；2.4G RF≤30m
Support DMX512 Controllable(DMX512 LED Transmitter Needed)
Anti-Corrosion Inserted Pole Included
Working Temperature: -20-45℃
Applications: Road, Greenbelt, Plaza, Park, Plant Landscape Lighting
Includes
1 * wireless controller Zigbee Outdoor Garden Light
Product resources
Technical documents
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
