Product details

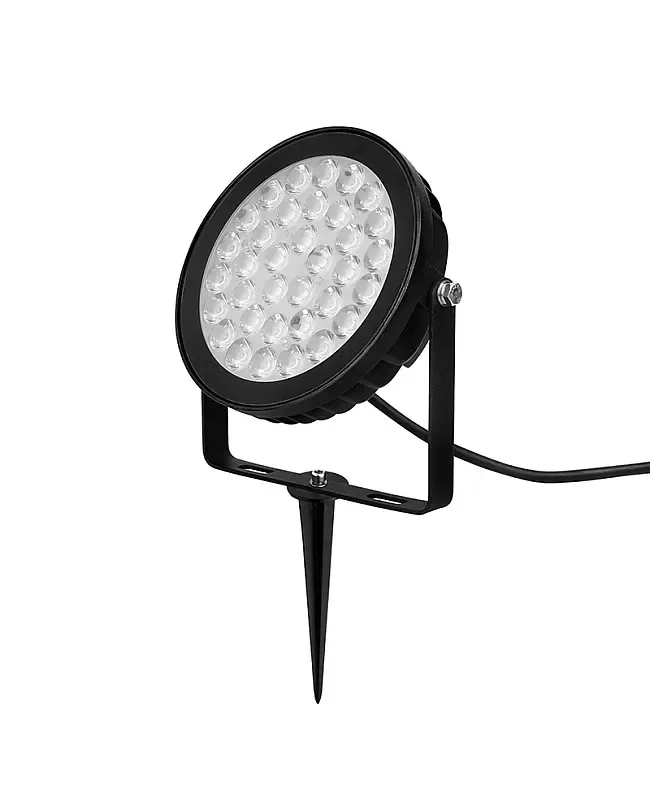

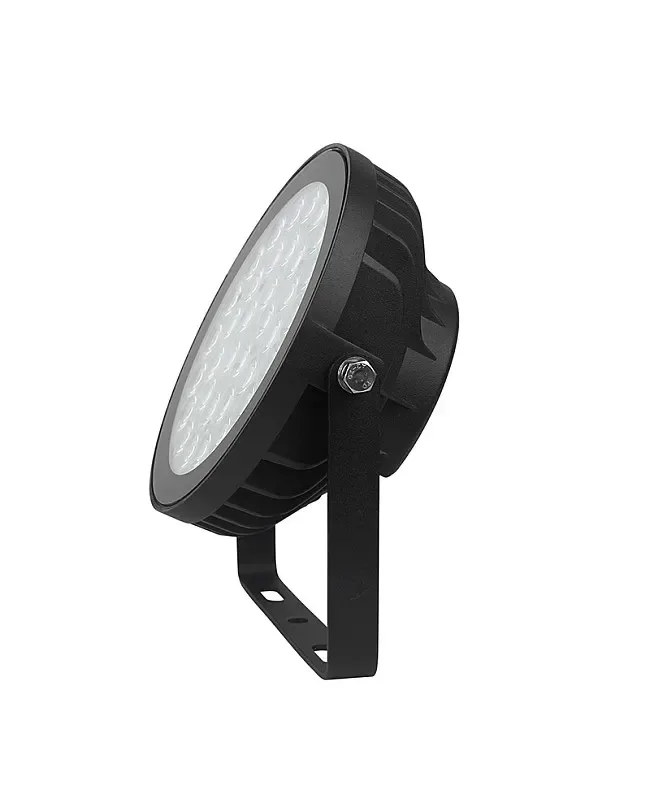

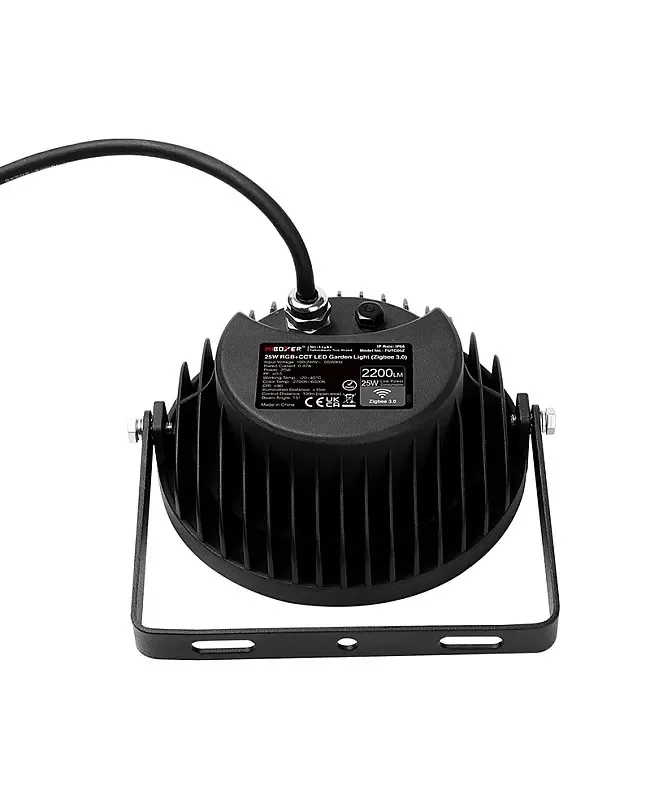

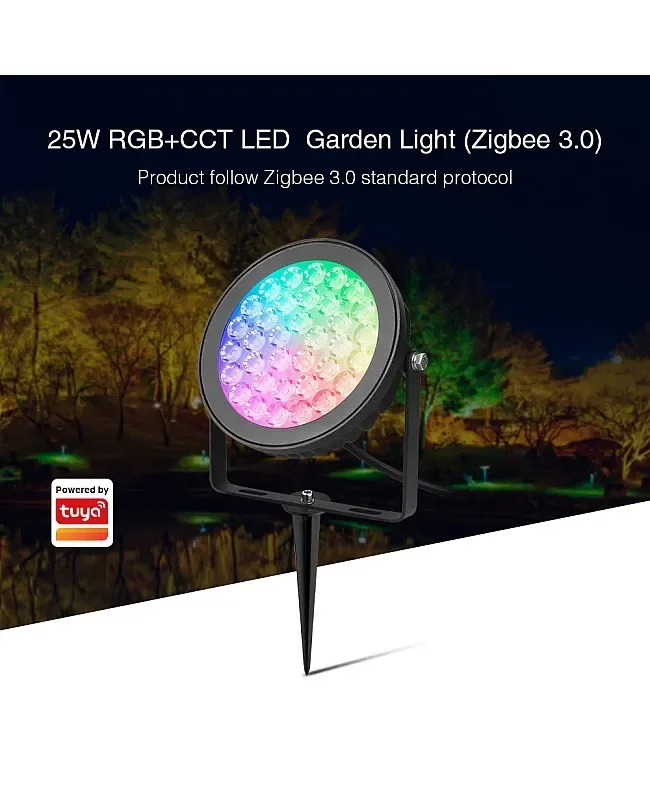

25W Zigbee RGB CCT Black Outdoor Lights
LumaCircuit offers 25W Zigbee RGB CCT Black Outdoor Lights as a configurable surface light for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Luminous Efficiency: 88LM/W Color Temperature Adjustable From 2700K To 6500K Brightness And Saturation Adjustable The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- Input Voltage: -240V, 50/60Hz
- Luminous Efficiency: 88LM/W
- Color Temperature Adjustable From 2700K To 6500K
- Brightness And Saturation Adjustable
- Communication Protocol: Zigbee 3.0 +2.
- Wireless Technology: Zigbee 802.15.4
- Zigbee Wireless Frequency: 2.400- 2.
- Control Distance: Zigbee: ≤100m(Open Area); 2.4G: ≤30m
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-SUR-FG6A8D
- Size: 180*170*65mm
- Material: Aluminum + PC
- Color Of Shell: Black
- Input Voltage: -240V, 50/60Hz
- Power: 25W
- Rated Current: 0.42A
- Communication Protocol: Zigbee 3.0 +2.
- Zigbee Wireless Frequency: 2.400- 2.
- Control Distance: Zigbee: ≤100m(Open Area); 2.4G: ≤30m
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Specifications
Model
Size: 180*170*65mm
Material: Aluminum + PC
Color Of Shell: Black
Input Voltage: -240V, 50/60Hz
Power: 25W
Rated Current: 0.42A
Luminous Flux: 2200LM
Luminous Efficiency: 88LM/W
16 Million Colors Available
Color Temperature Adjustable From 2700K To 6500K
Brightness And Saturation Adjustable
Communication Protocol: Zigbee 3.0 +2.
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400- 2.
Control Distance: Zigbee: ≤100m(Open Area); 2.4G: ≤30m
Zigbee 3.0 Remote Controllable(Zigbee Gateway Needed)
Smartphone APP Controllable
Supports Third-party Voice Control
Can Work With Amazon Alexa And Google Assistant
CRI: >
Beam Angle: 15°
IP Rate: IP66 Waterproof
Working Temperature: -20-45℃
Applications: Landscape Lights For Roads, Greenbelts, Plazas, Parks, Plants, etc
Includes
1 * Zigbee RGB+CCT Black Outdoor Light

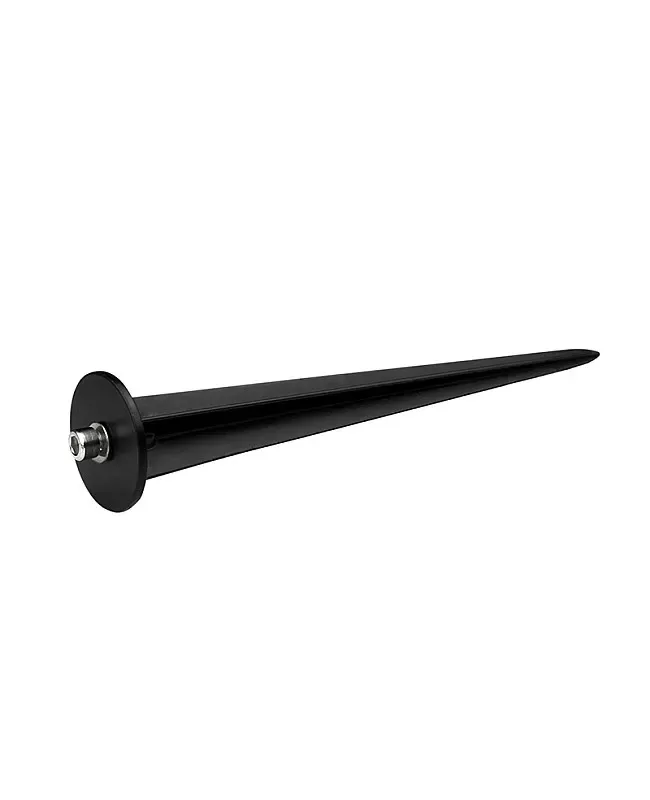

1 * Anti-corrosion Inserted Pole
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
