SYS 15W RGBWW LED Outside Lights
LumaCircuit offers SYS 15W RGBWW LED Outside Lights as a configurable surface light for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Size: 170*180*51mm(L*W*H) Color Temperature: 2700 K- 6500 K Light Efficiency: 80LM/W The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- wireless controller Waterproof Connector And Wires
- Size: 170*180*51mm(L*W*H)
- Color Temperature: 2700 K- 6500 K
- Light Efficiency: 80LM/W
- Illumination Distance: >10m
- Need To Work SYS-T1 1-Channel Host Controller
- Saturation, Color Temperature, And Brightness Adjustable
- 360° Rotate Moving And 180° Vertical Moving
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V
- Light engine: RGBW
- LumaCircuit model: LC-SUR-3Y5GT3
- Size: 170*180*51mm(L*W*H)
- Input Voltage: DC24V
- Power: 15W
- Emitting Color: RGBWW
- Color Temperature: 2700 K- 6500 K
- CRI: >
- Beam Angle: 15°
- IP Rating: IP66
- Dimensions found: 170x180x51mm / 51mm / 10m
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
Quick Links
wireless controller Waterproof Connector And Wires
Specifications
Model
Size: 170*180*51mm(L*W*H)
Input Voltage: DC24V
Power: 15W
Emitting Color: RGBWW
Color Temperature: 2700 K- 6500 K
Luminous FLux: 1200LM
Light Efficiency: 80LM/W
CRI: >
Illumination Distance: >10m
Beam Angle: 15°
IP Rating: IP66
Need To Work SYS-T1 1-Channel Host Controller

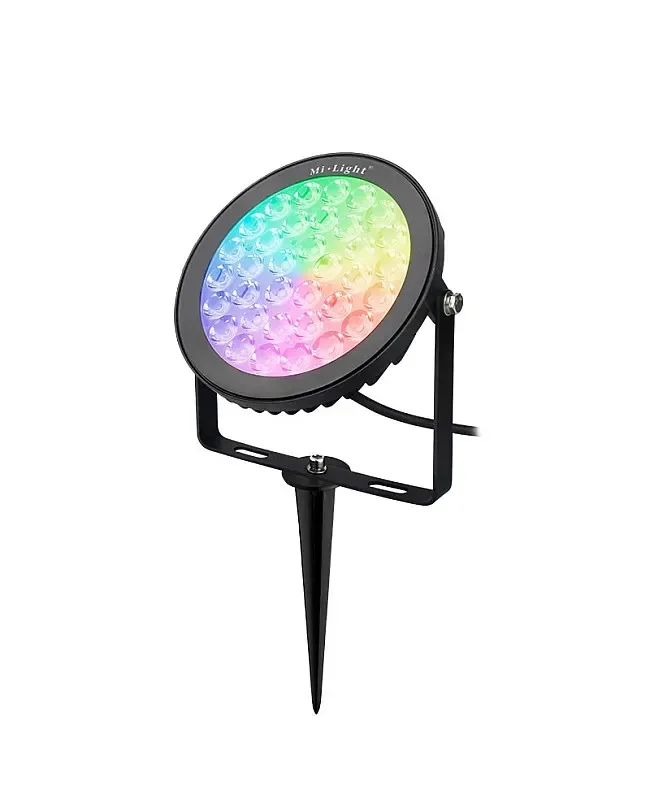

16 Million Colors Available
Saturation, Color Temperature, And Brightness Adjustable
360° Rotate Moving And 180° Vertical Moving

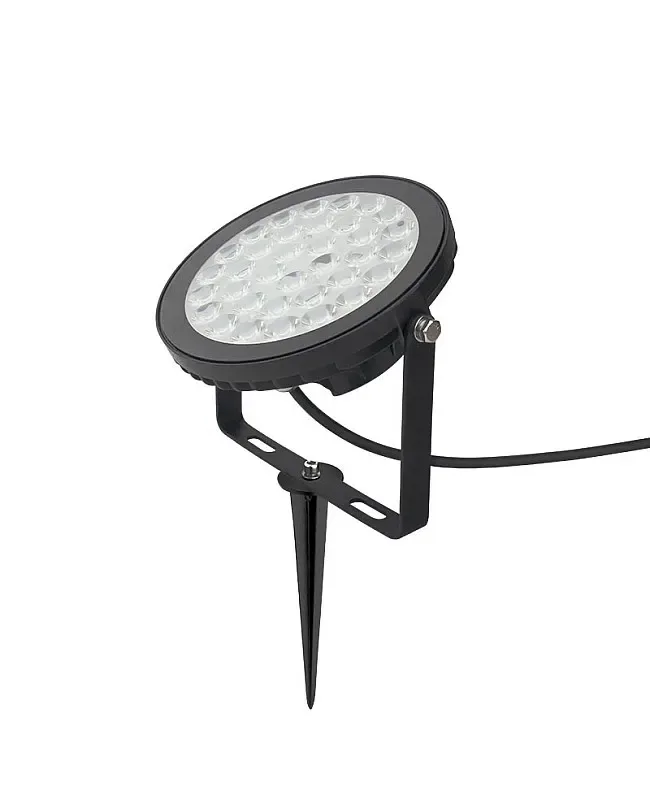

Anticorrosion Inserted Pole Included
Includes
1 * wireless controller LED Outside Light
1 * Anticorrosion Inserted Pole
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
