Product details

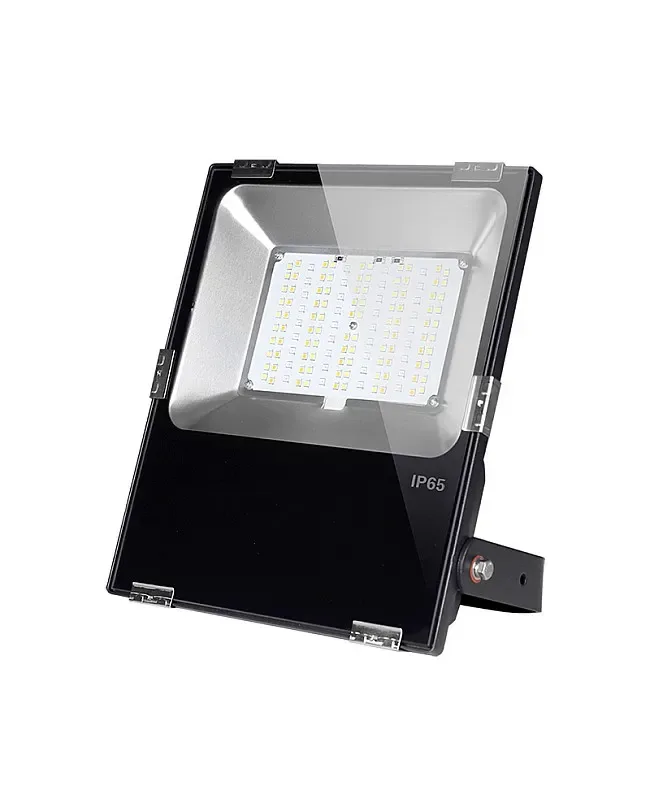

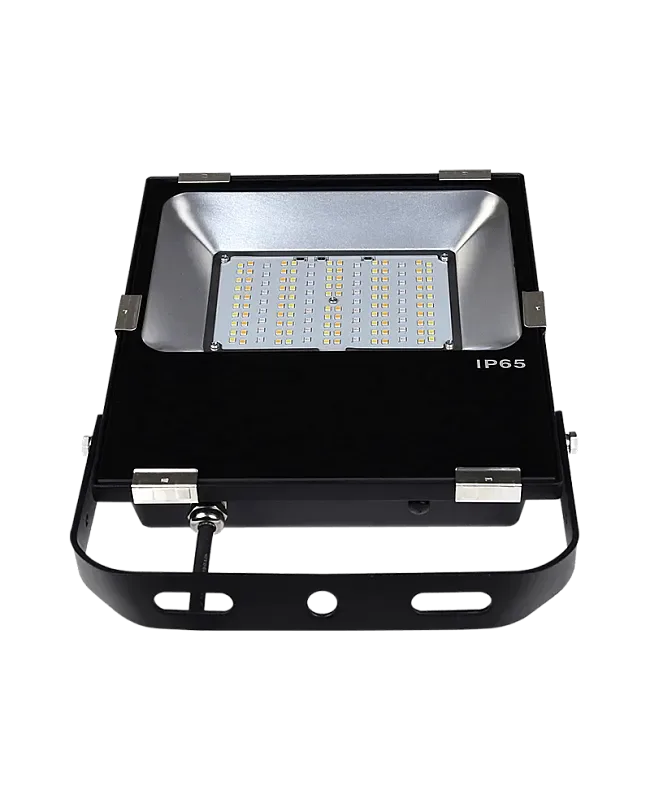

50W RGB CCT Zigbee 3.0 Outdoor Flood Light Fixtures
LumaCircuit offers 50W RGB CCT Zigbee 3.0 Outdoor Flood Light Fixtures as a configurable surface light for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Type: 50W LED Flood Lights(Zigbee 3.0 + 2.4G) Input Voltage: -240V, 50/60Hz Luminous Efficiency: 96LM/W The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller 50W Outdoor Flood Light Fixtures are an excellent choice for lighting your outdoor space. They can produce a wide range of colors and offer adjustable temperatures ranging from warm to cool white. It follows the Zigbee and 2.4 GHz protocols, enabling remote control via remotes, apps, voice assistants, and more. It can work with Amazon Alexa and Google Assistant to control ON/OFF, set the color, and adjust the color temp, brightness, and saturation.
- Type: 50W LED Flood Lights(Zigbee 3.0 + 2.4G)
- Input Voltage: -240V, 50/60Hz
- Luminous Efficiency: 96LM/W
- Standby Power Consumption: 1.2W
- Color Temperature Adjustable From 2700K To 6500K
- Brightness And Saturation Adjustable
- Dimming Grayscale: 4096 Levels
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-SUR-1VPI3N

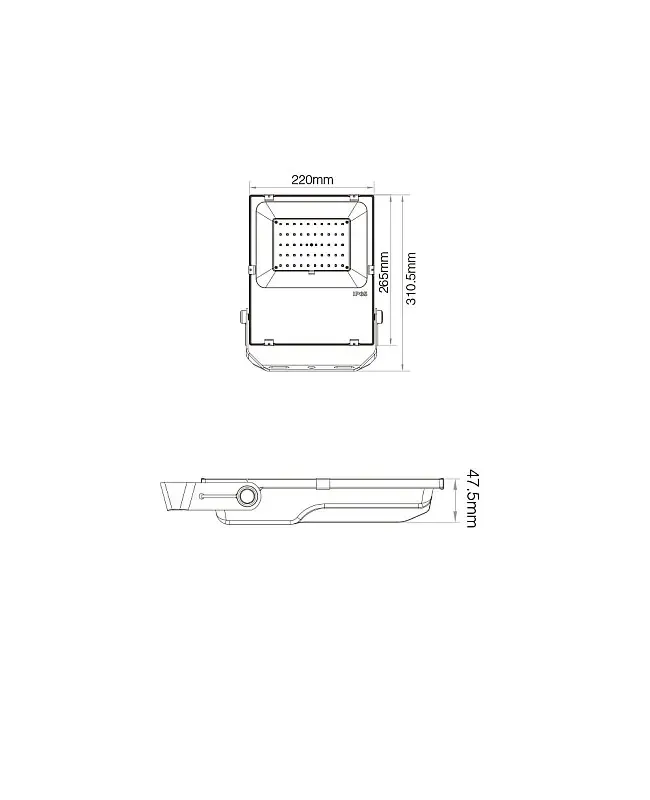

- Size: 310.5*220*47.5mm
- Material: Aluminum + PC
- Input Voltage: -240V, 50/60Hz
- Power: 50W
- Standby Power Consumption: 1.2W
- CRI: >
- Beam Angle: 160°
- IP Rate: IP65 Waterproof
- Zigbee Wireless Frequency: 2.400- 2.
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

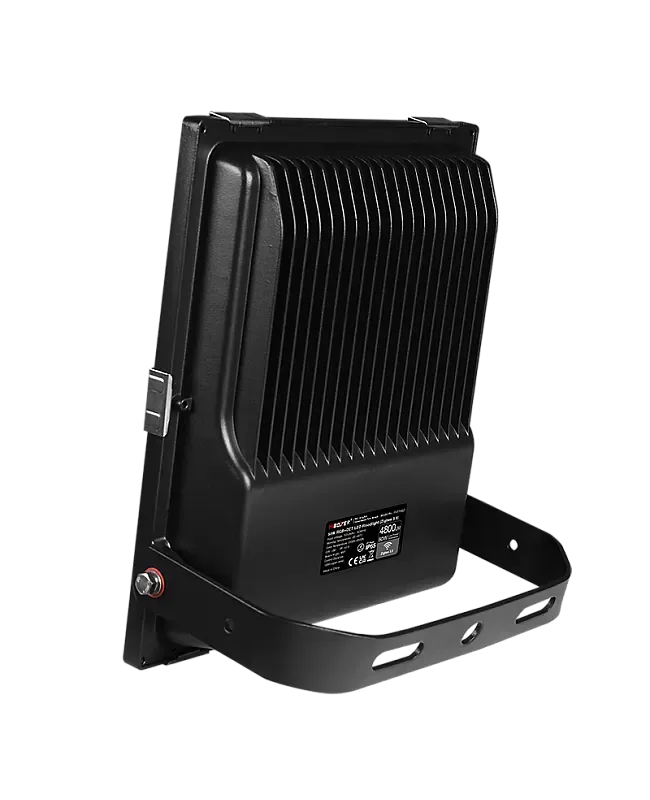

The wireless controller 50W Outdoor Flood Light Fixtures are an excellent choice for lighting your outdoor space. They can produce a wide range of colors and offer adjustable temperatures ranging from warm to cool white. It follows the Zigbee and 2.4 GHz protocols, enabling remote control via remotes, apps, voice assistants, and more. It can work with Amazon Alexa and Google Assistant to control ON/OFF, set the color, and adjust the color temp, brightness, and saturation. It can be entered into Philips Hue, IKEA TRADFRI, and Amazon Echo series standard Zigbee 3.0 Gateways. There are 16 million colors available, color temperature adjustable from 2700K to 6500K, and brightness from 1% to 100% for various scenes. The Zigbee Flood Lights utilize high-lumen and high-brightness SMD LEDs as their light source, offering low power consumption and high brightness. The surface features a PC cover that diverges light scientifically and allows bright light rays to pass through. The back features a waterproof, black, integrated aluminum shell with thermal conduction for enhanced heat dissipation. The waterproof level is IP65; the installer can install them in wet or rainy locations for outdoor projects, such as architectural, landscape, and public lighting. The installer can download the app to your mobile phone and use it to access additional functions for the RGB+CCT Flood Lights, such as biorhythm, music rhythm, timing, scene customization, device sharing, sleep/wake-up plans, and more.
Specifications
Type: 50W LED Flood Lights(Zigbee 3.0 + 2.4G)
Model
Size: 310.5*220*47.5mm
Material: Aluminum + PC
Input Voltage: -240V, 50/60Hz
Power: 50W
Luminous Flux: 4800LM
Luminous Efficiency: 96LM/W
Standby Power Consumption: 1.2W
16 Million Colors Available
Color Temperature Adjustable From 2700K To 6500K
Brightness And Saturation Adjustable
CRI: >
Beam Angle: 160°
Dimming Grayscale: 4096 Levels
Dimming Range: 0.1%-100%
Dimming Curve: Logarithmic
IP Rate: IP65 Waterproof
Zigbee 3.0 And 2.4G Remote Controllable
Smartphone APP Control(Zigbee 3.0 Gateway Needed)
APP Name: Tuya Smart
Support Third-party Voice Control(Zigbee 3.0 Gateway Needed)
Can Work With Amazon Alexa, Google Assistant, Yandex Alice, voice assistant, Baidu, and voice assistant (Zigbee 3.0 Gateway Needed)
Wireless Technology: Zigbee 802.15.4 + 2.4G
Zigbee Wireless Frequency: 2.400- 2.
Control Distance: Zigbee: ≤50m(Open Area); 2.4G RF:≤30m
Working With DMX512(Need DMX512 Transmitter)
Working Temperature: -20-45℃
Applications: Architectural Lighting, Landscape Lights, Public Lighting
Includes
1 * RGBCCT Outdoor Flood Light
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
