9W RGB CCT Outdoor Sconce Wall Lights Zigbee APP Control
LumaCircuit offers 9W RGB CCT Outdoor Sconce Wall Lights Zigbee APP Control as a configurable surface light for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Link: wireless controller Sconce Light User Manual Model: (Square) / ZL(Round) Color Temperature Adjustable: 2700 K- 6500 K The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

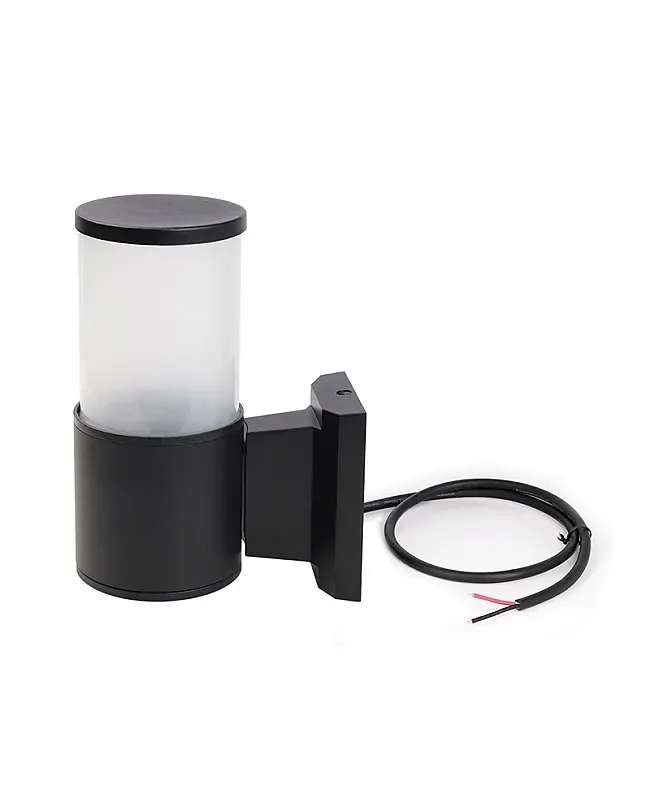

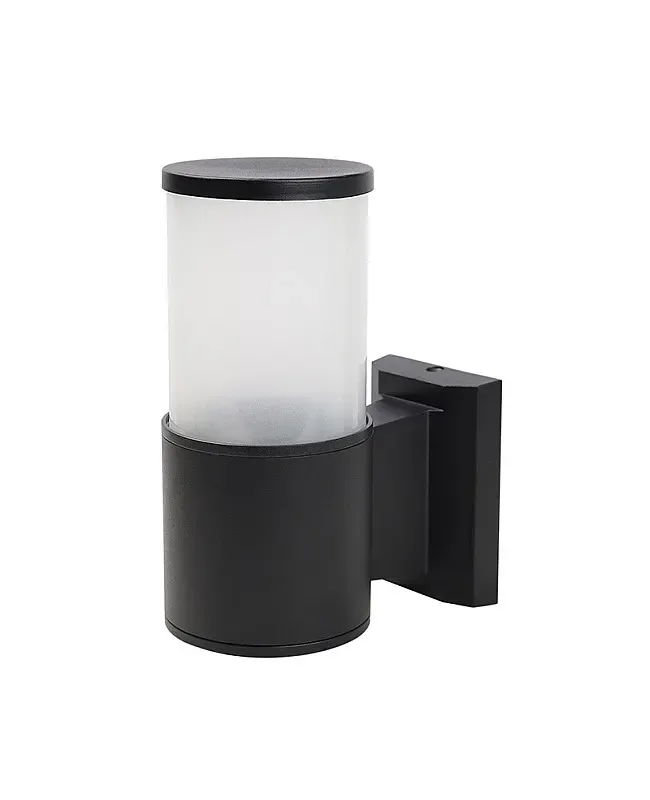

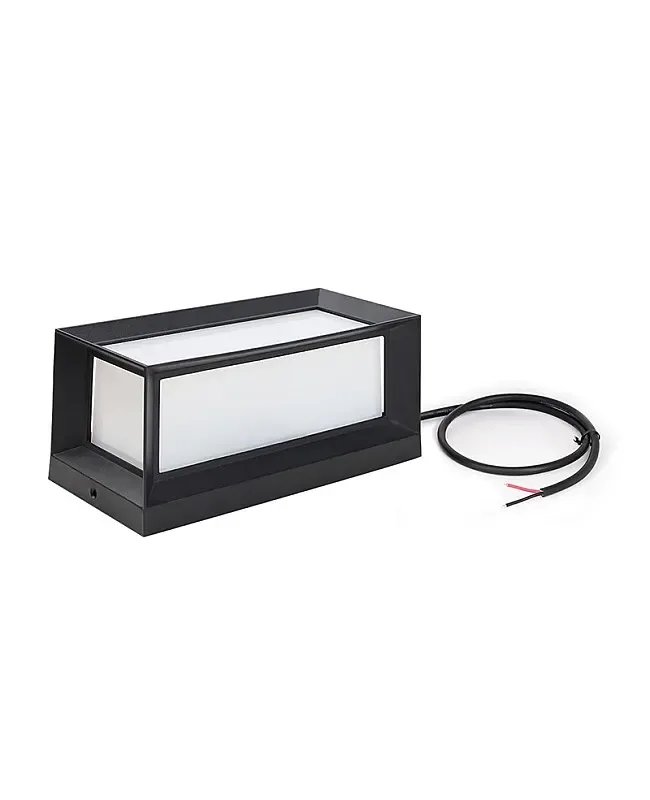

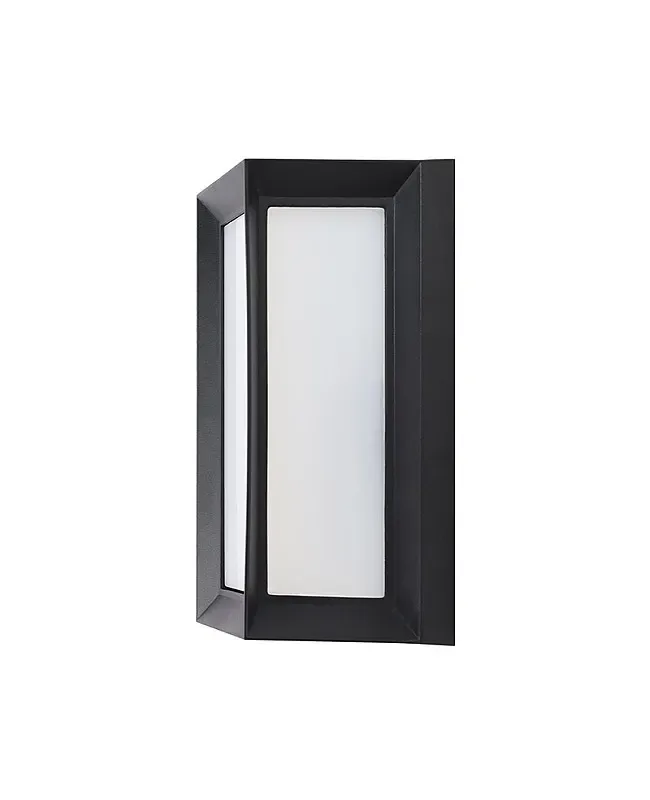

- The wireless controller outdoor sconce lights, featuring a modern design, are available in two shapes: square and round. It's designed to enhance your outdoor lighting experience, making it more efficient and reliable. With its modern design, this wall light offers a great way to add ambient lighting to your outdoor space.
- Link: wireless controller Sconce Light User Manual
- Model: (Square) / ZL(Round)
- Color Temperature Adjustable: 2700 K- 6500 K
- Luminous Efficiency: 80LM/W
- Illumination Distance: >8m
- Wireless Technology: Zigbee 802.15.4
- Zigbee Wireless Frequency: 2.400- 2.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-SUR-V9ABOG
- Working Voltage: DC24V
- Power: 9W
- Rated Current: 0.38A
- Color: RGB+CCT
- Color Temperature Adjustable: 2700 K- 6500 K
- CRI: >
- IP Rate: IP66
- Zigbee Wireless Frequency: 2.400- 2.
- Control Distance: ≤100m(Open Area)
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

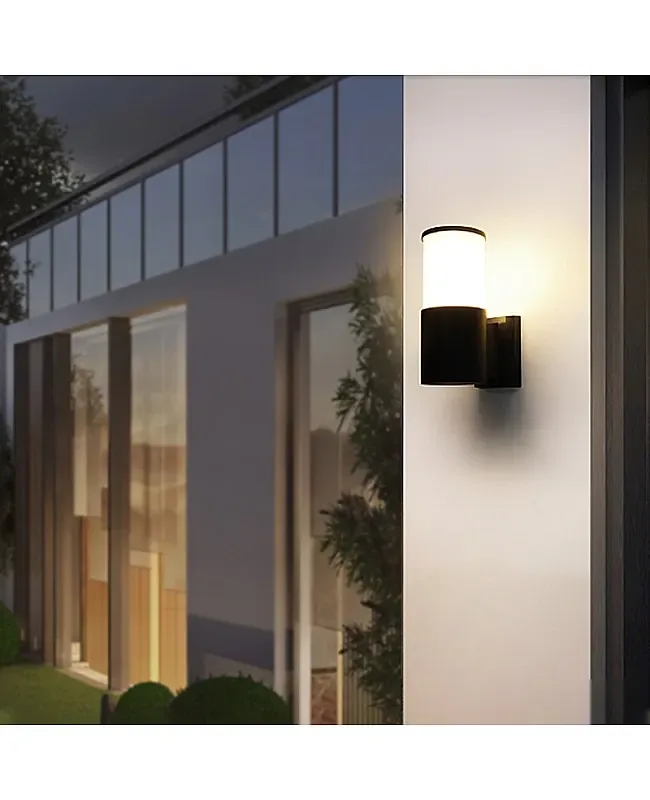

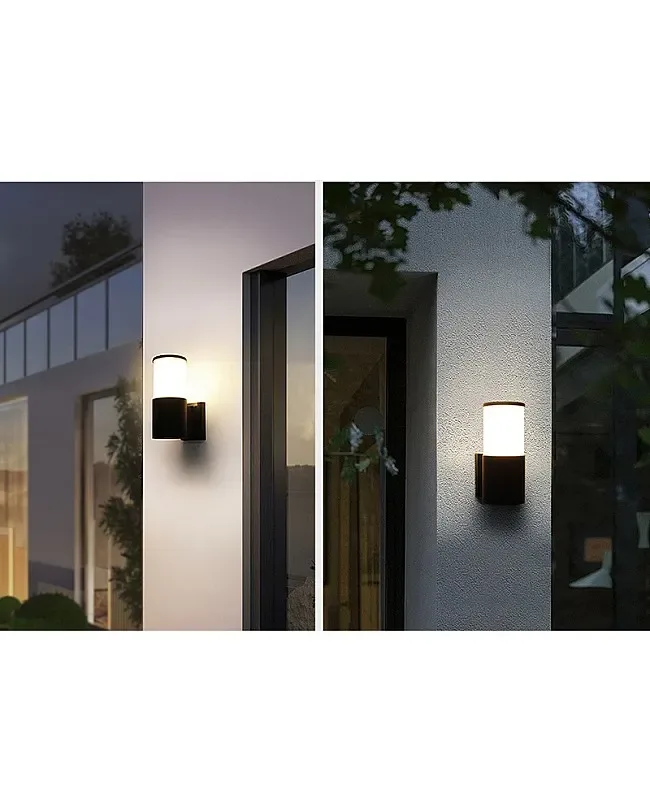

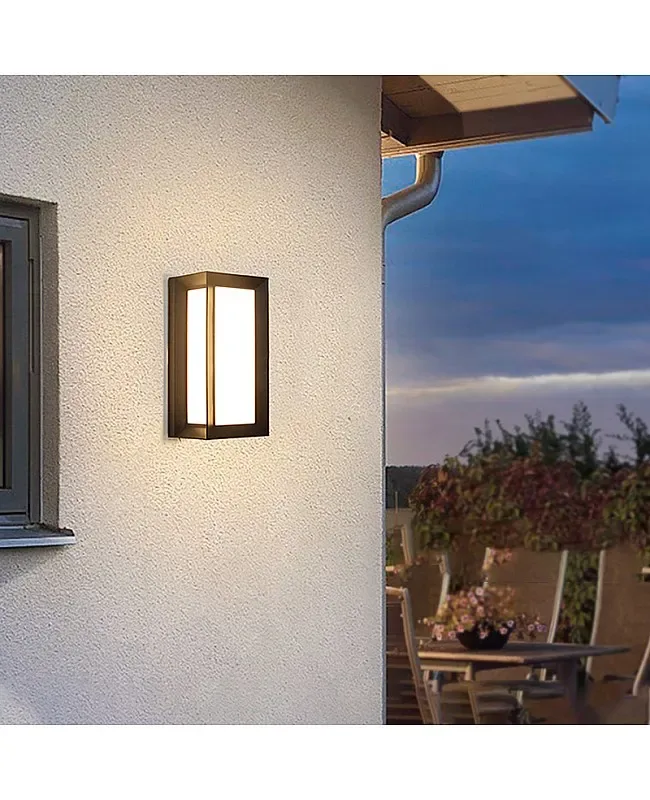

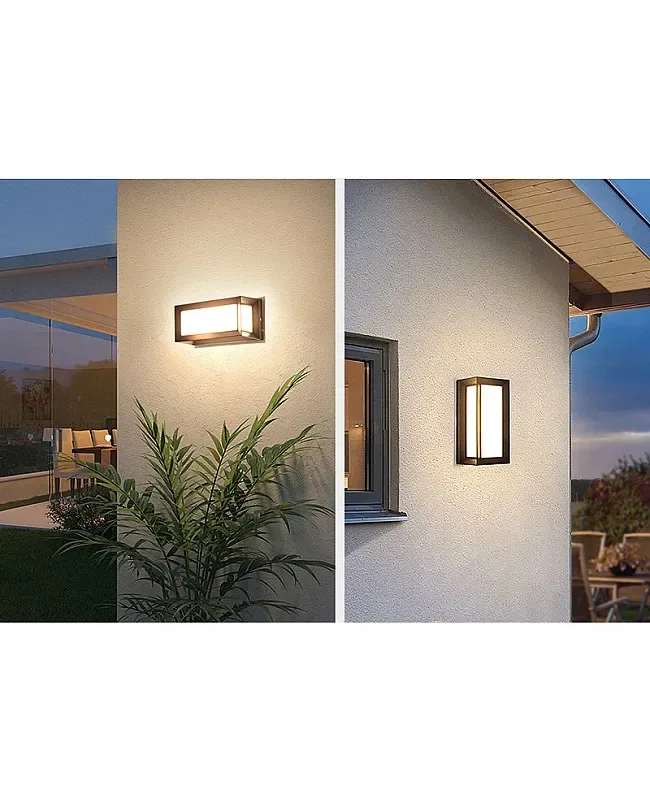

The wireless controller outdoor sconce lights, featuring a modern design, are available in two shapes: square and round. It's designed to enhance your outdoor lighting experience, making it more efficient and reliable. With its modern design, this wall light offers a great way to add ambient lighting to your outdoor space. Following the Zigbee 3.0 standard protocol, the device can be controlled by a Zigbee remote and an app to set the color, adjust the color temperature, and adjust the brightness for various scenes. There are 16 million colors available, and the CCT value ranges from 2700K to 6500K, allowing for adjustable brightness from 1% to 100% via stepless dimming. The waterproof remote control wall lights operate on DC 24V, have a maximum power consumption of 9W, and feature an IP66 waterproof rating. They are suitable for outdoor wall lighting projects. The installer can add it to the Zigbee 3.0 network, which can be controlled remotely and via a smart app. The installer can use the app to achieve more functions, including biorhythm, music rhythm, tap-to-run and automation, timing function, scene customization, device sharing, sleep/wake-up plan, do-not-disturb mode, and random timing. The wireless controller sconce lamp supports third-party voice control, allowing it to work with Amazon Alexa and Google Assistant. The installer can use voice commands to control the LED light, including turning it on and off and adjusting brightness, color, and color temperature. The sconce lamp can also connect to standard Zigbee 3.0 gateways, such as Philips Hue, IKEA TRADFRI, and Amazon Echo series, among others.
Link: wireless controller Sconce Light User Manual
Specifications

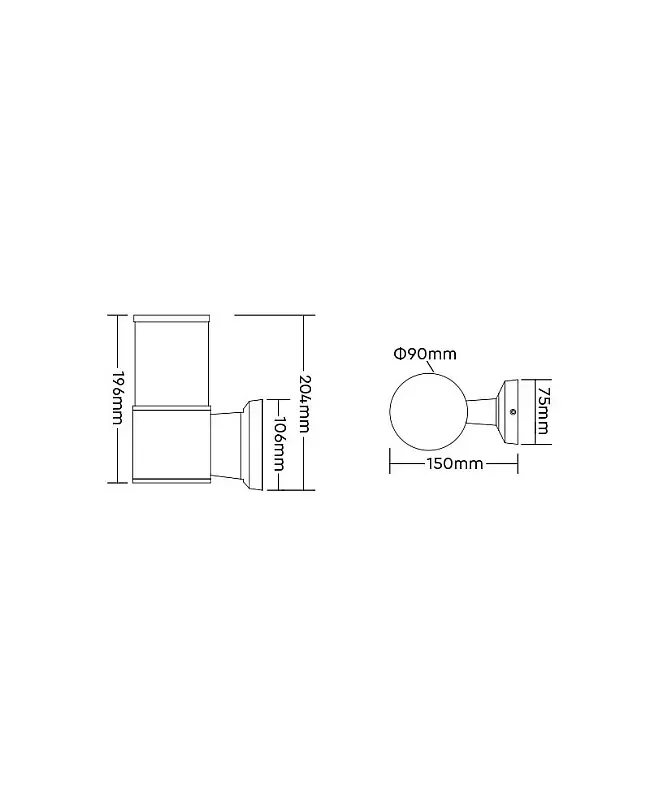

Model: (Square) / ZL(Round)
Working Voltage: DC24V
Power: 9W
Rated Current: 0.38A
Color: RGB+CCT
16 Million Colors Available
Color Temperature Adjustable: 2700 K- 6500 K
CRI:>
Luminous Flux: 720LM
Luminous Efficiency: 80LM/W
Illumination Distance: >8m
IP Rate: IP66
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400- 2.
Control Distance: ≤100m(Open Area)
Zigbee 3.0 Remote Controllable(Zigbee 3.0 Gateway Needed)
Saturation Control
Stepless Dimming Brightness
Support Smart APP Controllable(Zigbee 3.0 Gateway Needed)
APP Name: Tuya Smart
Support Third-Party Voice Control
Works With Amazon Alexa, Google Assistant
Can Enter Philips Hue, IKEA TRADFRI, Echo Plus, Echo, Echo Studio, Echo Show Standard Gateways
Installation: Wall Mount
Includes
1 * 24V outdoor sconces
Product resources
Technical documents
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
