25W RGB CCT LED Outdoor Lights
LumaCircuit offers 25W RGB CCT LED Outdoor Lights as a configurable surface light for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Working Voltage: -240V, 50/60Hz Emitting Color: RGB + CCT Color Temperature: 2700 K- 6500 K The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- wireless controller User Manual
- Working Voltage: -240V, 50/60Hz
- Emitting Color: RGB + CCT
- Color Temperature: 2700 K- 6500 K
- Saturation, Brightness, Color Temperature, And Color Changing Speed Adjustable
- Luminous Efficiency: 85LM/W
- Remote Controller Control
- Smartphone APP And Third-Party Voice Control(Amazon Alexa And Google Assistant)( Gateway Needed)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-SUR-ZLFVMH
- Size: 170*112.5mm(W*H)
- Working Voltage: -240V, 50/60Hz
- Power: 25W
- Emitting Color: RGB + CCT
- Color Temperature: 2700 K- 6500 K
- CRI: >
- Control Distance: 2000m
- Beam Angle: 15°
- IP Rate: IP66
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
Quick Links
wireless controller User Manual
Specifications
Model
Size: 170*112.5mm(W*H)
Working Voltage: -240V, 50/60Hz
Power: 25W
Emitting Color: RGB + CCT
Color Temperature: 2700 K- 6500 K

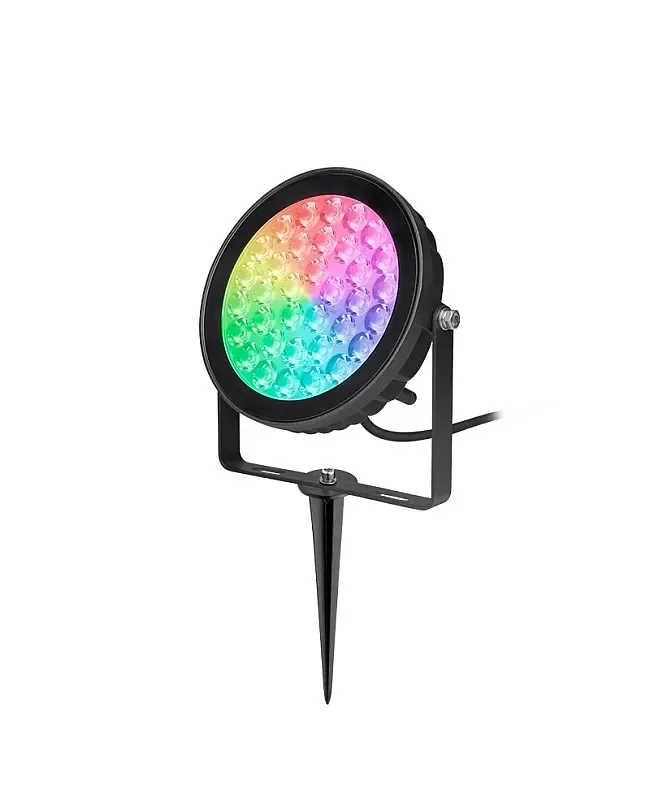

16 Million Colors Available
9 Dynamic Modes Available
Saturation, Brightness, Color Temperature, And Color Changing Speed Adjustable
Luminous Flux: 2100LM
Luminous Efficiency: 85LM/W
CRI: >
RF
Remote Controller Control
Smartphone APP And Third-Party Voice Control(Amazon Alexa And Google Assistant)( Gateway Needed)
Modulation Method: LoRa Spread Spectrum
Control Distance: 2000m
Beam Angle: 15°
Illumination Distance: >15m
IP Rate: IP66

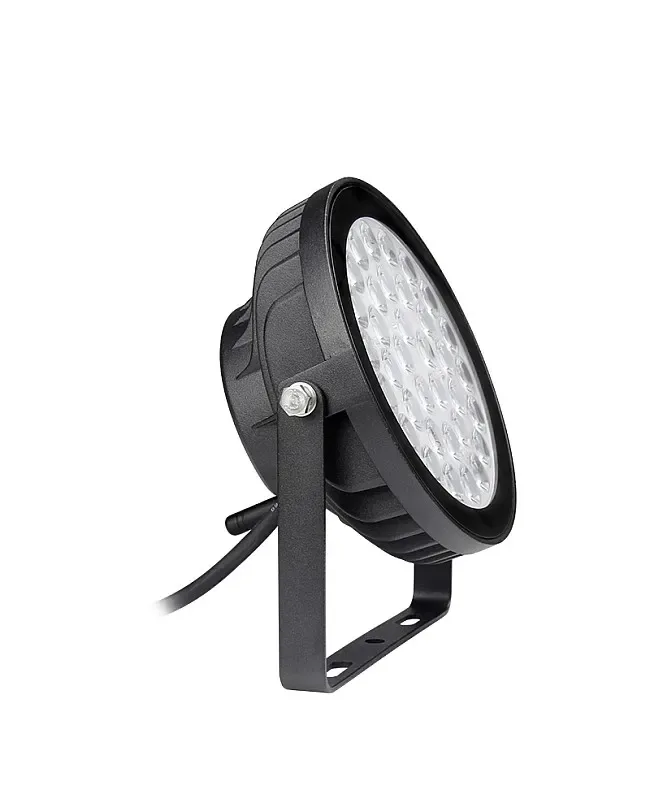

Beam Angle Adjustable Freely

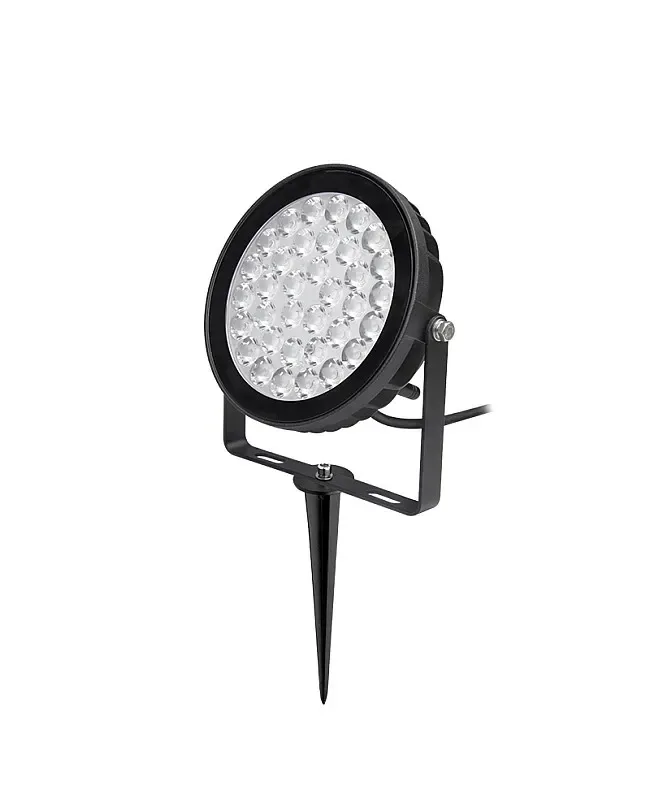

Anti-Corrosion Inserted Pole Included
Working Temperature: -20℃-+60℃
Includes
1 * 25W RGB CCT LED Outdoor Light
Product resources
Technical documents
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
