Product details

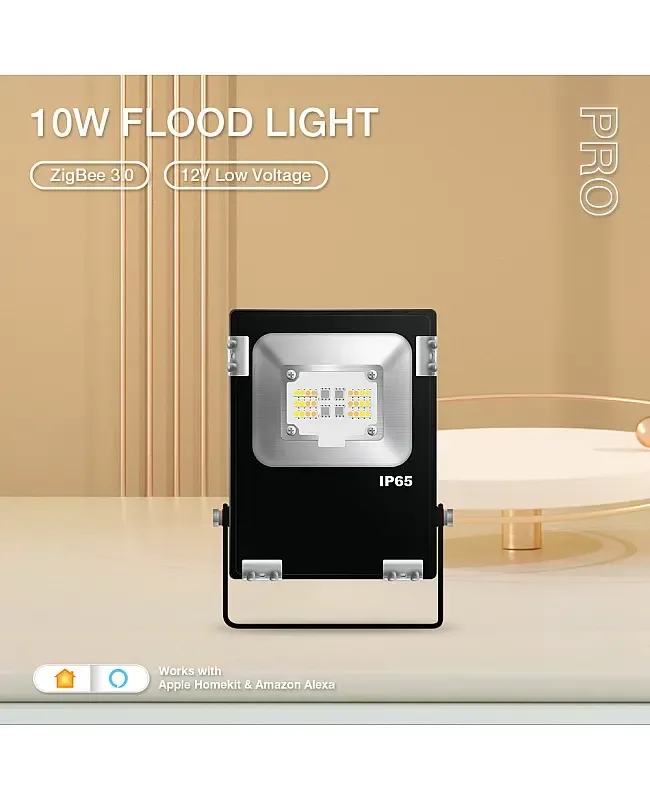

Low Voltage 12V Zigbee 3.0 RGB+CCT Garden Flood Lights
LumaCircuit offers Low Voltage 12V Zigbee 3.0 RGB+CCT Garden Flood Lights as a configurable surface light for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Model: 10W Zigbee Floodllight Material: Aluminum + 4mm Tempered Glass Panel Input Voltage: AC/DC 12V The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The Low Voltage Zigbee 3.0 RGB CCT Garden Flood Lights, which are compatible with Zigbee 3.0 Gateways and can be controlled by a smartphone APP and Zigbee Speaker to change the set, adjust color temp and brightness remotely, it also can be controlled by 2.4G RF Remote without Zigbee Gateways, there are 16 million colors available, color temp adjustable from 2200K to 6500K and brightness from 1% to 100% for various scenes.
- Model: 10W Zigbee Floodllight
- Material: Aluminum + 4mm Tempered Glass Panel
- Input Voltage: AC/DC 12V
- Luminous Flux: 650-850lm
- Color: RGB+CCT(WW+CW+RGB)
- Color Temp Adjustable Range: 2200-6500K
- Brightness Adjustable Range: 1%-100%
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-SUR-CQ1YCA
- Material: Aluminum + 4mm Tempered Glass Panel
- Size: 166*107*32mm
- Input Voltage: AC/DC 12V
- Power: 10W
- CRI: >
- Color: RGB+CCT(WW+CW+RGB)
- Color Temp Adjustable Range: 2200-6500K
- IP Rate: IP65 Waterproof
- Cable Length: 1.5M
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

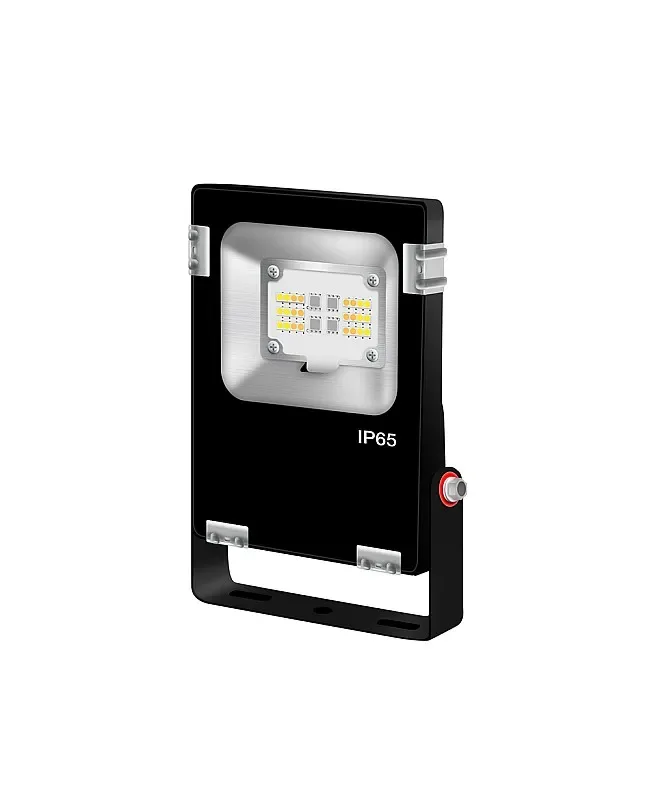

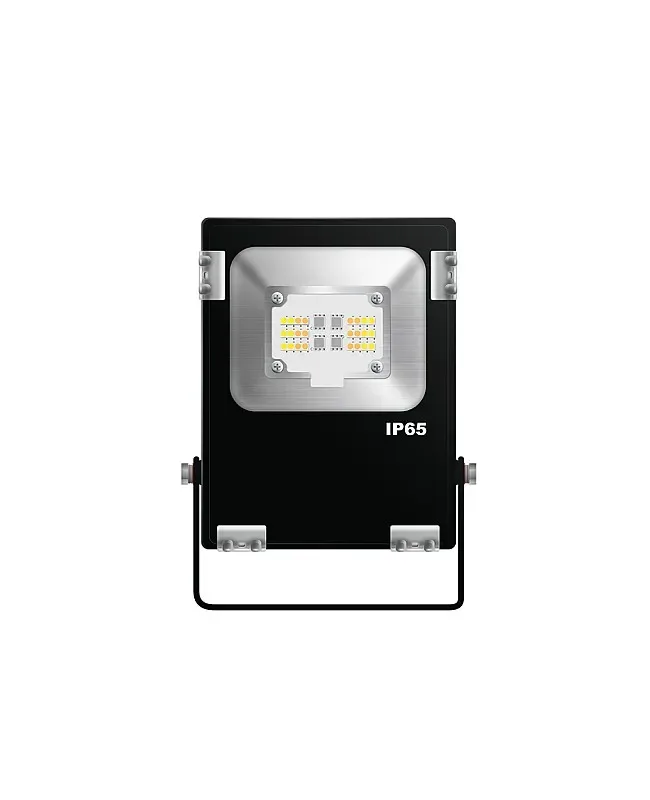

The Low Voltage Zigbee 3.0 RGB CCT Garden Flood Lights, which are compatible with Zigbee 3.0 Gateways and can be controlled by a smartphone APP and Zigbee Speaker to change the set, adjust color temp and brightness remotely, it also can be controlled by 2.4G RF Remote without Zigbee Gateways, there are 16 million colors available, color temp adjustable from 2200K to 6500K and brightness from 1% to 100% for various scenes. The Smart Garden Floodlight utilizes high-quality white and RGB 3030 SMD LEDs as its light source, and the reflector is crafted from pure 99.8% aluminum, ensuring an anti-oxidation and fade-resistant color. The surface of the Flood Light LED Lamp features a 4mm tempered glass panel, which safely protects the lighting source, and its transparency rate is up to 93%. The wide-angle lens is adjustable, featuring multiple adjustable points and an adjustable angle of up to 270°. The Garden Light operates on AC/DC 12V low voltage to ensure product safety and durability. The waterproof level is IP65; the installer can use it in rainy and humid weather. The ground spike can be combined with a Flood Light for outdoor applications in gardens, yards, parks, and other areas.
Specifications
Model: 10W Zigbee Floodllight
Model
Material: Aluminum + 4mm Tempered Glass Panel
Size: 166*107*32mm
Input Voltage: AC/DC 12V
Power: 10W
Luminous Flux: 650-850lm
CRI: >
Color: RGB+CCT(WW+CW+RGB)
16 Million Colors Available
Color Temp Adjustable Range: 2200-6500K
Brightness Adjustable Range: 1%-100%
Smart Phone APP Control
4G RF Remote Control
Work With Zigbee Speakers
IP Rate: IP65 Waterproof
270° Wide Angle Adjustable
Cable Length: 1.5M
Working Temperature: -20℃-60℃
Includes
1 * 10W Low Voltage Zigbee RGBWW Garden Floodlight
1 * User Manual
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
