Product details
18W RGBWW Low Voltage Inground Pool Light
LumaCircuit offers 18W RGBWW Low Voltage Inground Pool Light as a configurable surface light for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Working Voltage: AC12V/-24V Light Efficiency: 100LM/W Emitting Colors: RGB + CCT The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller 18W RGBWW inground pool light adds vibrant colors and light to your pool. This pool light low voltage is intended to work with a 12V transformer and features adjustable colors, brightness, and different light modes to create a unique effect. It uses LoRa SPSP modem technology, a super long control distance of up to 50m, even in 0.5m of water. The in-ground pool lamp uses high-lumen LED chips as the light source for low power consumption and low light failure.
- Working Voltage: AC12V/-24V
- Light Efficiency: 100LM/W
- Emitting Colors: RGB + CCT
- Color Temperature: 2700 K- 6500 K
- 16 Million Colors Available And CCT, Brightness, And Saturation Adjustable
- 9 Dynamic Modes Available And Color-Changing Speed Adjustable
- Control Distance: 50m(Light Into 0.5M Water)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 12-24 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-SUR-1O0A3D
- Material: Glass
- Size: Φ177*108mm
- Working Voltage: AC12V/-24V
- Power: 18W
- Emitting Colors: RGB + CCT
- Color Temperature: 2700 K- 6500 K
- CRI: >
- Control Distance: 50m(Light Into 0.5M Water)
- Beam Angle: 160°
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

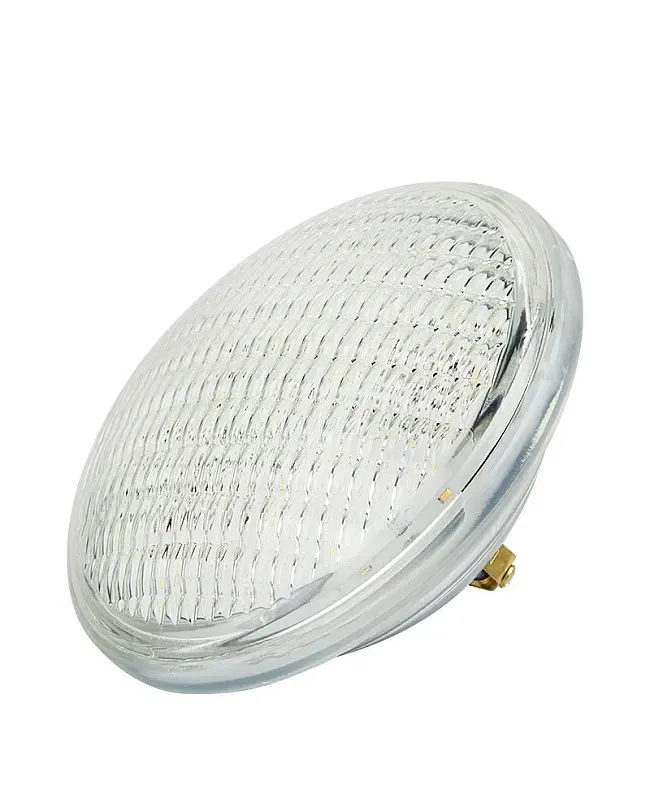

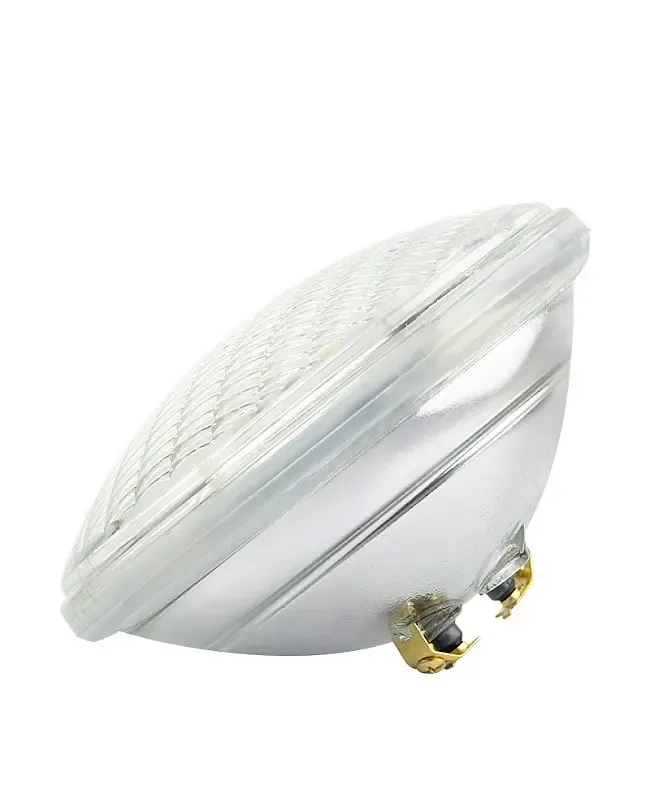

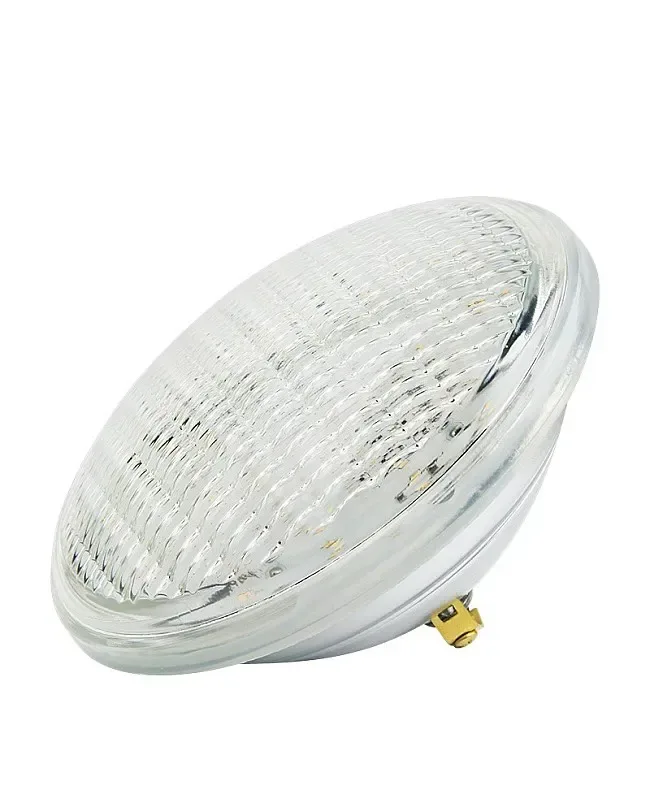

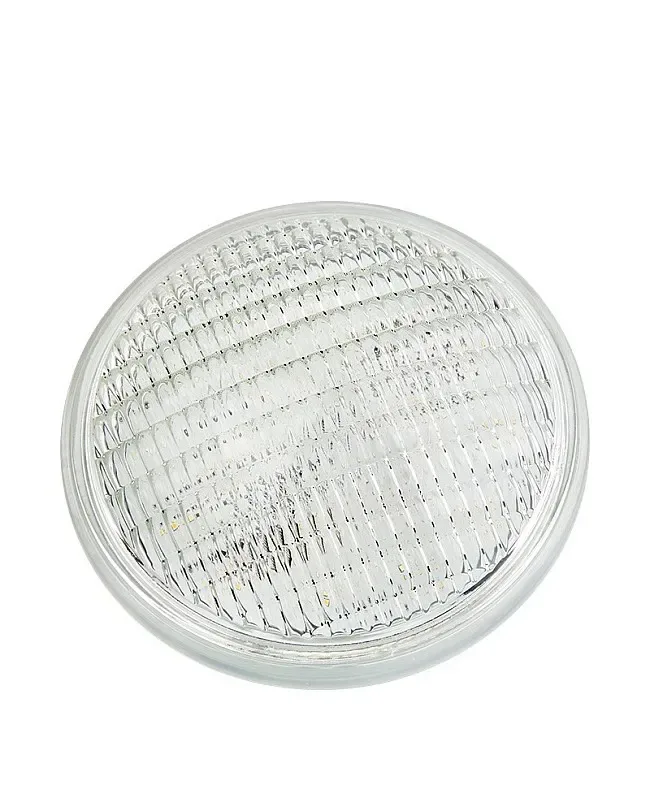

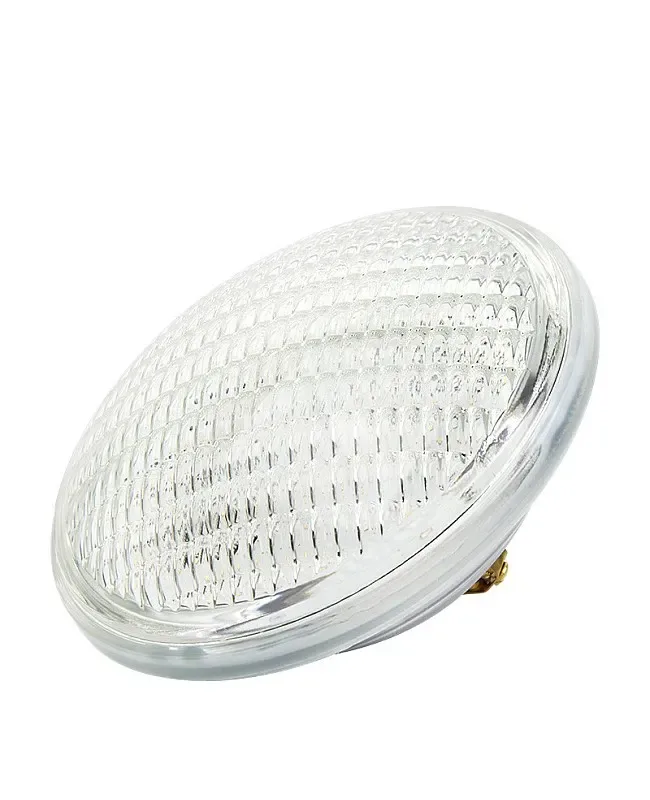

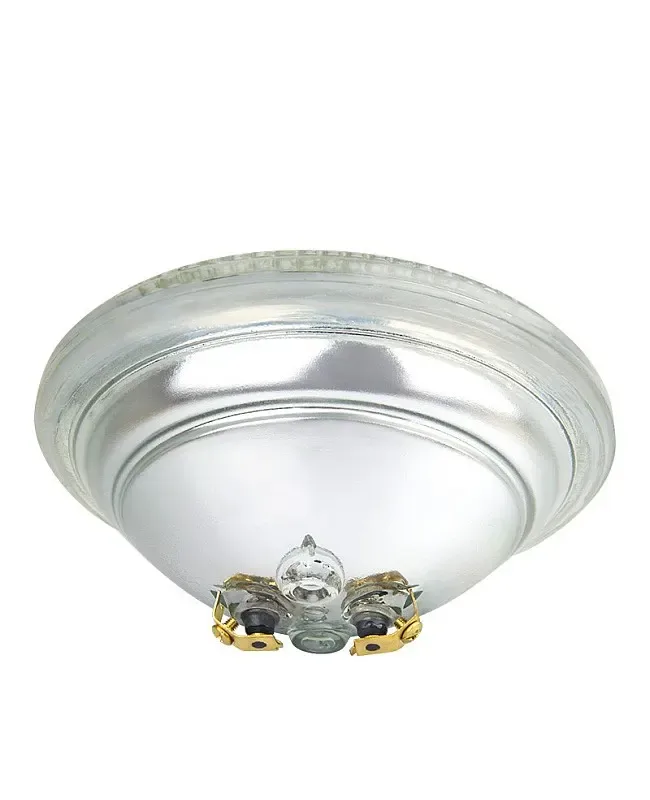

The wireless controller 18W RGBWW inground pool light adds vibrant colors and light to your pool. This pool light low voltage is intended to work with a 12V transformer and features adjustable colors, brightness, and different light modes to create a unique effect. It uses LoRa SPSP modem technology, a super long control distance of up to 50m, even in 0.5m of water. The in-ground pool lamp uses high-lumen LED chips as the light source for low power consumption and low light failure. The surfaces have high-quality glass covers for high lighting transmitting rate and vast illumination distance remote can control the Inground Pool Lamp, and after adding a gateway, it can be controlled by a smartphone app and third-party voice commands. There are 16 million colors available, and saturation, brightness, and color temperature are adjustable. 9 dynamic modes are available, and color-changing speed is adjustable for various scenes. Its easy installation and low-maintenance design make it the perfect way to give your pool a fresh, vibrant look. The installer can use them as a transom, pool, pond, fountain, and dock lights.
Quick Links
wireless controller Manual
Specifications
Model
Material: Glass
Size: Φ177*108mm
Working Voltage: AC12V/-24V
Power: 18W
Luminous Flux: 1800LM
Light Efficiency: 100LM/W
Emitting Colors: RGB + CCT
Color Temperature: 2700 K- 6500 K
16 Million Colors Available And CCT, Brightness, And Saturation Adjustable
9 Dynamic Modes Available And Color-Changing Speed Adjustable
CRI: >
Control Distance: 50m(Light Into 0.5M Water)
Beam Angle: 160°
IP Rate: IP68
Remote Controller Control
Smartphone APP And Third-Party Voice Control( Gateway Needed)
Switch-OFF To Change Colors Function
Working Temperature: -20℃-+45℃
Includes
1 * wireless controller In-Ground Pool Light
Product resources
Technical documents
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
