Product details
P Outdoor Light Controller 5 In 1 Design
LumaCircuit offers P Outdoor Light Controller 5 In 1 Design as a configurable surface light for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Type: 5 In 1 Wireless Waterproof LED Controller Size: 150*46.5*20mm(L*W*H) Output Current: 6A/Channel The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller outdoor light controller features a 5-in-1 design, making it suitable for all types of regular LED lights, including single-color, dual-white, RGB, RGBW, and RGB+CCT. It can be controlled by wireless controller 2.4G RF remote controls to set the static color or dynamic mode, as well as adjust the brightness, color temperature, and saturation for various scenes. For the color-changing LED lights, there are 16.7 million colors to choose from and 18 dynamic modes to select from.
- Type: 5 In 1 Wireless Waterproof LED Controller

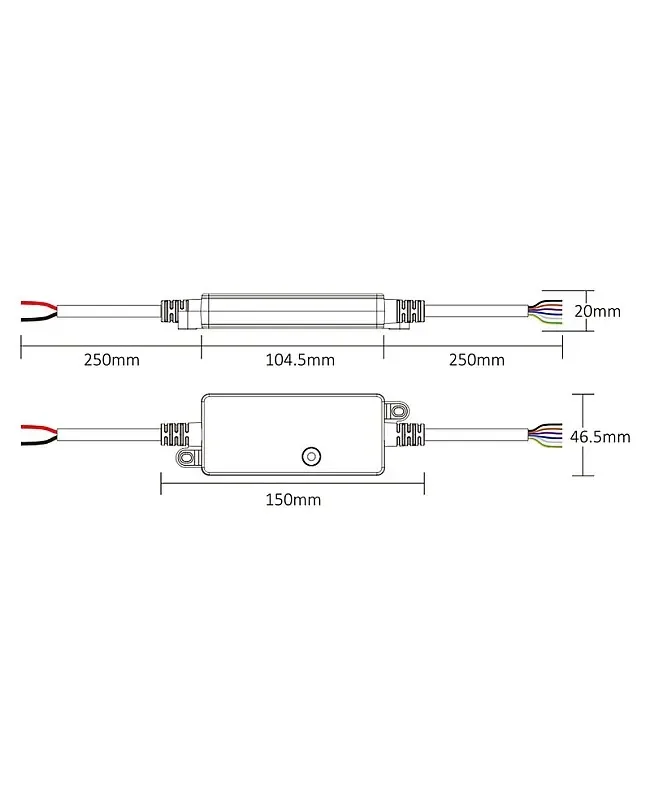

- Size: 150*46.5*20mm(L*W*H)
- Output Current: 6A/Channel

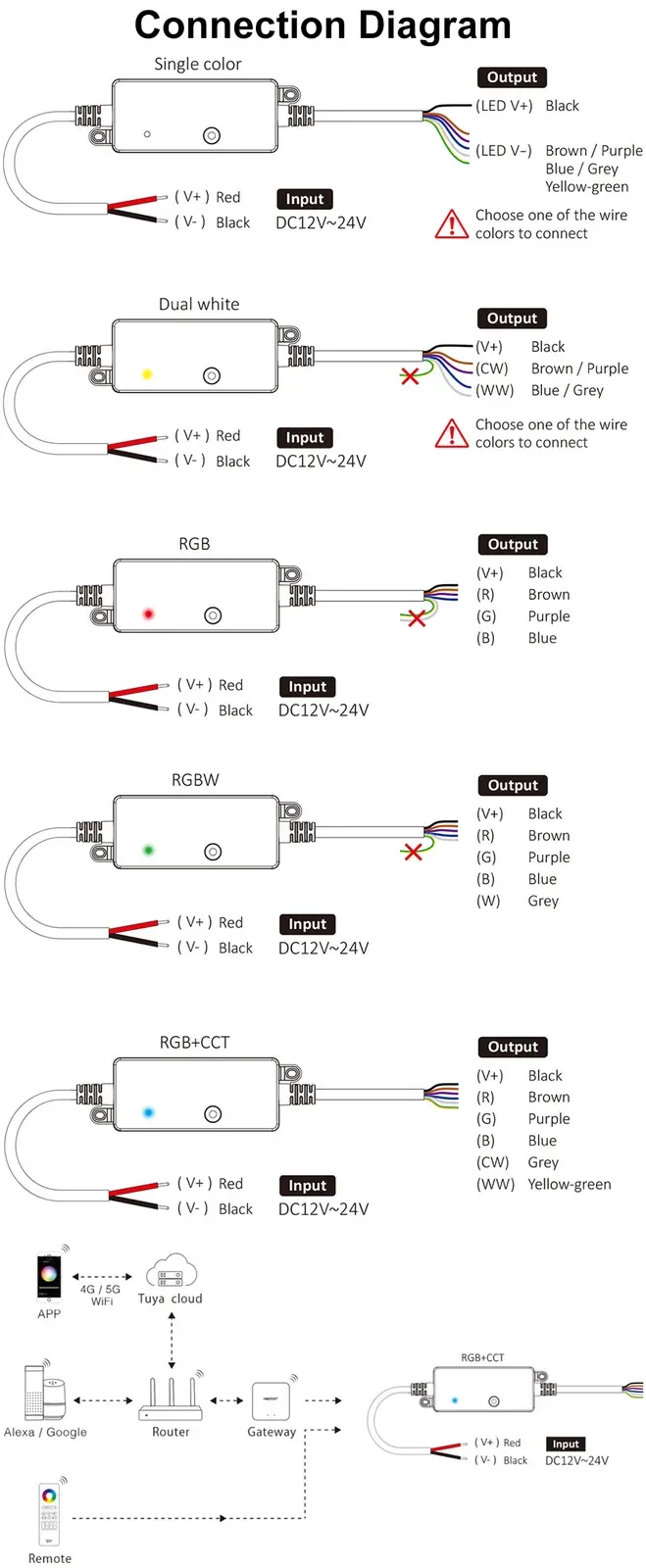

- 5 In 1 Design For Single-color, Dual-white, RGB, RGBW, RGB+CCT
- Compatible With wireless controller 2.4G RF Remote Controls T3, T4, +, +,
- 16 Million Colors Adjustable, Saturation Adjustable, Color Temperature And Brightness Adjustable
- Support Tuya Smart APP Control(2.4G Gateway Needed)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V
- LumaCircuit model: LC-SUR-MJKMTV
- Size: 150*46.5*20mm(L*W*H)
- Input Voltage: -24V
- Output Current: 6A/Channel
- Total Output: 12A Max
- Control Signal: 2. RF
- Compatible With wireless controller 2.4G RF Remote Controls: T3, T4, +, +,
- Support Third-party Voice Control(2.4G Gateway Needed): Alexa, Google Assistant, Yandex Alice, voice assistant, Baidu And voice assistant
- Control Distance: ≤30M
- IP Rate: IP66
- Working Temperature: -20-45℃
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

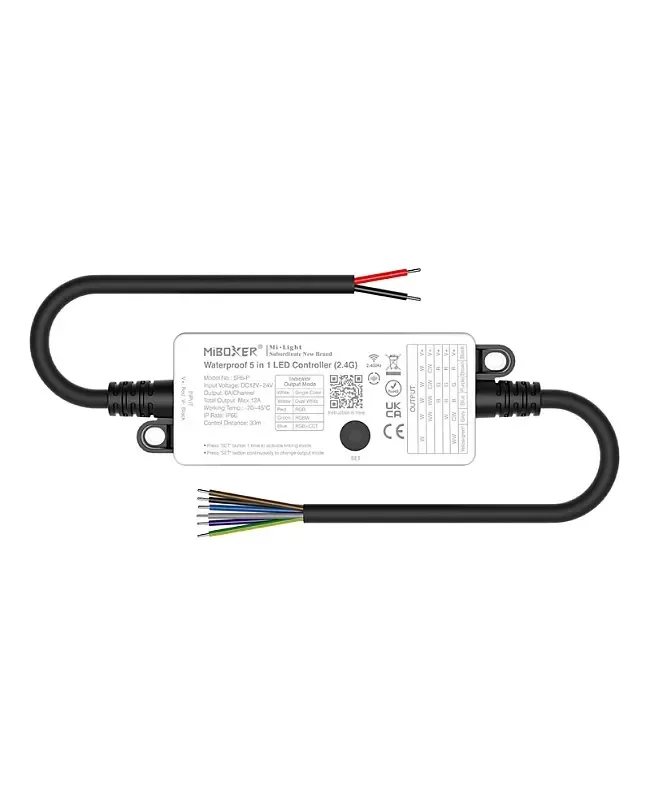

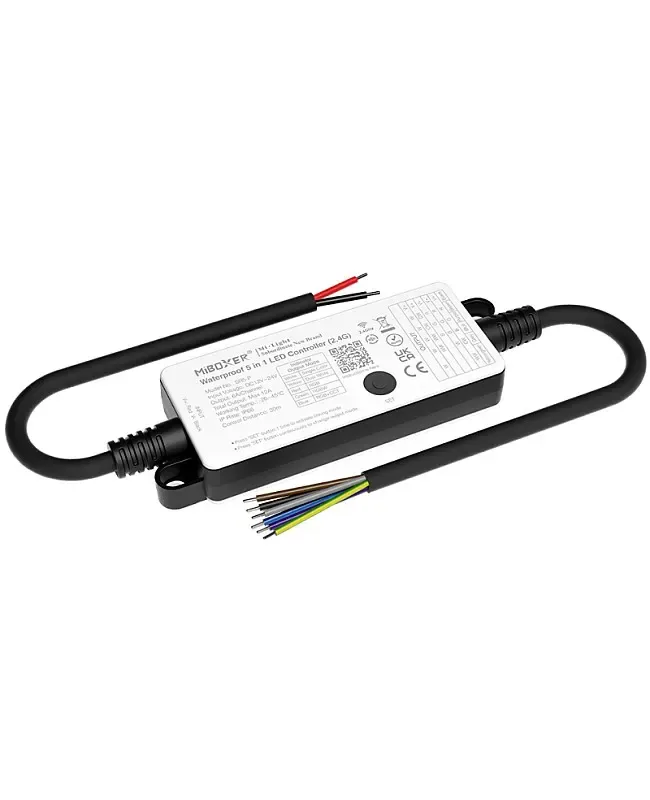

The wireless controller outdoor light controller features a 5-in-1 design, making it suitable for all types of regular LED lights, including single-color, dual-white, RGB, RGBW, and RGB+CCT. It can be controlled by wireless controller 2.4G RF remote controls to set the static color or dynamic mode, as well as adjust the brightness, color temperature, and saturation for various scenes. For the color-changing LED lights, there are 16.7 million colors to choose from and 18 dynamic modes to select from. One physical button, labeled "SET," on the controller allows you to switch the output mode conveniently. The waterproof LED controller will receive signals from the 2.4G remote control and transmit them to the same model of lighting controllers within a 30-meter range; all controllers will synchronize. The waterproof IP rating is IP66, which enables them to be installed in wet or rainy locations for outdoor applications. After pairing with 2.4G gateways, the wireless controller controllers can be controlled by the Tuya Smartphone APP and third-party voice commands. The installer can achieve more functions on the app, such as group control, timer, and scene customization.
Specifications
Type: 5 In 1 Wireless Waterproof LED Controller
Model
Size: 150*46.5*20mm(L*W*H)
Input Voltage: -24V
Output Current: 6A/Channel
Total Output: 12A Max
5 In 1 Design For Single-color, Dual-white, RGB, RGBW, RGB+CCT
Control Signal: 2. RF
Compatible With wireless controller 2.4G RF Remote Controls T3, T4, +, +,
16 Million Colors Adjustable, Saturation Adjustable, Color Temperature And Brightness Adjustable
Support Tuya Smart APP Control(2.4G Gateway Needed)
Support Third-party Voice Control(2.4G Gateway Needed): Alexa, Google Assistant, Yandex Alice, voice assistant, Baidu And voice assistant
Support DMX512 Control(DMX512 LED Transmitter Needed)
Control Distance: ≤30M
Auto Remote Control Signal Forwarding
Auto Synchronization
IP Rate: IP66
Dimming Curve: Logarithmic
DND Function: Usually Used In Power Failure Areas And Saves Power
Working Temperature: -20-45℃
EMC Standard(EMC): ETSI -489-1 V 2.2.3(2019-11) ETSI EN 301 489-3 V 2.3.2(2023-01)
Safety Standard(LVD); en 61347-1: 2015+: 2021 -2-11: 2001+:2019
Radio Equipment(RED): ETSI EN 300 440.2.1

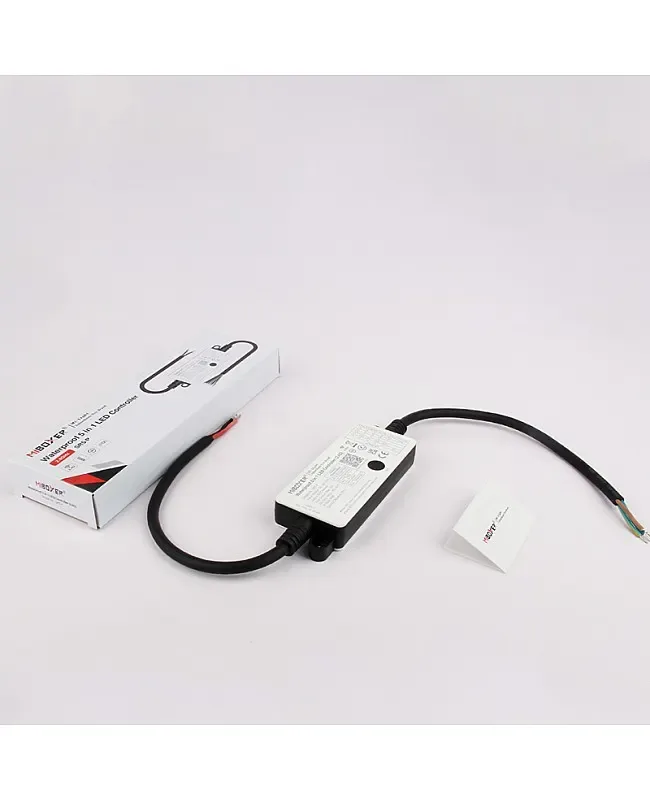

Includes
1* P Waterproof LED Controller
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
