Product details

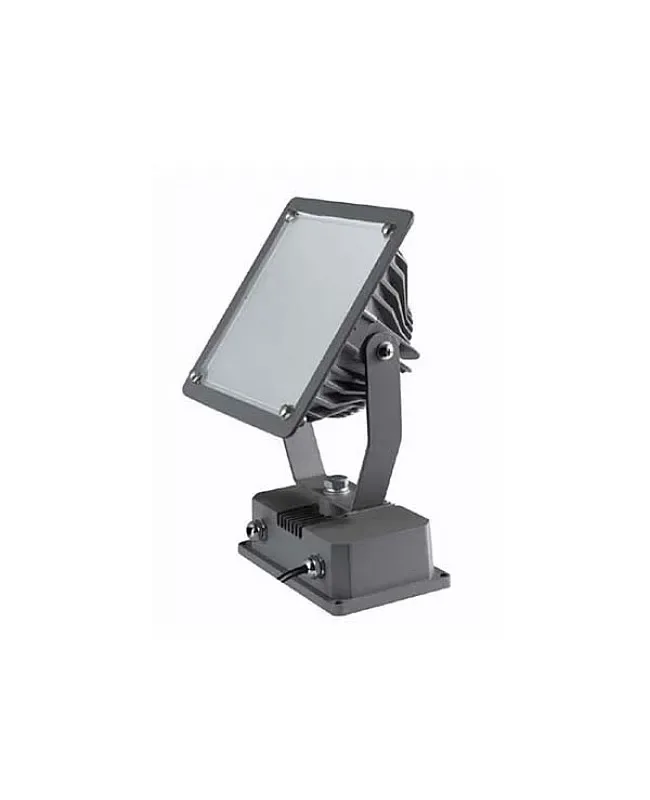

20W LED Flood Light
LumaCircuit offers 20W LED Flood Light as a configurable surface light for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. LED: 1W or 3W Epistar High Power LEDs Size: Ф227x180mm*180mm(L) Material: AL+Iron+Tempered Glass The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- Color available: Warm White(3000K-3500K) White(6000K-6500K)
- LED: 1W or 3W Epistar High Power LEDs
- Size: Ф227x180mm*180mm(L)
- Material: AL+Iron+Tempered Glass
- Input Voltage: AC100V-AC240V
- Operating Voltage: DC18V-DC21V
- 1 * 20W LED Flood Light For Outside
- The 20W LED Flood Light, which uses 12PCS high power epistar LEDs as light source, patent shell, 180degree angle view with patent aluminum alloy design, the irradiation distance from 5 to 50 meters.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: CCT
- LumaCircuit model: LC-SUR-J2CE9F
- Color available: Warm White(3000K-3500K) White(6000K-6500K)
- LED: 1W or 3W Epistar High Power LEDs
- LED Quantity: 12PCS

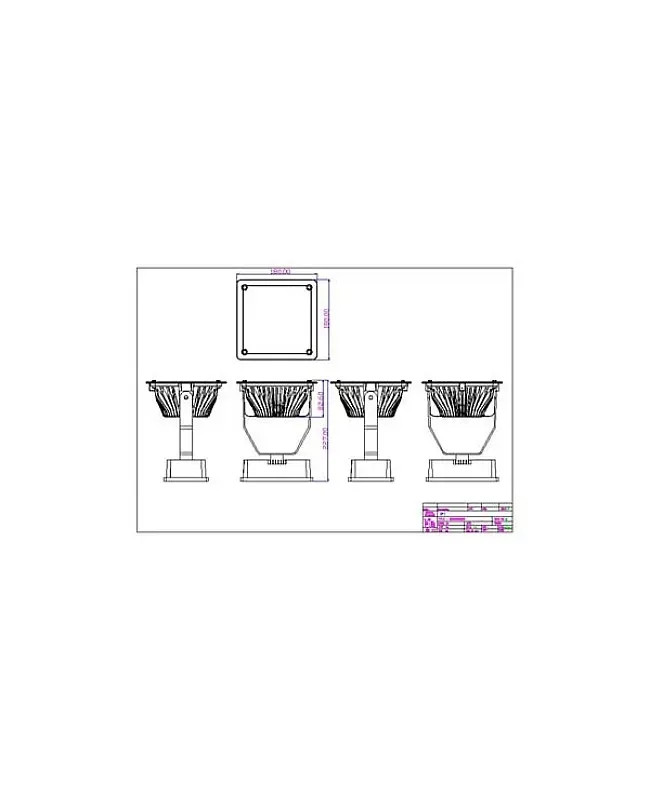

- Size: Ф227x180mm*180mm(L)
- Material: AL+Iron+Tempered Glass
- Input Voltage: AC100V-AC240V
- Operating Voltage: DC18V-DC21V
- Input Power: 20W
- Power Factor: ≥0.9
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Specifications
Manufacturer: TYoung
Color available: Warm White(3000K-3500K) White(6000K-6500K)
LED: 1W or 3W Epistar High Power LEDs
LED Quantity: 12PCS
Size: Ф227x180mm*180mm(L)
Material: AL+Iron+Tempered Glass
Input Voltage: AC100V-AC240V
Operating Voltage: DC18V-DC21V
Input Power: 20W
Operating Current
Power Factor: ≥0.9
Angle: 180°
Lumens: 1600LM
1 * 20W LED Flood Light For Outside
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
