Product details

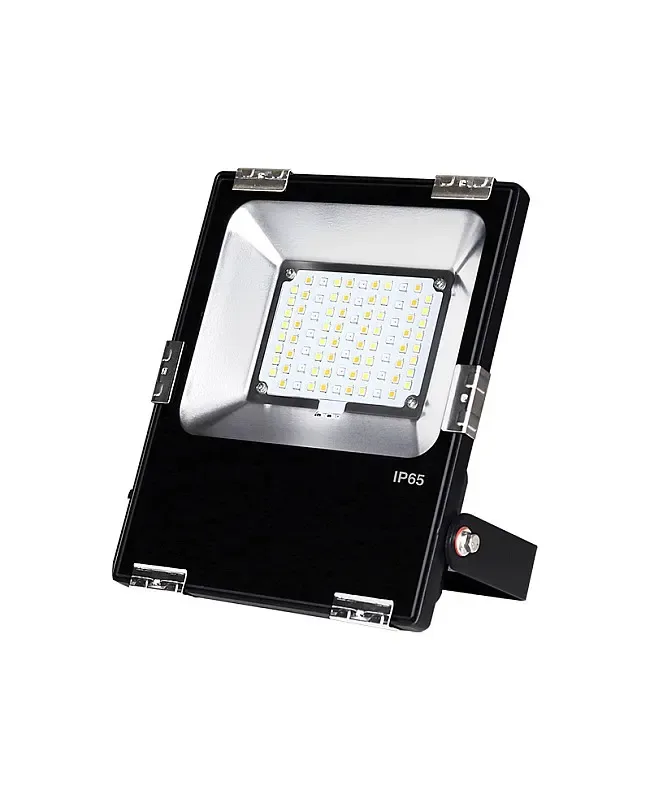

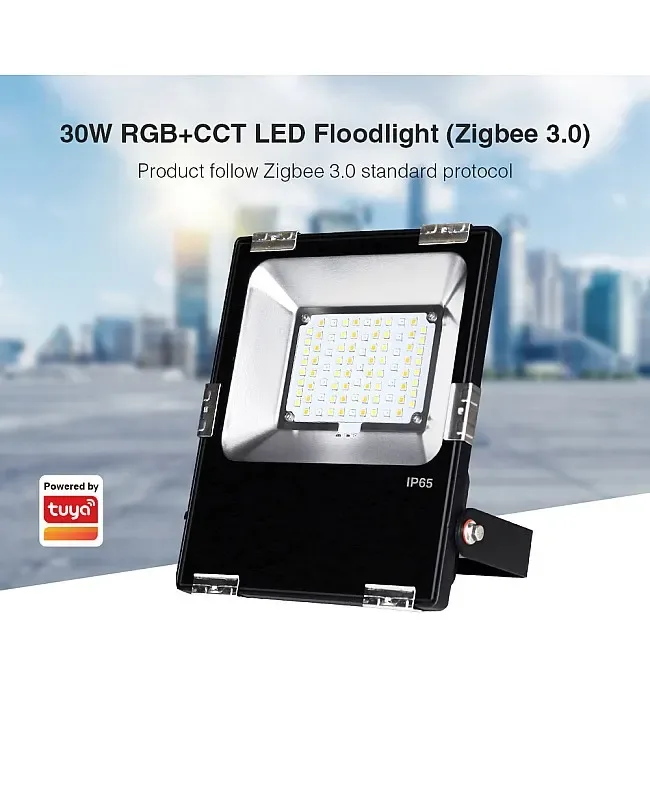

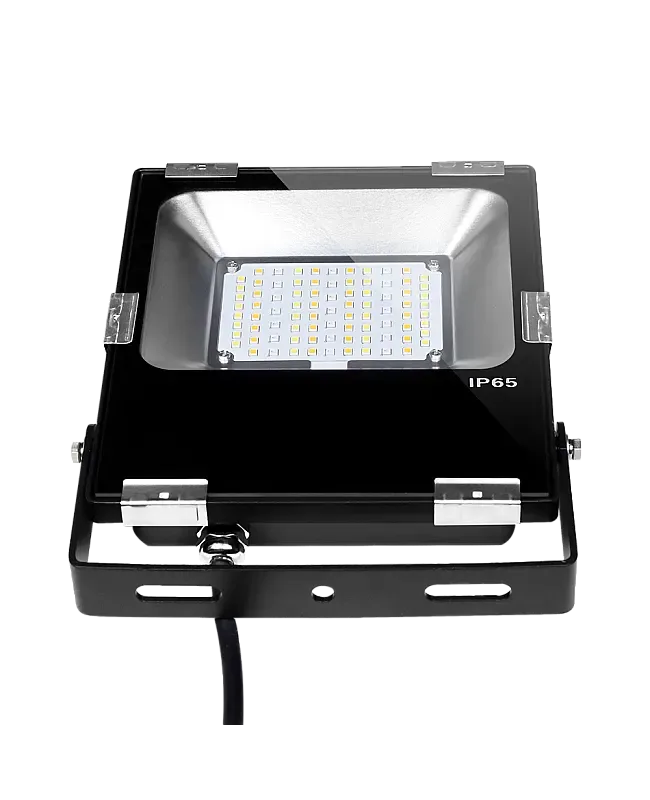

30W RGB CCT Zigbee Exterior Flood Lights
LumaCircuit offers 30W RGB CCT Zigbee Exterior Flood Lights as a configurable surface light for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Input Voltage: -240V, 50/60Hz Luminous Efficiency: 110LM/W Color Temperature Range: 2700 K- 6500 K The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 30W Zigbee exterior flood lights are a great way to add light to your outdoor space. These lights feature adjustable color temperature, brightness, and a range of colors.
- Input Voltage: -240V, 50/60Hz
- Luminous Efficiency: 110LM/W
- Color Temperature Range: 2700 K- 6500 K
- Dimming Grayscale: 4096 Levels
- Dimming Range: 0.1%-100%
- Dimming Curve: Logarithmic
- Brightness And Saturation Adjustable
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: CCT
- LumaCircuit model: LC-SUR-32FT00

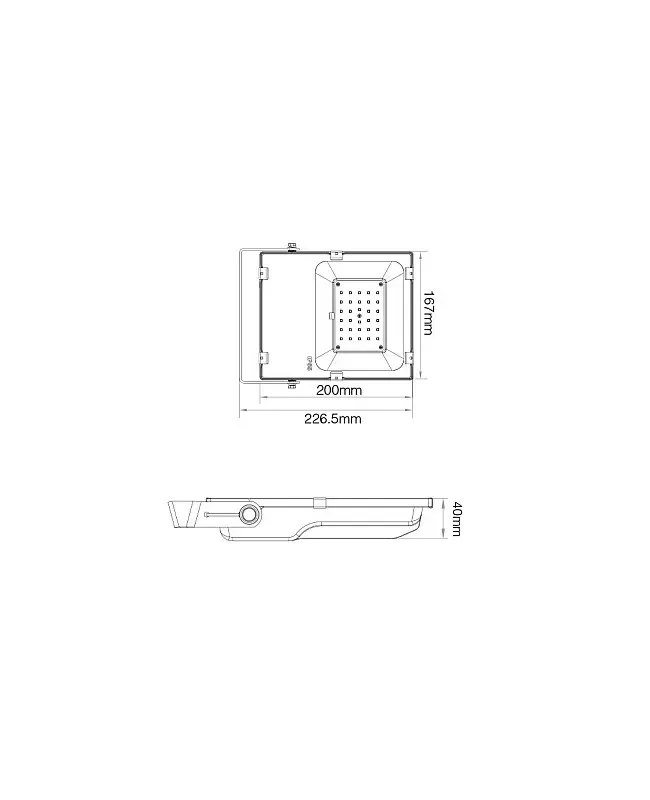

- Size: 226.5*167*40mm
- Material: Aluminum + PC
- Input Voltage: -240V, 50/60Hz
- Power: 30W
- Color Temperature Range: 2700 K- 6500 K
- Zigbee Wireless Frequency: 2.400- 2.
- Support Third-party Voice Control(Zigbee 3.0 Gateway Needed): Alexa, Google Assistant, Yandex Alice, voice assistant, Bai Du, voice assistant
- CRI: >
- Beam Angle: 160°
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

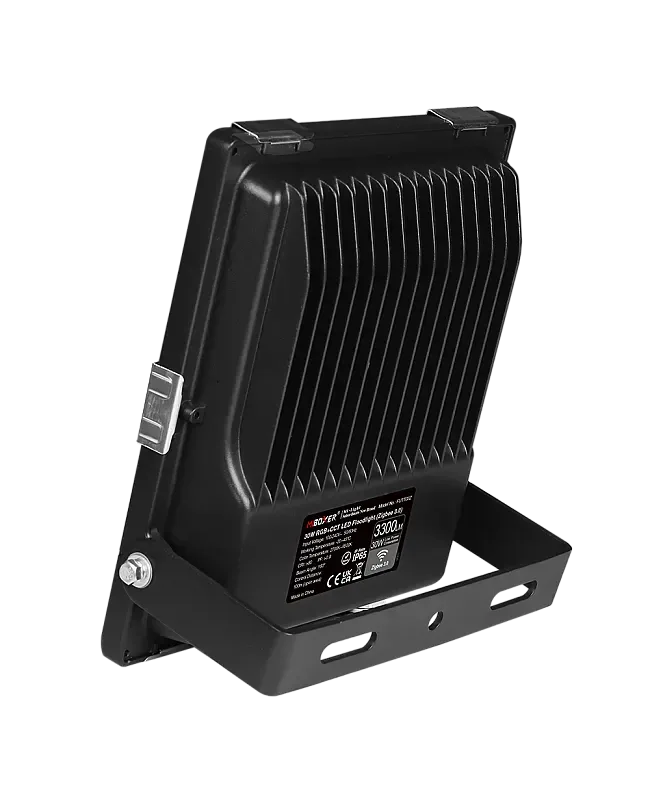

The 30W Zigbee exterior flood lights are a great way to add light to your outdoor space. These lights feature adjustable color temperature, brightness, and a range of colors. Following the Zigbee 3.0 protocol, which can be controlled by Remote Control, smartphone APP, and third-party voice commands after adding Zigbee Gateways, can enter into Philips Hue, IKEA TRADFRI, Amazon Echo Plus, Echo, Echo Studio, Echo Show standard Zigbee 3.0 Gateways, the installer can set the color, adjust the color temp, brightness and saturation remotely. There are 16 million colors available, color temperature adjustable from 2700K to 6500K, and brightness from 1% to 100%. The Waterproof flood lights utilize high-quality, high-lumen SMD LEDs as the light source, featuring low power consumption and a surface with a high-quality PC cover that directs light scientifically and emits bright light rays. The back features a high-quality aluminum housing for improved heat dissipation, and it boasts an IP65 waterproof rating, allowing for installation in rainy or damp outdoor locations. The installer can use the Remote Control Exterior Light for architectural lighting, landscape lighting, public lighting, and more. The installer can download the app to your mobile phone to access additional features, including music rhythm, timing function, biorhythm, scene customization, device sharing, sleep/wake-up plan, and more.
Specifications
Model
Size: 226.5*167*40mm
Material: Aluminum + PC
Input Voltage: -240V, 50/60Hz
Power: 30W
Luminous Flux: 3300LM
Luminous Efficiency: 110LM/W
Color Temperature Range: 2700 K- 6500 K
Dimming Grayscale: 4096 Levels
Dimming Range: 0.1%-100%
Dimming Curve: Logarithmic
Brightness And Saturation Adjustable
Wireless Technology: Zigbee 802.15.4 / 2.4G RF
Compatible with wireless controller Zigbee 3.0 And 2.4G RF Remote Controls +, T4,
Zigbee Wireless Frequency: 2.400- 2.
Zigbee 3.0 Remote Controllable
Smartphone APP " TUYA SMART " Controllable(Zigbee 3.0 Gateway Needed)
Support Third-party Voice Control(Zigbee 3.0 Gateway Needed): Alexa, Google Assistant, Yandex Alice, voice assistant, Bai Du, voice assistant
CRI: >
Beam Angle: 160°
IP Rate: IP65 Waterproof
Control Distance: Zigbee: ≤50m(Open Area) / 2.4G RF: ≤30m
Working Temperature: -20-45℃
Applications: Architectural Lighting, Landscape Lights, Public Light for Construction, Garden, Park, Square, Outdoor Advertisement
Includes
1 * RGB+CCT Exterior Flood Light
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
