12W RGB CCT Zigbee 3.0 Gladopto Garden Lighting
LumaCircuit offers 12W RGB CCT Zigbee 3.0 Gladopto Garden Lighting as a configurable surface light for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Type: Outdoor Waterproof Garden Light Material: Aluminum + PMMA Input Voltage: -240V/50-60Hz The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 12W RGB CCT Zigbee 3.0 Garden Lighting, which with professional waterproof technology, superior waterproof performance, the IP rate is IP65, no need to worry about rain and humidity, the Garden Lights use high-quality Taiwan Epistar 3030 SMD LEDs as the light source, low fever and high brightness, with the high-quality aluminum housing for better heat dissipation, the surface with high-quality PMMA lens for smooth light output.
- Type: Outdoor Waterproof Garden Light
- Material: Aluminum + PMMA
- Input Voltage: -240V/50-60Hz
- Luminous Flux: 850-900LM
- Color Temperature Adjustable From 2200-6500K
- Brightness Adjustable From 1% To 100%
- Illumination Distance: >10M
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: CCT
- LumaCircuit model: LC-SUR-PNJ87G
- Material: Aluminum + PMMA

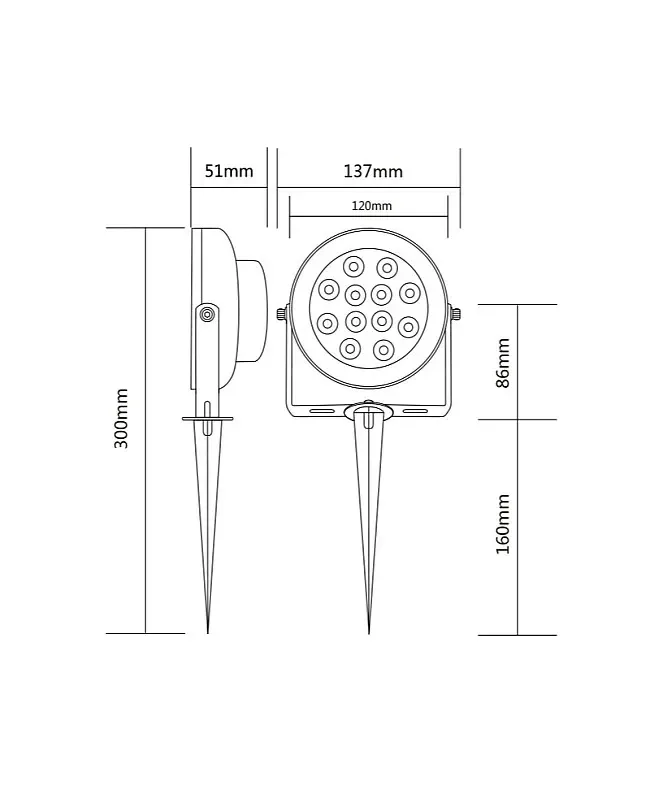

- Size: 300*137*51mm
- Input Voltage: -240V/50-60Hz
- Power: 12W
- Beam Angle: 25°
- CRI: >
- IP Rate: IP65 Waterproof
- Cable Length: 3M
- Dimensions found: 300x137x51mm / 51mm / 10M / 3M
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The 12W RGB CCT Zigbee 3.0 Garden Lighting, which with professional waterproof technology, superior waterproof performance, the IP rate is IP65, no need to worry about rain and humidity, the Garden Lights use high-quality Taiwan Epistar 3030 SMD LEDs as the light source, low fever and high brightness, with the high-quality aluminum housing for better heat dissipation, the surface with high-quality PMMA lens for smooth light output. The Garden Lamps are compatible with Zigbee 3.0 Gateways for Zigbee Light Link, can be controlled by smartphone APP and Voice control to set the color, adjust the brightness and color temperature remotely, there are 16 million colors available, color temp adjustable from 2200K to 6500K and brightness from 1% to 100% for various scenes. The Outdoor Waterproof Garden Light can also be controlled by a 2.4 GHz RF Wireless Remote, eliminating the need for a Zigbee Hub. This allows you to control the lights directly with the remote and divide different rooms into separate groups. The installer can work with Amazon Echo Plus, where the installer can adjust ON/OFF, brightness, and change the color through convenient voice commands. The installer can use them in your garden, yard, walkway, pathway, etc.
Specifications
Type: Outdoor Waterproof Garden Light
Model
Material: Aluminum + PMMA
Size: 300*137*51mm
Input Voltage: -240V/50-60Hz
Power: 12W
Luminous Flux: 850-900LM
16 Million Colors Available
Color Temperature Adjustable From 2200-6500K
Brightness Adjustable From 1% To 100%
Illumination Distance: >10M
Beam Angle: 25°
CRI: >
IP Rate: IP65 Waterproof
Compatible With Zigbee 3.0 Gateways For Zigbee Light Link
Voice Control
Smart Phone APP Control
Remote Control
Works With Amazon Alexa, Amazon Echo Plus
Beam Angle Adjustable
The inserted pole included
Cable Length: 3M
Includes
1 * Zigbee 3.0 Garden Lighting
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
