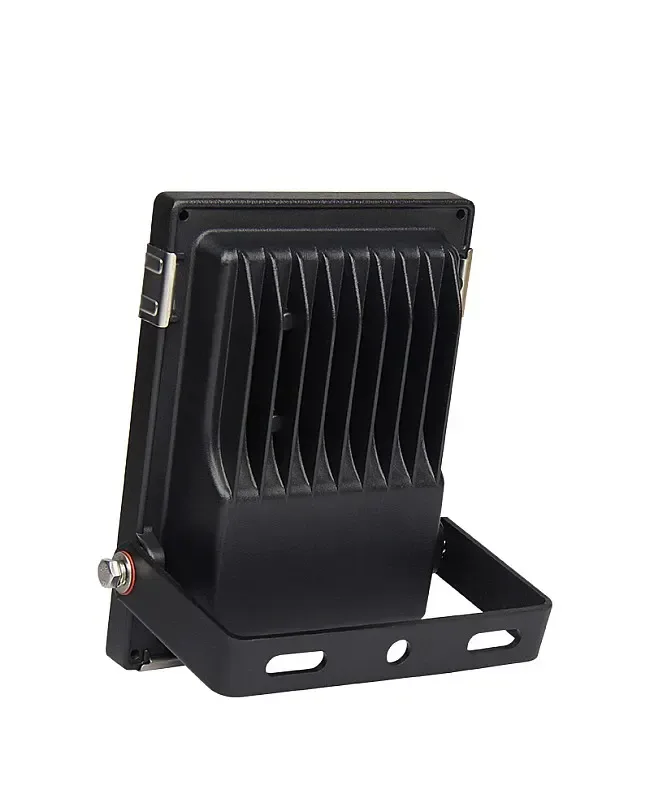

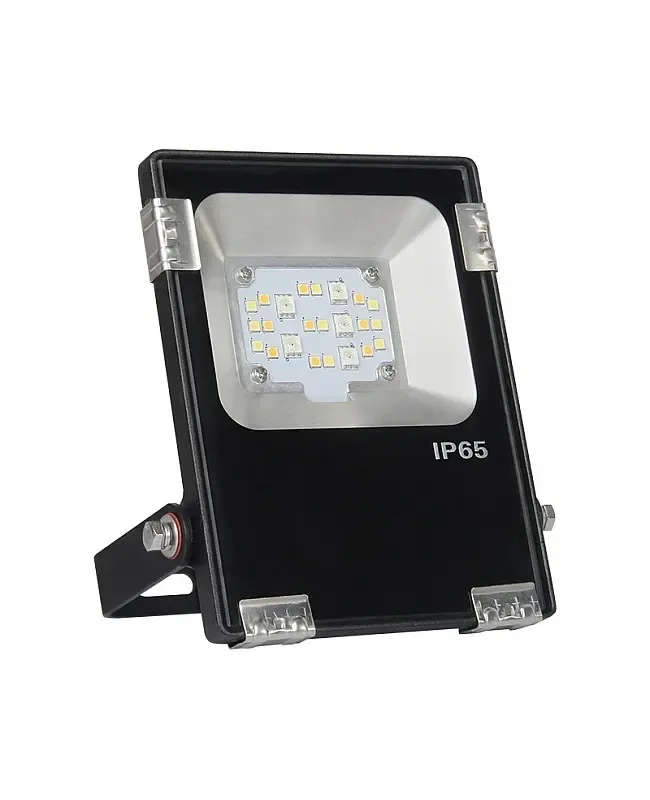

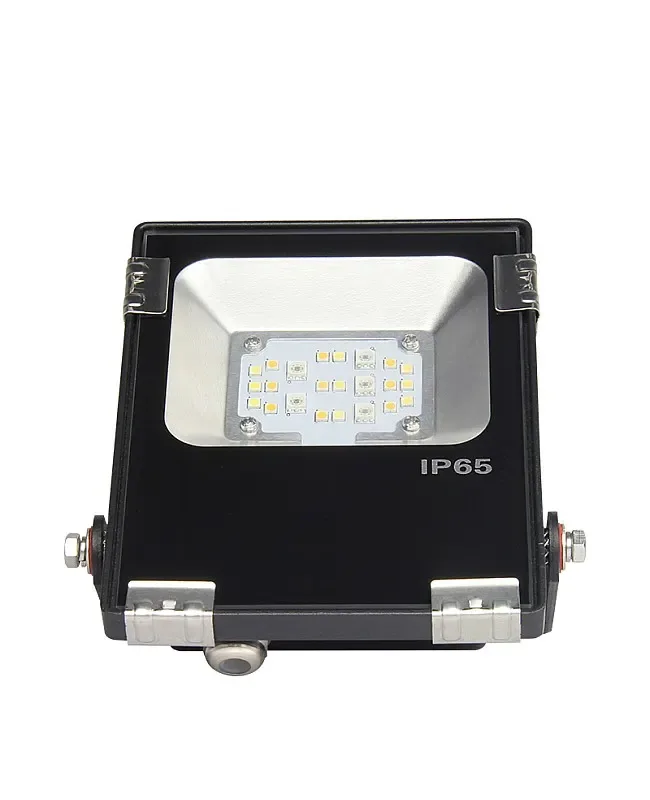

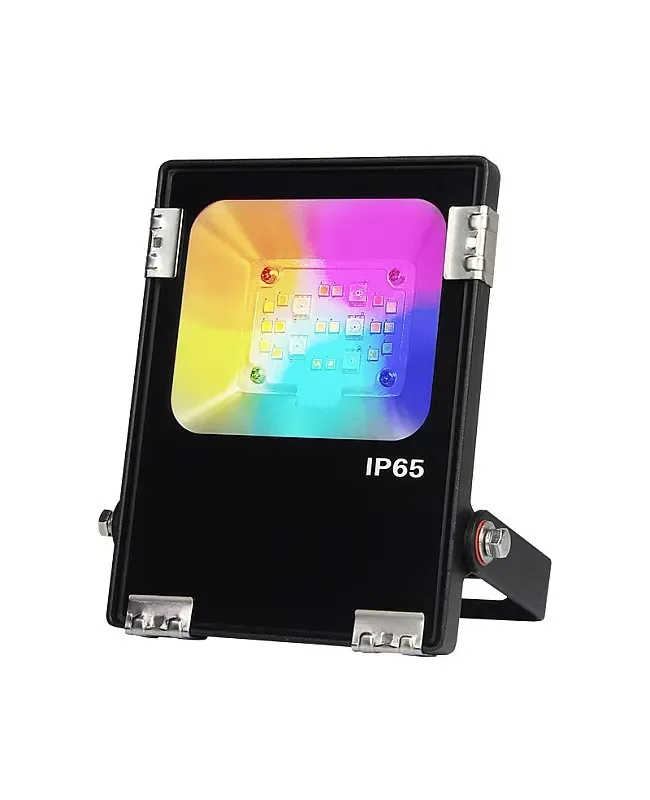

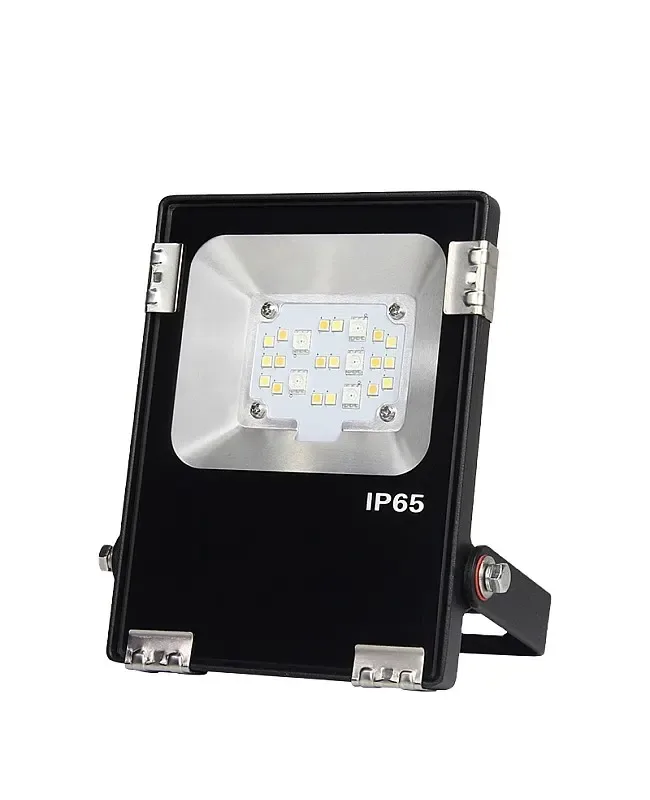

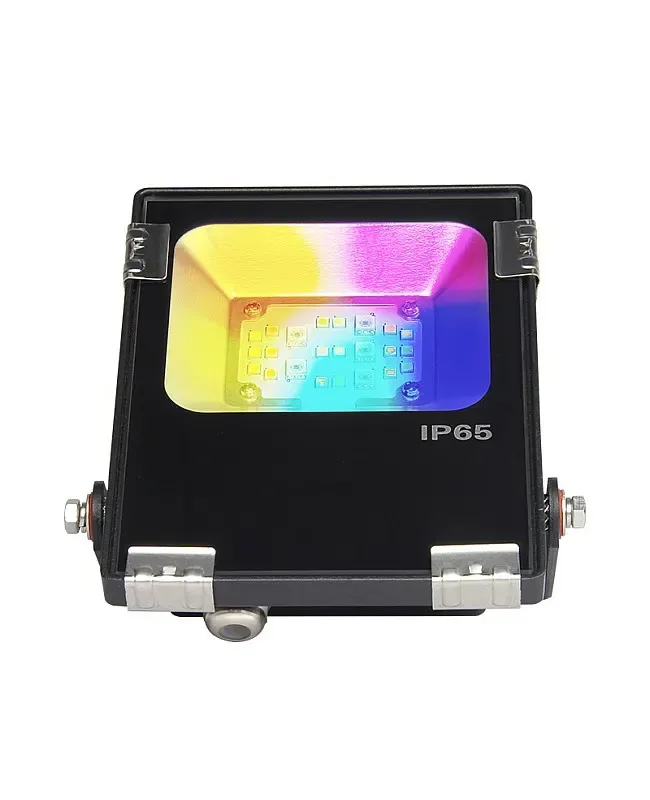

10W 200W Remote Control RGB+CCT LED Flood Lights

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• wireless controller User Manual
• Model: (10W), (20W), (30W), (50W), (100W), (200W)
• Size(L*W*H): 166*107*32mm(10W), 216.5*152*40mm(20W), 226.5*167*40mm(30W), 310.5*220*47.5mm(50W), 402.32*295*53.5mm(100W), 470.25*360*53.5mm(200W)
• Working Voltage: -240V, 50/60Hz
• Power: 10W, 20W, 30W, 50W, 100W, 200W
• Color Temperature Adjustable Range: 2700 K- 6500 K
• Saturation, Brightness, Color Temperature, And Color-Changing Speed Adjustable
• Luminous Flux: 900LM(10W), 1800LM(20W), 2800LM(30W), 4200LM(50W), 8500LM(100W), 17000LM(200W)

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 240 V
• Light engine: RGB+CCT
• LumaCircuit model: LC-SUR-HP6ZAJ
• Size(L*W*H): 166*107*32mm(10W), 216.5*152*40mm(20W), 226.5*167*40mm(30W), 310.5*220*47.5mm(50W), 402.32*295*53.5mm(100W), 470.25*360*53.5mm(200W)
• Working Voltage: -240V, 50/60Hz
• Power: 10W, 20W, 30W, 50W, 100W, 200W
• Color: RGB+CCT
• Color Temperature Adjustable Range: 2700 K- 6500 K
• Static Power Consumption: 0.5W(10W/20W), 1.2W(30W/50W), 0.65W(100W), 0.96W(200W)
• CRI: >
• Beam Angle: 160°
• IP Rate: IP65

Control and installation

Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.

Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

Quick Links

wireless controller User Manual

Specifications

Model: (10W), (20W), (30W), (50W), (100W), (200W)

Size(L*W*H): 166*107*32mm(10W), 216.5*152*40mm(20W), 226.5*167*40mm(30W), 310.5*220*47.5mm(50W), 402.32*295*53.5mm(100W), 470.25*360*53.5mm(200W)

Working Voltage: -240V, 50/60Hz

Power: 10W, 20W, 30W, 50W, 100W, 200W

Color: RGB+CCT

Color Temperature Adjustable Range: 2700 K- 6500 K

16 Million Colors And 9 Dynamic Modes Available

Saturation, Brightness, Color Temperature, And Color-Changing Speed Adjustable

Luminous Flux: 900LM(10W), 1800LM(20W), 2800LM(30W), 4200LM(50W), 8500LM(100W), 17000LM(200W)

Luminous Efficiency: 85LM/W

Static Power Consumption: 0.5W(10W/20W), 1.2W(30W/50W), 0.65W(100W), 0.96W(200W)

CRI: >

Beam Angle: 160°

IP Rate: IP65

RF: 2.

4G Remote Control & WiFi Control T4, T3,

Support Smartphone APP Control And Third-Party Voice Control( 2. Gateway Needed)

Auto Transmitting And Modes Synchronization

Control Distance: <30M

Working Temperature: -20℃-+45℃

Includes

1 * Color Changing Smart LED Flood Lights
