Product details

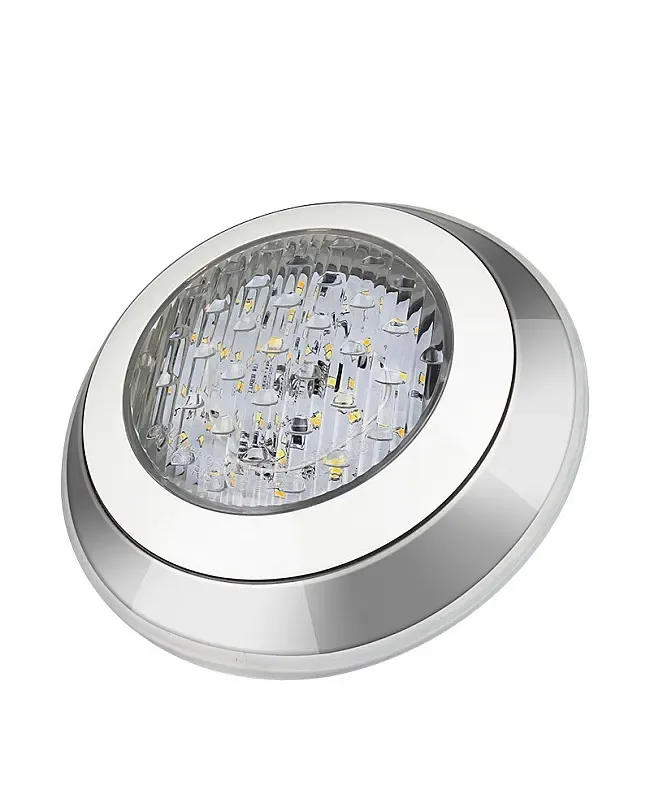

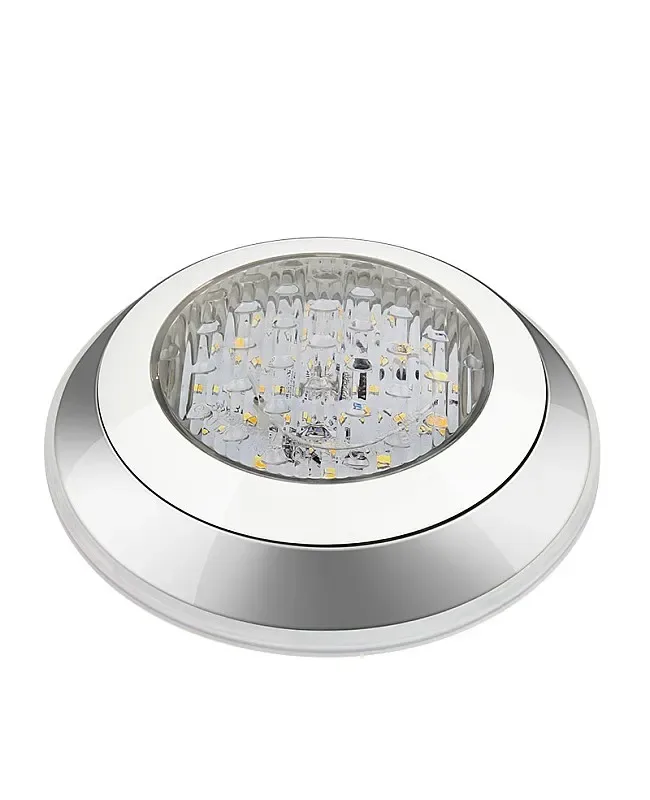

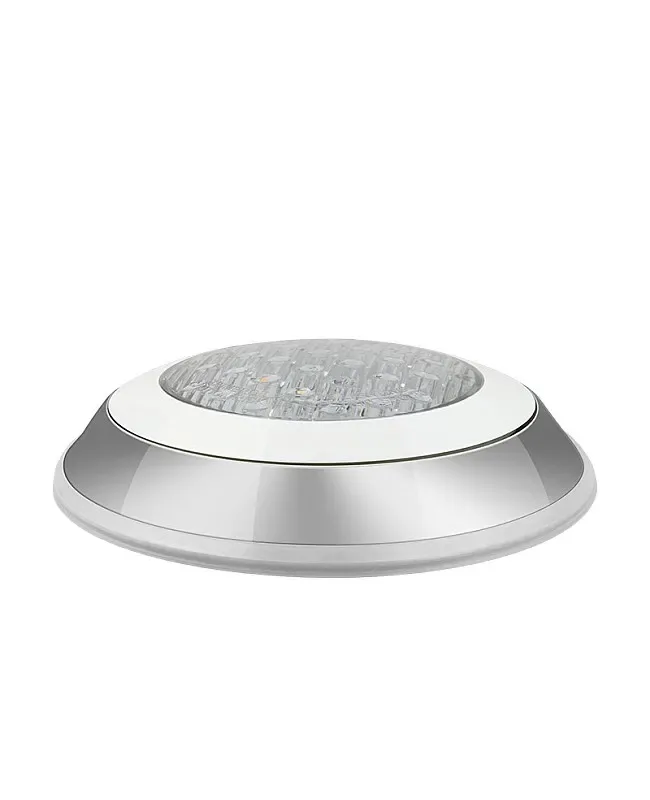

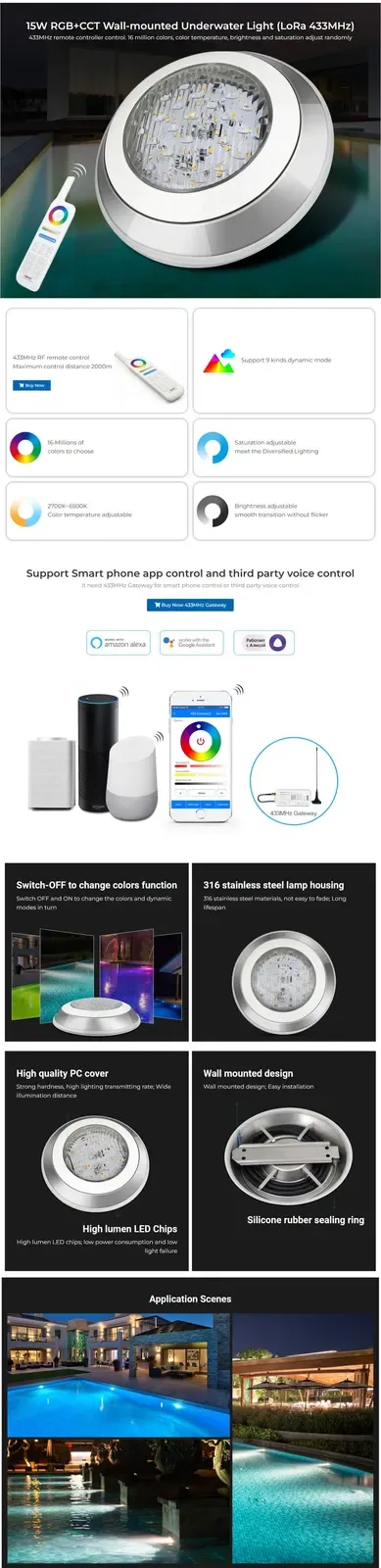

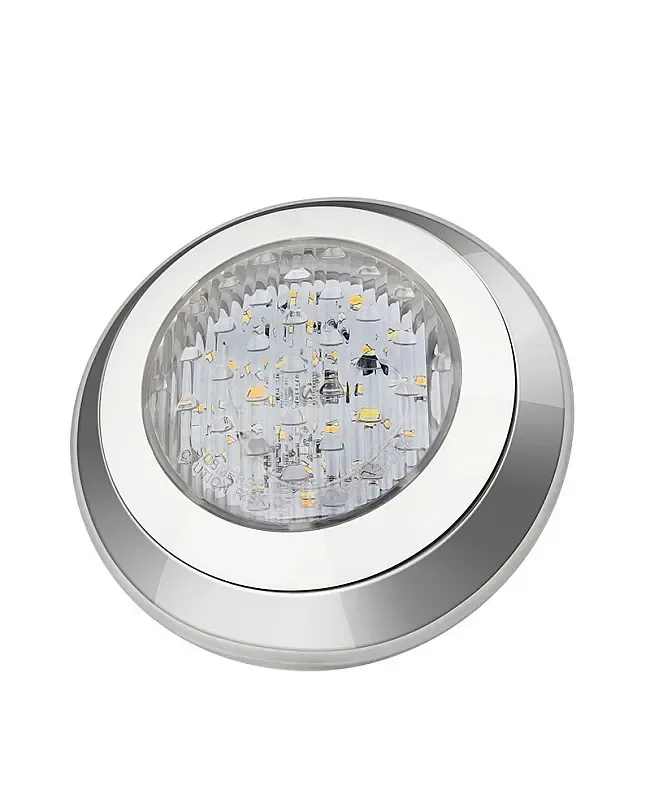

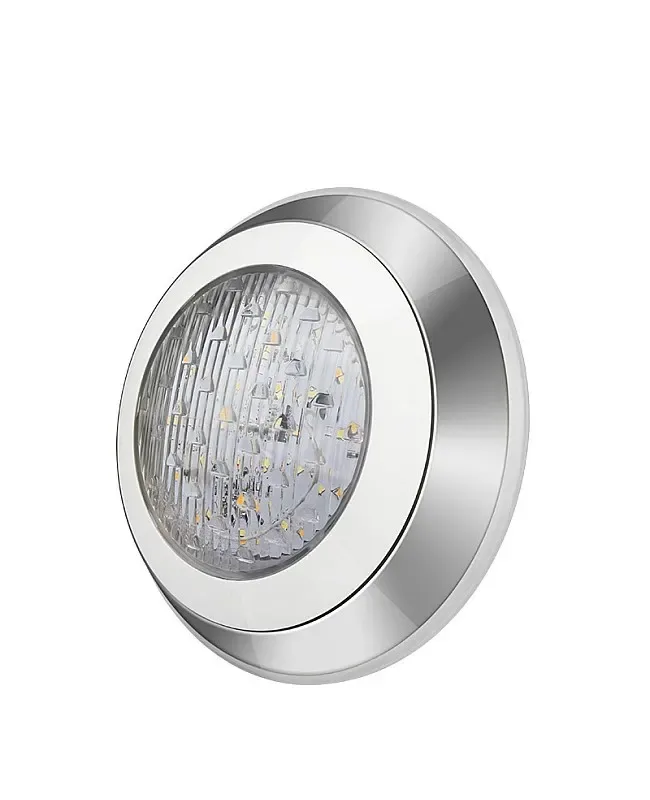

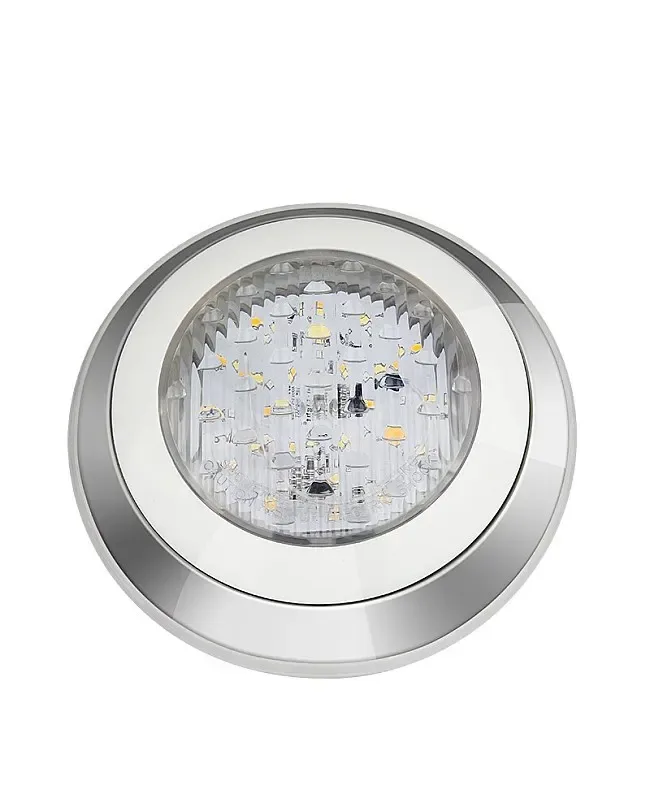

15W RGB+CCT LED Pool Light
LumaCircuit offers 15W RGB+CCT LED Pool Light as a configurable surface light for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Material: 316 Stainless Steel + PC Input Voltage: AC12V/-24V Emitting Colors: RGB + CCT The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- wireless controller User Manual
- Material: 316 Stainless Steel + PC
- Input Voltage: AC12V/-24V
- Emitting Colors: RGB + CCT
- Color Temperature: 2700 K- 6500 K
- Light Efficiency: 72LM/W
- 16 Million Colors Available And CCT, Saturation, And Brightness Adjustable
- 9 Dynamic Modes Available And Speed Adjustable
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 12-24 V
- Light engine: RGB+CCT
- Material: 316 Stainless Steel + PC
- LumaCircuit model: LC-SUR-POVFGQ
- Diameter: Φ220mm
- Height: 50mm
- Input Voltage: AC12V/-24V
- Power: 15W
- Emitting Colors: RGB + CCT
- Color Temperature: 2700 K- 6500 K
- CRI: >
- Control Distance: 50m(Lamps Into 0.5M Water)
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
Quick Links
wireless controller User Manual
Specifications
Material: 316 Stainless Steel + PC
Model
Diameter: Φ220mm
Height: 50mm
Input Voltage: AC12V/-24V
Power: 15W
Emitting Colors: RGB + CCT
Color Temperature: 2700 K- 6500 K
Luminous Flux: 1100LM
Light Efficiency: 72LM/W
CRI: >
16 Million Colors Available And CCT, Saturation, And Brightness Adjustable
9 Dynamic Modes Available And Speed Adjustable
RF: (LoRa Spread Spectrum)
Fit For Remote Controller Control
Smartphone APP Control(Need Gateway）
Support Third-Party Voice Control(Amazon Alexa And Google Assistant)(Need Gateway ）
Modulation Method: LoRa Spread Spectrum
Control Distance: 50m(Lamps Into 0.5M Water)
Beam Angle: 160°
Waterproof Level: IP68
Working Temperature: -20℃-+45℃
Includes
1 * wireless controller LED Pool Light
Product resources
Technical documents
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
