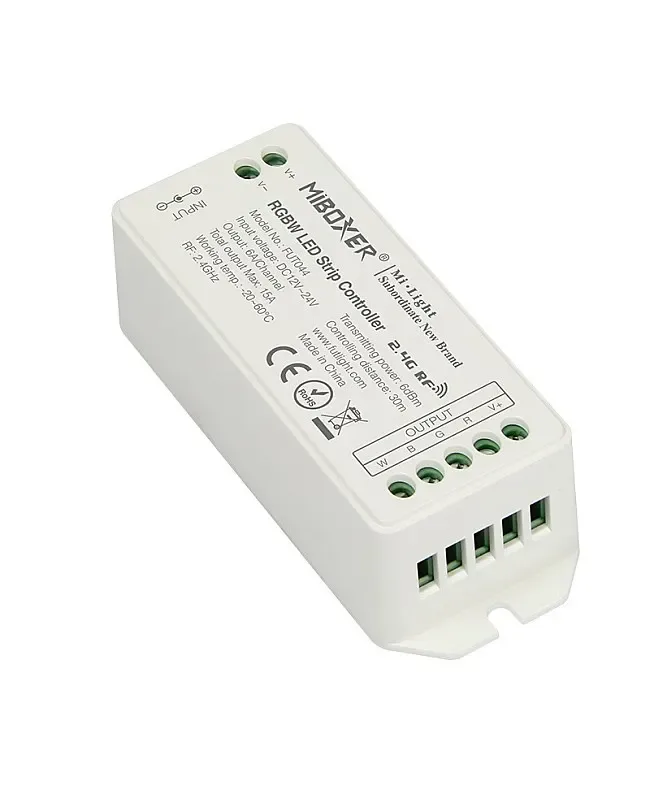

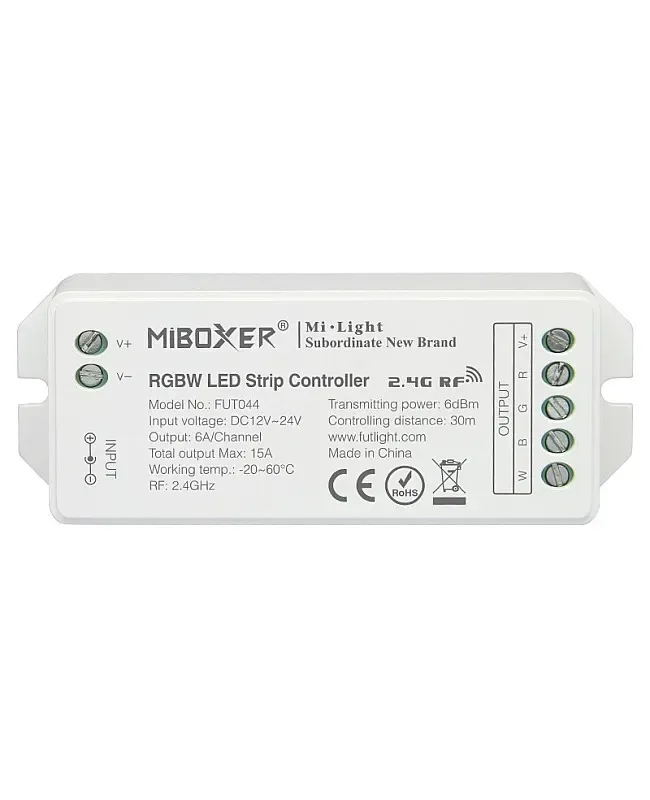

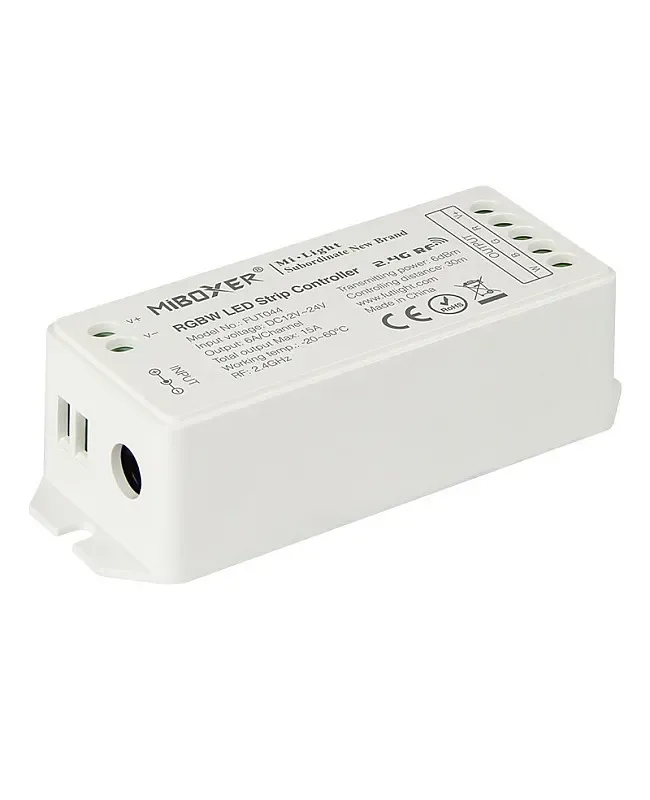

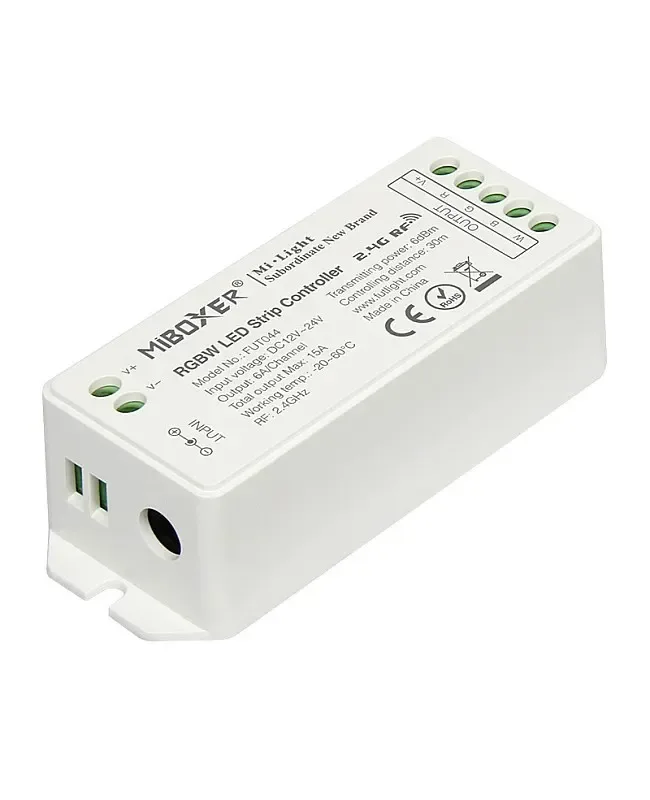

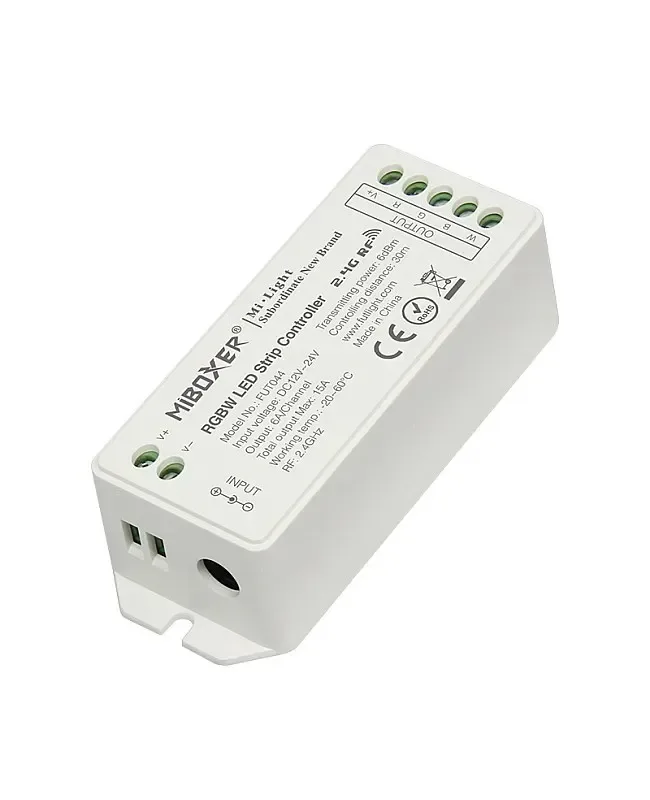

RGBW LED Light Controller
LumaCircuit offers RGBW LED Light Controller as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. wireless controller RGBW Controller Manual Output Current: Total 15A, 4 Channels, 3.75A/Channel Max Controlling Distance: 30m The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller LED light controllers are designed for the RGBW LED strip lights and come with a new up-to-down terminal that is easy to use and connect. The works on DC12V or DC24V, the max output current is 15A, with a 2 communication module, compatible with most of the wireless controller 2.4G remote controls, and the installer can use the remote control to set the color and adjust the brightness. There are 16 million colors available.
- wireless controller RGBW Controller Manual
- Output Current: Total 15A, 4 Channels, 3.75A/Channel
- Max Controlling Distance: 30m
- Output Connection: Common Anode
- Working Temperature: -20℃-+60℃
- New Updating Connecting Terminal
- Controlled By 2.4G Remote Controls T4, wireless controller WL
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V
- Light engine: RGBW
- Size: 97*37*28mm(L*W*H)
- Working Voltage: -24V
- Output Current: Total 15A, 4 Channels, 3.75A/Channel
- Max Controlling Distance: 30m
- Output Connection: Common Anode
- Working Temperature: -20℃-+60℃
- Controlled By 2.4G Remote Controls: T4, wireless controller WL
- LumaCircuit model: LC-CTL-SV854R
- Dimensions found: 97x37x28mm / 28mm / 30m
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller LED light controllers are designed for the RGBW LED strip lights and come with a new up-to-down terminal that is easy to use and connect. The works on DC12V or DC24V, the max output current is 15A, with a 2 communication module, compatible with most of the wireless controller 2.4G remote controls, and the installer can use the remote control to set the color and adjust the brightness. There are 16 million colors available. After adding the WL- gateway, the can be controlled by the Smartphone APP and third-party voice control. The installer can use your phone or voice commands to control the LED light remotely, which supports Amazon Alexa and Google Assistant. The RGBW controller will receive the signal and transmit it to other same controllers within 30 meters, and different controllers can work synchronously.
Quick Links
wireless controller RGBW Controller Manual
Specifications
Size: 97*37*28mm(L*W*H)
Working Voltage: -24V
Output Current: Total 15A, 4 Channels, 3.75A/Channel
RF: 2.
Max Controlling Distance: 30m
Output Connection: Common Anode
Working Temperature: -20℃-+60℃
New Updating Connecting Terminal
16 Million Colors And Color Saturation Available
Brightness Adjustable
Controlled By 2.4G Remote Controls T4, wireless controller WL
Controlled By Smartphone APP And Third-Party Voice Control(Need WL- Gateway)
Signal Auto-Transmitting And Auto-Sync Function
NO Remote Included
Includes
1 * wireless controller RGBW Controller
1 * User Manual
Product resources
Technical documents
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
