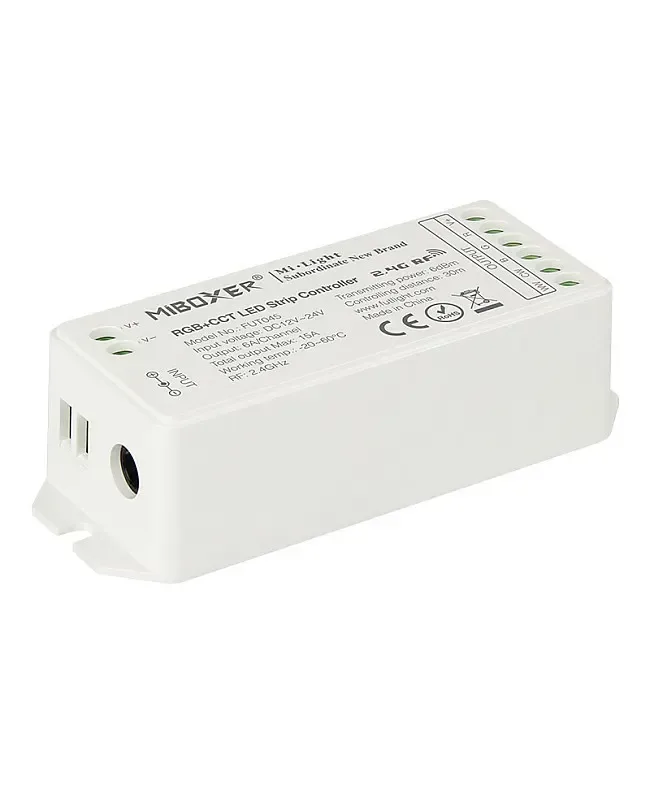

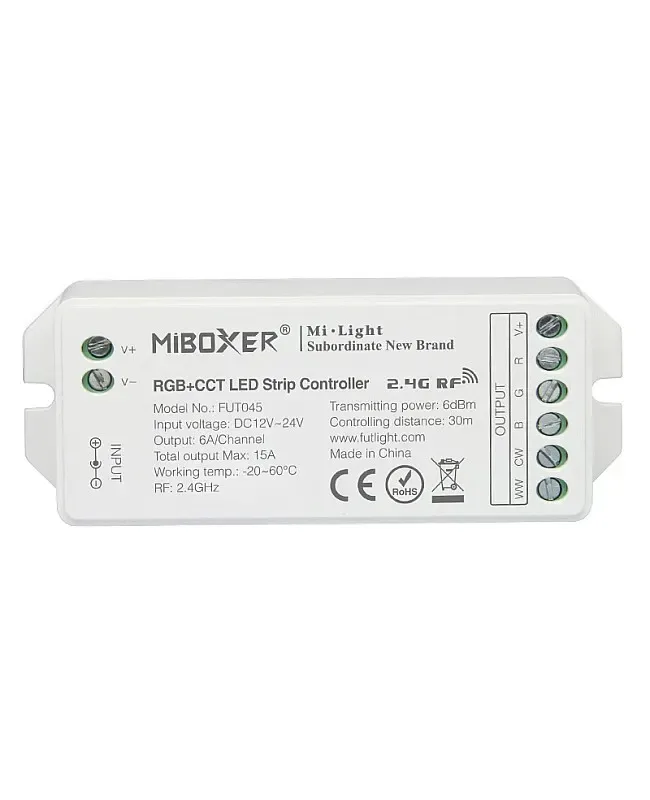

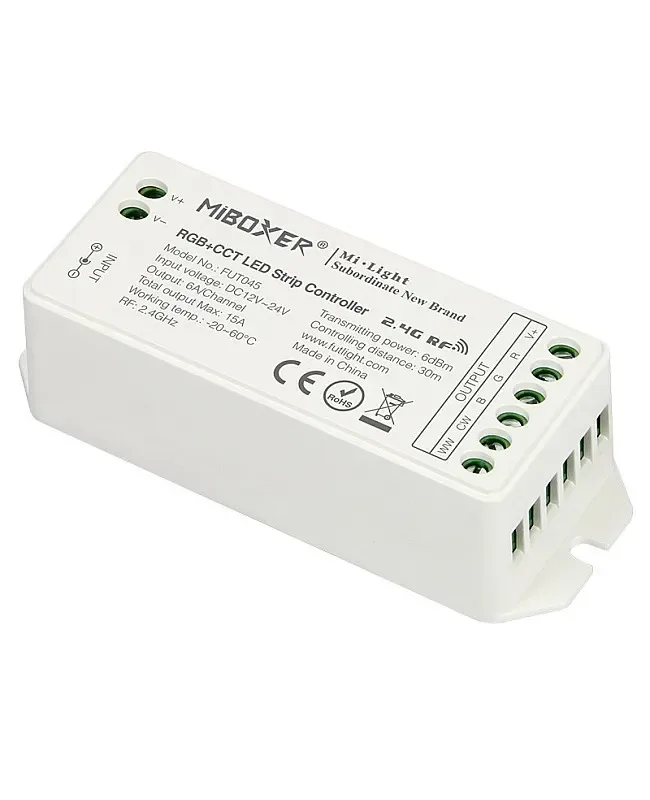

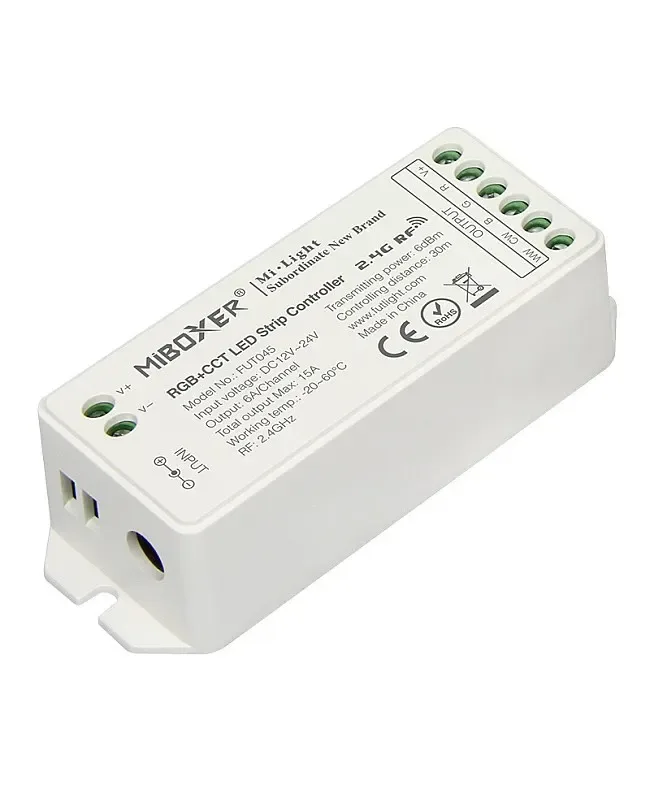

4G RF RGB CCT Controller
LumaCircuit offers 4G RF RGB CCT Controller as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. wireless controller RGB CCT Controller Manual Max Output Current: 5 Channels, 3A/Channel Max Controlling Distance: 30m The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller LED controllers are designed for the RGB+CCT LED strips, with a new up-to-down terminal, are easy to use, and connect to the LED strips. The works in DC12V or DC24V, with a 5-channel design, and the maximum output current of each channel is 3A. The wireless controller RGB CCT controller with a 2.4G communication module is compatible with most wireless controller RF remote controls, and the installer can use the remote to set the color and adjust the color temperature and brightness.
- wireless controller RGB CCT Controller Manual
- Max Output Current: 5 Channels, 3A/Channel
- Max Controlling Distance: 30m
- Output Connection: Common Anode
- New Updating Connecting Terminal
- 2700 K- 6500 K Color Temperature Adjustable
- Compatible With wireless controller 2.4G Remote Controls wireless controller T4, WL
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V
- Light engine: CCT
- Size: 97*37*28mm(L*W*H)
- Working Voltage: -24V
- Max Output Current: 5 Channels, 3A/Channel
- Max Controlling Distance: 30m
- Output Connection: Common Anode
- Compatible With wireless controller 2.4G Remote Controls: wireless controller T4, WL
- Working Temperature: -20℃-+60℃
- LumaCircuit model: LC-CTL-5H8Q22
- Dimensions found: 97x37x28mm / 28mm / 30m
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller LED controllers are designed for the RGB+CCT LED strips, with a new up-to-down terminal, are easy to use, and connect to the LED strips. The works in DC12V or DC24V, with a 5-channel design, and the maximum output current of each channel is 3A. The wireless controller RGB CCT controller with a 2.4G communication module is compatible with most wireless controller RF remote controls, and the installer can use the remote to set the color and adjust the color temperature and brightness. There are 16 million colors available, with color temperatures adjustable from 2700K to 6500 K. After adding the WL- gateway, the Smartphone APP can control the and third-party voice support includes Amazon Alexa and Google Assistant. The wireless controller RGBWW LED controller will receive the signal and transmit it to other controllers within 30 meters, and different controllers can work synchronously.
Quick Links
wireless controller RGB CCT Controller Manual
Specifications
Size: 97*37*28mm(L*W*H)
Working Voltage: -24V
Max Output Current: 5 Channels, 3A/Channel
RF: 2.
Max Controlling Distance: 30m
Output Connection: Common Anode
New Updating Connecting Terminal
16 Million Colors Available
2700 K- 6500 K Color Temperature Adjustable
Brightness Adjustable
Compatible With wireless controller 2.4G Remote Controls wireless controller T4, WL
Smartphone APP Control And Third-Party Voice Control(WL- Gateway Needed)
Signal Auto-Transmitting And Auto-Sync Function
Working Temperature: -20℃-+60℃
Includes
1 * wireless controller RGB CCT Controller
Product resources
Technical documents
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
