Flexible LED Sheet With Optical Lens Dimmable DC24V
LumaCircuit offers Flexible LED Sheet With Optical Lens Dimmable DC24V as a configurable linear LED light for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. The minimum cuttable unit is one LED, and the installer can connect it to a 24V LED driver to light up, or to lighting dimmers to adjust the brightness. There are four emitting color products available: 2700K and 3000K warm white, 4000K natural white, and 6000K cool white. The back has double-sided adhesive tape and screw holes, making installation easy. They are not waterproof, so they should only be used in dry environments. Link: LED Sheet Light With Lens Data Sheet Type: Single-color LED sheet with lens The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

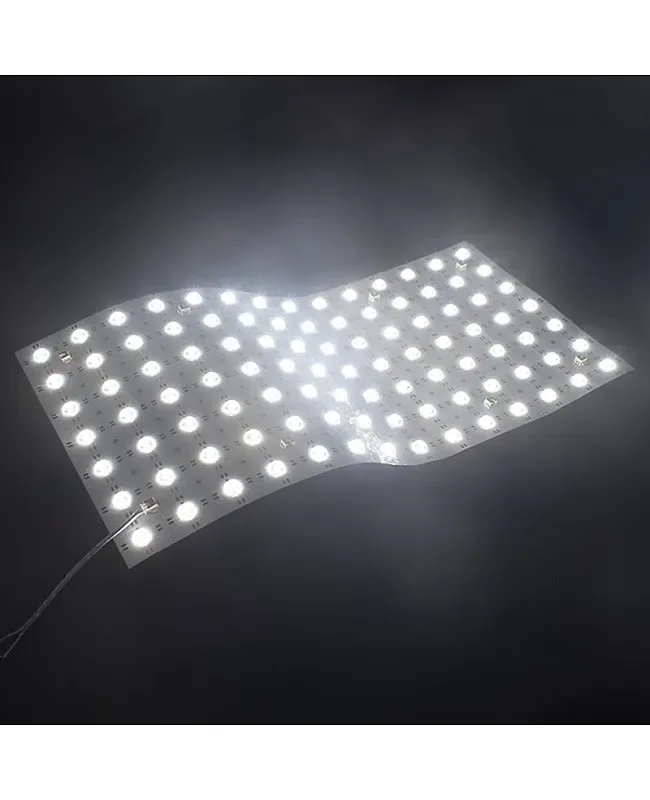

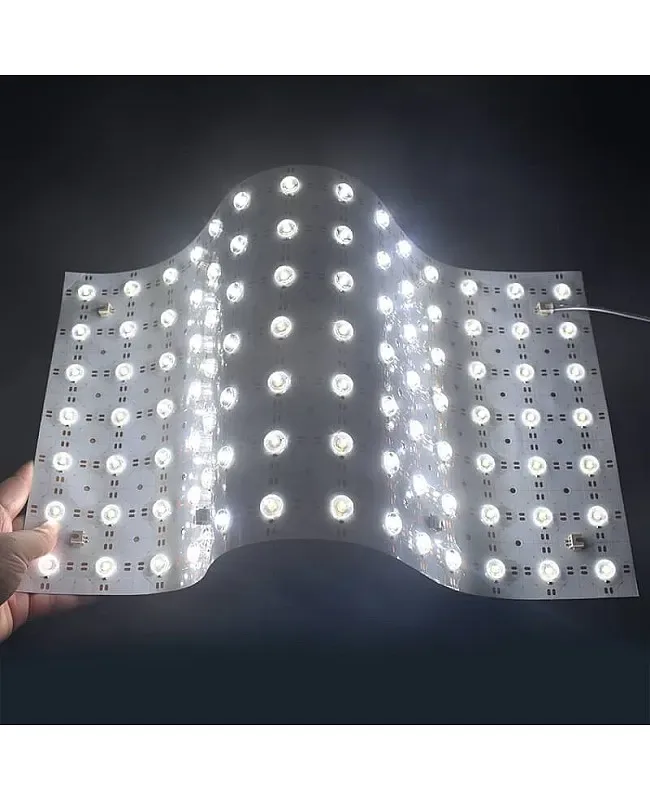

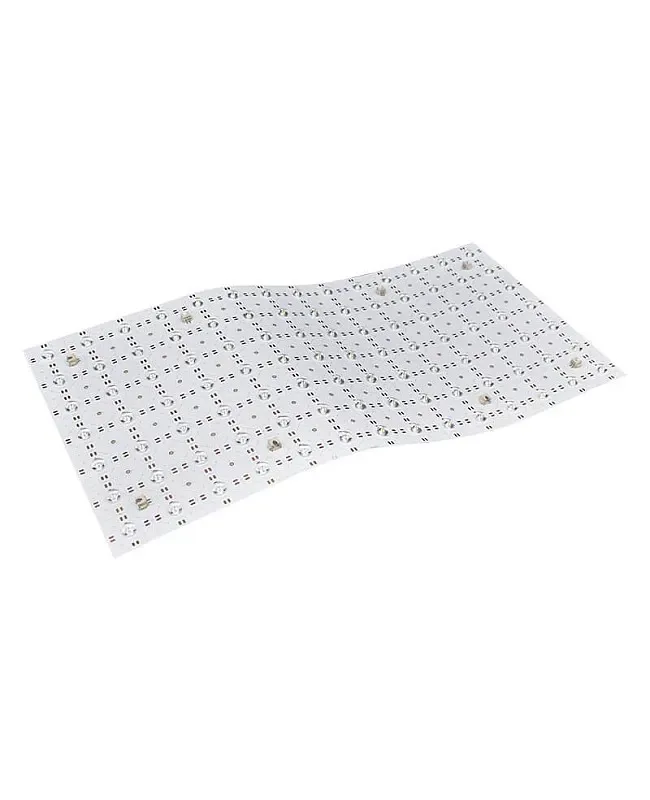

- The flexible LED light sheet features optical lenses on the 2835 SMD LEDs, increasing the beam angle to 180° and providing bright, even illumination. They are easy to install in residential settings, commercial spaces, or other creative projects, such as backlighting for countertops, display boxes, and signs. The high-quality SMD LEDs are uniformly arranged on the dual-layer PCB, which is flexible, bendable, and cuttable, making it an excellent choice for curved or irregular spaces.

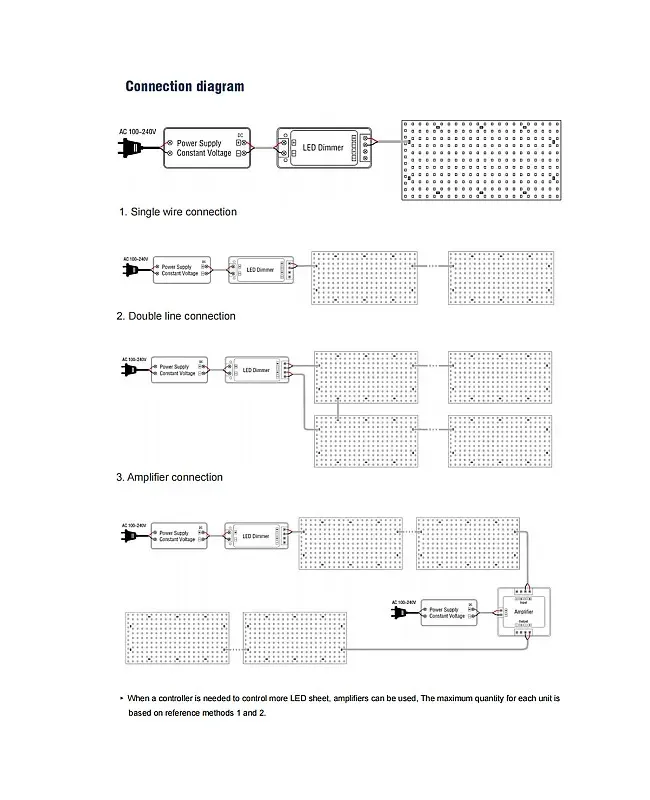

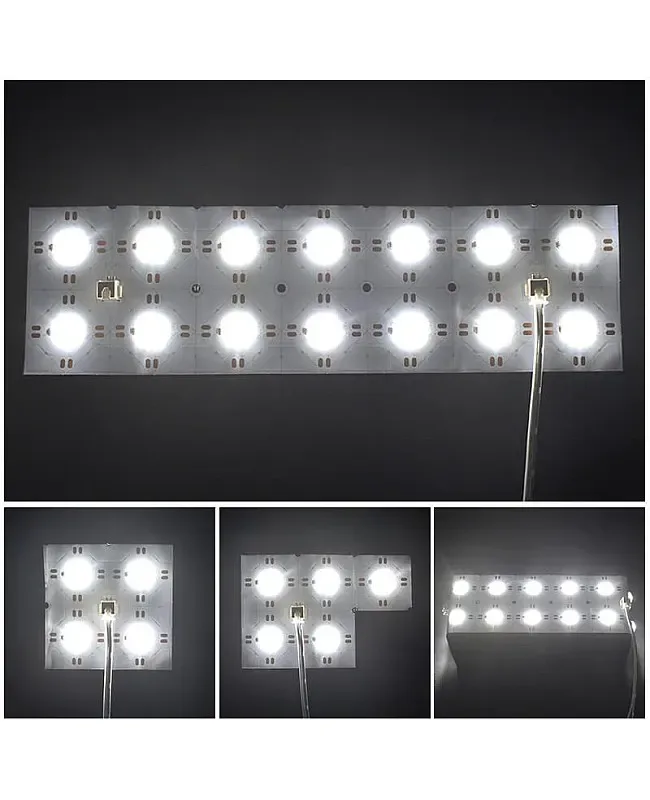

- The minimum cuttable unit is one LED, and the installer can connect it to a 24V LED driver to light up, or to lighting dimmers to adjust the brightness. There are four emitting color products available: 2700K and 3000K warm white, 4000K natural white, and 6000K cool white. The back has double-sided adhesive tape and screw holes, making installation easy. They are not waterproof, so they should only be used in dry environments.
- Link: LED Sheet Light With Lens Data Sheet
- Type: Single-color LED sheet with lens

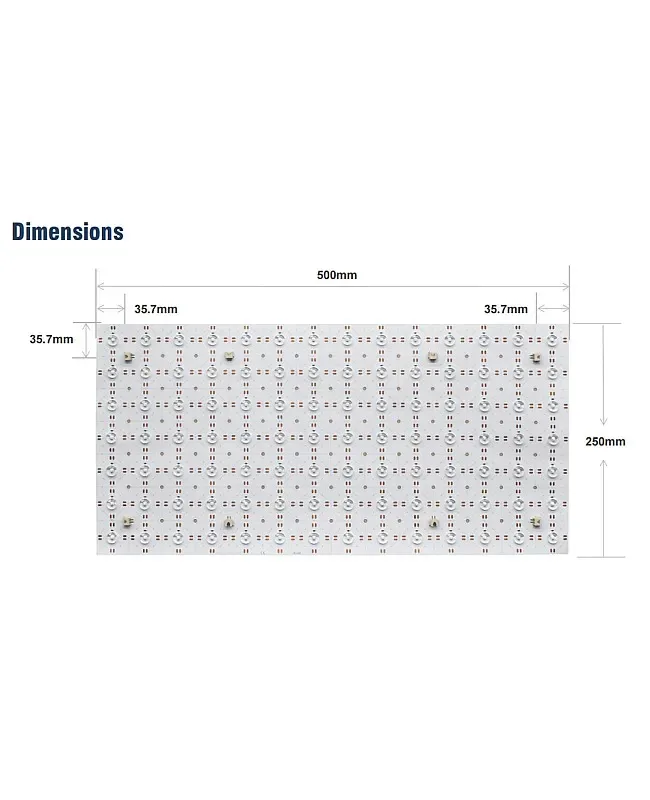

- Size( L x W x H ): 500 mm x 250 mm x 8 mm ( 19.69" x 9.84" x 0.31" )
- Colors: 2700K warm white, 3000K warm white, 4000K natural white, 6000K cool white
- Illumination flux: 1800LM

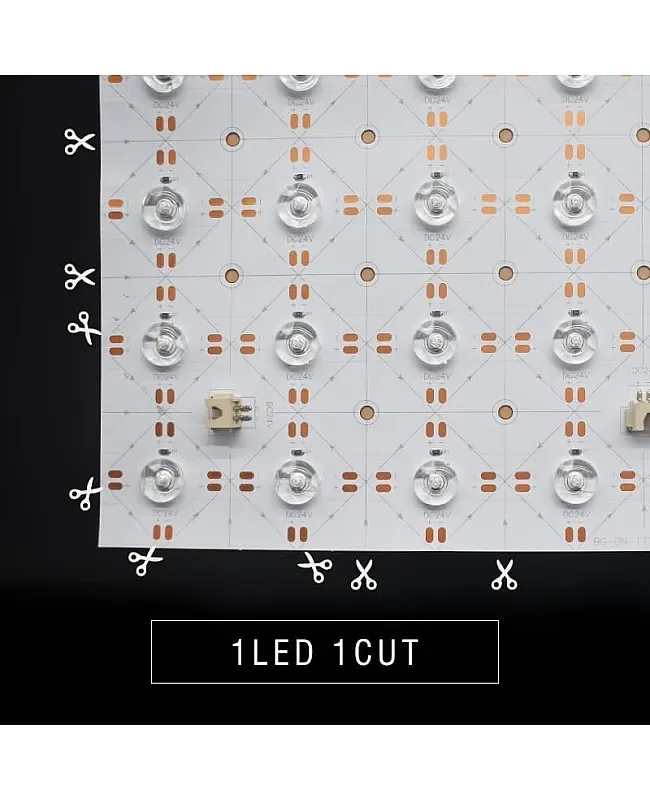

- Cut size: 1 LED( 1.41" x 1.41" )
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V
- Light engine: CCT
- LumaCircuit model: LC-LIN-3MBLOQ
- Size( L x W x H ): 500 mm x 250 mm x 8 mm ( 19.69" x 9.84" x 0.31" )
- LED type: 2835 SMD LEDs
- LED quantity: 98PCS
- Working voltage: DC 24V
- Power: 20W
- Colors: 2700K warm white, 3000K warm white, 4000K natural white, 6000K cool white
- CRI: >
- Beam angle: 180°
- Cut size: 1 LED( 1.41" x 1.41" )
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The flexible LED light sheet features optical lenses on the 2835 SMD LEDs, increasing the beam angle to 180° and providing bright, even illumination. They are easy to install in residential settings, commercial spaces, or other creative projects, such as backlighting for countertops, display boxes, and signs. The high-quality SMD LEDs are uniformly arranged on the dual-layer PCB, which is flexible, bendable, and cuttable, making it an excellent choice for curved or irregular spaces.
The minimum cuttable unit is one LED, and the installer can connect it to a 24V LED driver to light up, or to lighting dimmers to adjust the brightness. There are four emitting color products available: 2700K and 3000K warm white, 4000K natural white, and 6000K cool white. The back has double-sided adhesive tape and screw holes, making installation easy. They are not waterproof, so they should only be used in dry environments. Multiple power adapters are included, enabling convenient connection of numerous devices for large projects.
Link: LED Sheet Light With Lens Data Sheet
Specifications
Type: Single-color LED sheet with lens
Model
Size( L x W x H ): 500 mm x 250 mm x 8 mm ( 19.69" x 9.84" x 0.31" )
LED type: 2835 SMD LEDs
LED quantity: 98PCS
Working voltage: DC 24V
Power: 20W
Colors: 2700K warm white, 3000K warm white, 4000K natural white, 6000K cool white
Illumination flux: 1800LM
CRI: >
Beam angle:180°
Cut size: 1 LED( 1.41" x 1.41" )
IP grade: IP20 non-waterproof
Storage temperature; -20℃-+65℃(-4°F-113°F)
Working temperature: -20℃-+45℃(-4°F-149°F)

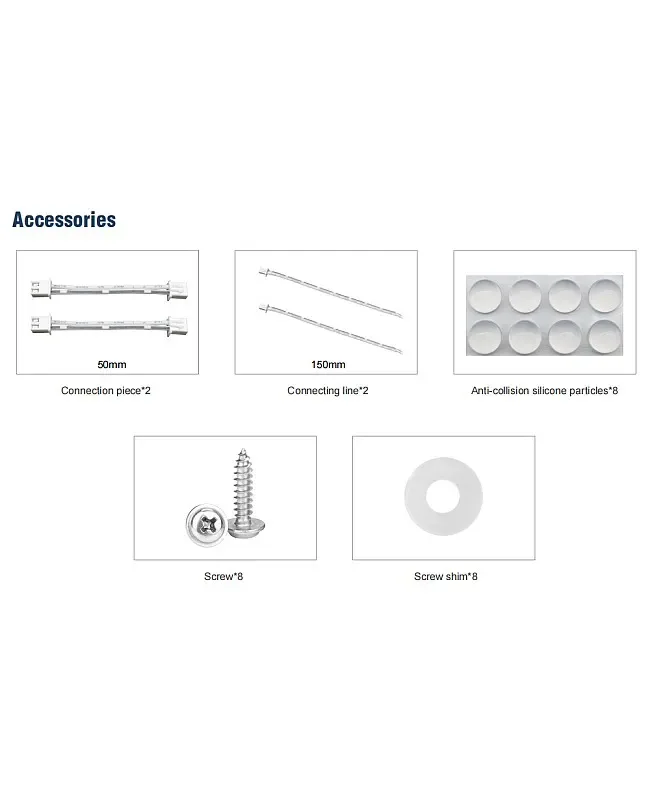

Includes
1 x LED sheet lighting with optical lens
2 x connection cables
2 x input cables
8 x Anti-collision silicone particles
Product resources
Technical documents
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
