Product details

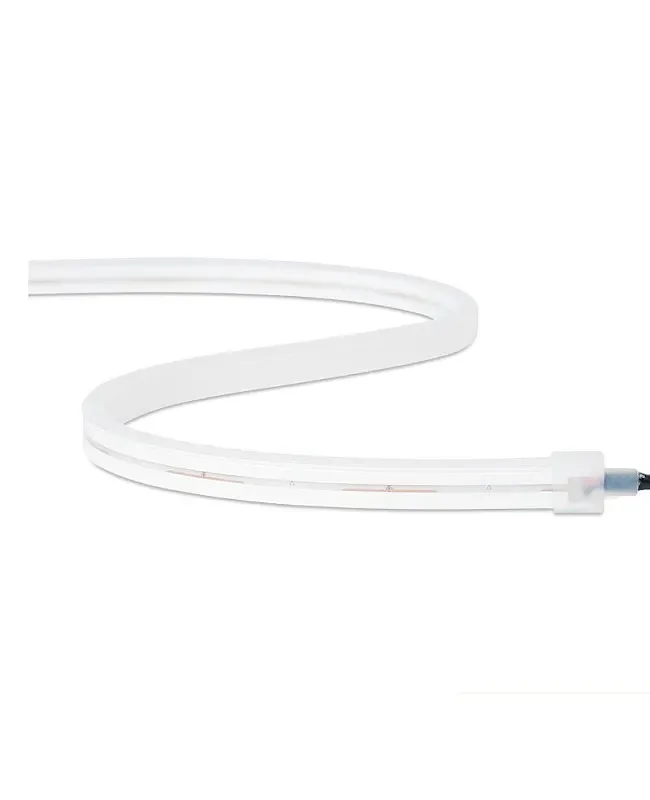

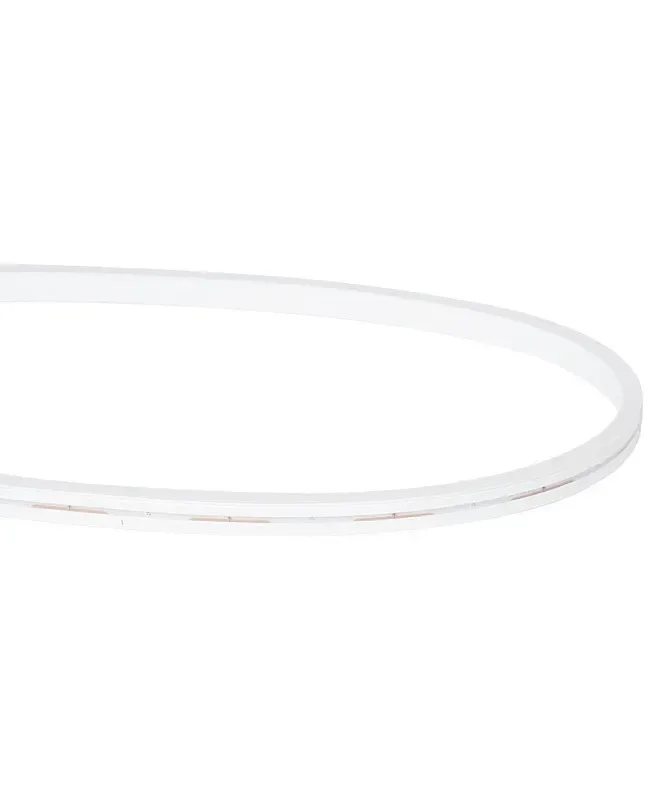

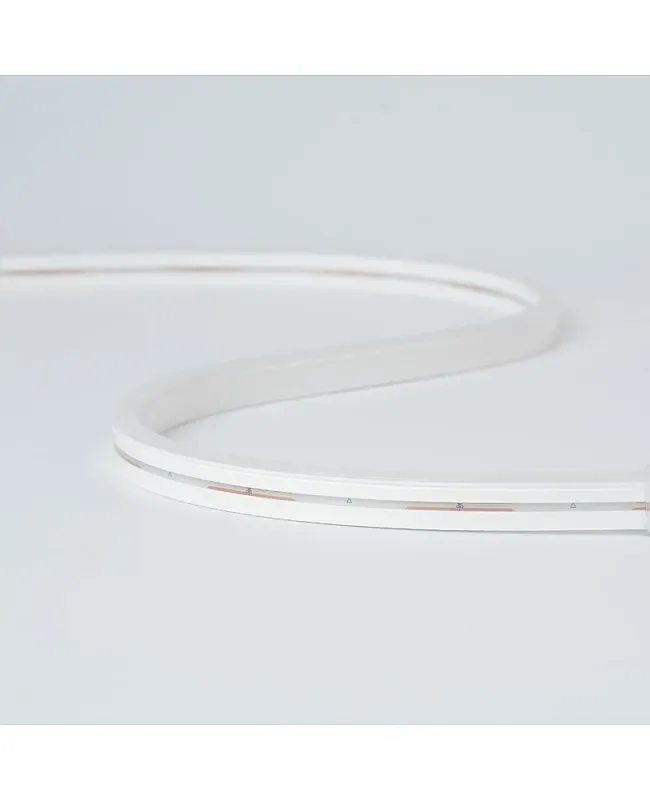

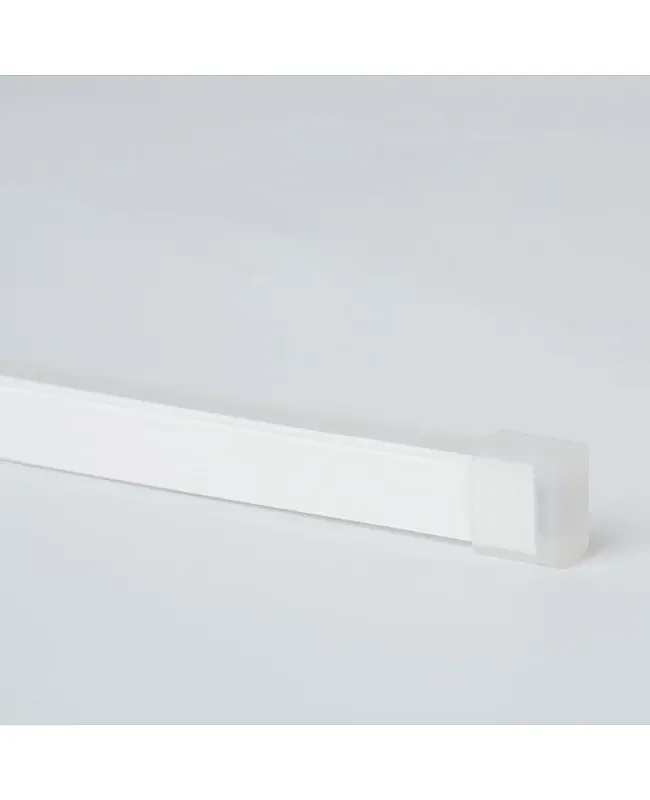

24 V side-emitting neon line, 6 × 12 mm
LumaCircuit offers 06*12MM Waterproof 24V Side Lighting Flex Neon LED Strip Lights 16.4FT as a configurable neon flex for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Outer Material: High-Quality Silicone Light Source: 2835 SMD LEDs Colors: 3000K(Warm White), 4000K(Natural White), 6500K(Cool White), Red, Green, Blue, Yellow, Pink, Tunable White, RGB, Orange The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 06*12mm side lighting neon LED strip lights are a great way to add a modern and stylish touch to residential or business places, energy-efficient and long-lasting. It comes with 16.4 ftT per roll, is made of high-quality silicone material, and uses 2835 SMD LEDs as the light source.
- Outer Material: High-Quality Silicone
- Light Source: 2835 SMD LEDs
- Colors: 3000K(Warm White), 4000K(Natural White), 6500K(Cool White), Red, Green, Blue, Yellow, Pink, Tunable White, RGB, Orange
- Luminous Efficient(@4000K): 36LM/W(10W/M)
- Luminous Flux: 300LM/M(Warm White), 360LM/M(Natural White), 360LM/M(Cool White), 160LM/M(Red), 400LM/M(Green), 50LM/M(Blue), 125LM/M(Yellow), 145LM/M(Pink), 270LM/M(Tunable White), 130LM/M(RGB)
- Light Emitting direction: Side
- Minimum Cutting Length: 50mm
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V
- Light engine: CCT
- LumaCircuit model: LC-NEO-6A7MLR
- Size: 6*12mm(W*H)
- Length: 5M/Roll(16.4FT)
- Outer Material: High-Quality Silicone
- LED Quantity: 120 PCS/M
- Working Voltage: DC24V
- Power: 10W/M

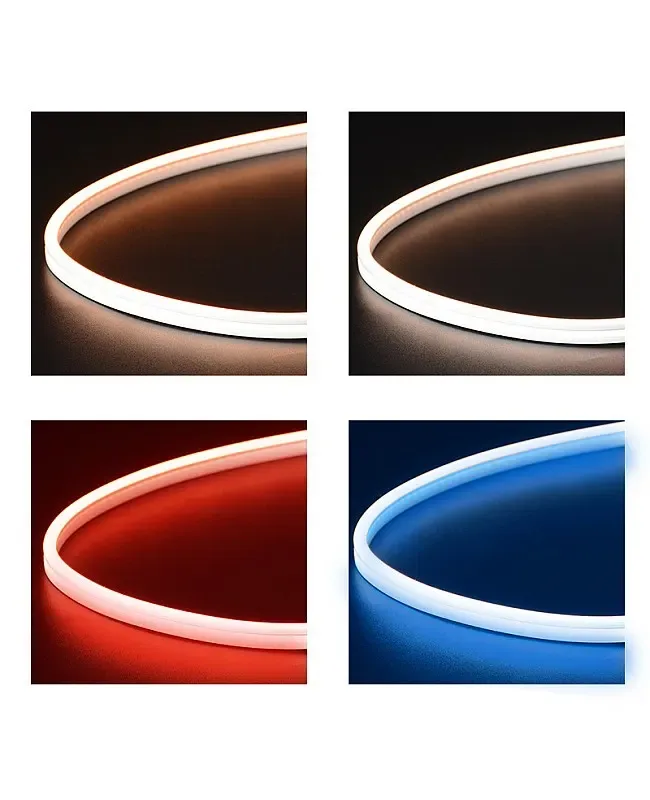

- Colors: 3000K(Warm White), 4000K(Natural White), 6500K(Cool White), Red, Green, Blue, Yellow, Pink, Tunable White, RGB, Orange
- CRI: >
- Beam Angle: 120°
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

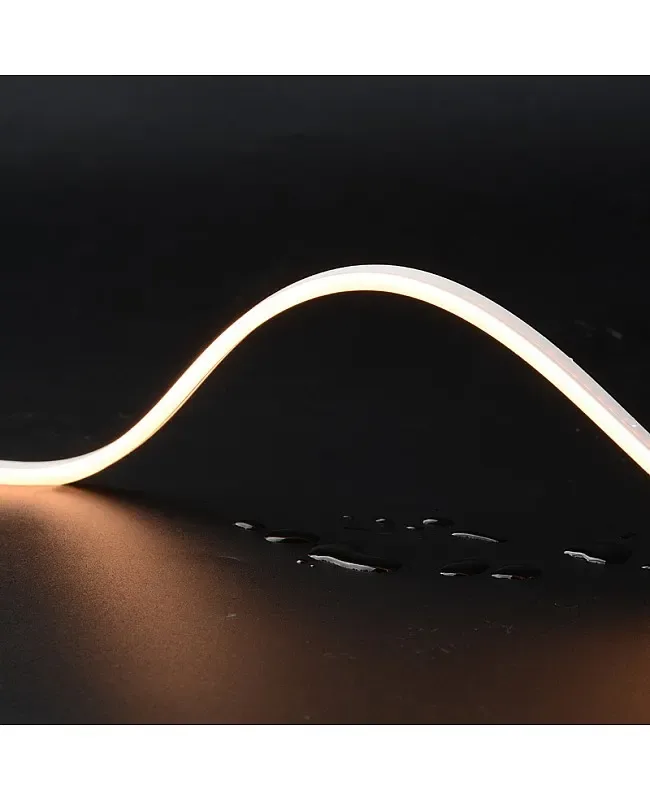

The 06*12mm side lighting neon LED strip lights are a great way to add a modern and stylish touch to residential or business places, energy-efficient and long-lasting. It comes with 16.4 ftT per roll, is made of high-quality silicone material, and uses 2835 SMD LEDs as the light source. Flexible and bendable, the minimum horizontal bending with a diameter of 50mm, it's IP67 waterproof, UV resistant, solvent resistant, and salt-water resistant, with the mini size allowing for being installed in narrow or tight spaces in wet or rainy situations, making them suited to projects that require creative lighting solutions. The mini-size flexible neon strip lights are available in various colors; the installer can choose warm white, natural white, cool white, red, single colors, tunable white, and RGB colors suited to lighting up kitchens, under cabinets, hallways, staircases, etc, to create a soft and inviting ambiance.
Specifications
Model
Size: 6*12mm(W*H)
Length: 5M/Roll(16.4FT)
Outer Material: High-Quality Silicone
Light Source: 2835 SMD LEDs
LED Quantity: 120 PCS/M
Working Voltage: DC24V
Power: 10W/M
Colors: 3000K(Warm White), 4000K(Natural White), 6500K(Cool White), Red, Green, Blue, Yellow, Pink, Tunable White, RGB, Orange
Luminous Efficient(@4000K): 36LM/W(10W/M)
Luminous Flux: 300LM/M(Warm White), 360LM/M(Natural White), 360LM/M(Cool White), 160LM/M(Red), 400LM/M(Green), 50LM/M(Blue), 125LM/M(Yellow), 145LM/M(Pink), 270LM/M(Tunable White), 130LM/M(RGB)
CRI: >
Beam Angle: 120°
Light Emitting direction: Side
Minimum Cutting Length: 50mm
Minimum Bending Diameter: 50mm

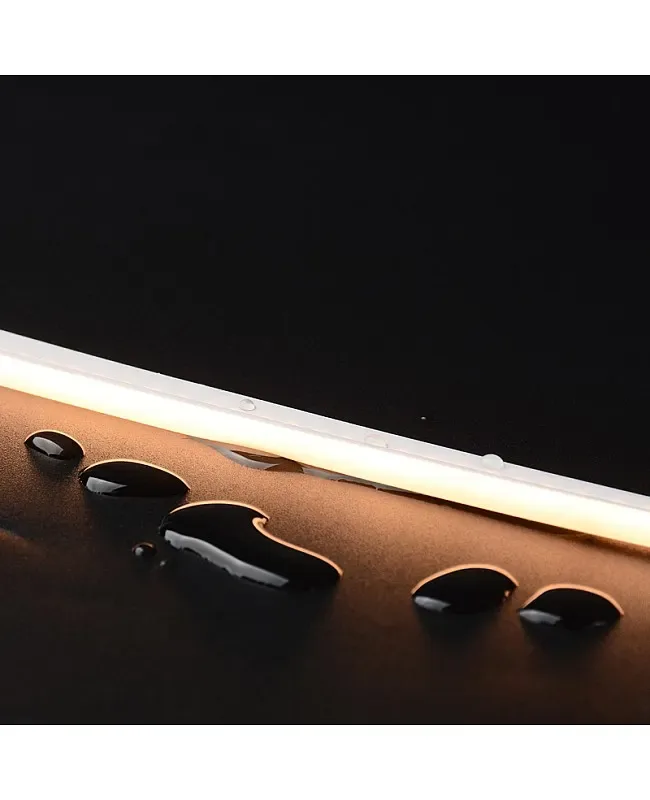

Waterproof Level: IP67 Waterproof
UV Protection, Resistant To Solvents, Saltwater Resistant
Wire Length: 15cm
Working Temperature: -25℃-+60℃
Includes
1 * Neon LED Strip Lights(16.4FT/Reel)
Mounting Clips
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
