Product details
24 V side-emitting neon line, 10 mm
LumaCircuit offers 10MM Waterproof Side Light Neon Flexible Strip Lights as a configurable neon flex for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Outer Material: Silicone Light Source: 2835/3528 SMD LEDs LED Quantity: 60-240PCS/M The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- These side lights, neon flexible strip lights, will provide the most excellent performance for various indoor or outdoor lighting applications. A vertical bend with a 100mm diameter, IP67 protection, UV, solvent, and saltwater resistance. The neon strip light is also dot-free, ensuring a uniform, consistent light from one end to the other suited to creating a customized lighting display for any home, business, or event.
- Outer Material: Silicone
- Light Source: 2835/3528 SMD LEDs
- LED Quantity: 60-240PCS/M
- Colors: Warm White(3000K), Natural White(4000K), Cool White(6000K), Red, Green, Blue, Yellow, Pink
- Luminous Flux: 620LM/M(Warm White), 660LM/M(Natural White), 690LM/M(Cool White), 270LM/M(Red), 540LM/M(Green), 130LM/M(Blue), 260LM/M(Yellow), 450LM/M(Pink)
- Luminous Efficiency(@4000K): 66.1LM/W
- Waterproof Level: IP67 Waterproof
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V
- Light engine: CCT
- LumaCircuit model: LC-NEO-XL5R1N
- Outer Material: Silicone
- Size: 10*10mm(W*H)
- Length: 5M/Roll(16.4FT)
- LED Quantity: 60-240PCS/M
- Working Voltage: DC24V
- Power: 10W/M
- Colors: Warm White(3000K), Natural White(4000K), Cool White(6000K), Red, Green, Blue, Yellow, Pink
- CRI: >
- Beam Angle: 120°
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

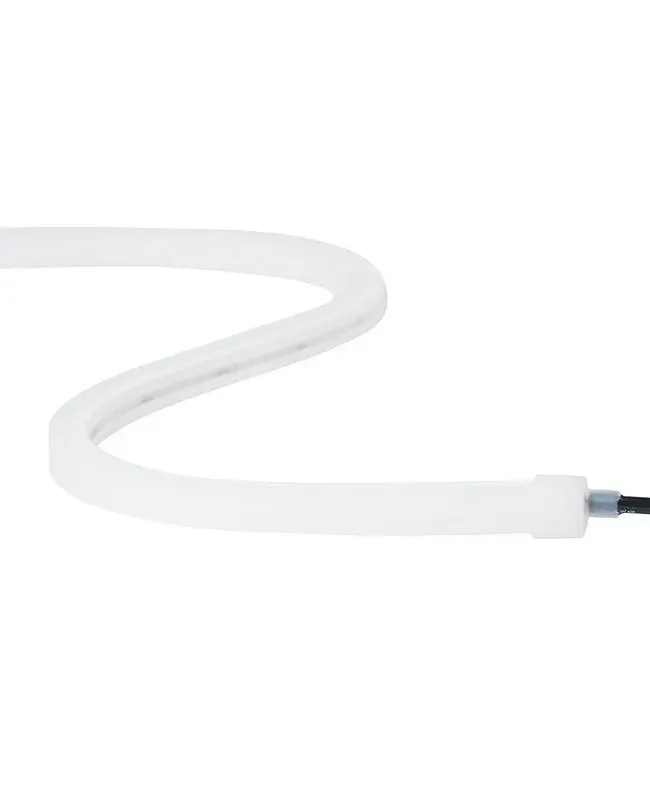

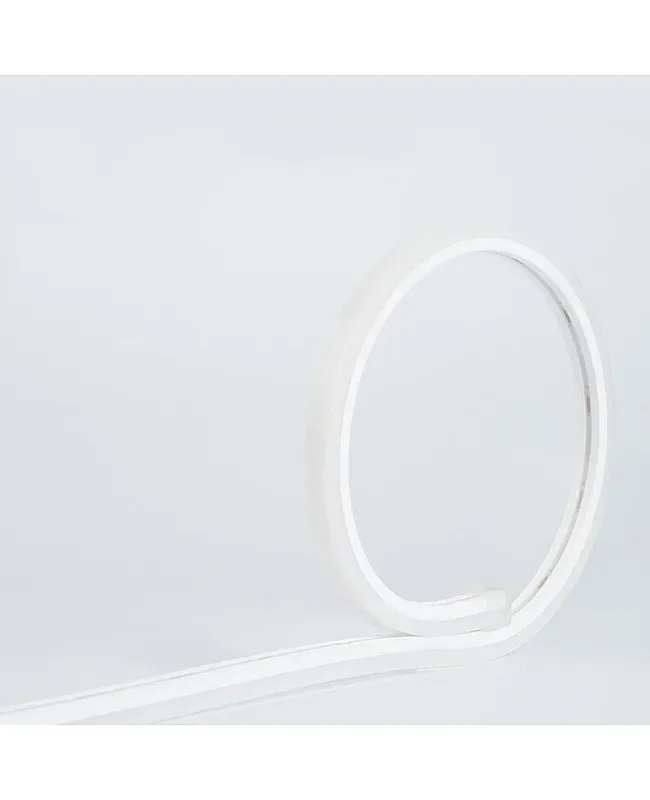

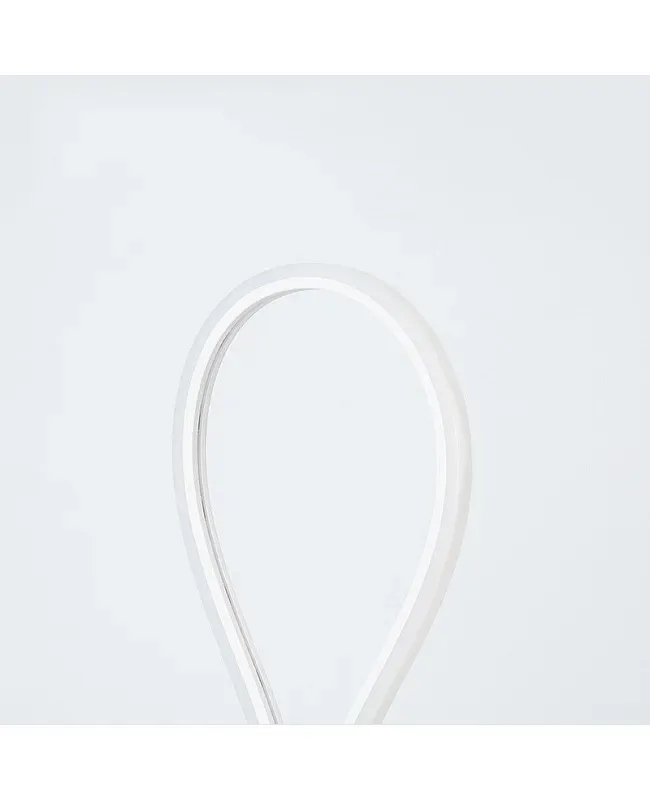

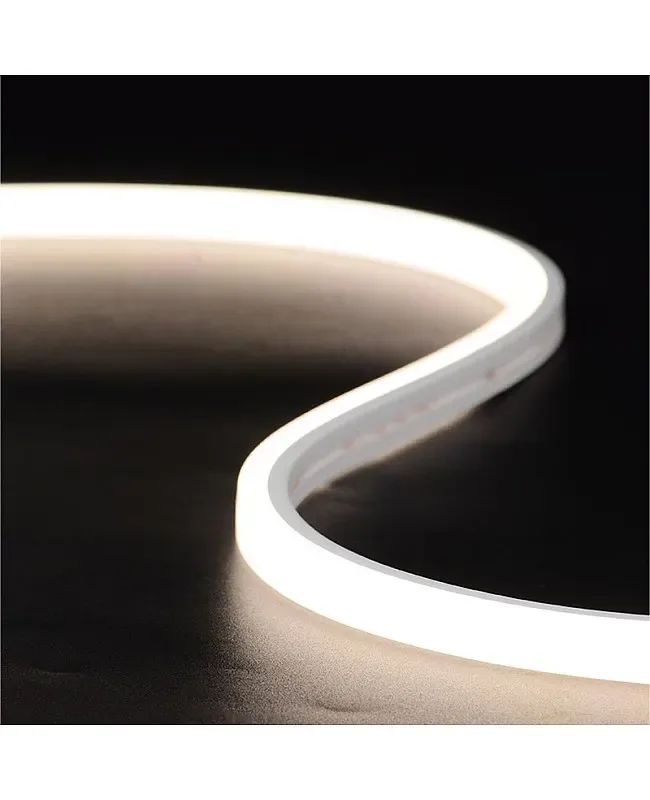

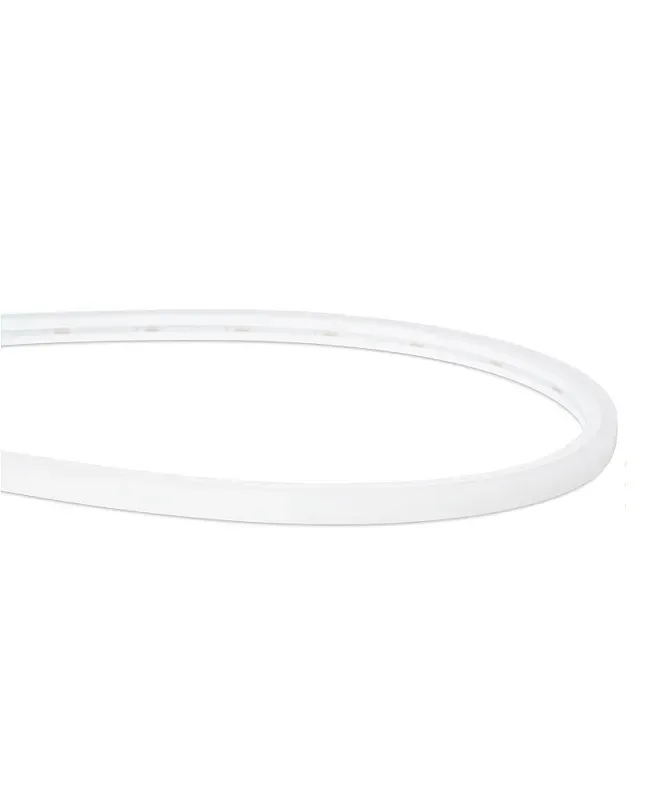

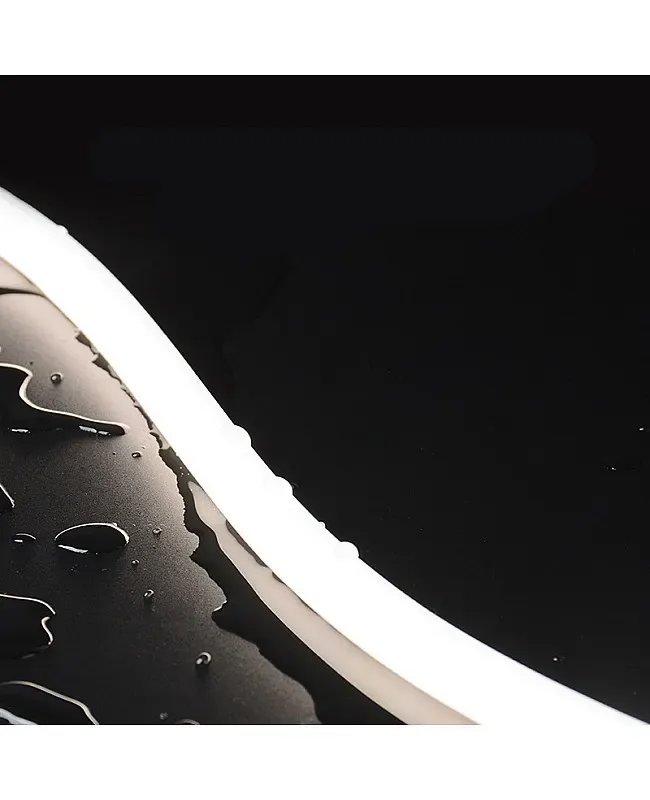

These side lights, neon flexible strip lights, will provide the most excellent performance for various indoor or outdoor lighting applications. A vertical bend with a 100mm diameter, IP67 protection, UV, solvent, and saltwater resistance. The neon strip light is also dot-free, ensuring a uniform, consistent light from one end to the other suited to creating a customized lighting display for any home, business, or event. Various colors are available; the installer can choose warm white, natural white, cool white, red, green, blue, yellow, pink, and orange colors. The installer can cut and reconnect the Flex Neon Strips from the cutting marks. The minimum cutting length is 35.7mm. The installer can install them under stairs, around furniture, in closets, and cabinets. Those light dot-free neon strip lights can also be used to decorate walls or surfaces of buildings, offices, hotels, parks, etc.
Specifications
Model
Outer Material: Silicone
Size: 10*10mm(W*H)
Length: 5M/Roll(16.4FT)
Light Source: 2835/3528 SMD LEDs
LED Quantity: 60-240PCS/M
Working Voltage: DC24V
Power: 10W/M

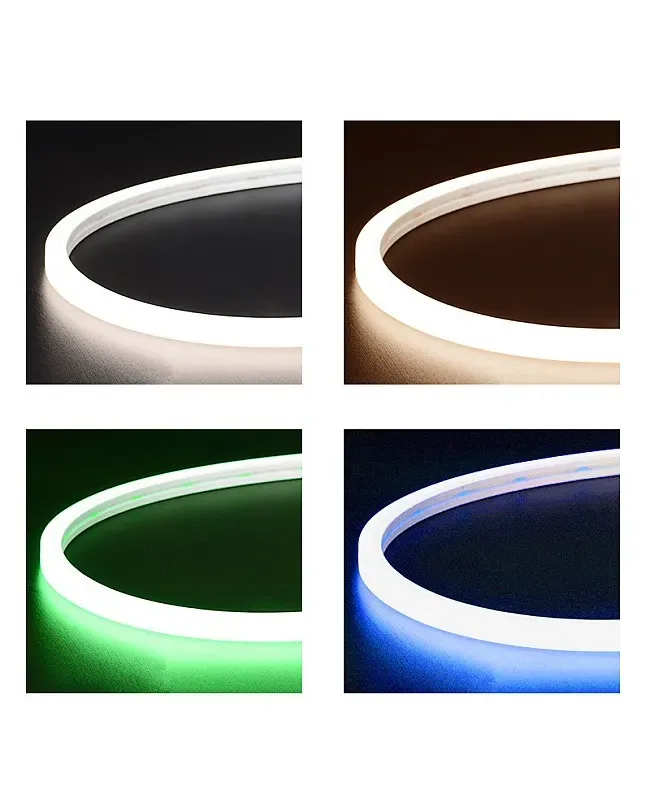

Colors: Warm White(3000K), Natural White(4000K), Cool White(6000K), Red, Green, Blue, Yellow, Pink
Luminous Flux: 620LM/M(Warm White), 660LM/M(Natural White), 690LM/M(Cool White), 270LM/M(Red), 540LM/M(Green), 130LM/M(Blue), 260LM/M(Yellow), 450LM/M(Pink)
Luminous Efficiency(@4000K): 66.1LM/W
CRI: >
Beam Angle: 120°
Waterproof Level: IP67 Waterproof
UV Protection, Resistant To Solvents, Resistant to Saltwater
Minimum Cutting Length: 35.7mm
Minimum Bending Diamater: 100mm
Working Temperature: -25℃-+60℃
Includes
1 * Neon Flexible Strip Light(16.4FT/Roll)
Mounting Clips
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
