Tunable White Bendable LED Light Sheets Ultra Thin

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

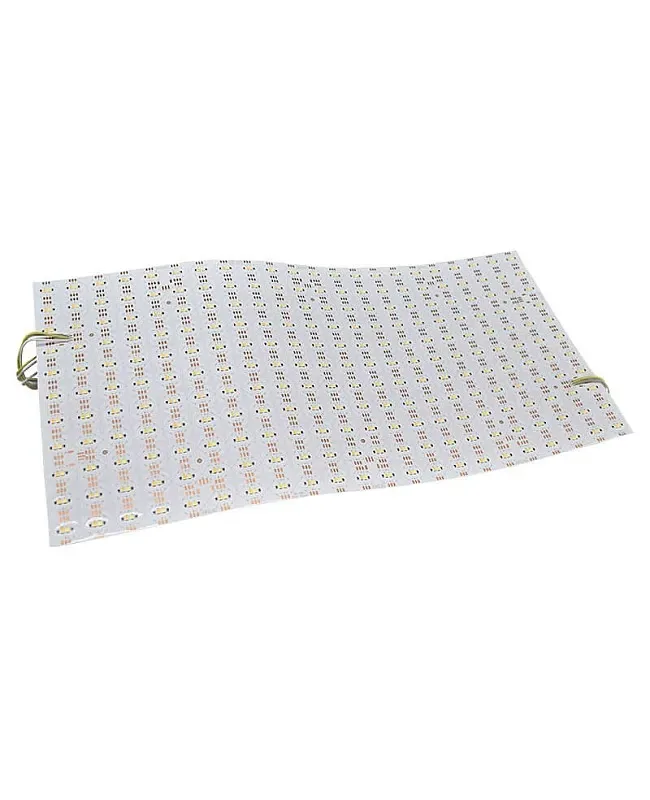

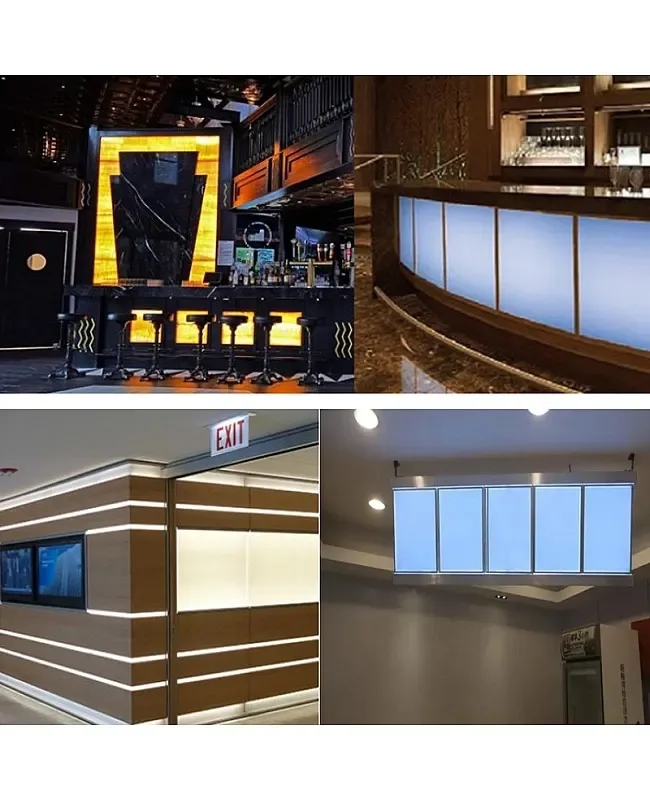

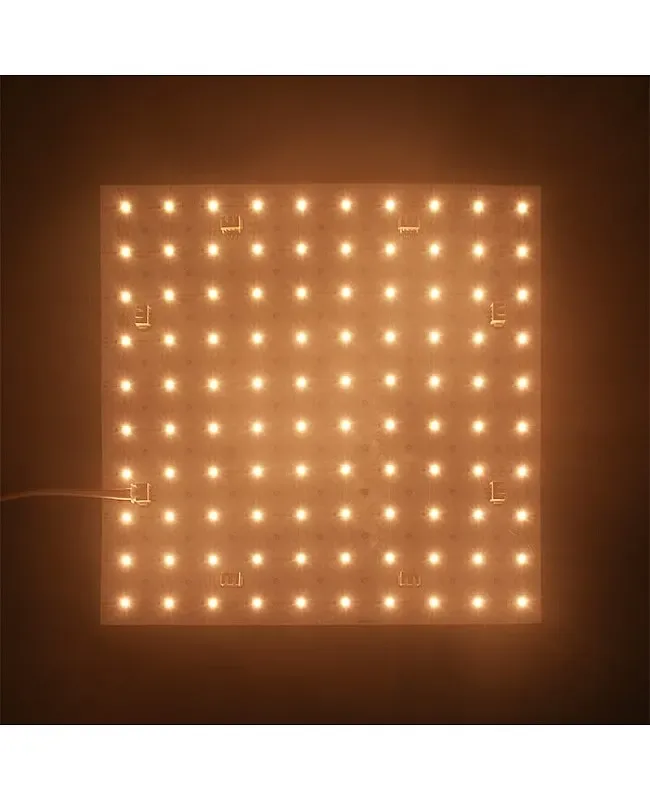

• The tunable white LED light sheets have an ultra-thin design. They are lightweight, flexible, and bendable, allowing them to conform to flat and contoured surfaces and to provide uniform illumination, with the ability to adjust color temperature and brightness to create perfect ambiance or mood. The installer can use them to highlight architectural features or backlight shopping windows, advertising displays, quartz countertops, and stone surfaces.

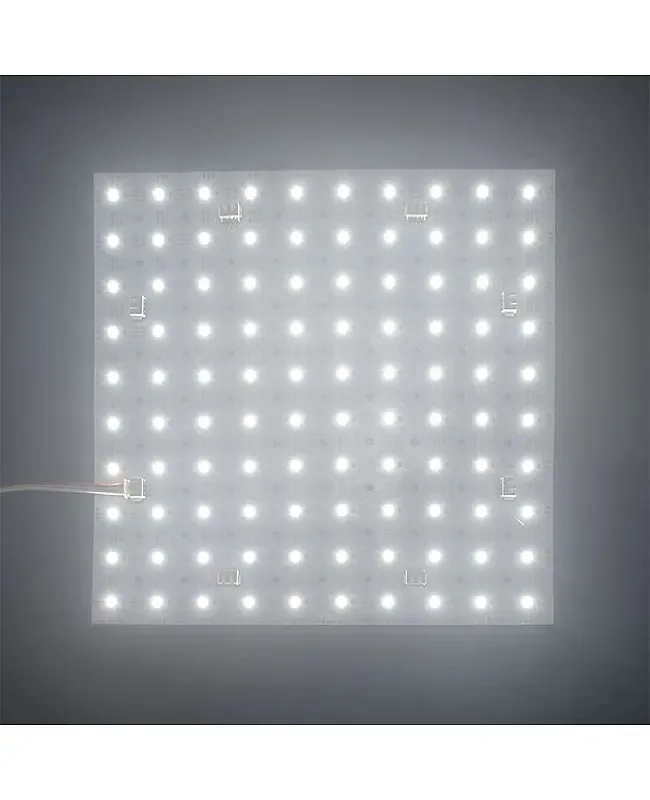

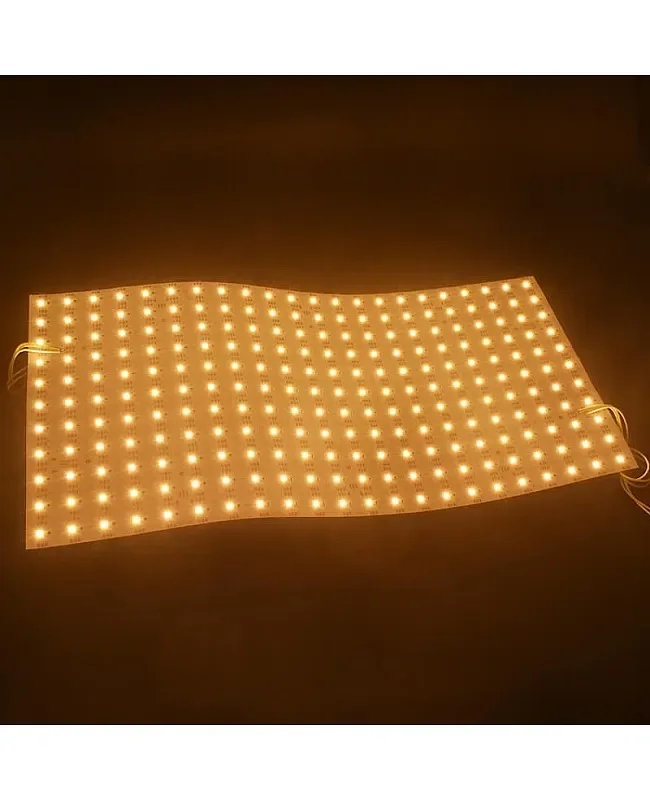

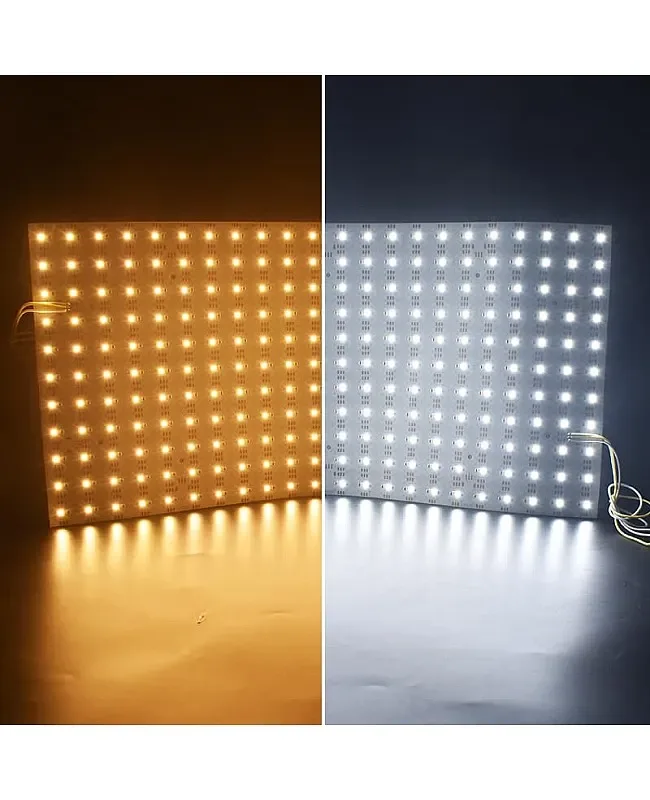

• Two sizes are available: 250 mm x 250 mm and 490 mm x 250 mm. The warm white and cool white SMD LEDs are evenly spaced on dual-layer PCBs and can work with the CCT LED controller to adjust the color temperature from 2700K warm white to 6500K cool white, as well as the brightness.

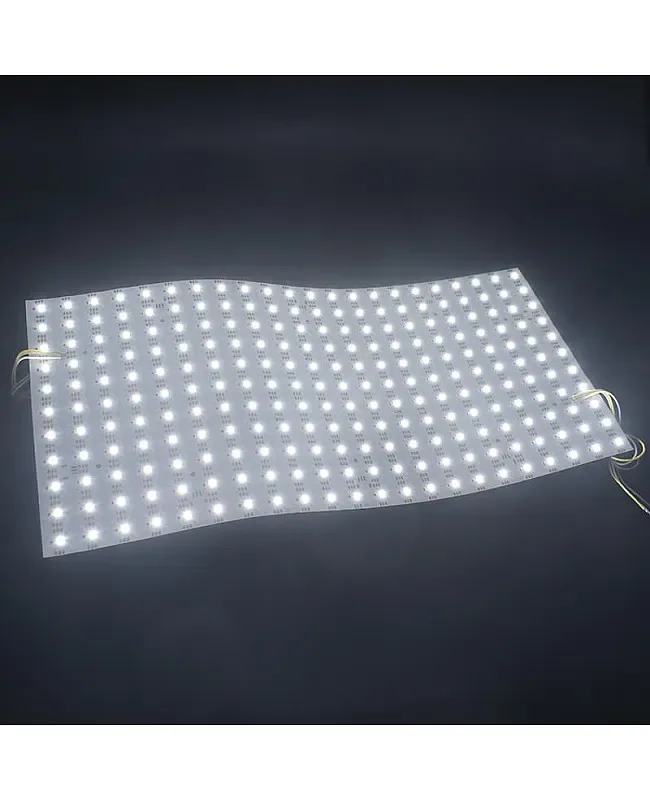

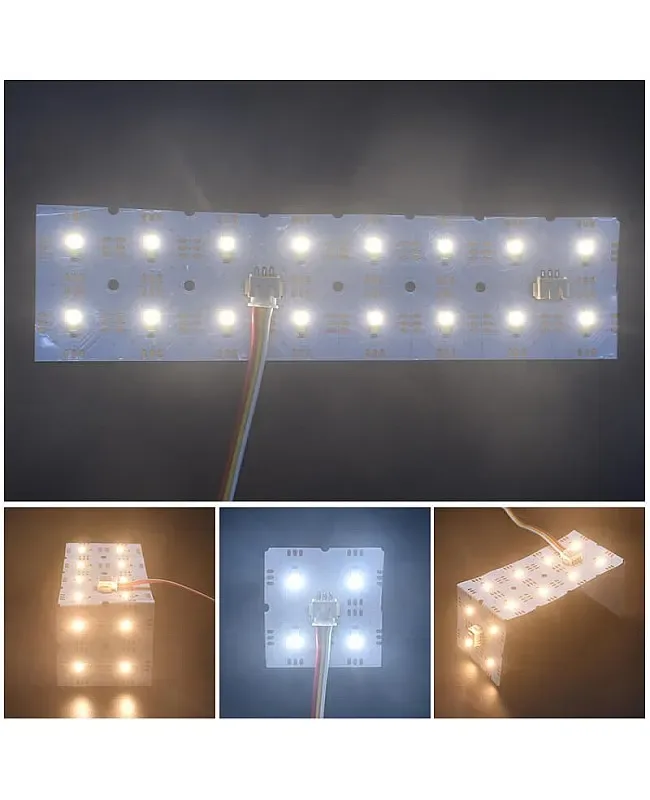

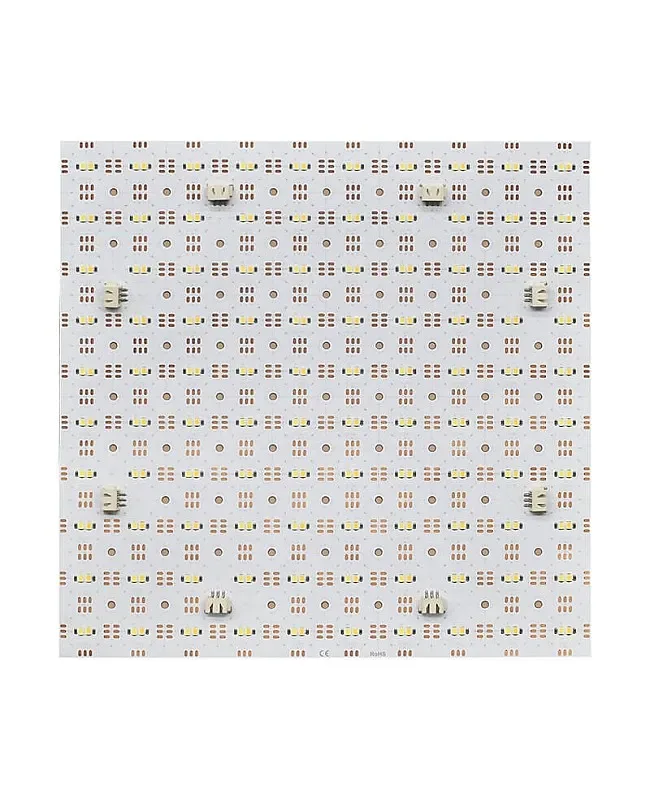

• They have trim lines, allowing you to cut to any size for your projects. They feature screw holes on the surface and double-sided adhesive tape on the back, allowing for quick and secure installation. The paper-thin LED sheets have multiple power connectors, allowing them to be connected to one another for larger backlighting projects.
• Link: CCT LED sheets spec sheet
• Type: Dual white lighting sheets
• Size ( L x H ): 250 mm x 250 mm ( 9.84" x 9.84" ); 490 mm x 245 mm ( 19.29" x 9.65" )( LB-2835-484 )
• LED quantity: 200PCS/piece 484PCS/piece ( LB-2835-484 )
• Power: 16W/piece 40W/piece ( LB-2835-484 )

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 24 V
• Light engine: CCT
• Models: LB-2835-484
• Size ( L x H ): 250 mm x 250 mm ( 9.84" x 9.84" ); 490 mm x 245 mm ( 19.29" x 9.65" )( LB-2835-484 )
• LED type: 2835 SMDs
• LED quantity: 200PCS/piece 484PCS/piece ( LB-2835-484 )
• Working voltage: DC 24V
• Power: 16W/piece 40W/piece ( LB-2835-484 )
• Color temperature adjustable range: 2700K - 6500K
• Color rendering index: >

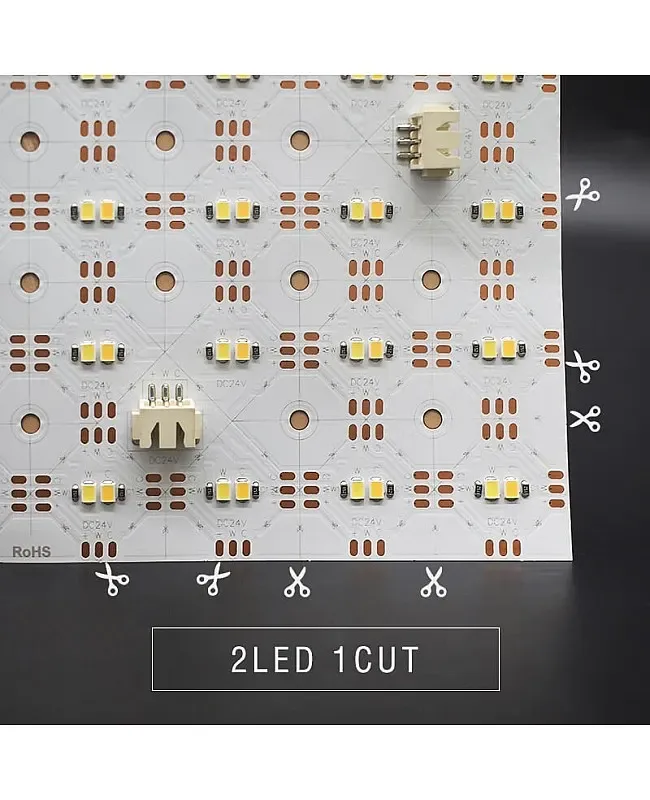

• Minimum cutting length: 25 mm x 25 mm / 0.98" x 0.98" 22.3 mm x 22.3 mm / 0.88" x 0.88" ( LB-2835-484 )
• Beam angle: 120°

Control and installation

Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.

Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

The tunable white LED light sheets have an ultra-thin design. They are lightweight, flexible, and bendable, allowing them to conform to flat and contoured surfaces and to provide uniform illumination, with the ability to adjust color temperature and brightness to create perfect ambiance or mood. The installer can use them to highlight architectural features or backlight shopping windows, advertising displays, quartz countertops, and stone surfaces.

Two sizes are available: 250 mm x 250 mm and 490 mm x 250 mm. The warm white and cool white SMD LEDs are evenly spaced on dual-layer PCBs and can work with the CCT LED controller to adjust the color temperature from 2700K warm white to 6500K cool white, as well as the brightness.

They have trim lines, allowing you to cut to any size for your projects. They feature screw holes on the surface and double-sided adhesive tape on the back, allowing for quick and secure installation. The paper-thin LED sheets have multiple power connectors, allowing them to be connected to one another for larger backlighting projects.

Link: CCT LED sheets spec sheet

Specifications

Type: Dual white lighting sheets

Models: LB-2835-484

Size ( L x H ): 250 mm x 250 mm ( 9.84" x 9.84" ); 490 mm x 245 mm ( 19.29" x 9.65" )( LB-2835-484 )

LED type: 2835 SMDs

LED quantity: 200PCS/piece 484PCS/piece ( LB-2835-484 )

Working voltage: DC 24V

Power: 16W/piece 40W/piece ( LB-2835-484 )

Color temperature adjustable range: 2700K - 6500K

Luminous flux: 1600lm/m 3800lm/m ( LB-2835-484 )

Color rendering index: >

Minimum cutting length: 25 mm x 25 mm / 0.98" x 0.98" 22.3 mm x 22.3 mm / 0.88" x 0.88" ( LB-2835-484 )

Dimmable: YES

Beam angle: 120°

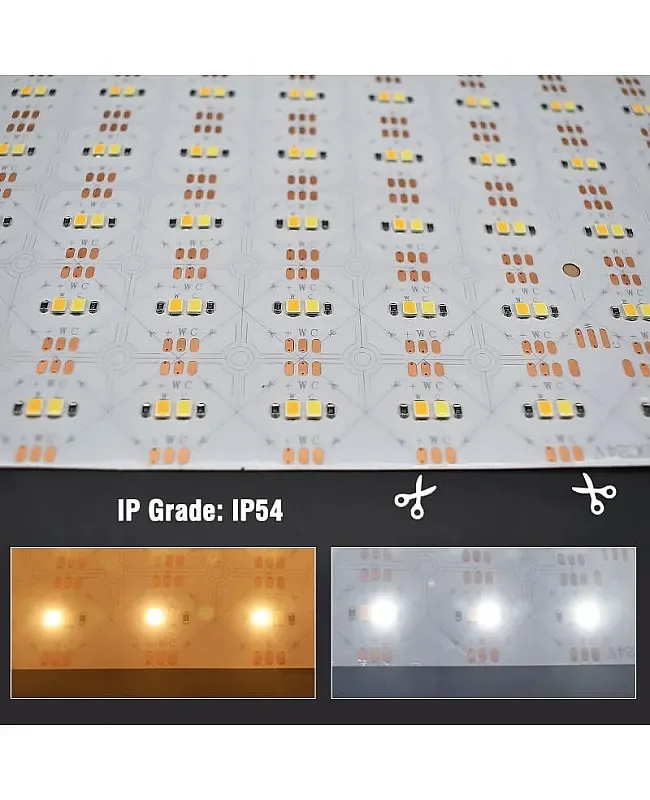

Waterproof level: IP20 non-waterproof, IP54 waterproof

Storage temperature; -20℃ + 65℃ ( -4°F - 113°F )

Working temperature: -20℃ + 45℃ ( -4°F - 149°F )

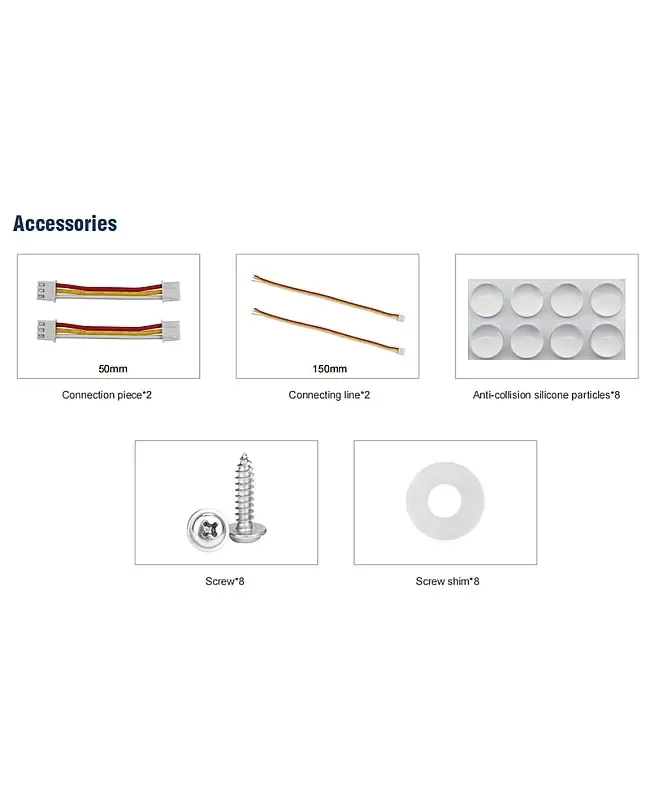

Includes

1 x Dual white LED lights sheet

2 x connectin cables

2 x input cables

4 / 8 x Anti-collision silicone particles
