Product details

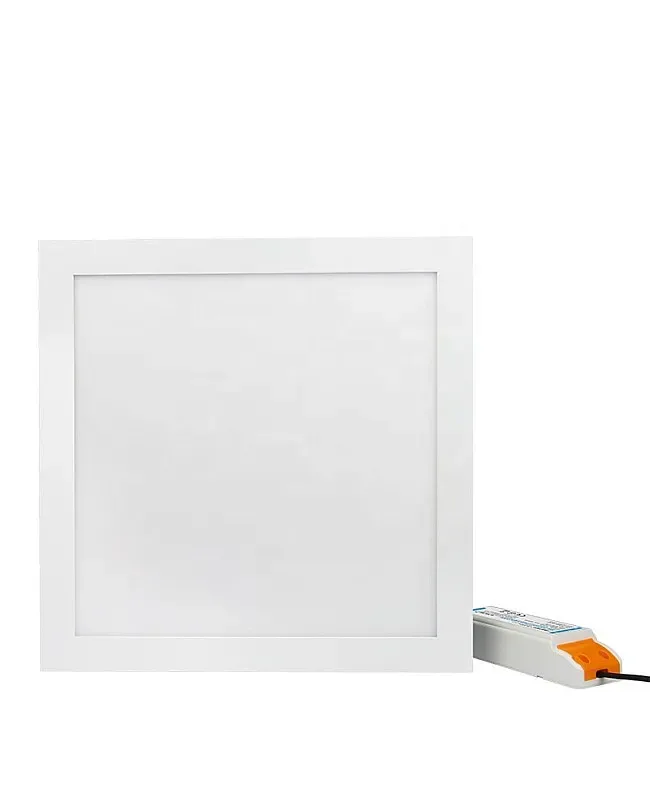

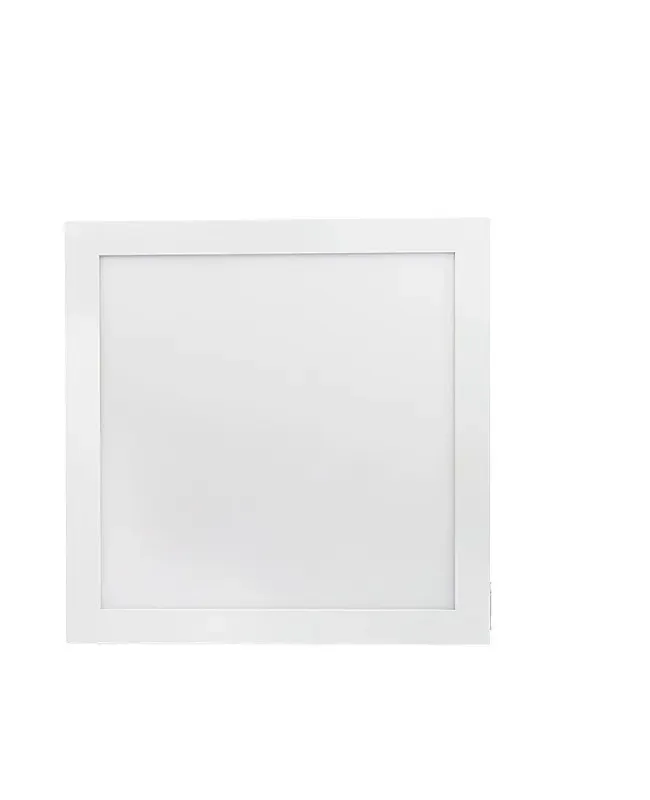

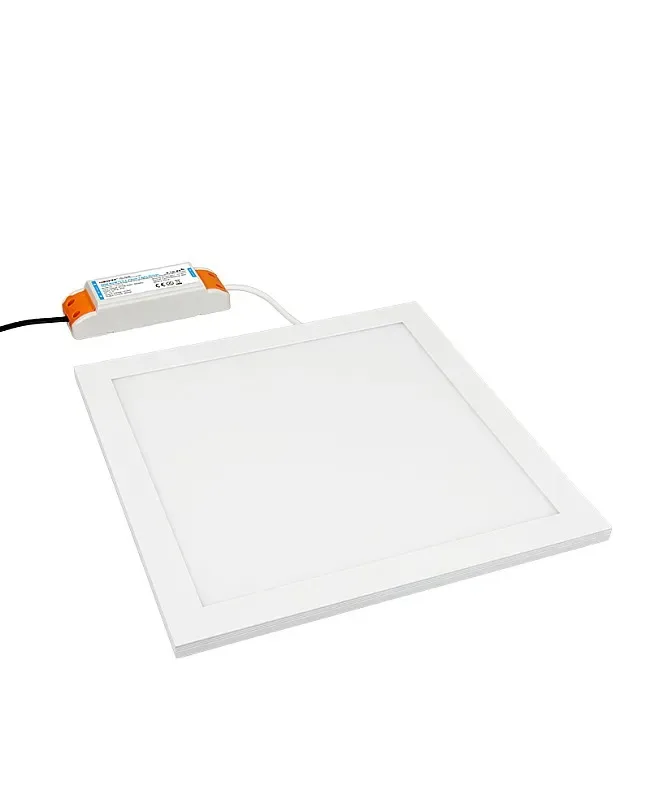

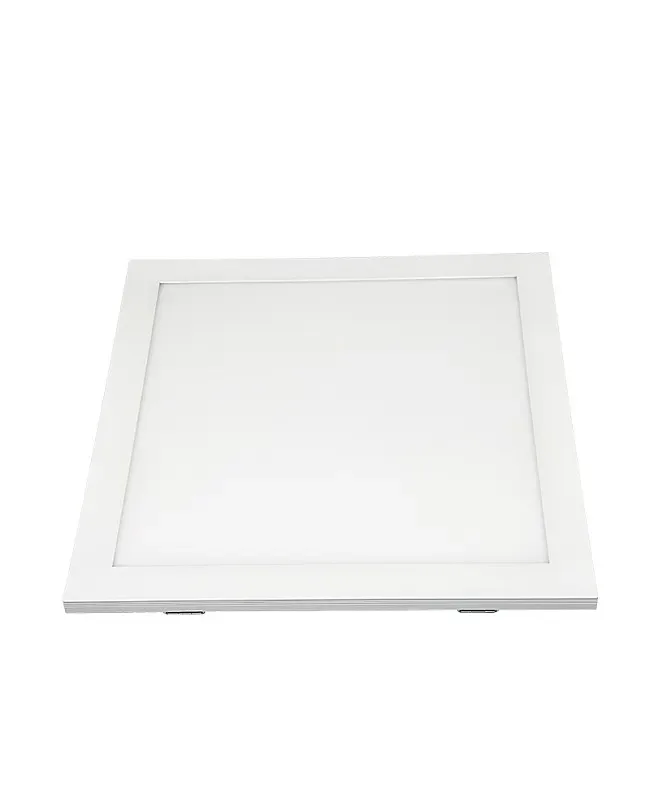

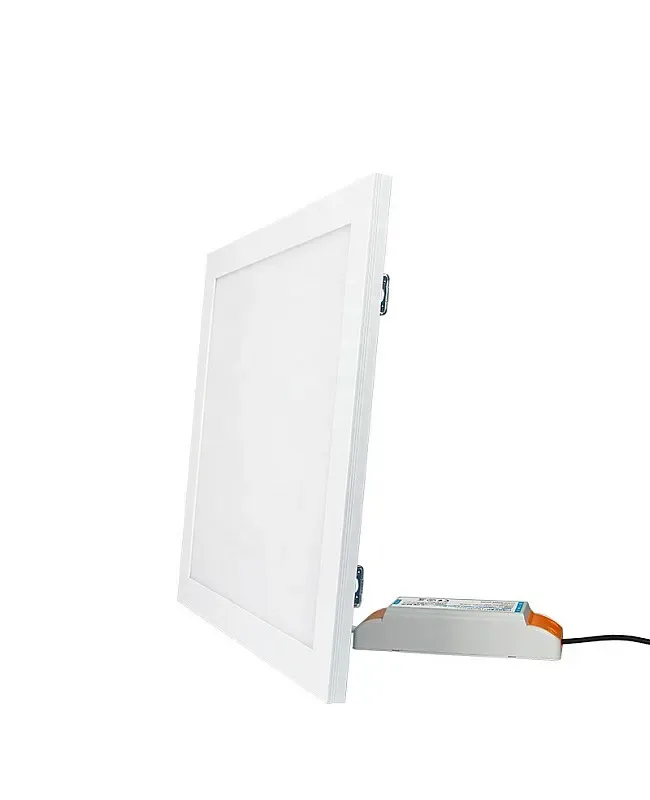

20W RGBWW Flat Panel LED Lights
LumaCircuit offers 20W RGBWW Flat Panel LED Lights as a configurable panel light for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. wireless controller User Manual Material: Aluminum Alloy + LGP + Diffuser Plate Size: 295*296*12mm(L*W*H) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller 20W flat panel LED light has a fully sealed design and aluminum alloy frame for damp proofing and anti-mosquito. It comes with a constant current & voltage driver, without flickering, and uses high-quality LEDs as a light source, bright and with no dark areas. 2.4 G RF remote controls can control the LED panel lights. After pairing with a 2.4G gateway, a smartphone APP and third-party voice can be controlled, including Amazon Alexa and Google Assistant.
- wireless controller User Manual
- Material: Aluminum Alloy + LGP + Diffuser Plate
- Size: 295*296*12mm(L*W*H)
- Working Voltage: -240V, 50/60Hz
- Emitting Color: RGB + CCT
- Color Temperature: 2700 K- 6500 K
- 16 Million Colors Available, Saturation, Brightness, And CCT Adjustable
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-PNL-EAF5FL
- Material: Aluminum Alloy + LGP + Diffuser Plate
- Size: 295*296*12mm(L*W*H)
- Working Voltage: -240V, 50/60Hz
- Power: 20W
- Emitting Color: RGB + CCT
- Color Temperature: 2700 K- 6500 K
- CRI: >
- Beam Angle: 160°
- 2.4G RF Remote Control: T4, T3,
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

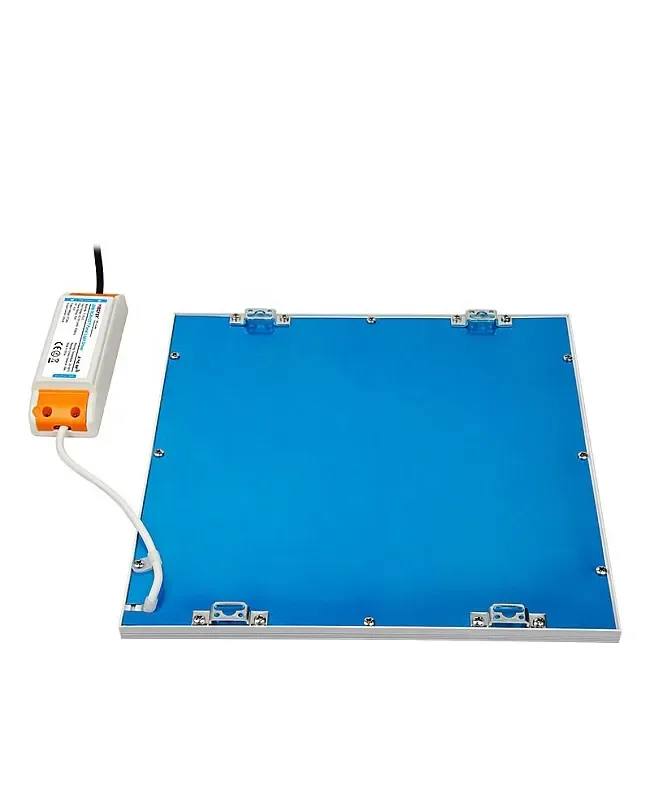

The wireless controller 20W flat panel LED light has a fully sealed design and aluminum alloy frame for damp proofing and anti-mosquito. It comes with a constant current & voltage driver, without flickering, and uses high-quality LEDs as a light source, bright and with no dark areas. 2.4 G RF remote controls can control the LED panel lights. After pairing with a 2.4G gateway, a smartphone APP and third-party voice can be controlled, including Amazon Alexa and Google Assistant. There are 16 million colors and 9 dynamic modes available, and the installer can adjust the brightness, color temperature, and saturation for the static colors or adjust the color-changing speed for the dynamic modes for various scenes. Good light for schools, hospitals, offices, hotels, restaurants, retail, etc. One flat panel light will receive the remote control signals and transmit them to other flat panel lights within 30 meters. All of them will work synchronously when they start work.
Quick Links
wireless controller User Manual
Specifications
Model
Material: Aluminum Alloy + LGP + Diffuser Plate
Size: 295*296*12mm(L*W*H)
Working Voltage: -240V, 50/60Hz
Power: 20W
Emitting Color: RGB + CCT
Color Temperature: 2700 K- 6500 K
16 Million Colors Available, Saturation, Brightness, And CCT Adjustable
9 Dynamic Modes And Color-Changing Speed Adjustable
Luminous Flux: 1400LM
Light Efficiency: 70LM/W
CRI: >
Beam Angle: 160°
4G RF Remote Control T4, T3,
Smartphone APP Control: Need WiFi iBox or 2.4G Gateway)
Support Third-Party Voice Control: Amazon Alexa And Google Assistant(2.4G Gateway Needed)
Remote Control Distance: <30m
Auto-Transmitting And Auto-Synchronization
Working Temperature: -20℃-+60℃
Includes
1 * RGBWW Flat Panel LED Light
Product resources
Technical documents
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
