Flexible LED Sheet Panels White Dimmable DC24V

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

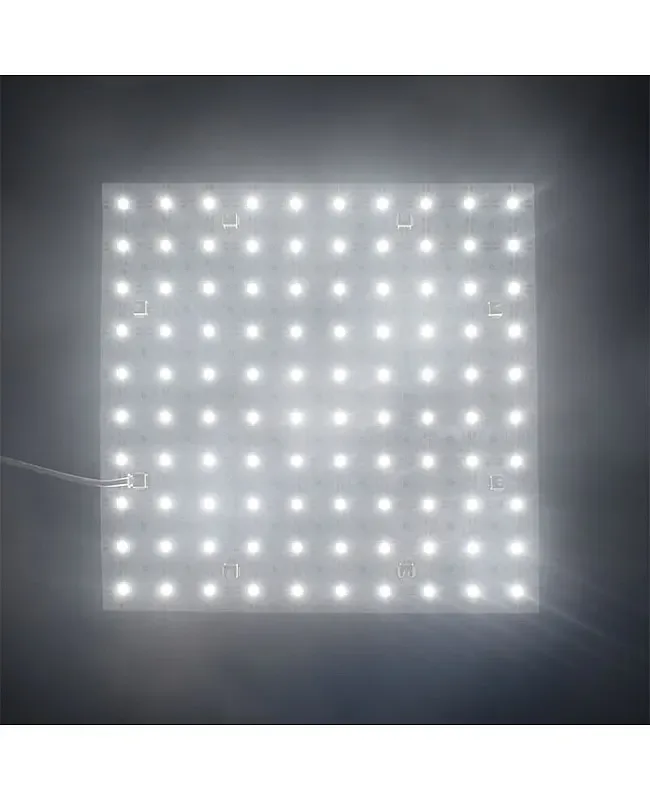

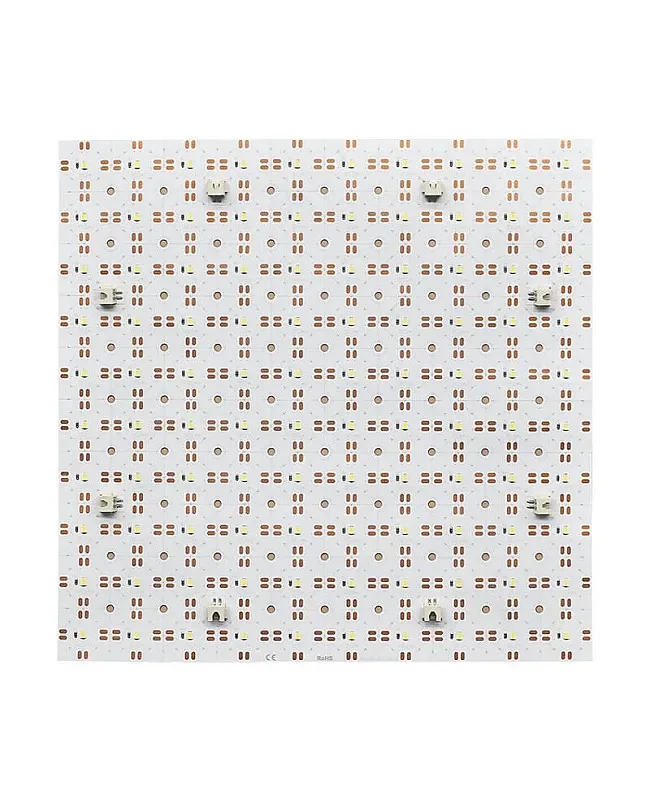

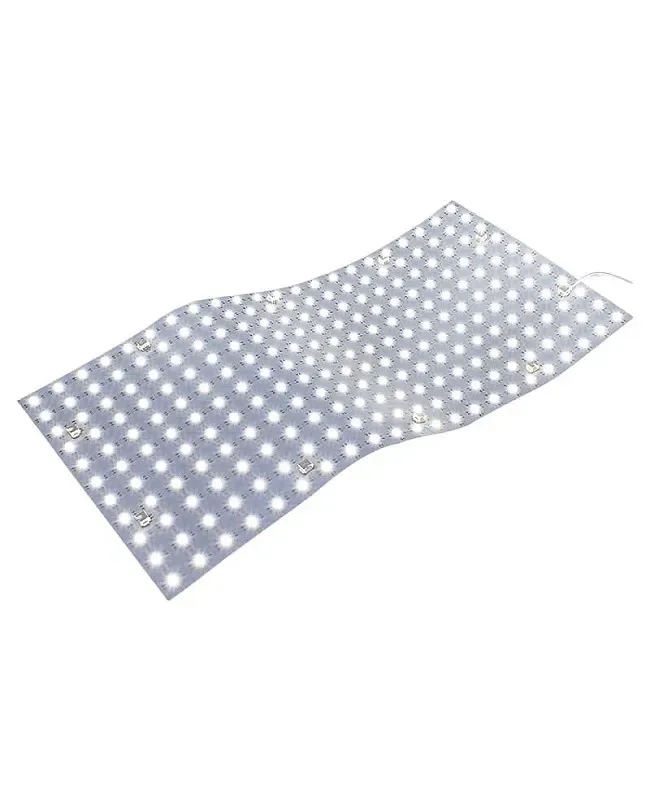

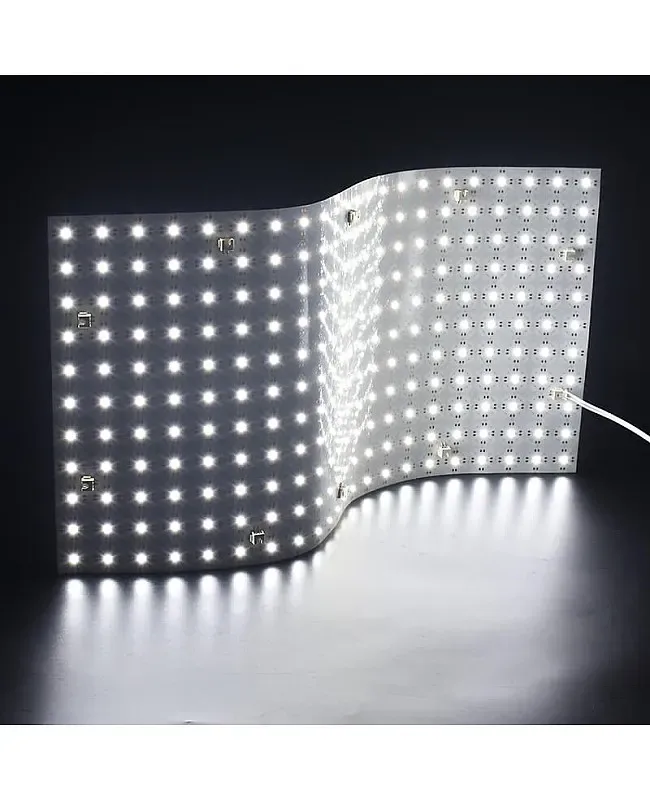

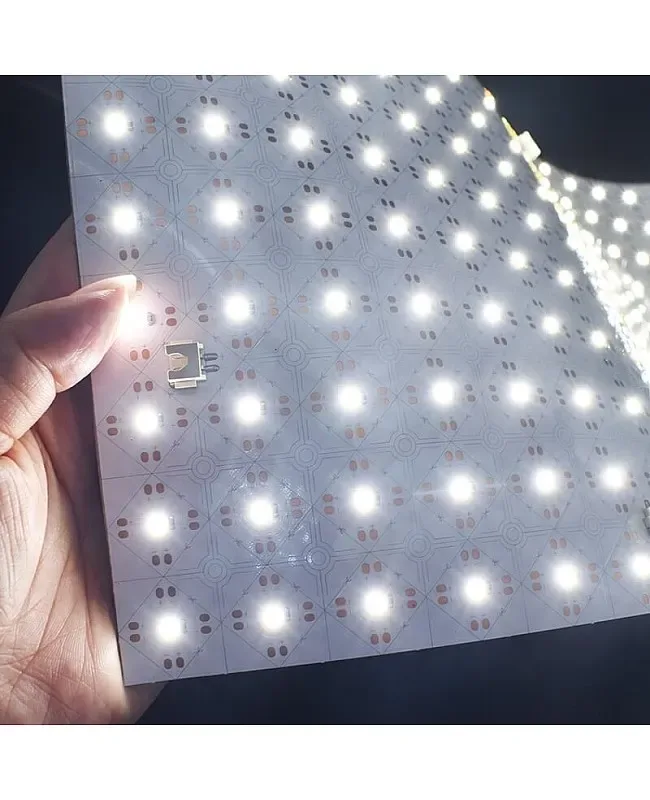

• The LED sheet panels are built with a matrix of high-density 2835 SMD LEDs on an ultra-thin, lightweight, bendable PCB board and will deliver a consistent, bright, uniform single-color light output across the entire sheet. They can be widely used as backlighting for translucent countertops made of quartz, onyx, agate, marble, and other stone.

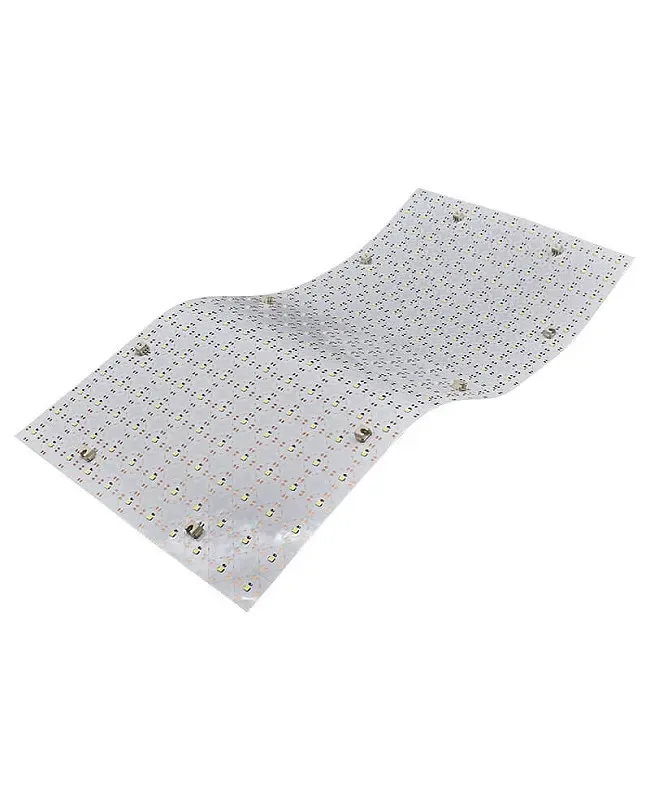

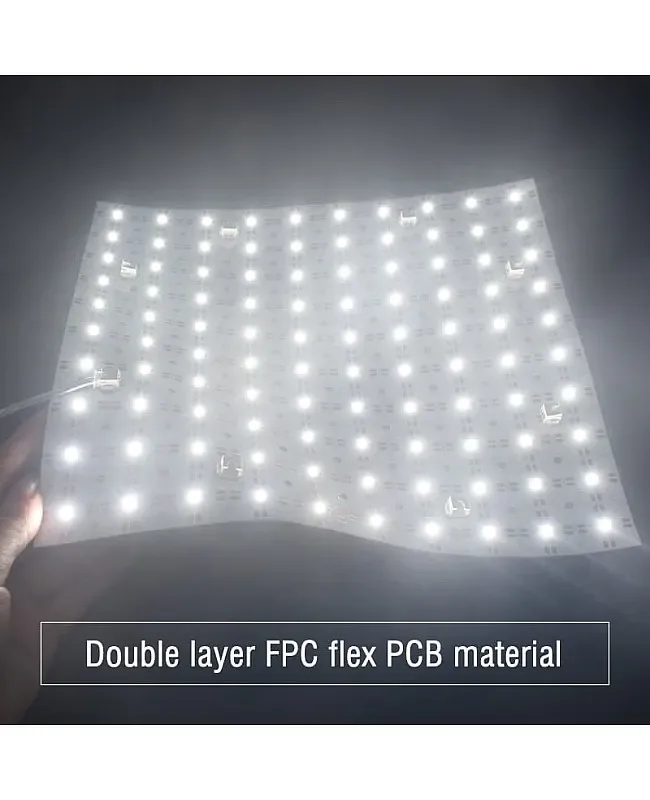

• Two sizes of cuttable light sheets are available: 250 mm x 250 mm and 490 mm x 245 mm. They use high-quality 2835 SMD LEDs as the light source, arranged on a dual-layer PCB to ensure flexibility and bendability, with no voltage drop, providing bright, uniform illumination.

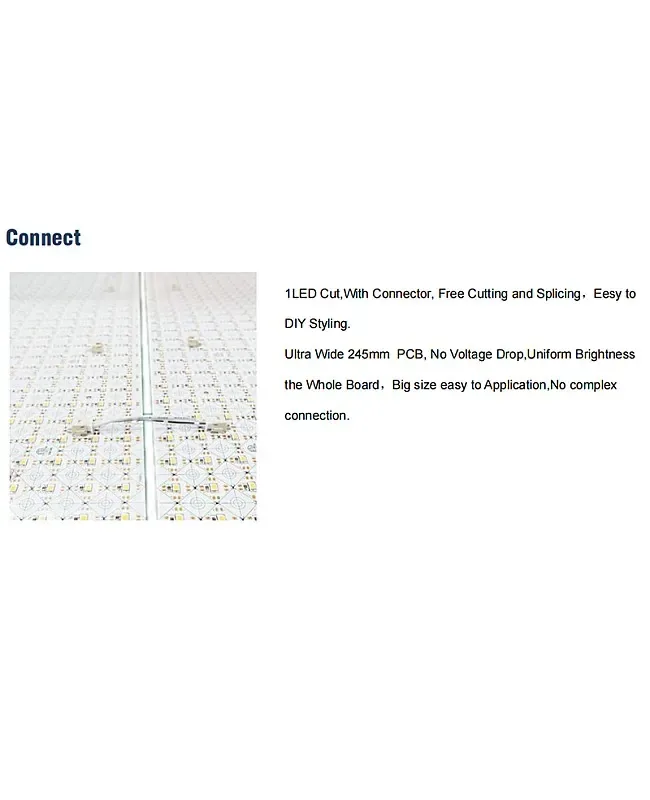

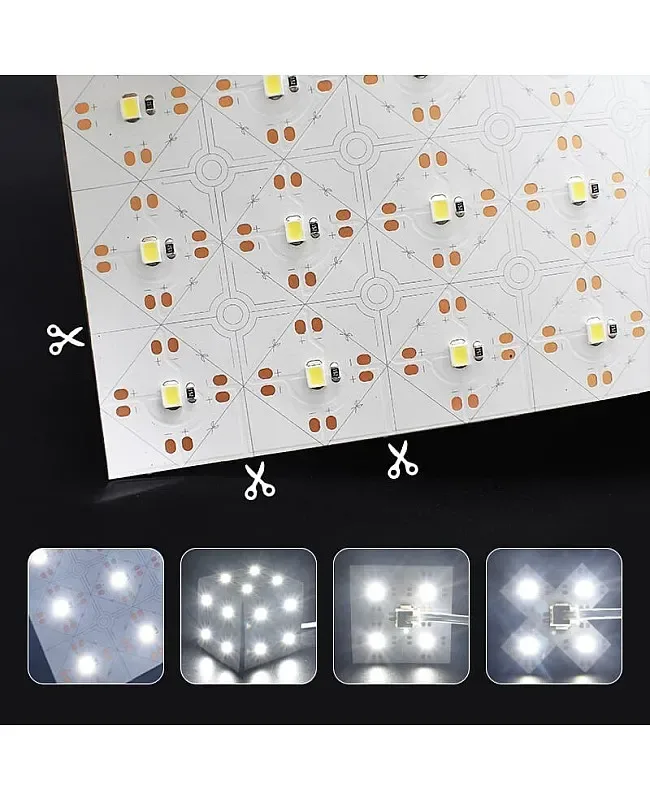

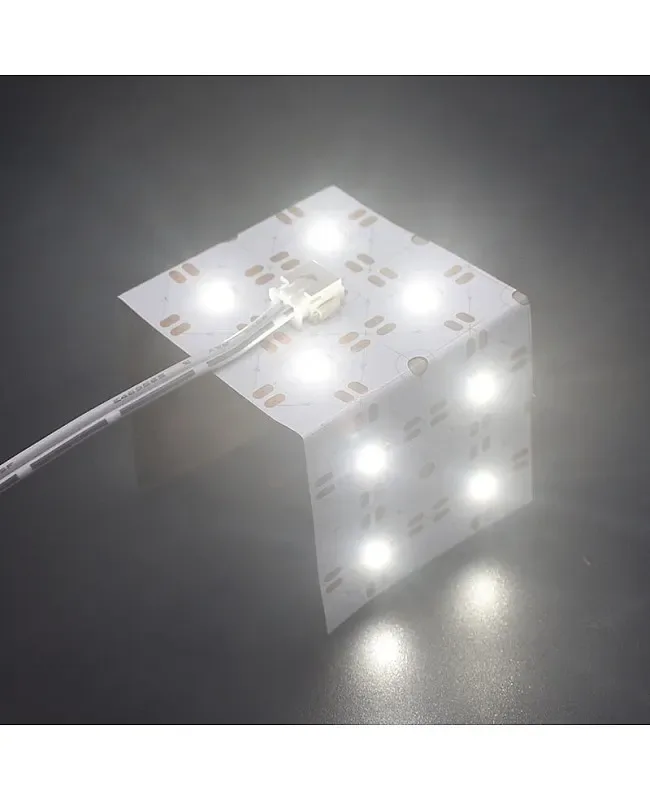

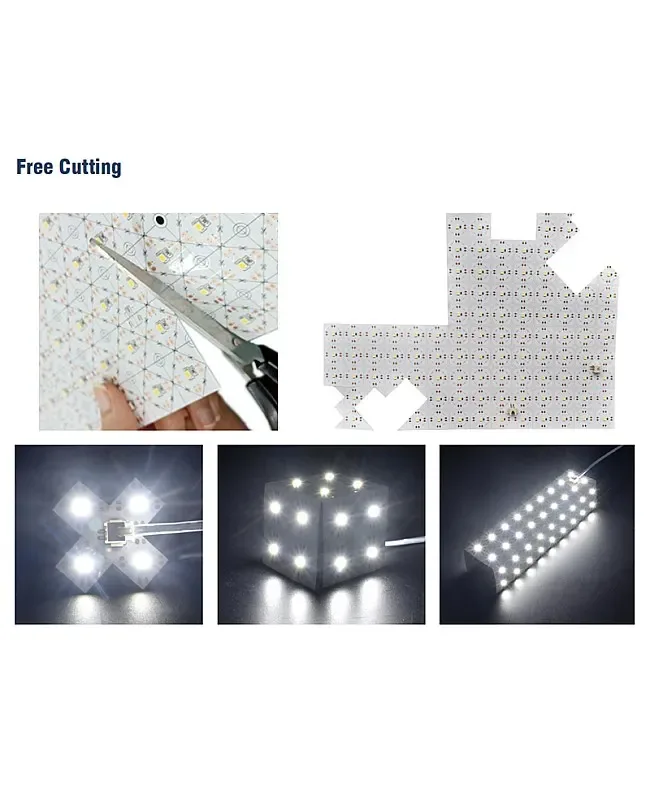

• There are trim lines on the panel sheet, allowing you to cut, bend, or shape for your projects or DIY work. The backlight sheets feature multiple power connectors, enabling you to connect multiple sheets for larger projects. They have screw holes, and the back features double-sided adhesive tape, enabling quick and easy installation.
• The panel sheet is available in various colors: 3000 K warm white, 4000 K natural white, and 6000 K cool white. The LED mats can connect to a 24V dimming LED driver or light dimmer to adjust brightness.
• Link: Single color dimmable sheet light data sheet
• Type: Flexible SMD white light sheets
• Size( Length x Width ): 250 mm x 250 mm ( 9.84" x 9.84" ) 490 mm x 245 mm ( 19.29" x 9.65" ) ( LB-2835-242 )
• LED quantity: 100PCS/piece 242PCS/piece ( LB-2835-242 )

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 24 V
• Light engine: CCT
• Models: LB-2835-242
• Size( Length x Width ): 250 mm x 250 mm ( 9.84" x 9.84" ) 490 mm x 245 mm ( 19.29" x 9.65" ) ( LB-2835-242 )
• LED type: 2835 SMDs
• LED quantity: 100PCS/piece 242PCS/piece ( LB-2835-242 )
• Working voltage: DC 24V
• Power: 12W/piece / 28W/piece ( LB-2835-242 )
• Colors: 2700K warm white, 3000K warm white, 4000K natural white, 6000K cool white
• CRI: >

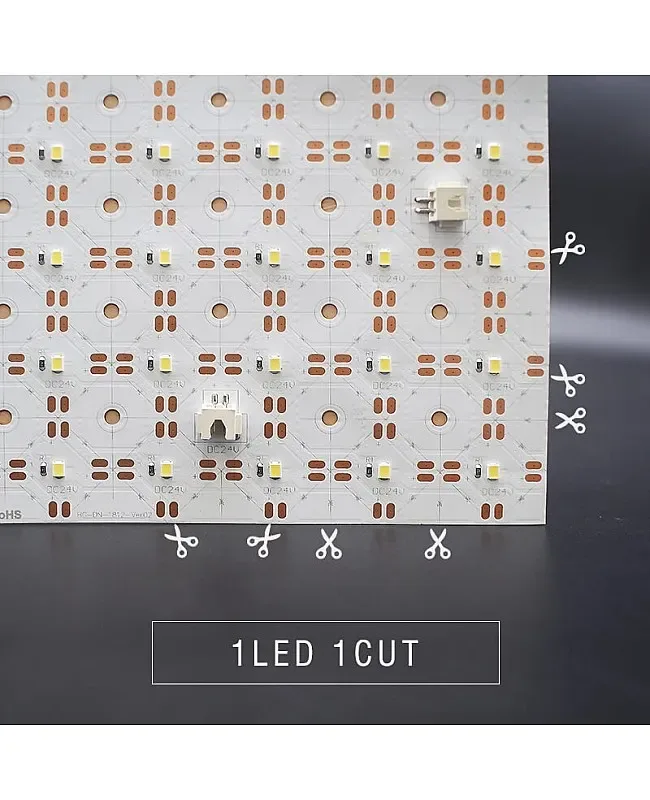

• Minimum cutting length: 25 mm x 25 mm ( 0.98" x 0.98" ); 22.3 mm x 22.3 mm ( 0.88" x 0.88" )( LB-2835-242 )
• Beam angle: 120°

Control and installation

Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.

Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

The LED sheet panels are built with a matrix of high-density 2835 SMD LEDs on an ultra-thin, lightweight, bendable PCB board and will deliver a consistent, bright, uniform single-color light output across the entire sheet. They can be widely used as backlighting for translucent countertops made of quartz, onyx, agate, marble, and other stone.

Two sizes of cuttable light sheets are available: 250 mm x 250 mm and 490 mm x 245 mm. They use high-quality 2835 SMD LEDs as the light source, arranged on a dual-layer PCB to ensure flexibility and bendability, with no voltage drop, providing bright, uniform illumination.

There are trim lines on the panel sheet, allowing you to cut, bend, or shape for your projects or DIY work. The backlight sheets feature multiple power connectors, enabling you to connect multiple sheets for larger projects. They have screw holes, and the back features double-sided adhesive tape, enabling quick and easy installation.

The panel sheet is available in various colors: 3000 K warm white, 4000 K natural white, and 6000 K cool white. The LED mats can connect to a 24V dimming LED driver or light dimmer to adjust brightness.

Link: Single color dimmable sheet light data sheet

Specifications

Type: Flexible SMD white light sheets

Models: LB-2835-242

Size( Length x Width ): 250 mm x 250 mm ( 9.84" x 9.84" ) 490 mm x 245 mm ( 19.29" x 9.65" ) ( LB-2835-242 )

LED type: 2835 SMDs

LED quantity: 100PCS/piece 242PCS/piece ( LB-2835-242 )

Working voltage: DC 24V

Power: 12W/piece / 28W/piece ( LB-2835-242 )

Colors: 2700K warm white, 3000K warm white, 4000K natural white, 6000K cool white

Luminous flux: 1200lm/m 2800lm/m ( LB-2835-242 )

CRI: >

Minimum cutting length: 25 mm x 25 mm ( 0.98" x 0.98" ); 22.3 mm x 22.3 mm ( 0.88" x 0.88" )( LB-2835-242 )

Dimmable: YES

The back has double-sided adhesive tape

Beam angle: 120°

Waterproof level: IP20 non-waterproof, IP54 waterproof

Storage temperature; -20℃ + 65℃ ( -4°F - 113°F )

Working temperature: -20℃ + 45℃ ( -4°F - 149°F )

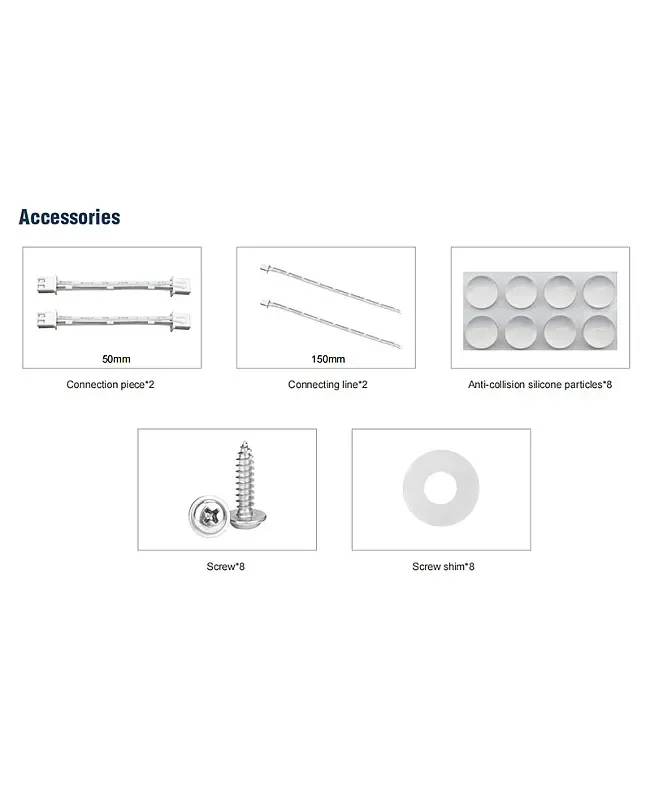

Includes

1 x LED light sheet panel

2 x connection pieces

2 x power connectors

4 / 8 x Anti-collision silicone particles
